Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

6 part groups · 3 illustrations

Illustrations

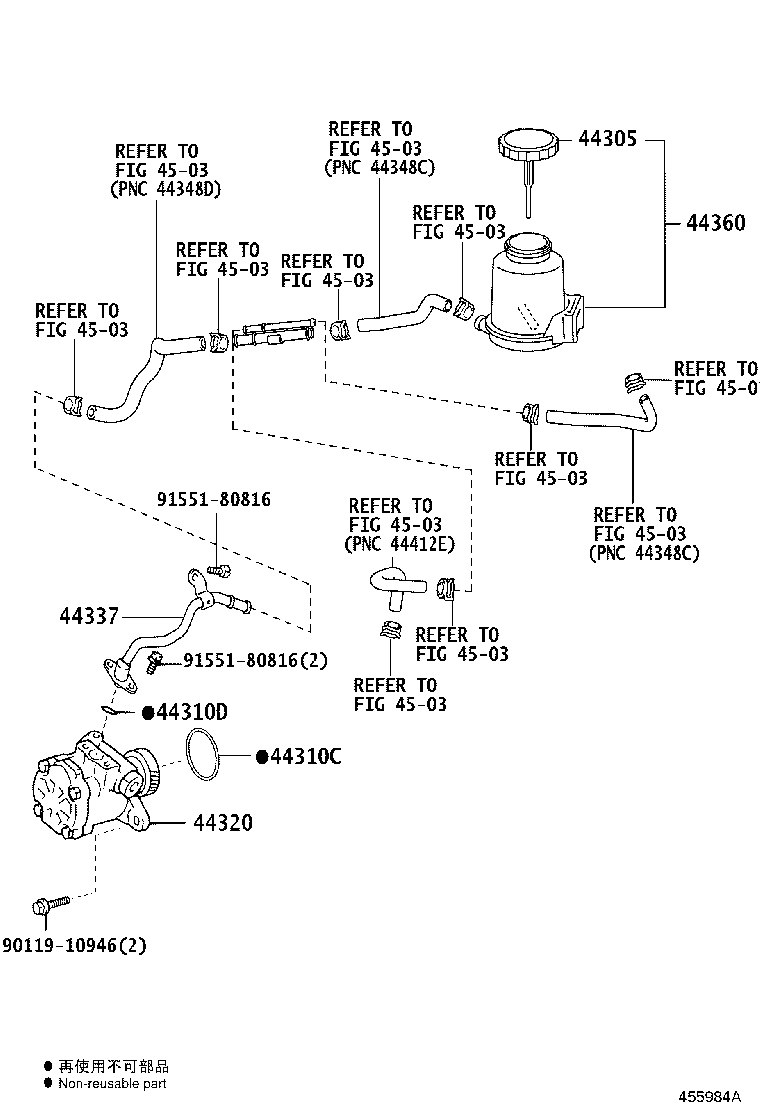

Figure 455986A 455986A 2011-07 → — Figure 455985A 455985A 2011-07 → — Figure 455984A 455984A 2011-07 → —

Part groups

PNCDescription
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44310C Ring, O(FOR VANE PUMP)
44310D Ring, O(FOR VANE PUMP UNION)
44320 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44360 Reservoir Assy, Vane Pump Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
