Power Steering Tube

27 part groups · 6 illustrations

Illustrations

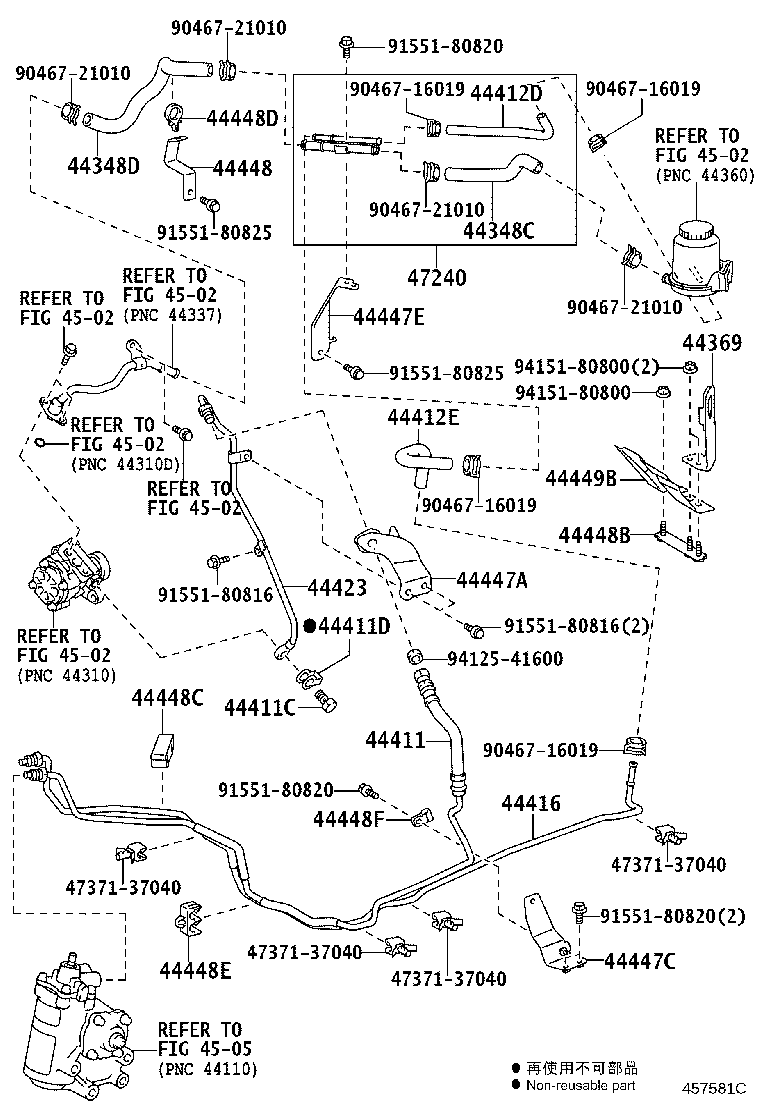

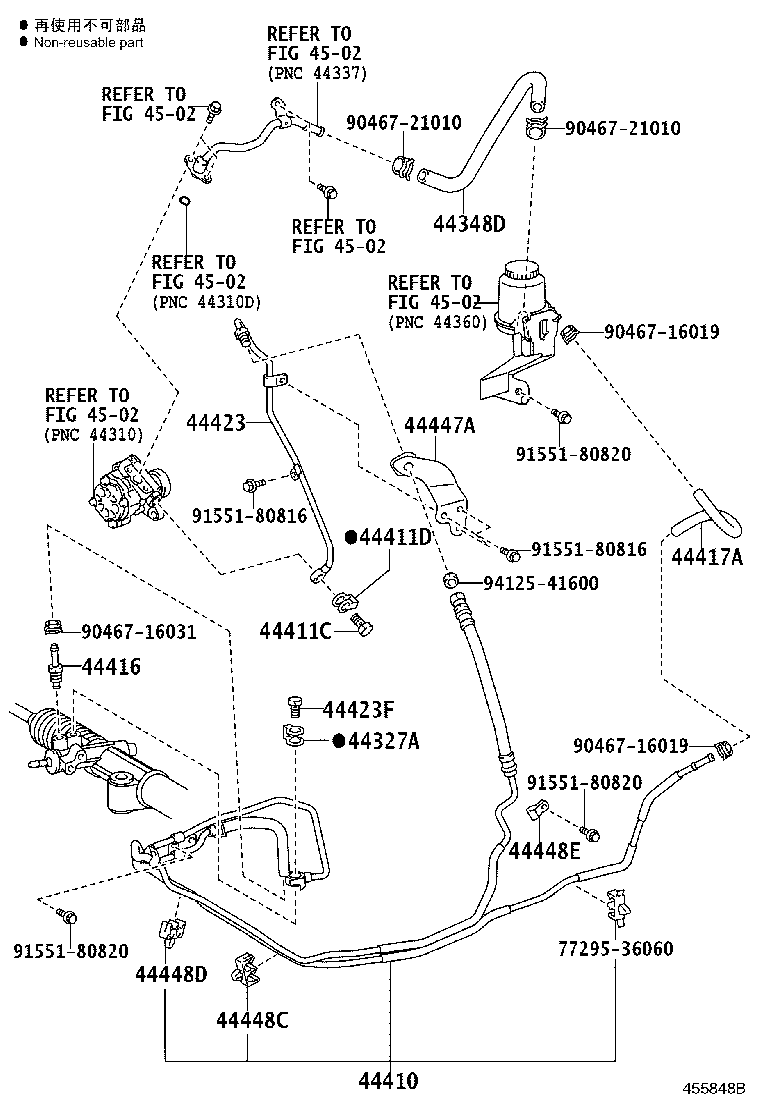

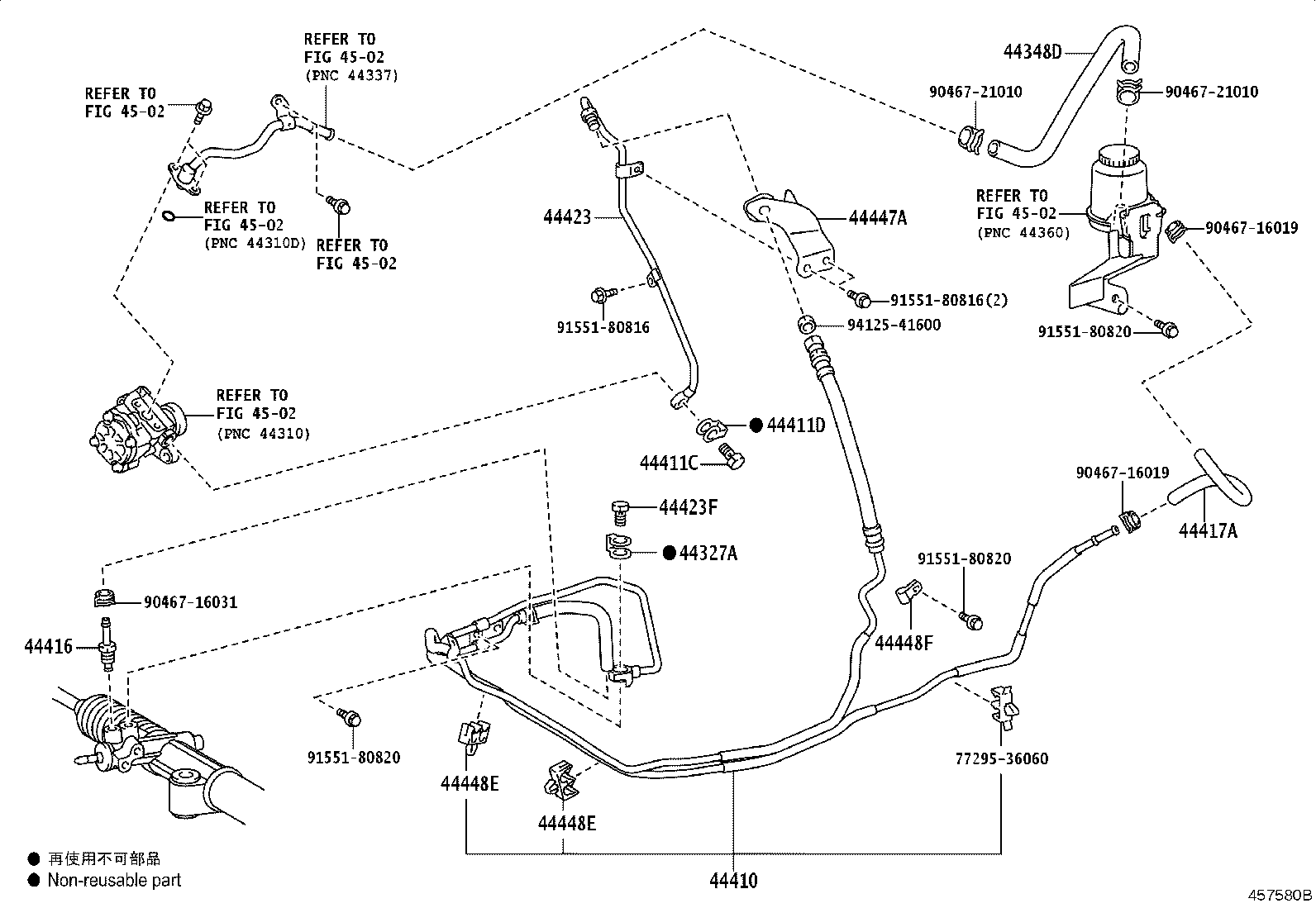

Figure 455850D 455850D 2011-07 → — Figure 457579A 457579A 2019-05 → — Figure 455848B 455848B 2011-08 → — Figure 457580B 457580B 2019-05 → — Figure 455849E 455849E 2011-08 → — Figure 457581C 457581C 2019-05 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348C Hose, Oil Reservoir TO Pump, NO.1
44348D Hose, Oil Reservoir TO Pump, NO.2
44369 Bracket, Oil Reservoir, NO.1
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44417A Hose, Return Tube (FOR RETURN TUBE TO RETURN TUBE NO.2)
44423 Tube, Oil Pump TO Gear Box
44423F Bolt, Union
44447A Bracket, Hose Support, NO.1
44447C Bracket, Hose Support NO.2
44447E Bracket, Hose Support NO.3
44447F Bracket, Hose Support NO.4
44448 Bracket, Pressure Feed Hose Support, NO.1
44448B Bracket, Hose Support, NO.2
44448C Clamp, Pressure Feed, NO.2
44448D Clamp, Pressure Feed, NO.1
44448E Clamp, Pressure Feed, NO.3
44448F Clamp, Pressure Feed, NO.4
44449B Bracket, Hose Support, NO.3
47240 Hose Assy, Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
