Toyota Dyna/Toyoace
2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan
Supported model
Data version 2022-07

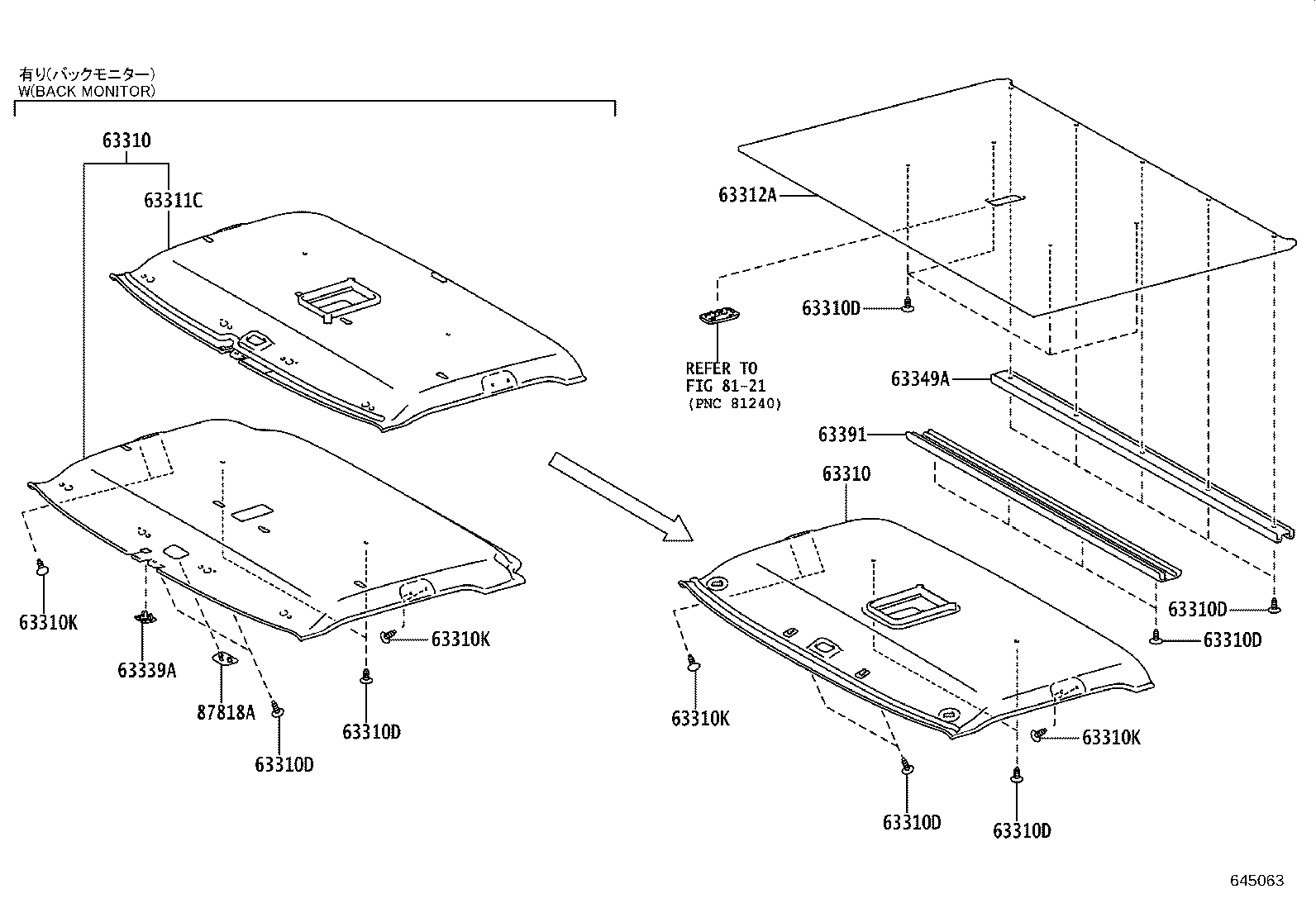

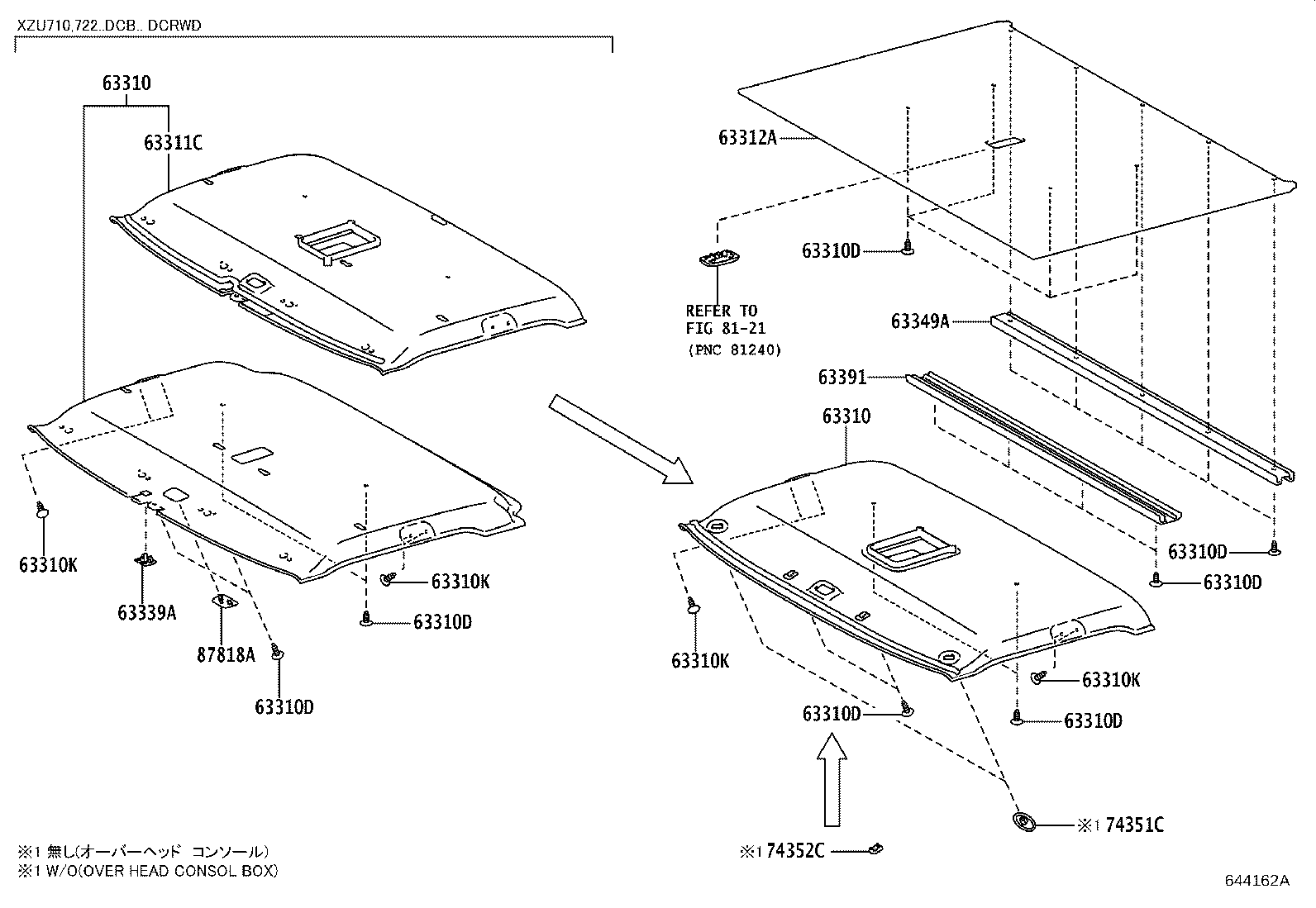

Roof Headlining & Silencer Pad
13 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 63183C | Bracket, Roof Console, Front |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310K | Clip |
| 63311C | Headlining, Roof |
| 63312A | Headlining, Roof, NO.2 |
| 63339A | Cover, Roof Headlining Service Hole |
| 63349A | Garnish, Roof Headlining, Rear |
| 63391 | Trim, Roof Headlining, Front |
| 63651C | Box, Roof Console |
| 74351C | Cover, Roof Console, NO.1 |
| 74352C | Cover, Roof Console, NO.2 |
| 87818A | Cover, Inner Rear View Mirror Hole |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
