Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

54 part groups · 32 illustrations

Illustrations

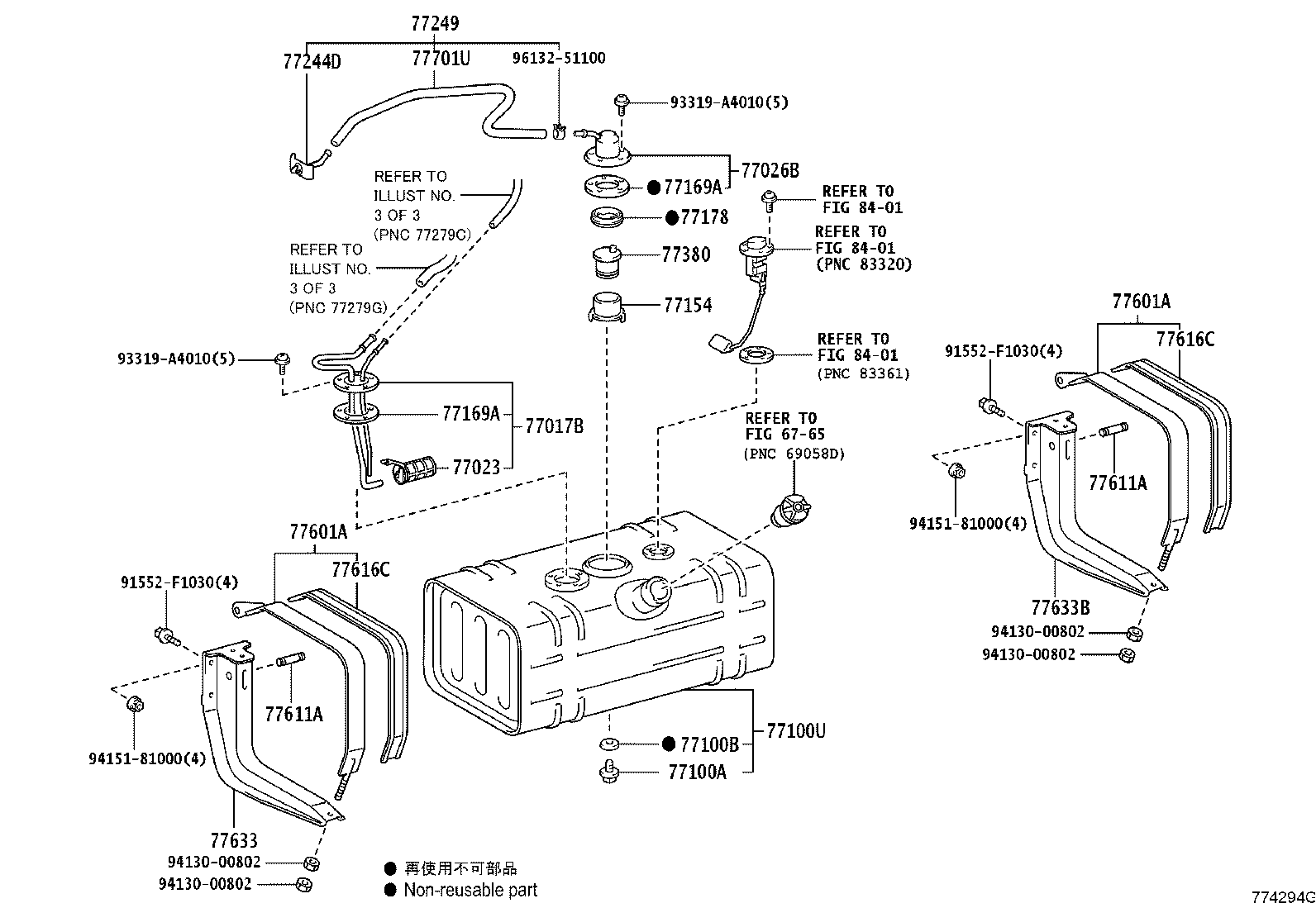

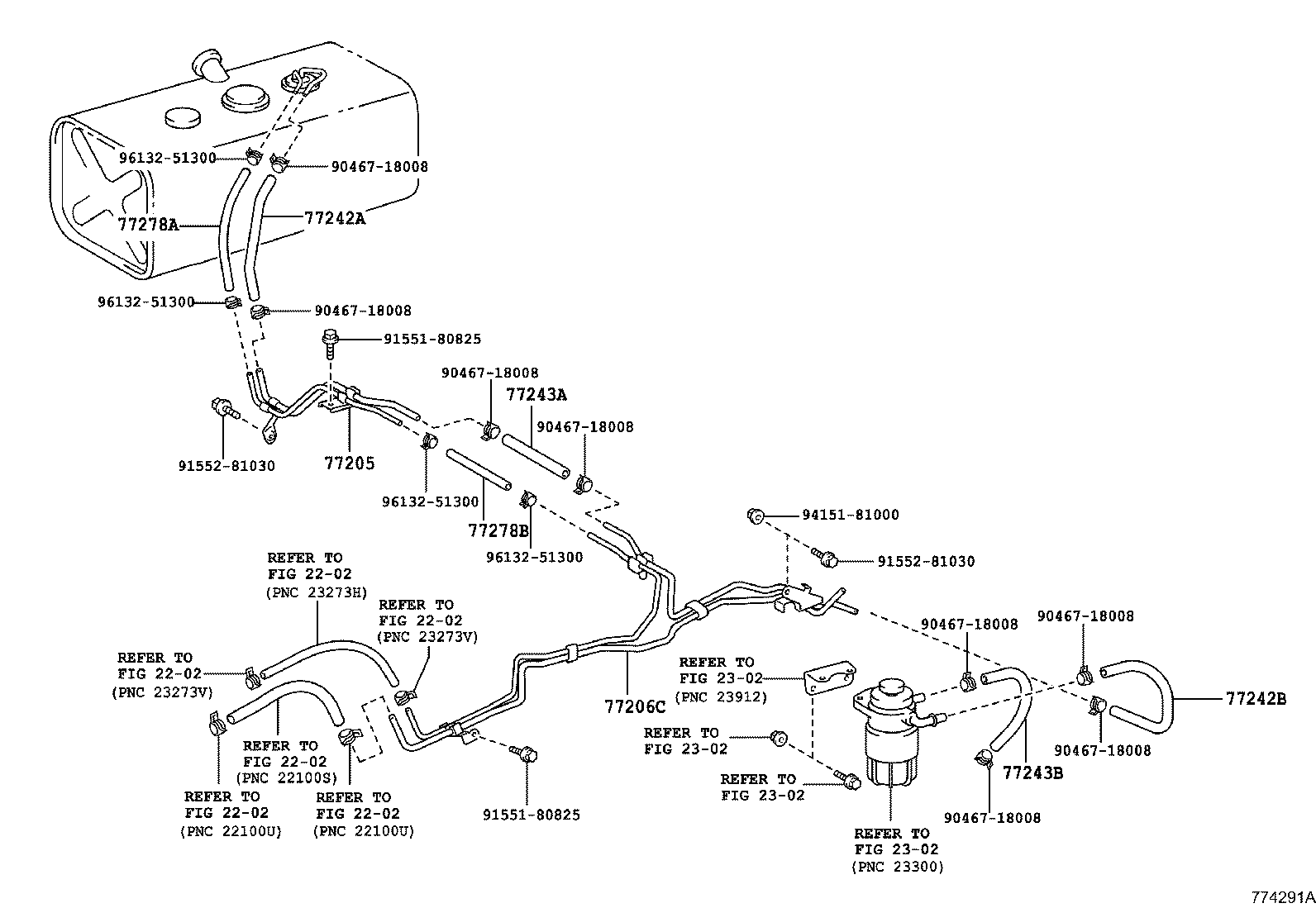

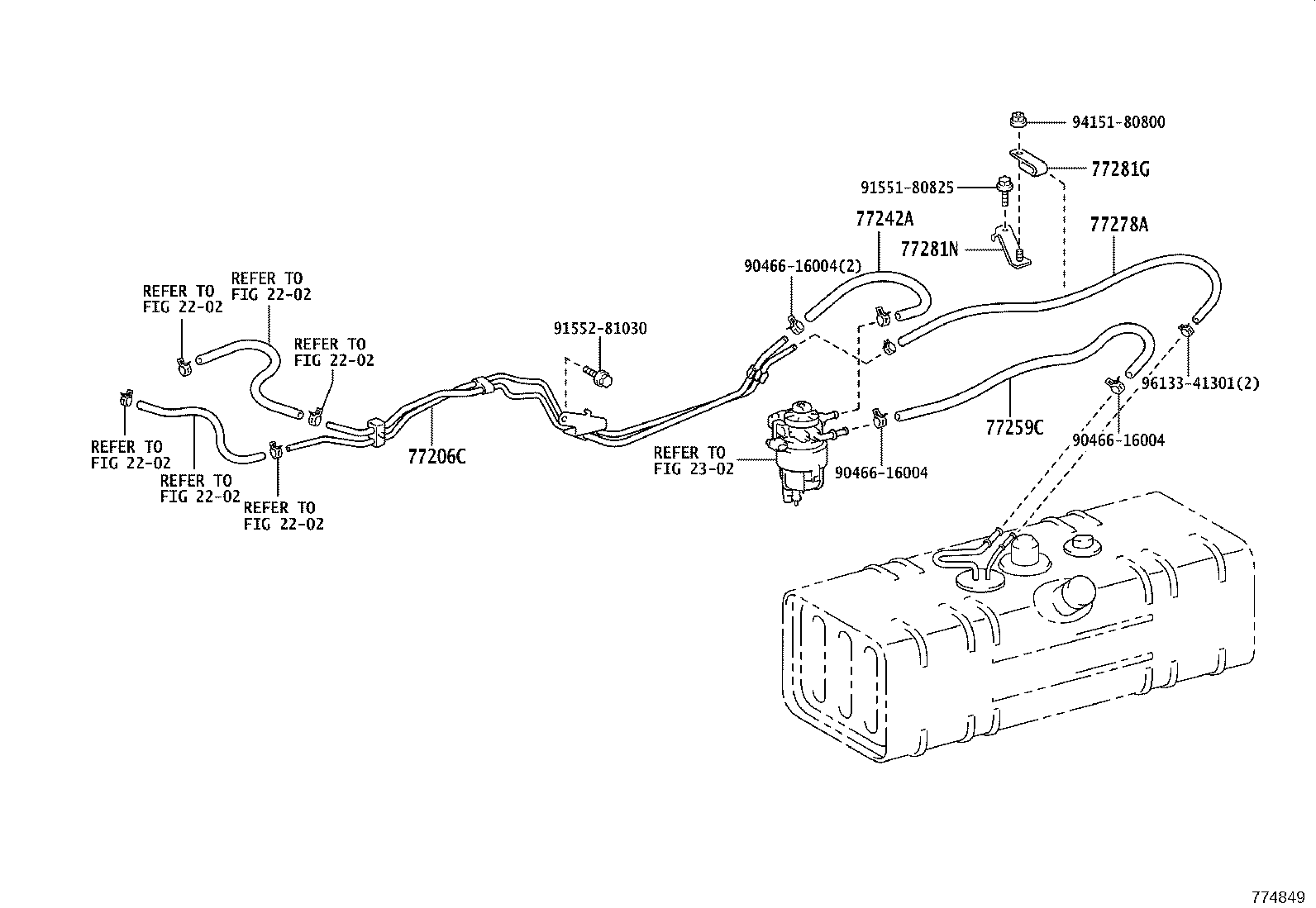

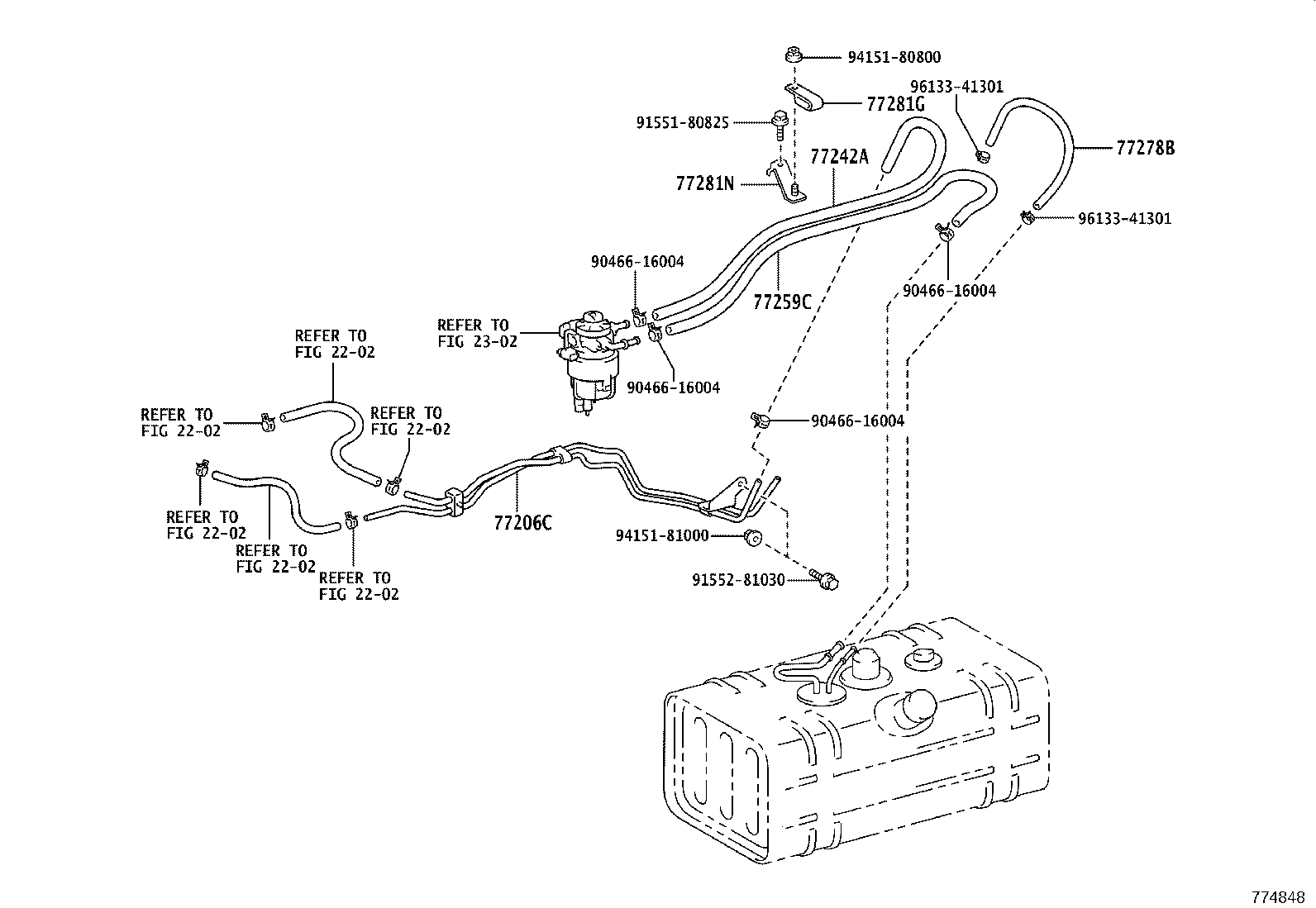

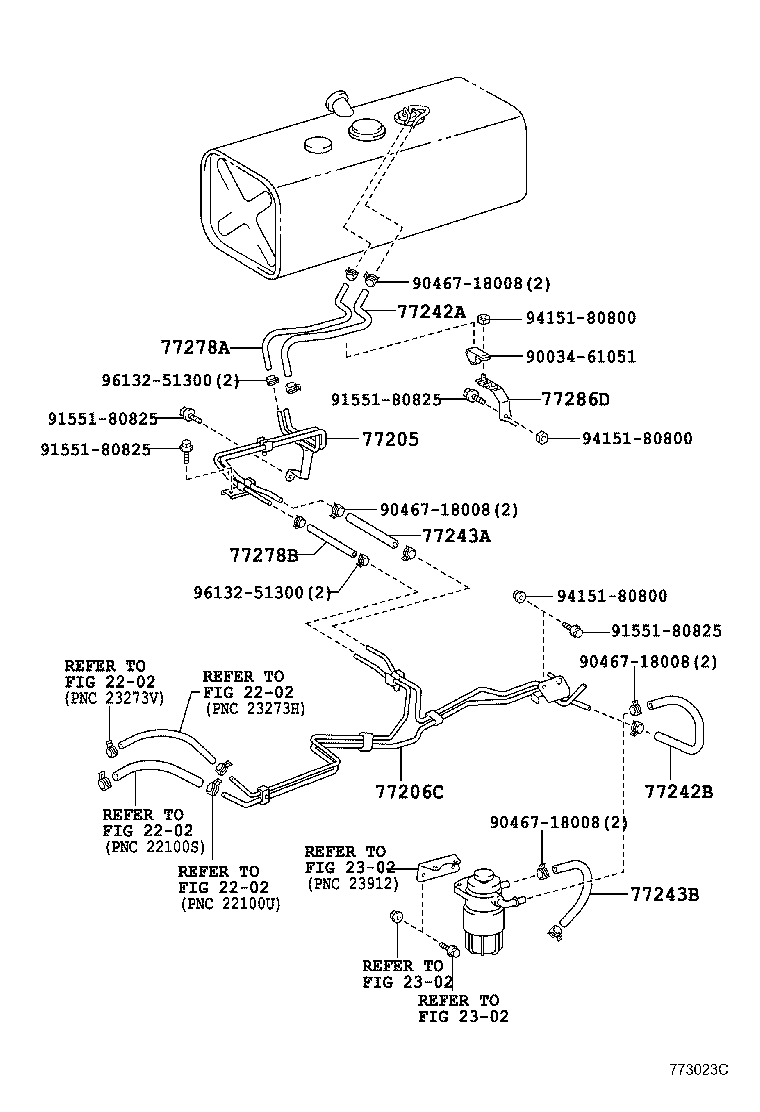

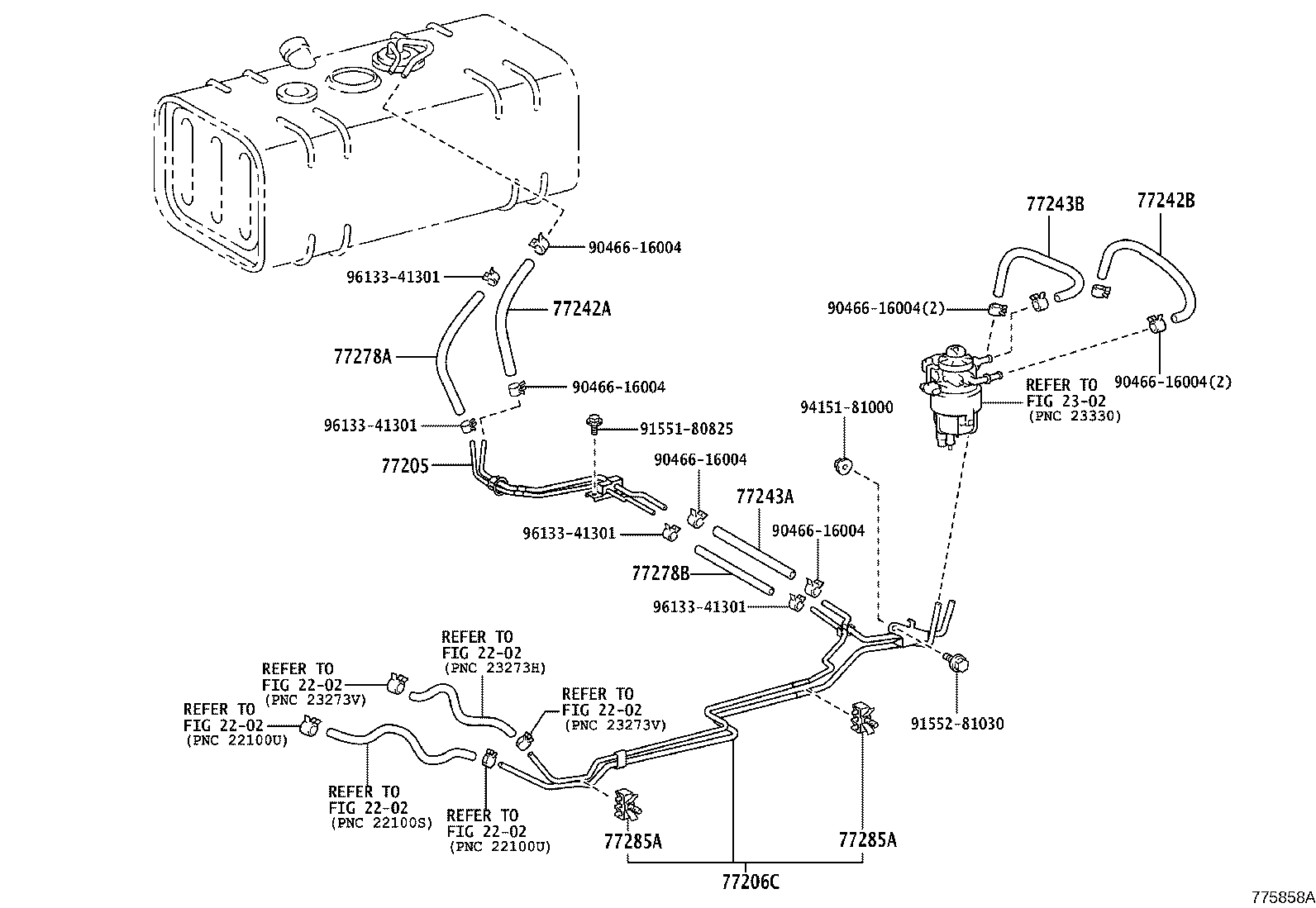

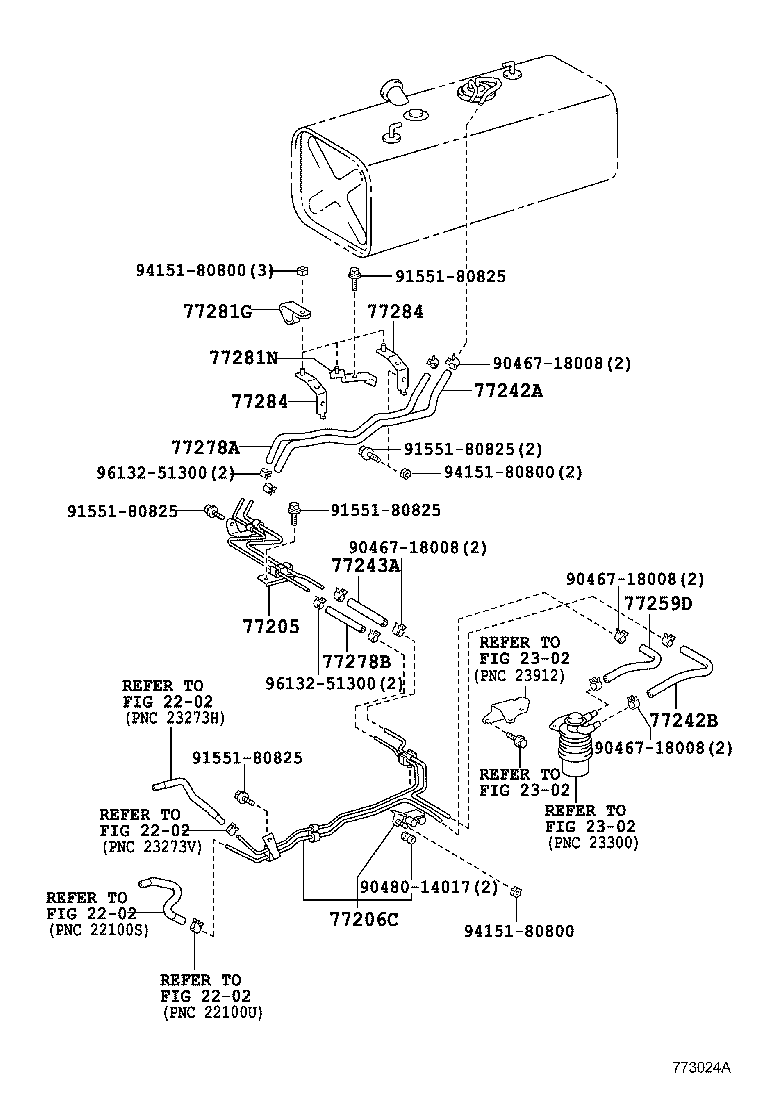

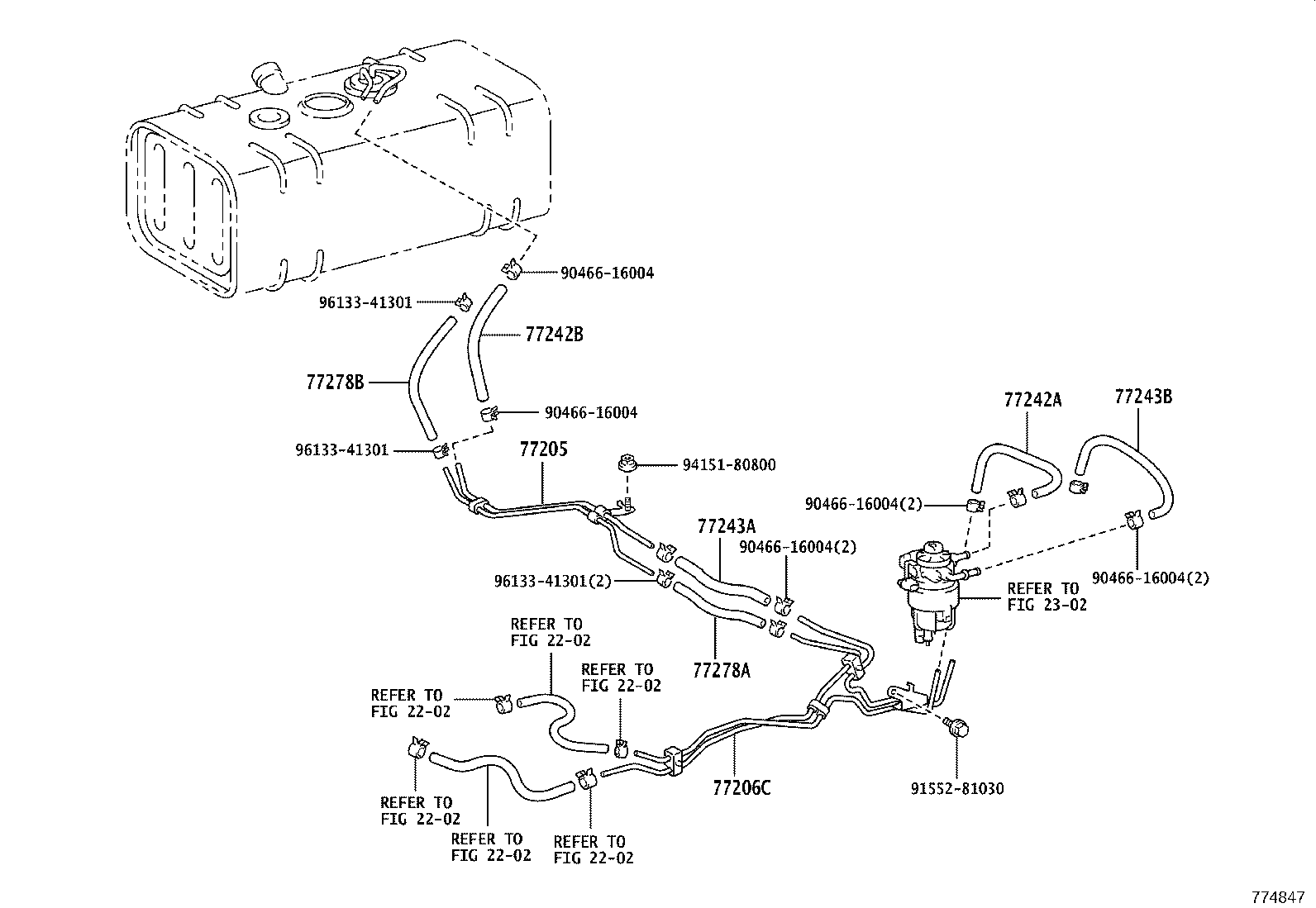

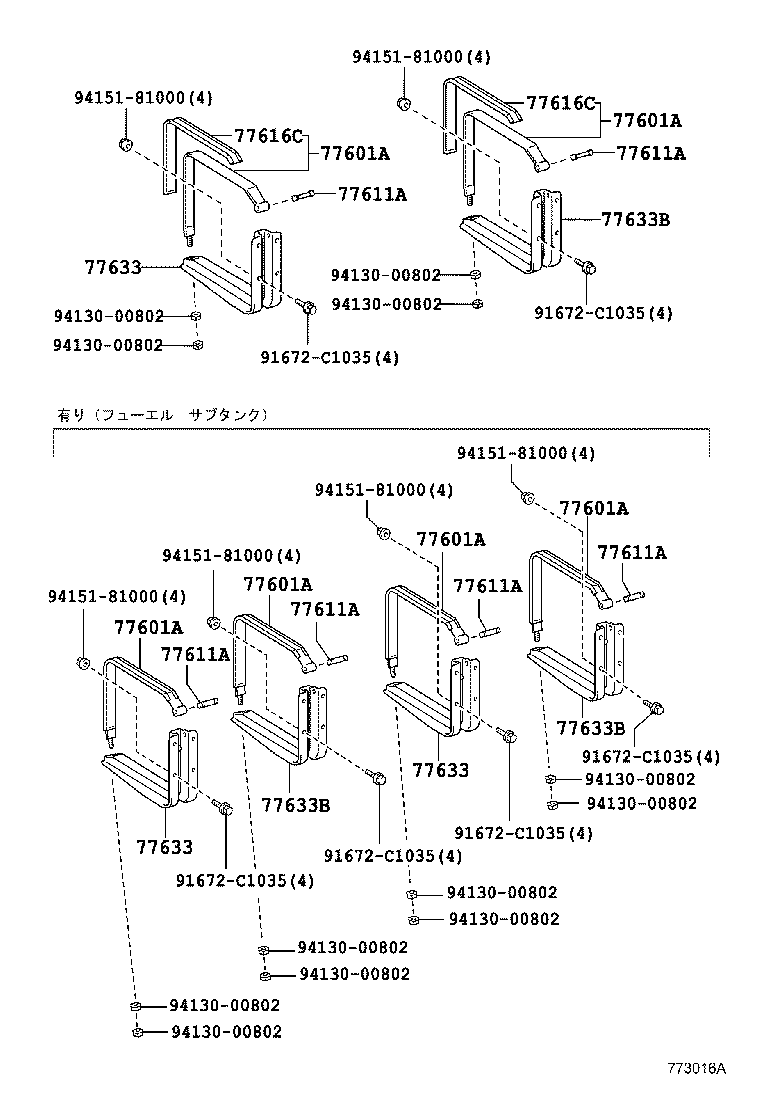

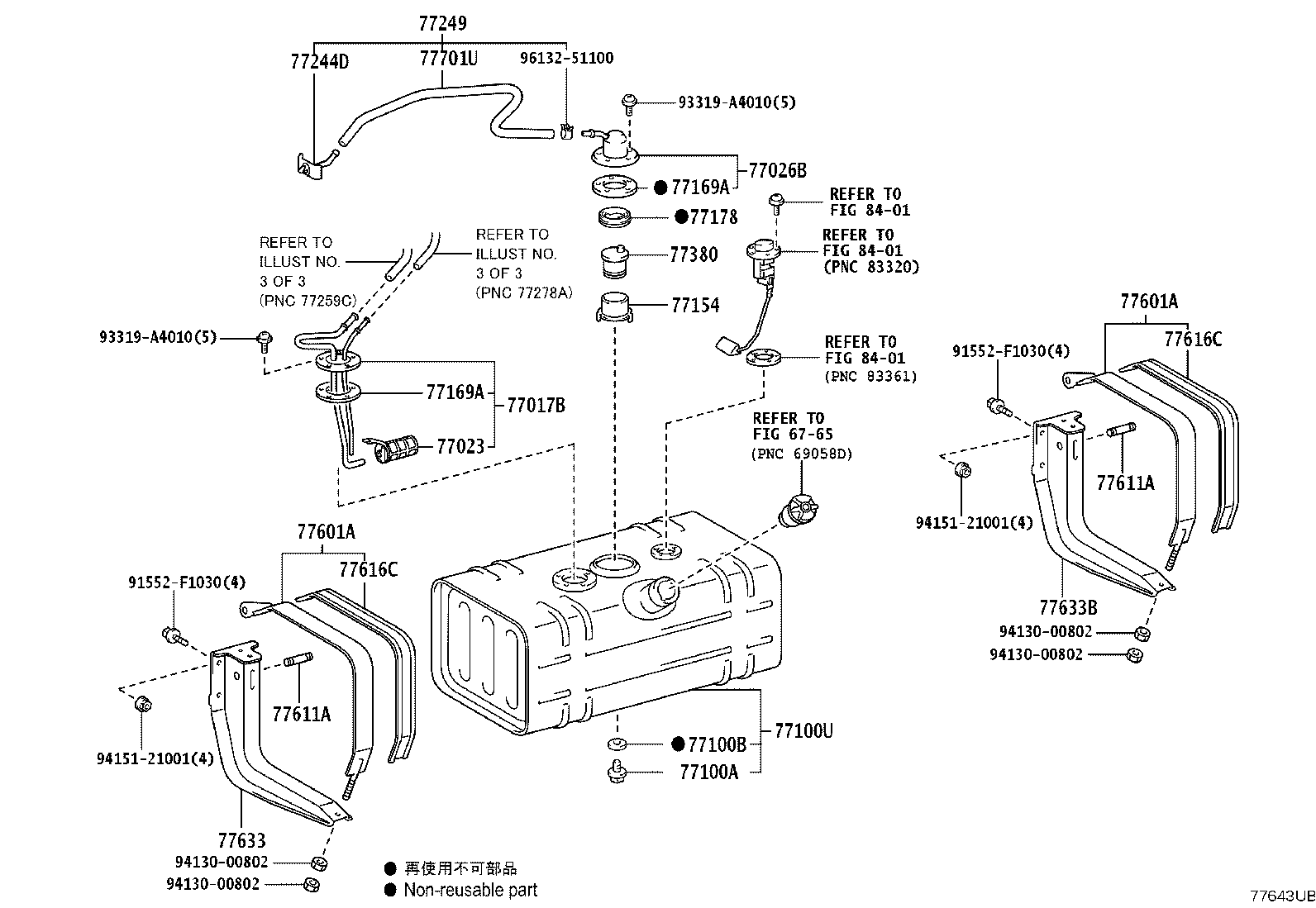

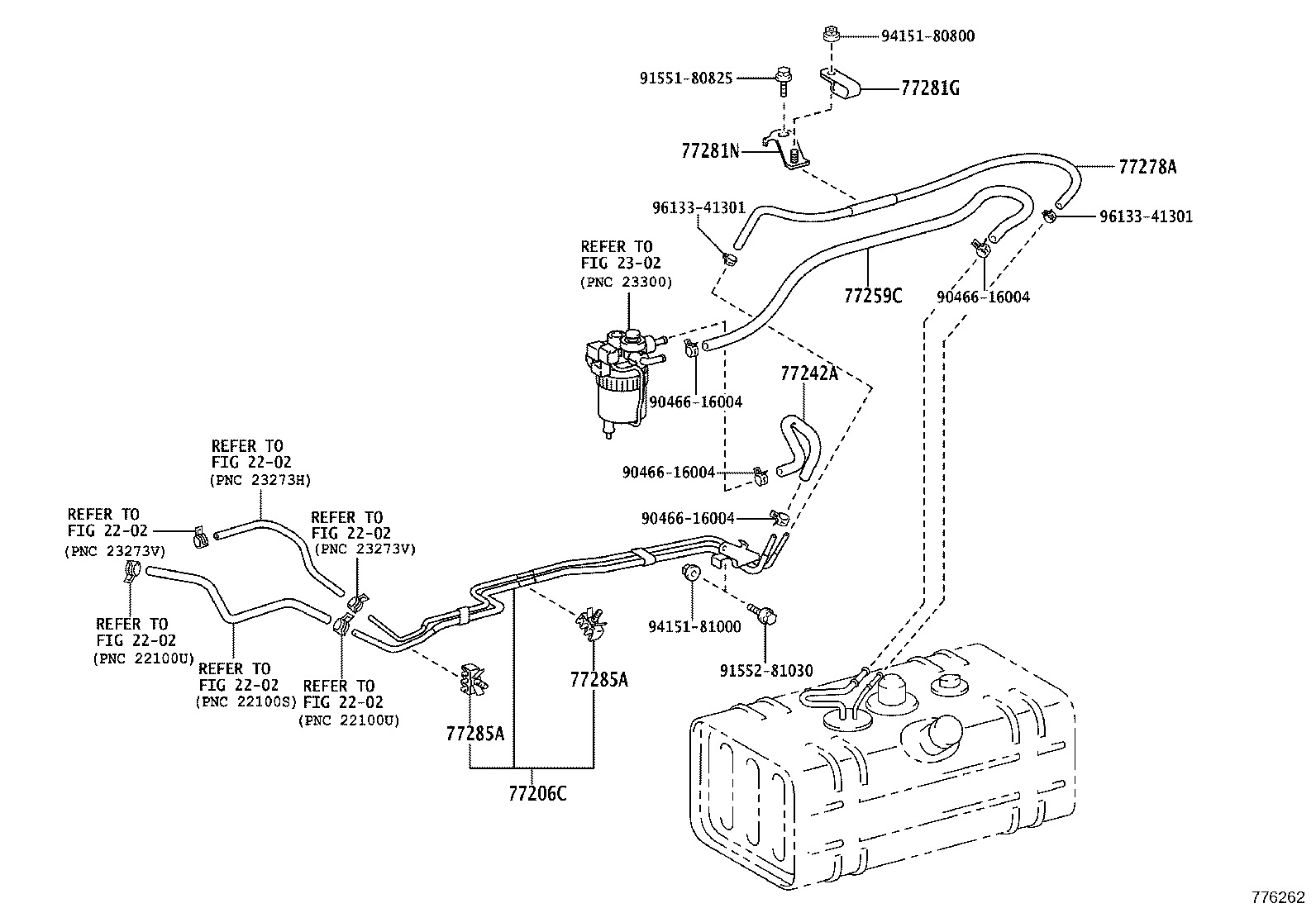

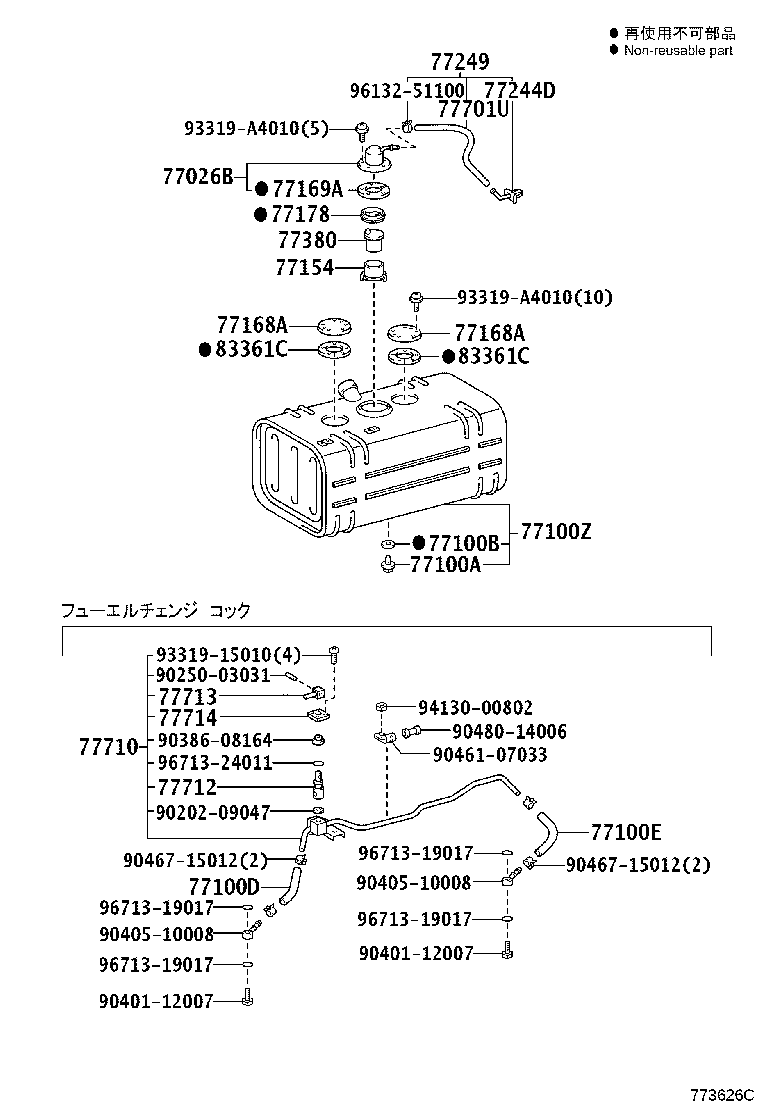

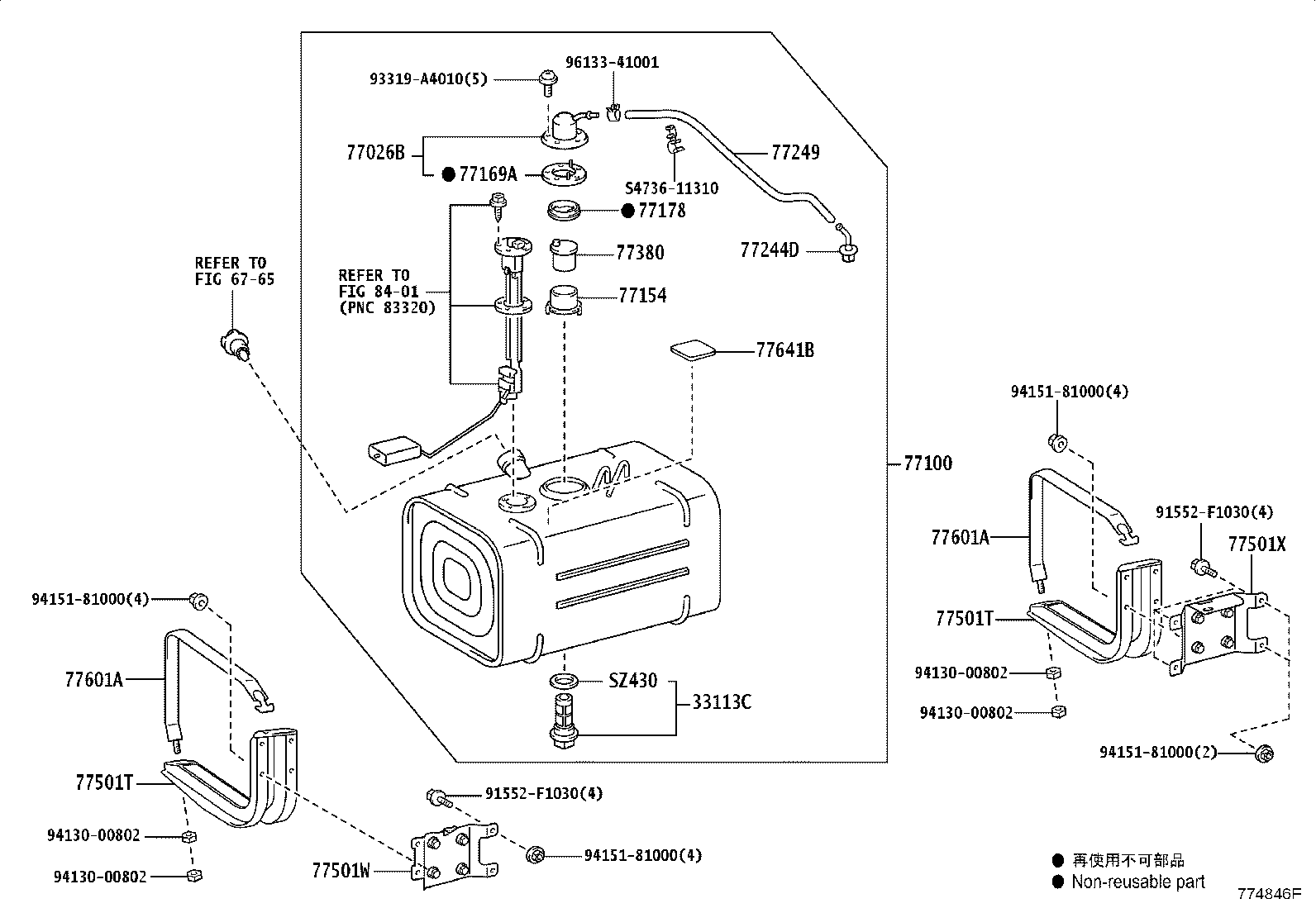

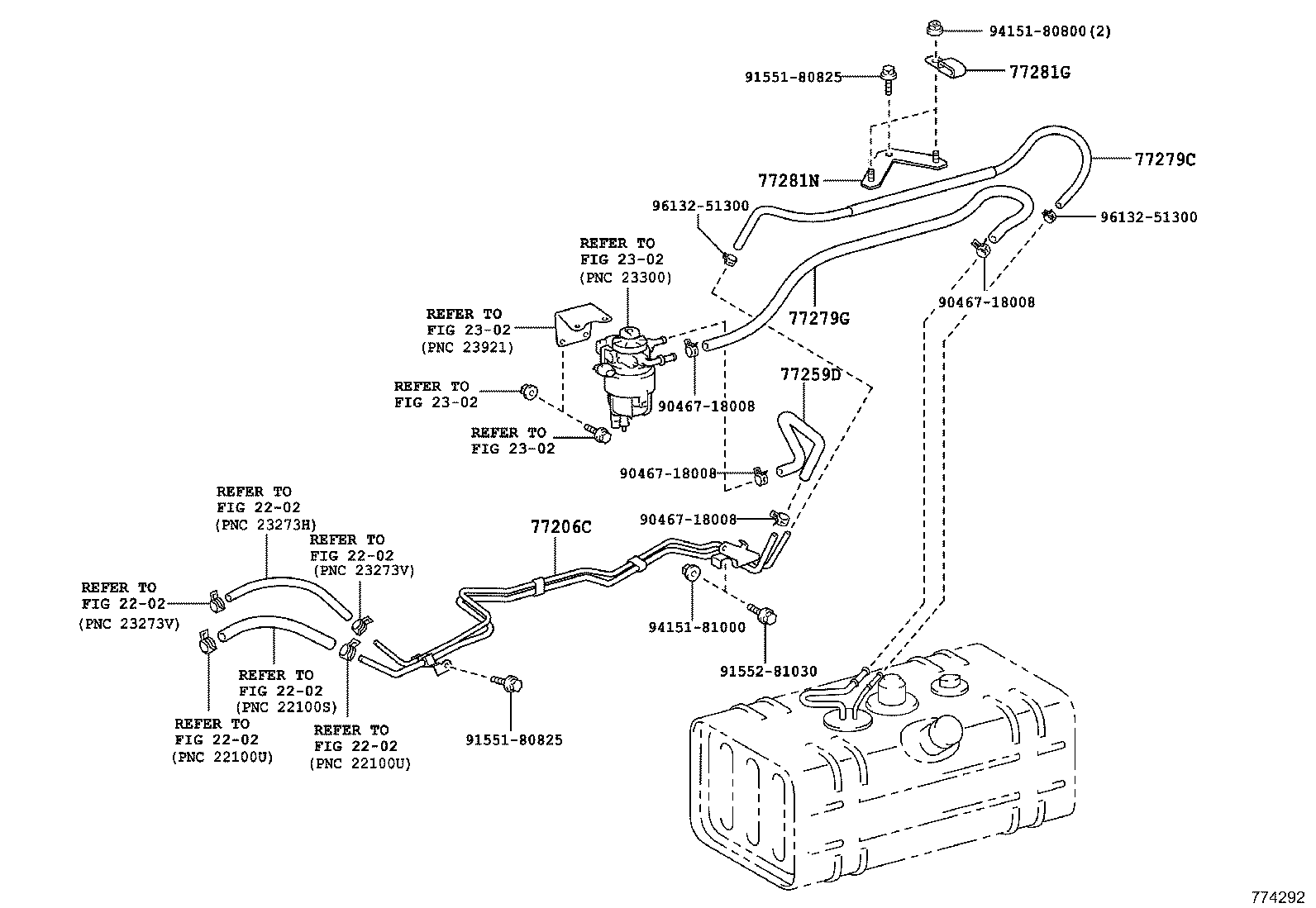

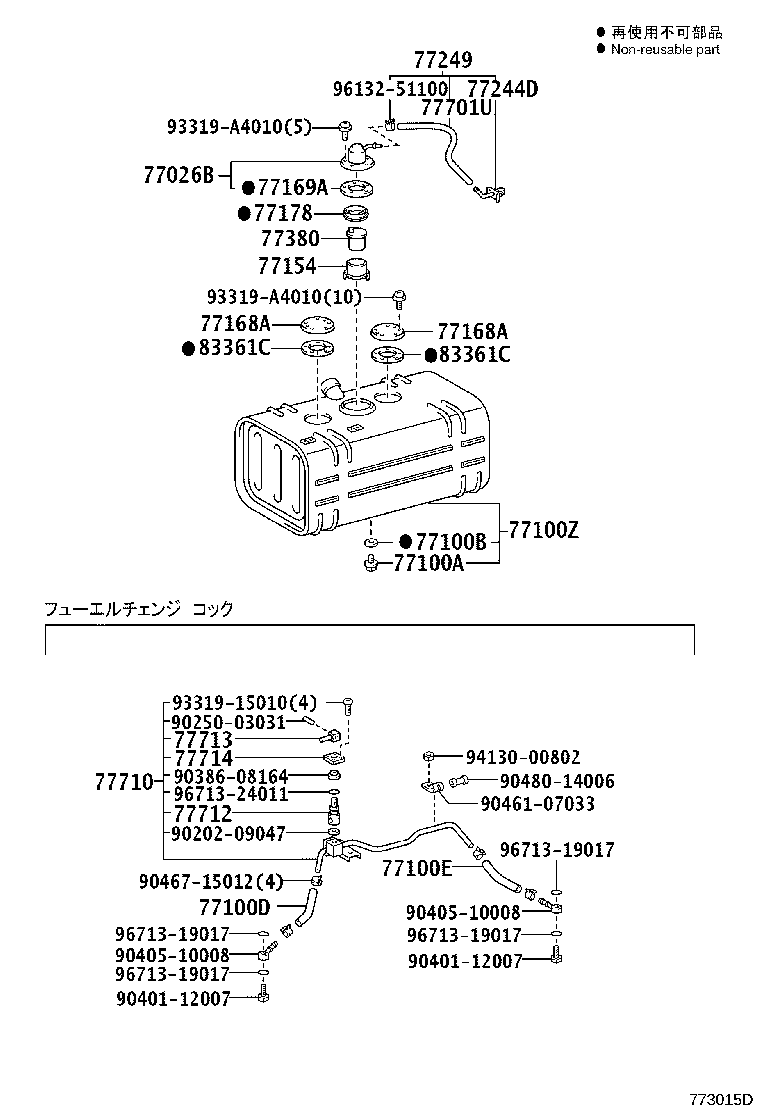

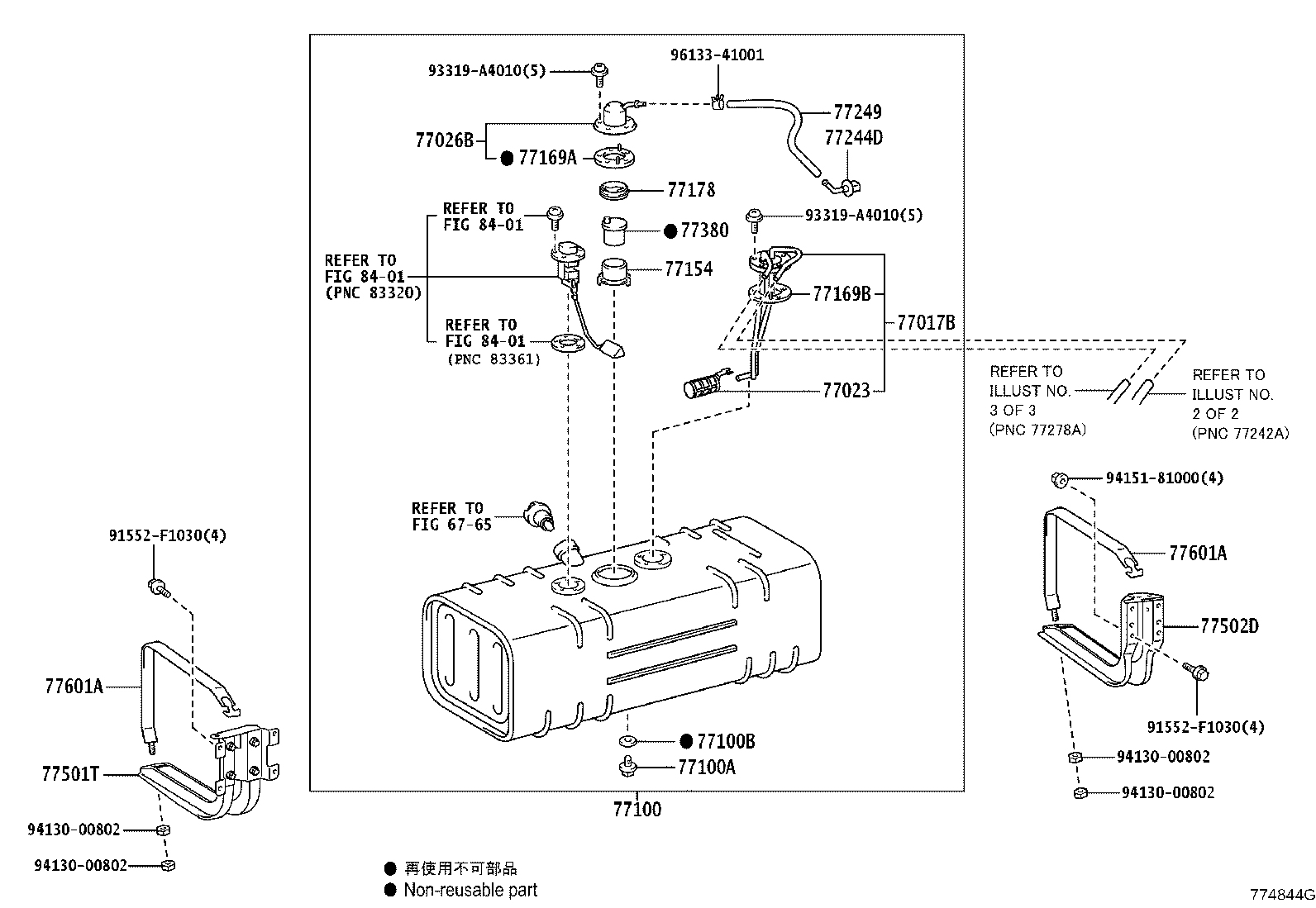

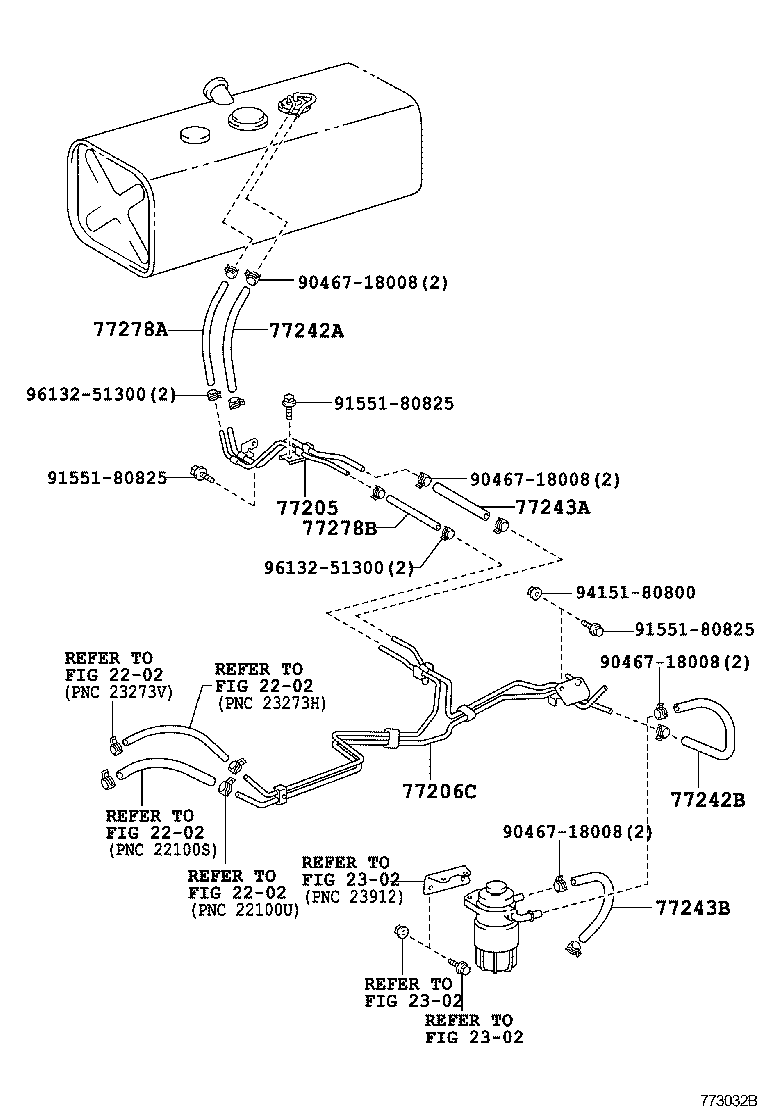

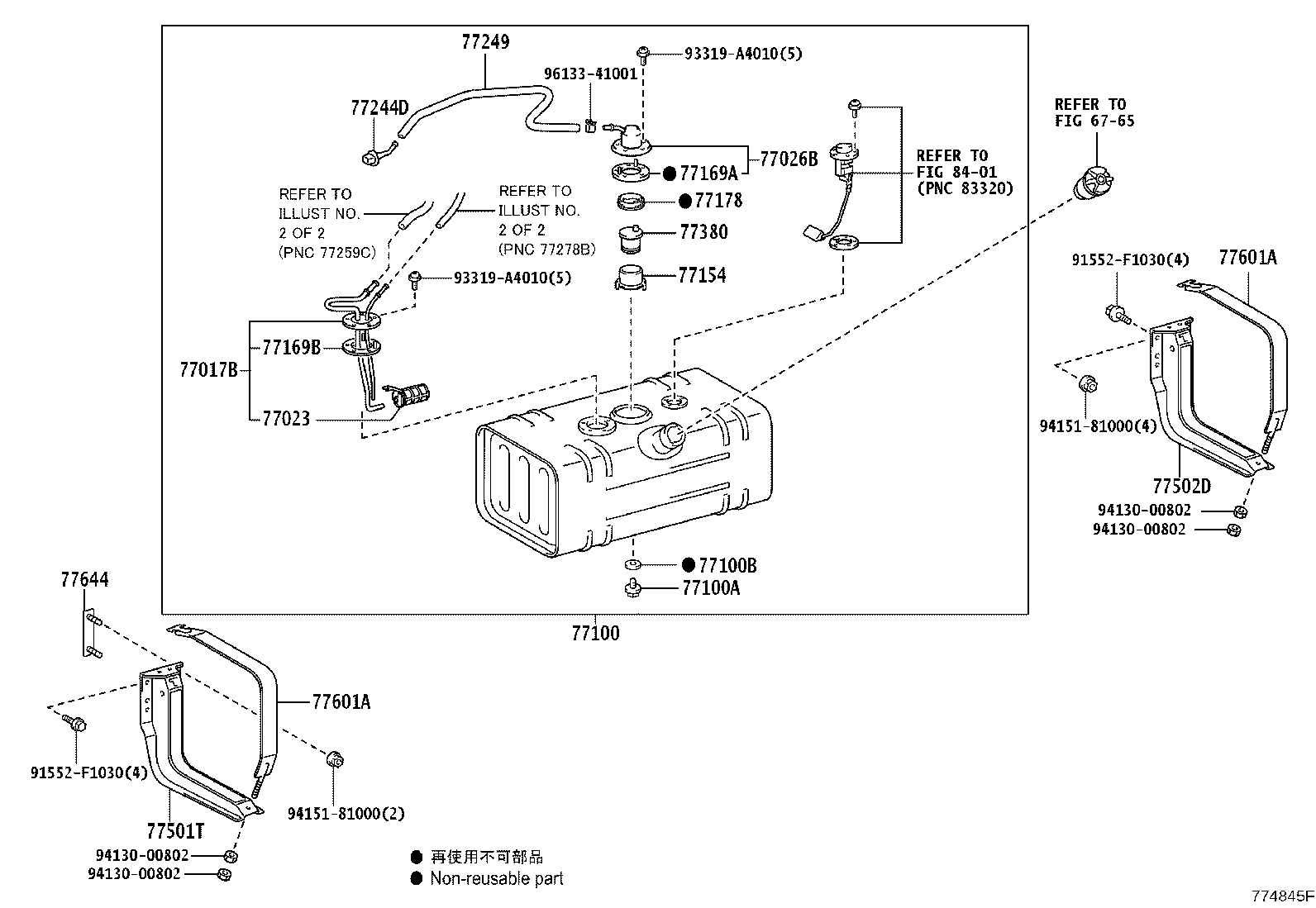

Figure 774320C 774320C 2011-07 → — Figure 774320C 774320C 2021-03 → — Figure 773015D 773015D 2011-07 → 2014-01 Figure 773626C 773626C 2014-01 → — Figure 773626C 773626C 2021-03 → — Figure 774294G 774294G 2017-05 → 2021-03 Figure 77643UB 77643UB 2021-03 → — Figure 774844G 774844G 2019-05 → — Figure 774844G 774844G 2021-03 → — Figure 774845F 774845F 2019-05 → — Figure 774845F 774845F 2021-03 → — Figure 774846F 774846F 2019-05 → — Figure 774846F 774846F 2019-05 → — Figure 774846F 774846F 2021-03 → — Figure 773016B 773016B 2011-07 → 2021-08 Figure 773032B 773032B 2011-07 → — Figure 773024A 773024A 2011-08 → — Figure 773023C 773023C 2011-08 → — Figure 773023C 773023C 2021-03 → — Figure 774291A 774291A 2017-05 → — Figure 774291A 774291A 2021-03 → — Figure 774292A 774292A 2017-05 → — Figure 774292A 774292A 2019-05 → 2021-03 Figure 774293A 774293A 2017-05 → — Figure 774293A 774293A 2021-03 → — Figure 774847 774847 2019-05 → — Figure 774848 774848 2019-05 → — Figure 774849 774849 2019-05 → — Figure 774849 774849 2021-03 → — Figure 775858A 775858A 2021-03 → — Figure 776262 776262 2021-03 → — Figure 776262 776262 2023-05 → —

Part groups

PNCDescription
33113C Plug, Drain
77017B Tube Sub-assy, Fuel Tank Vent
77023 Filter Sub-assy, Fuel Suction Tube
77026B Tube Sub-assy, Fuel Evaporation, NO.1
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77100E Hose, Fuel, NO.2(FOR FUEL TANK)
77100U Tank Sub-assy, Fuel
77100Z Tank Sub-assy, Fuel Sub
77154 Plate, Fuel Tank Evap/Vent Tube Support
77168A Plate, Fuel Tank Vent Tube Set
77169A Gasket, Fuel Suction Tube Set
77169B Gasket, Fuel Suction Tube Set, NO.1
77178 Gasket, Fuel Tank Filler Pipe, Lower
77205 Tube Sub-assy, Fuel Main
77206C Tube Sub-assy, Fuel Main, NO.2
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77242B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
77243A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
77243B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.3)
77244D Tube, Fuel Evaporation Breather, NO.1
77249 Hose, Fuel Emission
77259C Hose, Fuel
77259D Hose, Fuel, NO.1
77278A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77279C Hose, Fuel
77279G Hose, Fuel, NO.2
77281G Clamp, Fuel Hose
77281N Clamp, Fuel Hose
77284 Clamp, Fuel Tube
77285A Support, Fuel Return And Main Tube
77286D Clamp, Fuel Tube, NO.2
77380 Valve Assy, Fuel Cut Off
77501T Bracket Sub-assy, Fuel Tank
77501W Bracket Sub-assy, Fuel Tank, Front
77501X Bracket Sub-assy, Fuel Tank, Rear
77502D Bracket Sub-assy, Fuel Tank, Rear
77601A Band Sub-assy, Fuel Tank, NO.1
77611A Pin (FOR FUEL TANK BAND)
77616C Seat, Fuel Tank Band
77633 Stay, Fuel Tank
77633B Stay, Fuel Tank
77641B Cover, Fuel Tank
77644 Bolt, Fuel Tank
77701U Hose, Fuel (FOR CHECK VALVE)
77710 Cock Assy, Fuel Change
77712 Valve, Fuel Change Cock
77713 Lever, Fuel Change Cock
77714 Cap, Fuel Change Cock
83361C Gasket, Fuel Sender Gage
SZ430 Washer, Soft, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
