Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

9 part groups · 4 illustrations

Illustrations

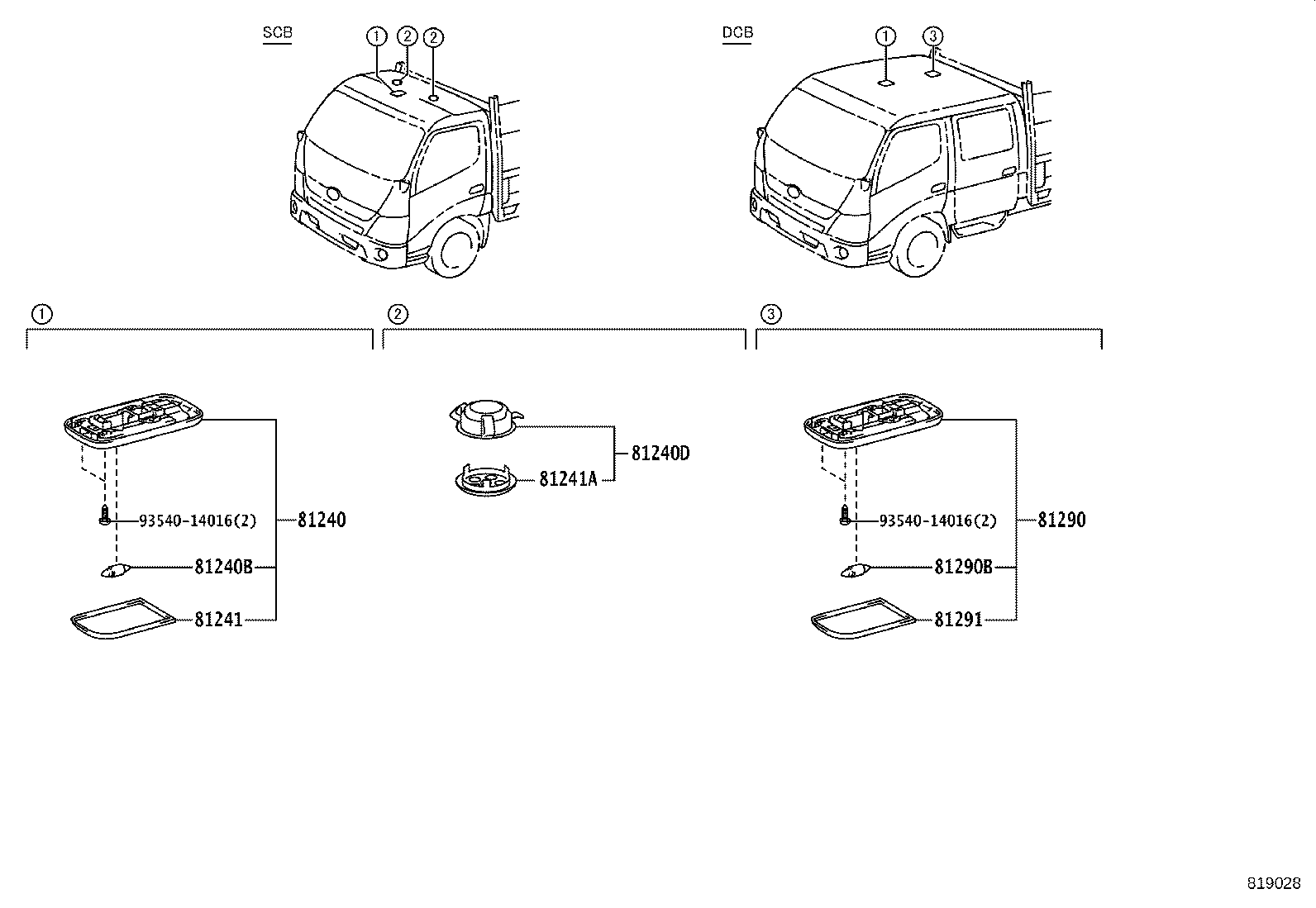

Figure 815749A 815749A 2011-07 → — Figure 819028 819028 2019-05 → — Figure 819028 819028 2021-03 → — Figure 819028 819028 2022-07 → —

Part groups

PNCDescription
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81240D Lamp Assy, Room, NO.2
81241 Lens, Room Lamp, NO.1
81241A Lens, Room Lamp, NO.2
81248 Cover, Room Lamp, NO.1
81290 Lamp Assy, Room, NO.3
81290B Bulb, Room Lamp, NO.3
81291 Lens, Room Lamp, NO.3(FOR REAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
