Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

5 part groups · 6 illustrations

Illustrations

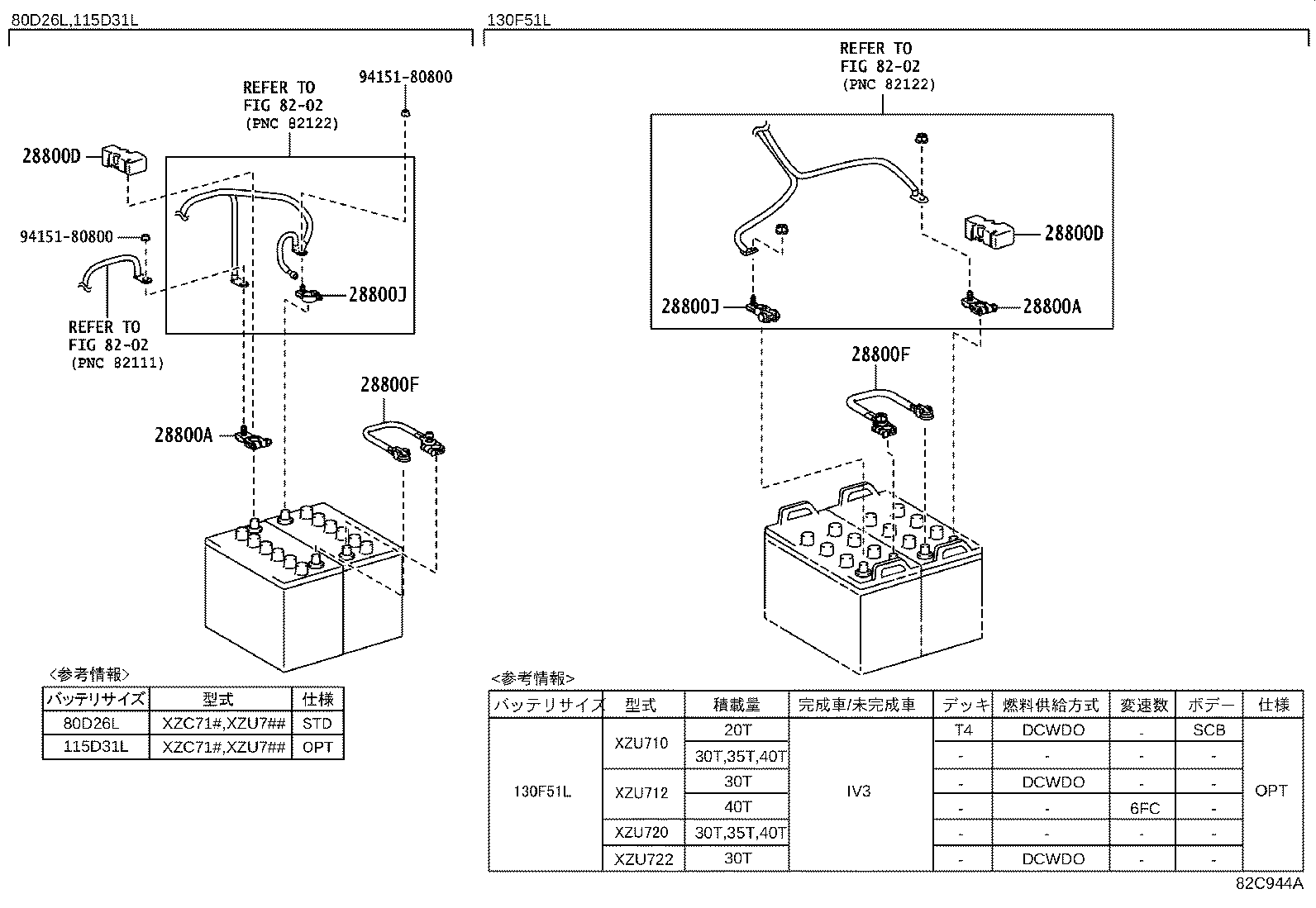

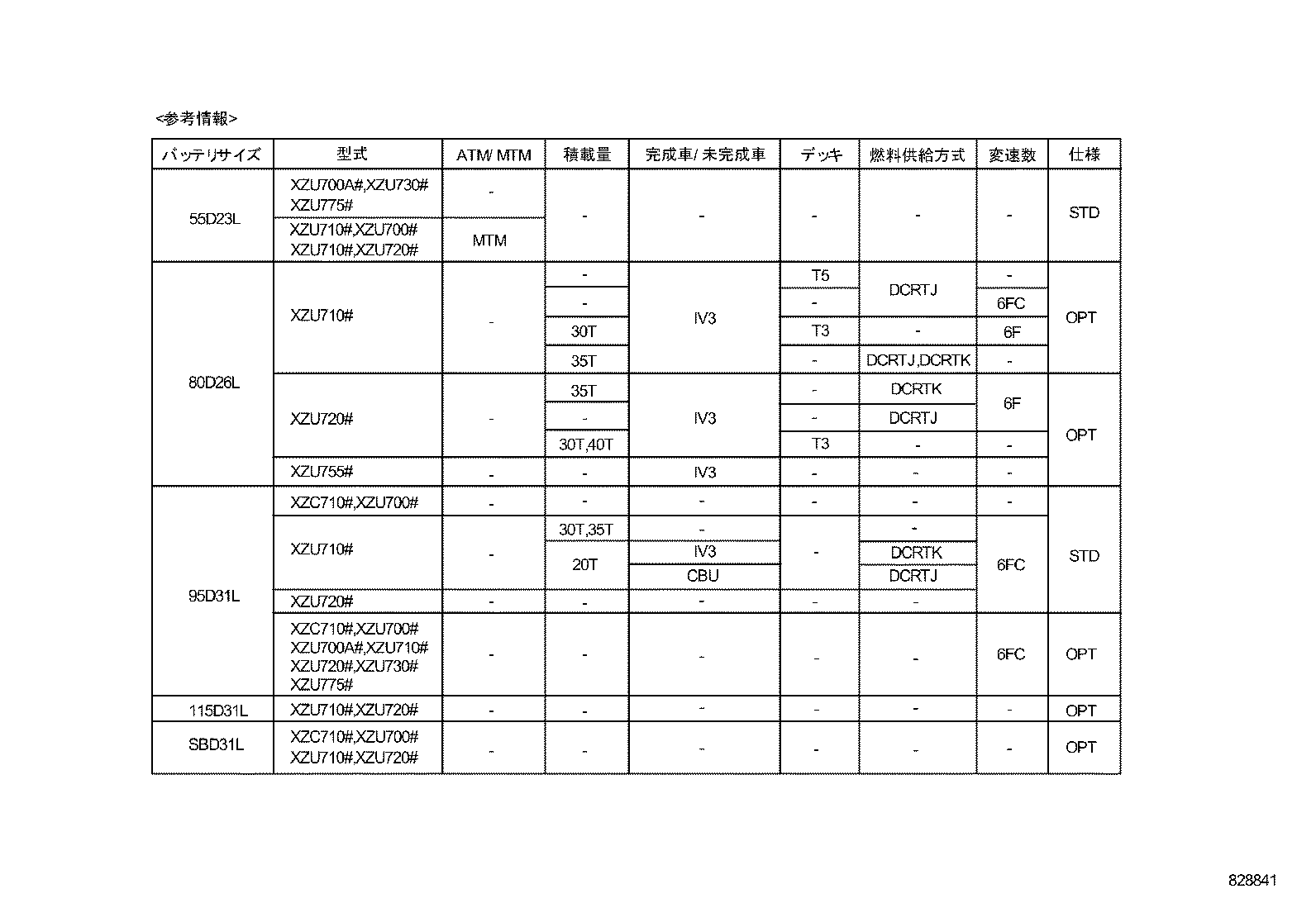

Figure 827733C 827733C 2011-07 → 2019-05 Figure 827733C 827733C 2017-05 → 2019-05 Figure 828841 828841 2011-07 → 2019-05 Figure 828841 828841 2017-05 → 2019-05 Figure 82C944A 82C944A 2019-05 → — Figure 82C943 82C943 2019-05 → —

Part groups

PNCDescription
28800A Terminal, Battery Positive
28800B Cable, Battery TO Ground
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800F Cable, Battery TO Battery
28800J Terminal, Battery Negative
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
