Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

7 part groups · 5 illustrations

Illustrations

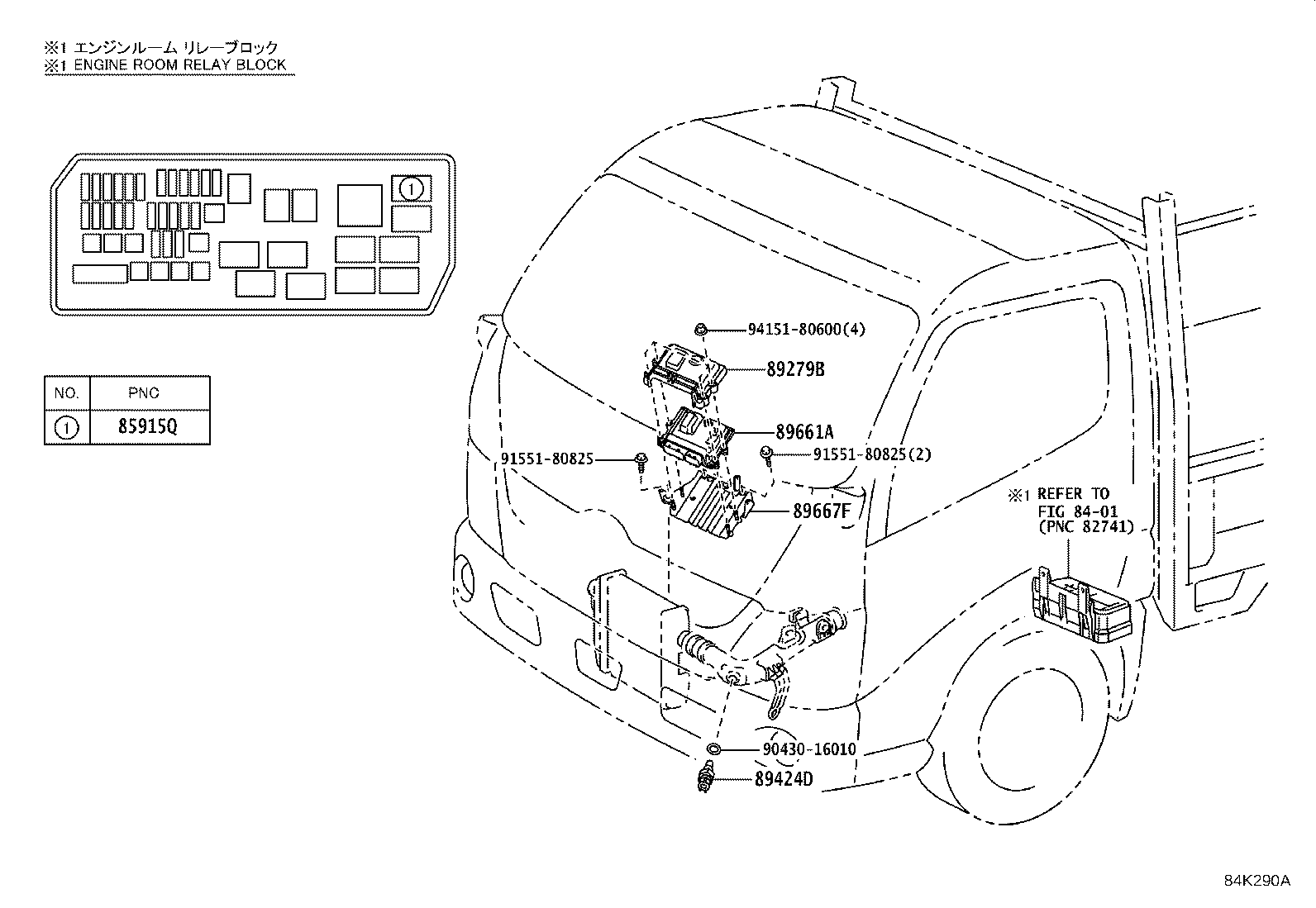

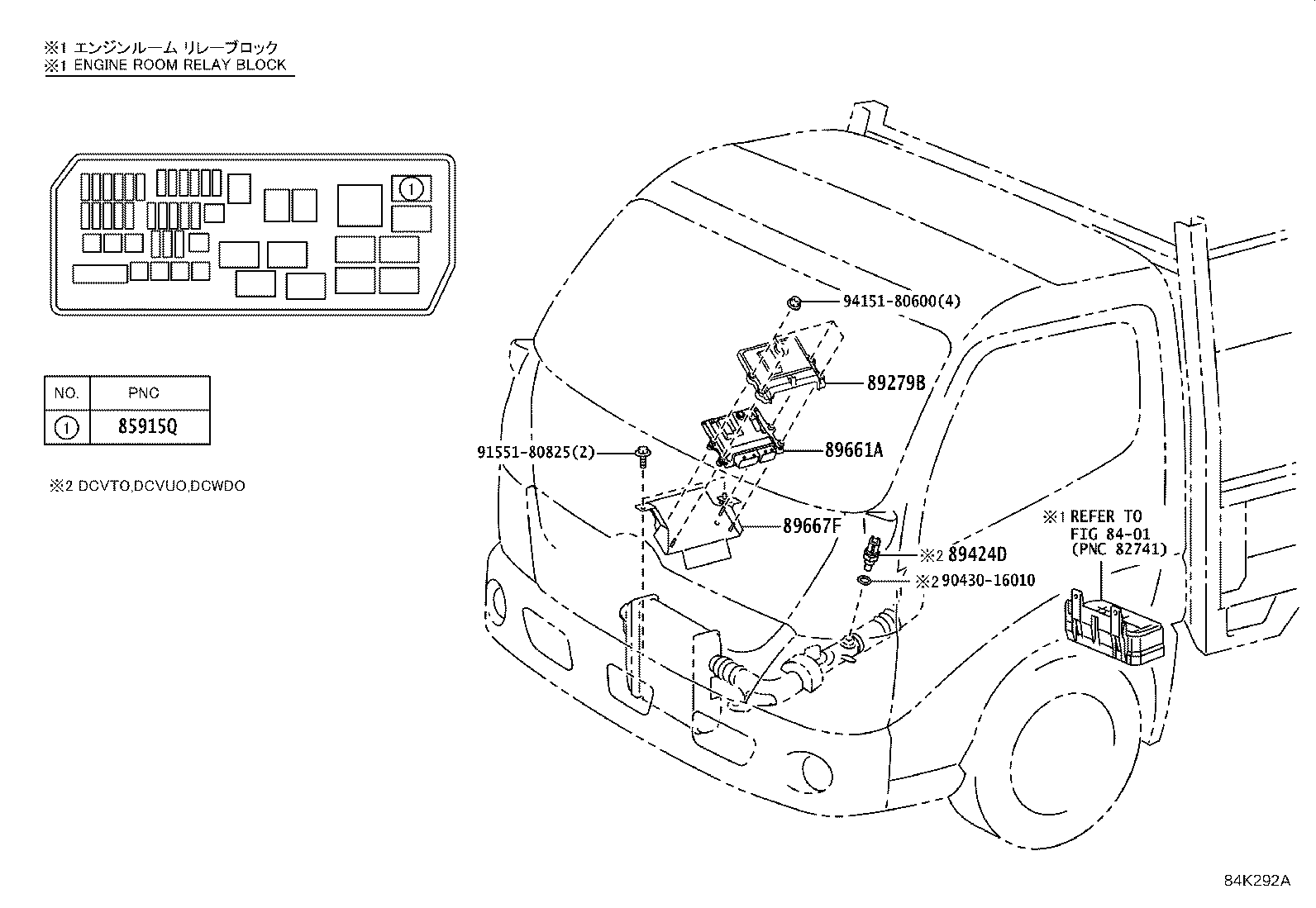

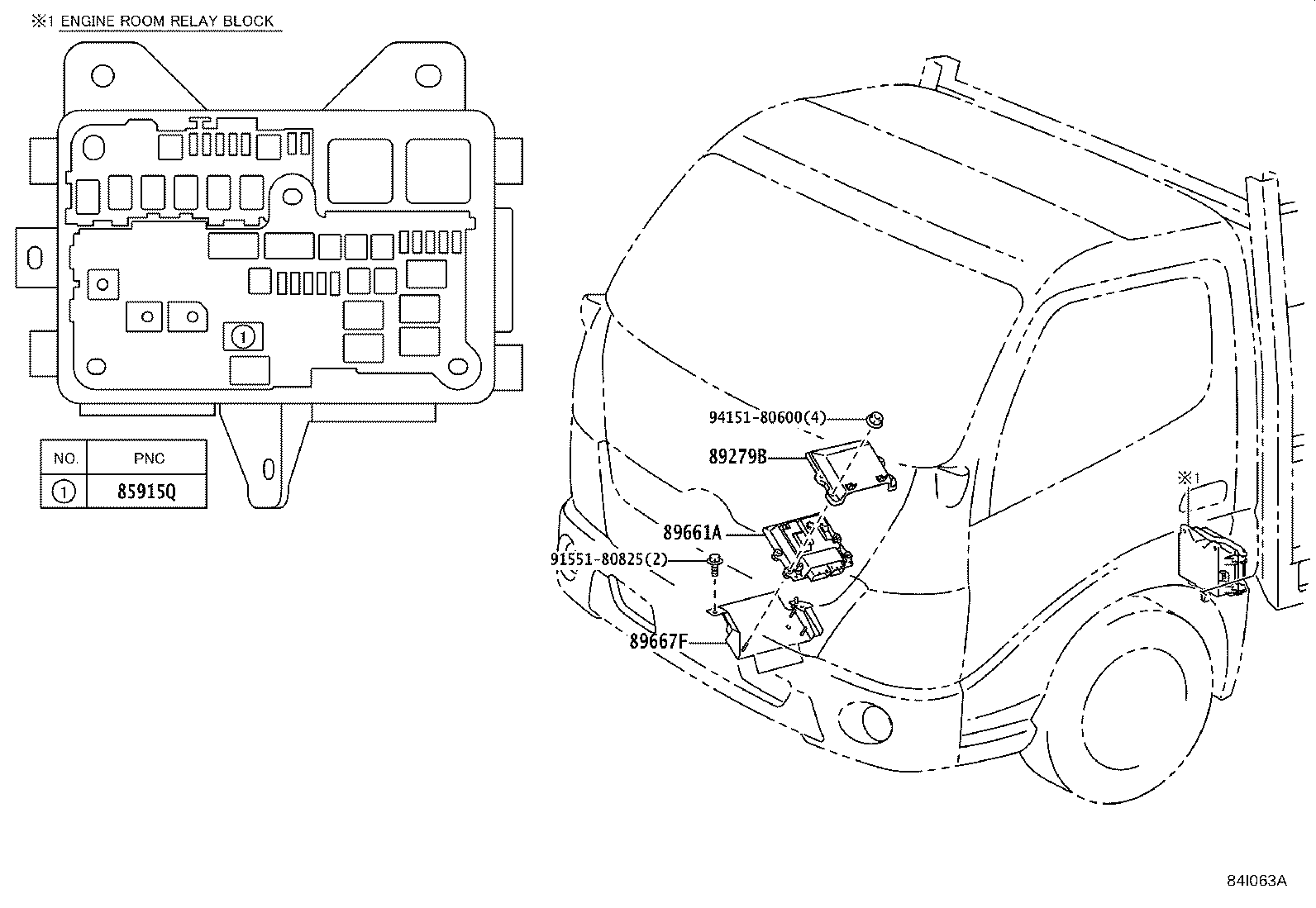

Figure 84C239A 84C239A 2011-07 → — Figure 84I063A 84I063A 2017-05 → — Figure 84K290A 84K290A 2019-05 → — Figure 84K292A 84K292A 2019-05 → — Figure 84K292A 84K292A 2022-07 → —

Part groups

PNCDescription
85915Q Relay, Computer (FOR DIESEL)
89279B Cover, Diesel Engine Control Computor
89424D Sensor, Inlet Air Temperature
89661A Computer, Engine Control
89667F Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89870A Driver Assy, Injector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
