Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan

Discontinued model Data version 2012-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

5 part groups · 2 illustrations

Illustrations

Figure 150770C

150770C 2003-10 → 2006-10

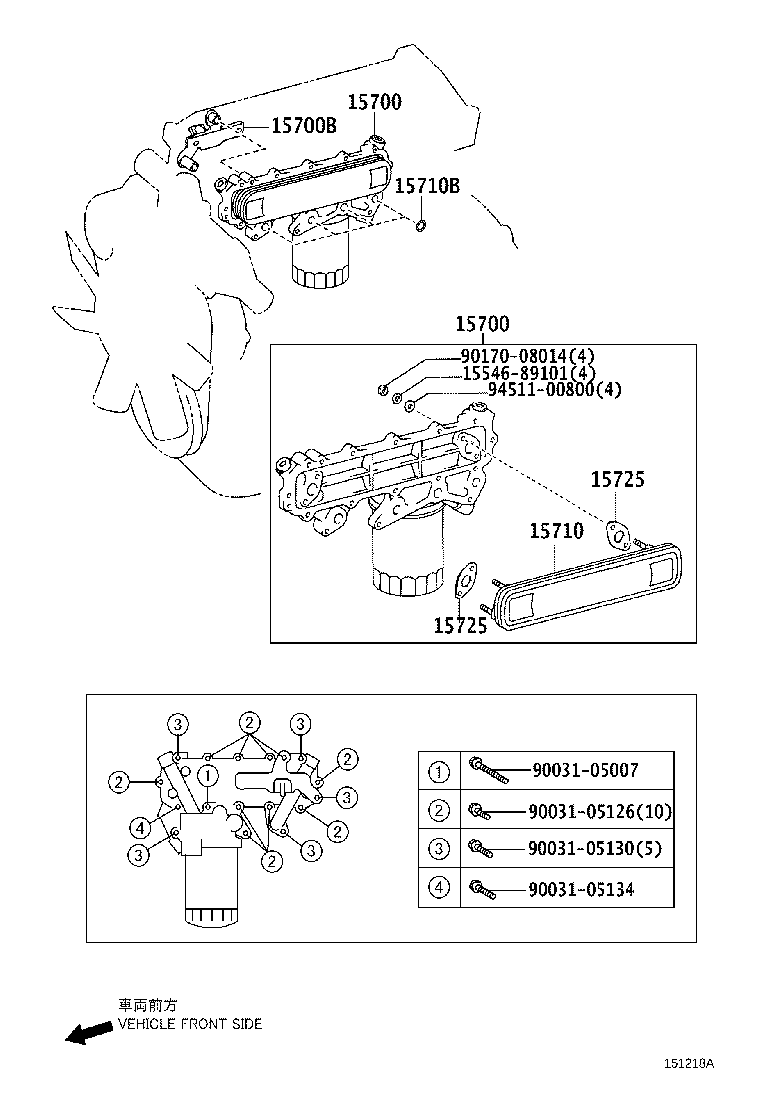

Figure 151218A

151218A 2006-10 → —

Part groups

PNC	Description
15700	Cooler Assy, Oil W/Bracket
15700B	Bracket(FOR OIL COOLER)
15710	Cooler Assy, Oil
15710B	Ring, O(FOR OIL COOLER)
15725	Gasket, Oil Cooler Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
