Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

22 part groups · 3 illustrations

Illustrations

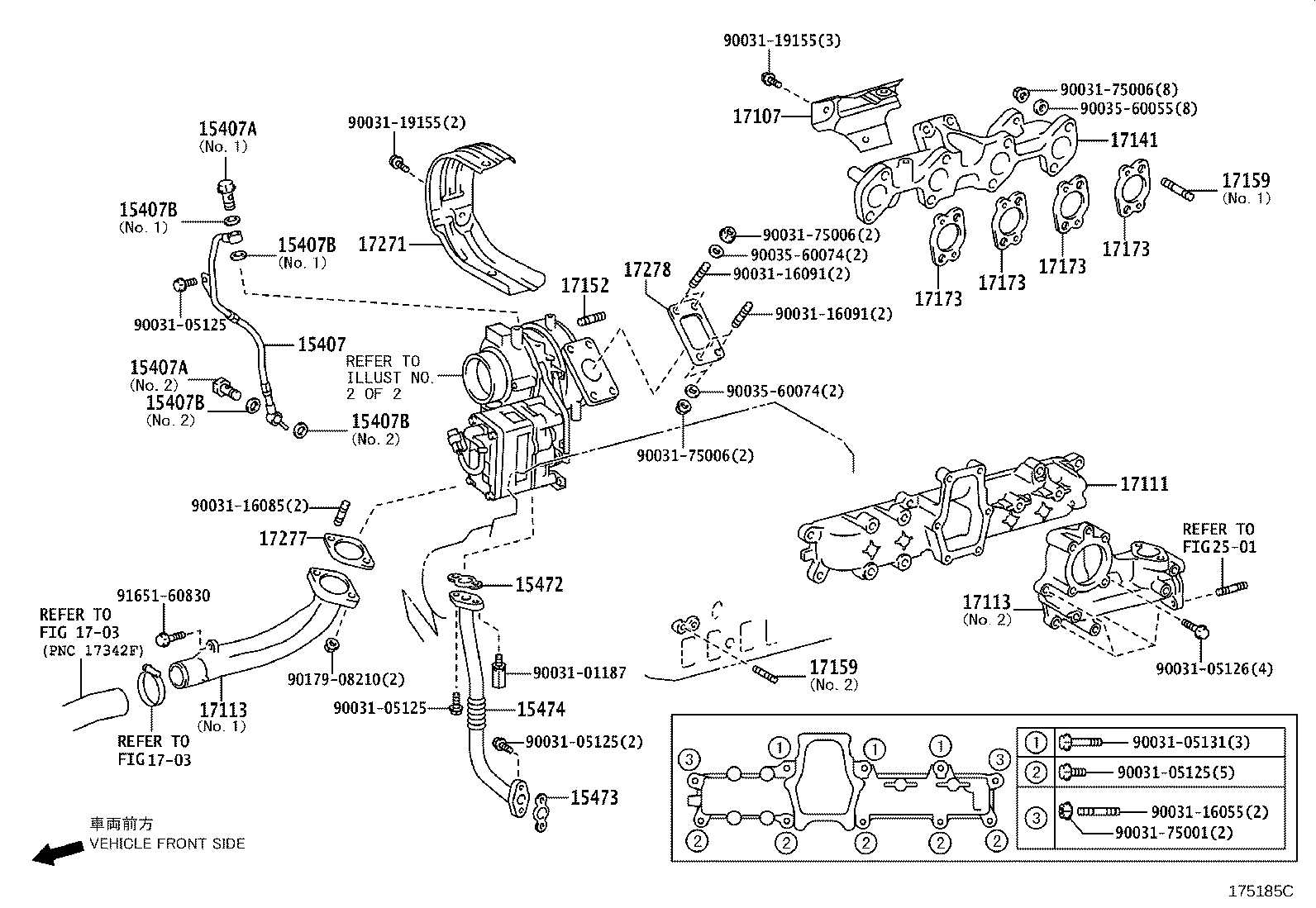

Figure 173883T 173883T 2003-10 → 2006-10 Figure 175185C 175185C 2006-10 → — Figure 178272A 178272A 2006-10 → —

Part groups

PNCDescription
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15472 Gasket, Turbo Oil Outlet, NO.1
15473 Gasket, Turbo Oil Outlet, NO.2
15474 Pipe, Turbo Oil Outlet
17039 Link Set, Turbocharger Vane Control
17107 Insulator Sub-assy, Exhaust Manifold Heat
17111 Manifold, Intake
17113 Pipe, Intake
17113C Insulator, Intake Pipe
17141 Manifold, Exhaust
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17173 Gasket, Exhaust Manifold TO Head
17201 Turbocharger Sub-assy
17269 Bush, Turbocharger Nozzle Vane Control
17269A Ring, Retainer(FOR TURBOCHARGER)
17271 Insulator, Turbo, NO.1
17277 Gasket, Compressor Outlet
17278 Gasket, Turbo TO Exhaust Manifold
17342M Hose, Air, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
