Toyota Dyna/Toyoace HV
2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan
Discontinued model
Data version 2012-01

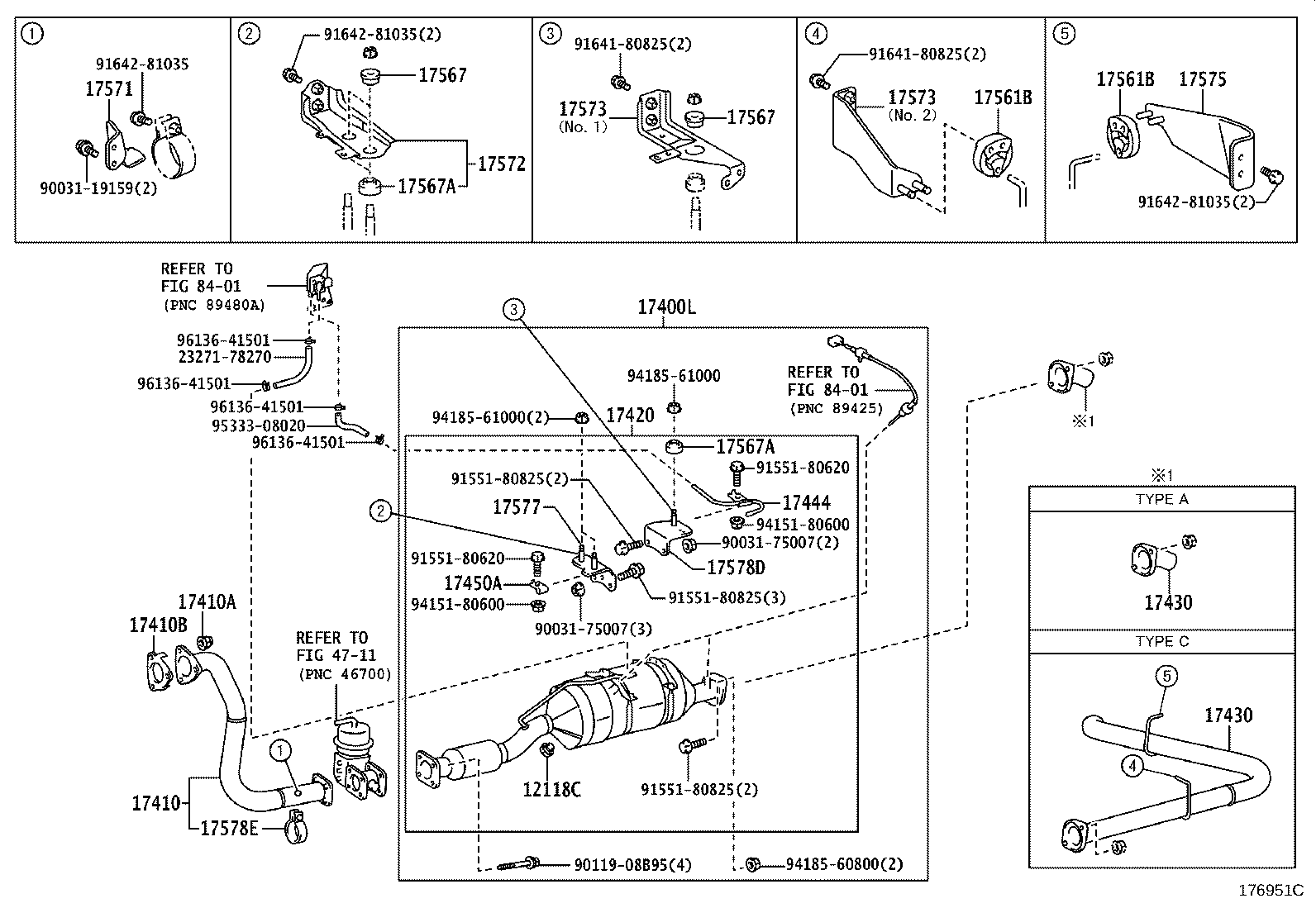

Exhaust Pipe
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12118C | Plug, Drain |
| 17400 | Converter Assy, W/Catalyst |
| 17400L | Pipe Assy, Exhaust |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17444 | Pipe, Exhaust, NO.4 |
| 17450A | Clamp, Exhaust Pipe, NO.5 |
| 17451 | Gasket, Exhaust Pipe |
| 17561B | Support, Exhaust Pipe, NO.1 |
| 17567 | Cushion, Exhaust Pipe Support |
| 17567A | Cushion, Exhaust Pipe Support, NO.2 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572 | Bracket, Exhaust Pipe NO.1 Support |
| 17573 | Bracket, Exhaust Pipe NO.1 Support, Lower |
| 17575 | Bracket, Exhaust Pipe Support, NO.5 |
| 17577 | Bracket, Exhaust Pipe Support, NO.7 |
| 17578D | Bracket, Exhaust Pipe Support, NO.8 |
| 17578E | Clamp, Pipe(FOR FRONT EXHAUST PIPE) |
| 18450 | Converter Assy, Monolithic |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
