Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

23 part groups · 2 illustrations

Illustrations

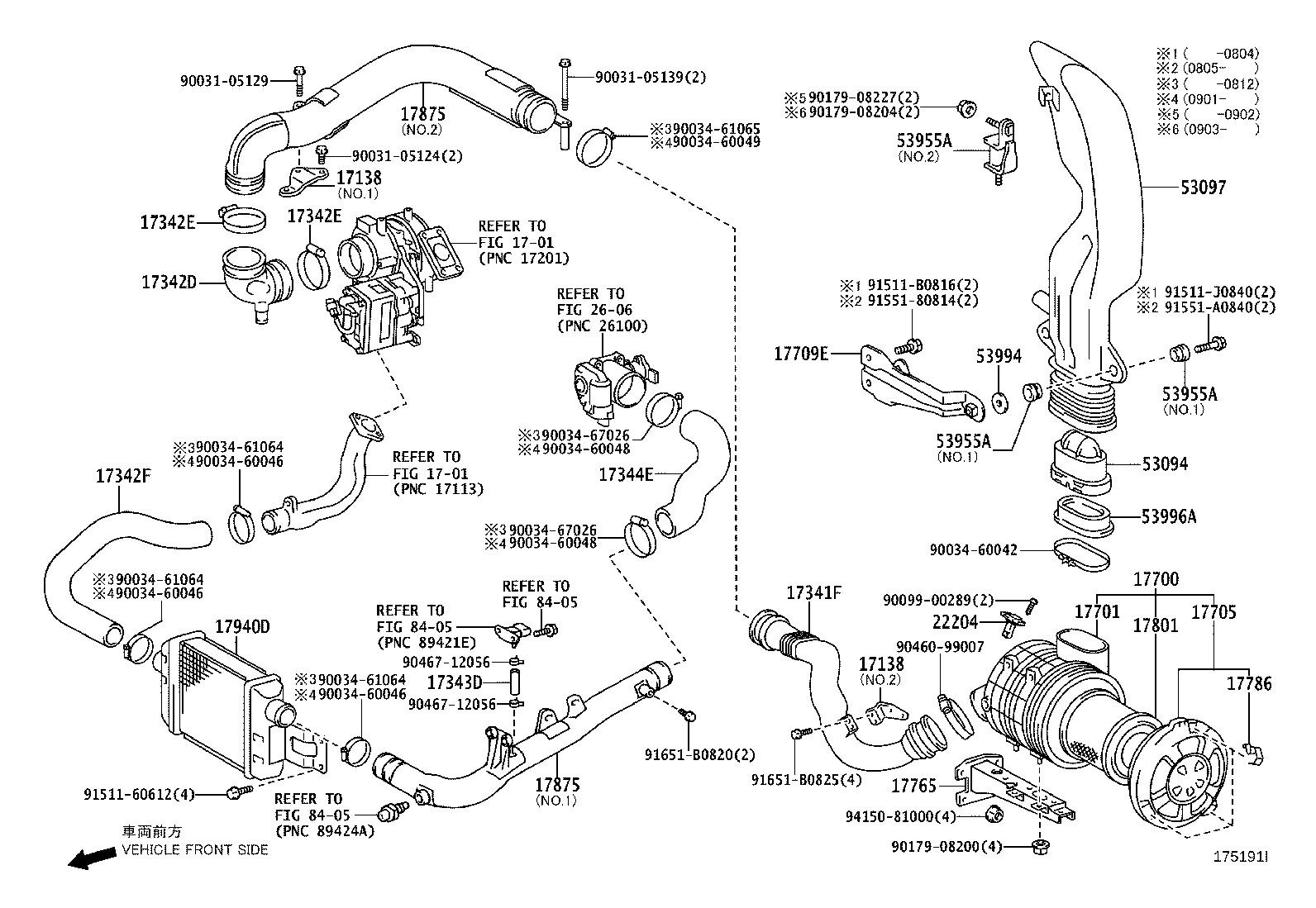

Figure 173906G 173906G 2003-10 → 2006-10 Figure 175191I 175191I 2006-10 → —

Part groups

PNCDescription
17138 Stay, Intake Pipe OR Hose
17341F Hose, Air, NO.1
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17344E Hose, Air, NO.4
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17709E Bracket, Air Cleaner Inlet, NO.2
17765 Stay, Air Cleaner, NO.1
17786 Clamp, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17872 Bracket, Intake Air Connector
17875 Pipe, Intake Air Connector
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
53094 Inlet, Air Cleaner Pipe, NO.3
53097 Inlet Sub-assy
53955A Cushion, Air Cleaner Inlet NO.1
53994 Retainer, Air Cleaner Inlet Pipe
53996A Packing, Air Cleaner Inlet Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
