Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

13 part groups · 2 illustrations

Illustrations

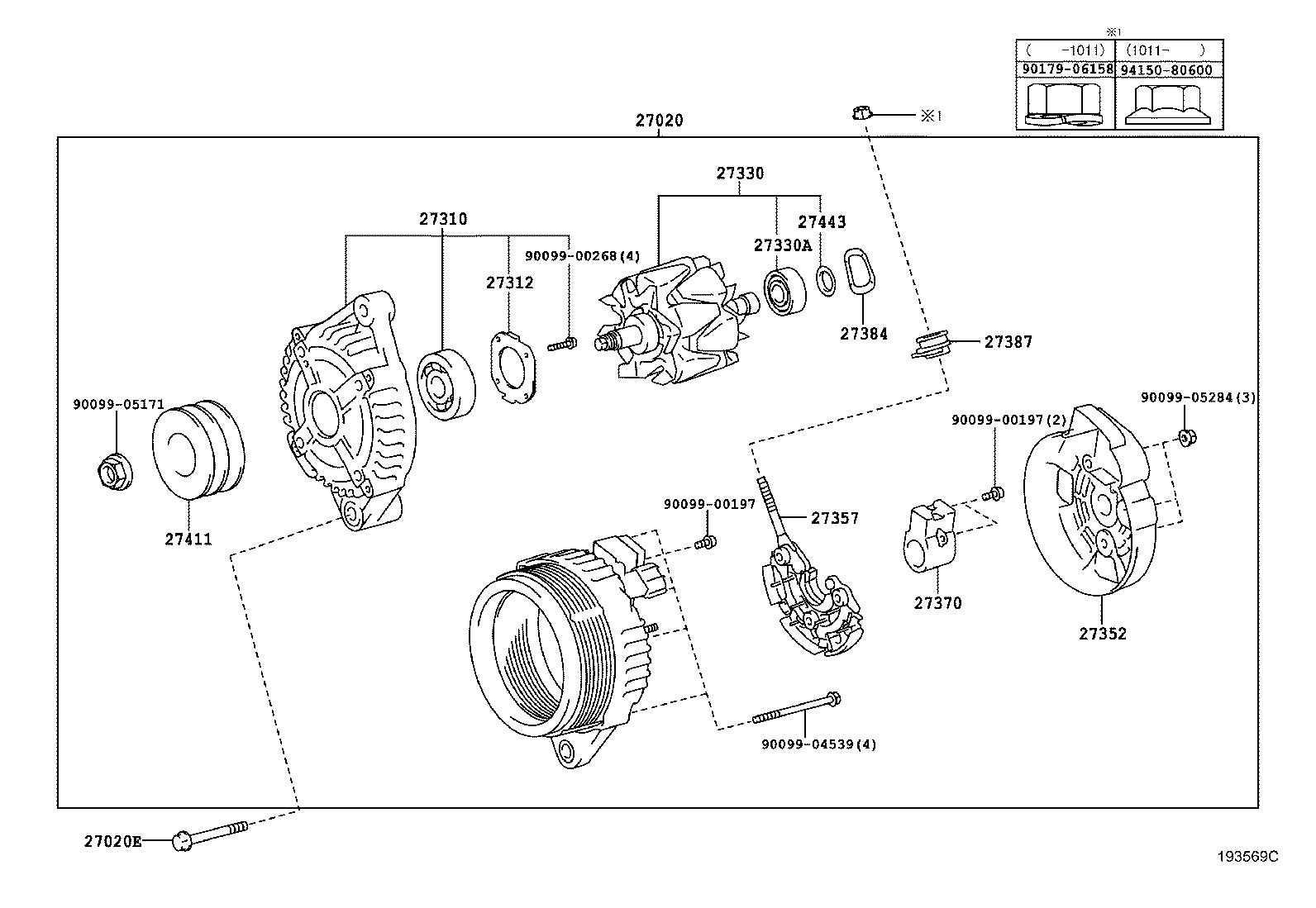

Figure 192601C 192601C 2003-10 → 2010-10 Figure 193569C 193569C 2010-10 → —

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27310 Frame Assy, Drive End, Alternator
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27352 Cover, Frame Brush
27357 Holder, Alternator, W/Rectifier
27370 Holder Assy, Alternator Brush
27384 Washer
27387 Insulator, Terminal
27411 Pulley, Alternator
27443 Cover, Alternator Bearing
