Toyota Dyna/Toyoace HV
2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan
Discontinued model
Data version 2012-01

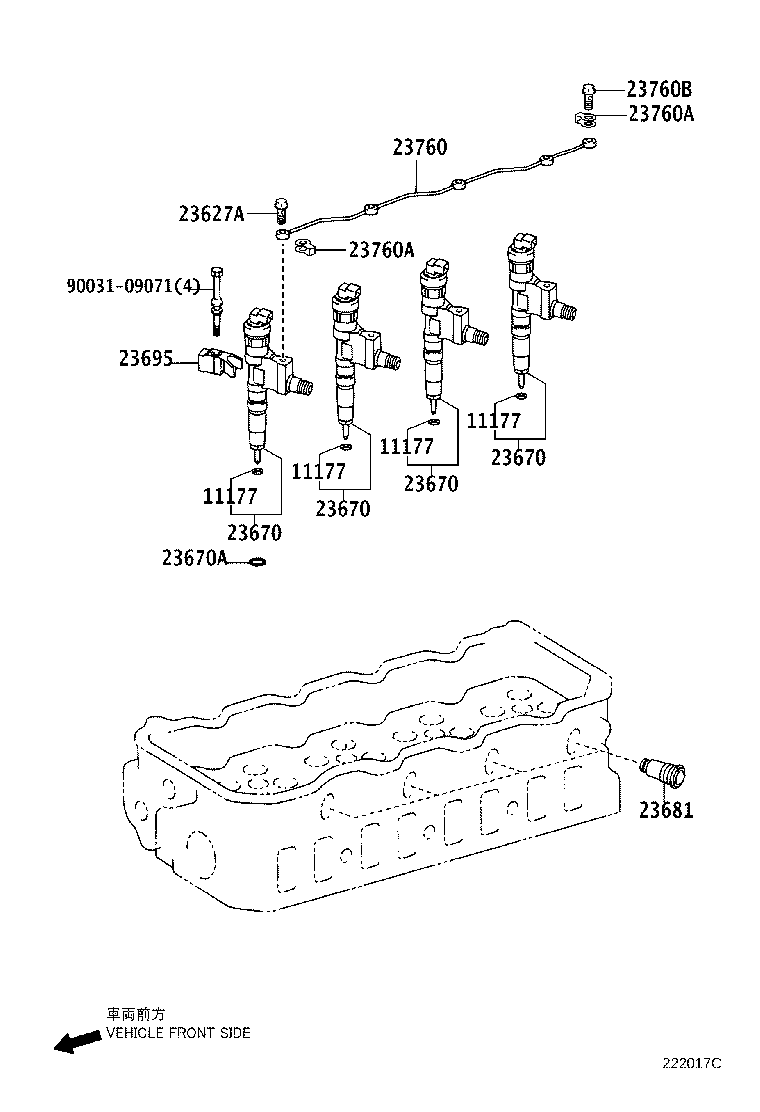

Injection Nozzle
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11176 | Seat, Injection Nozzle |
| 11176C | Gasket, NO.2(FOR INJECTION NOZZLE SEAT) |
| 11177 | Gasket, Injection Nozzle Seat |
| 23627A | Screw, Follow(FOR NOZZLE) |
| 23670 | Injector Assy |
| 23670A | Ring, O(FOR INJECTOR ASSY) |
| 23681 | Seal, Nozzle Holder |
| 23695 | Clamp, Nozzle Holder, NO.1 |
| 23760 | Pipe Assy, Nozzle Leakage |
| 23760A | Gasket |
| 23760B | Bolt, Union(FOR NOZZLE LEAKAGE PIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
