Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

19 part groups · 2 illustrations

Illustrations

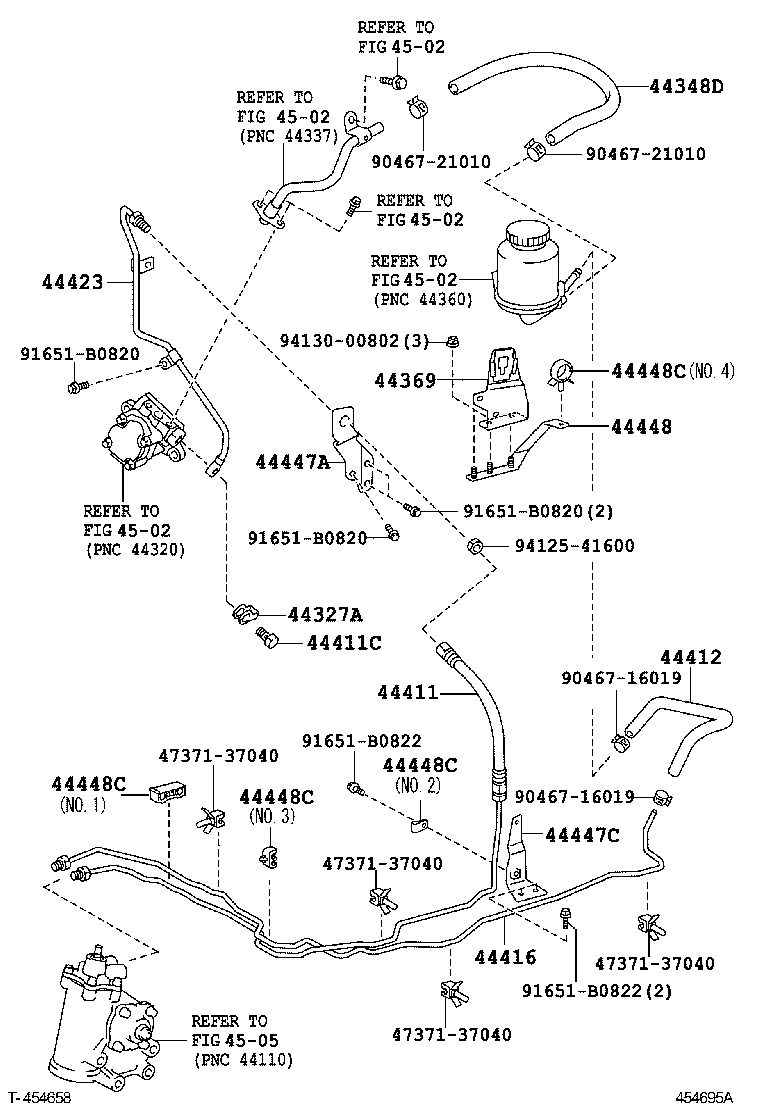

Figure 453677C 453677C 2003-10 → 2006-10 Figure 454695A 454695A 2006-10 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348D Hose, Oil Reservoir TO Pump, NO.2
44369 Bracket, Oil Reservoir, NO.1
44406B Bolt, Union(FOR RETURN TUBE)
44406C Gasket(FOR RETURN TUBE)
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410B Gasket(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44423 Tube, Oil Pump TO Gear Box
44447A Bracket, Hose Support, NO.1
44447C Bracket, Hose Support NO.2
44448 Bracket, Pressure Feed Hose Support, NO.1
44448B Bracket, Hose Support, NO.2
44448C Clamp, Pressure Feed, NO.2
44457B Bracket, Power Steering Tube Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
