Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

30 part groups · 6 illustrations

Illustrations

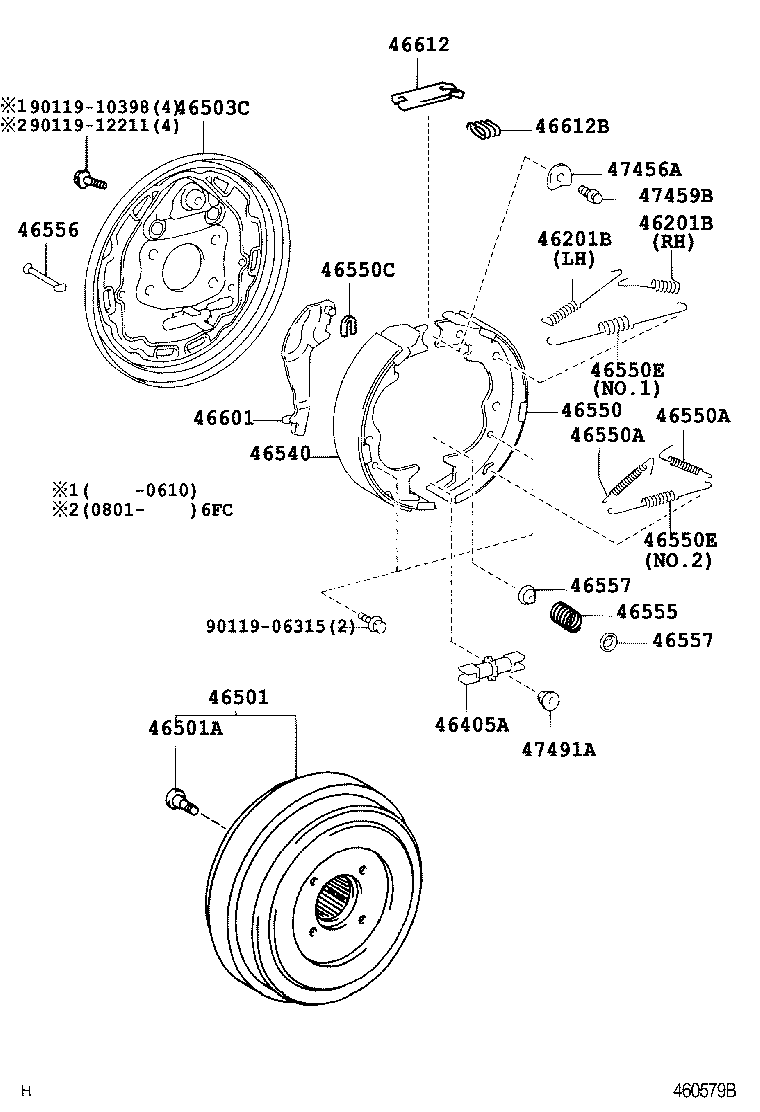

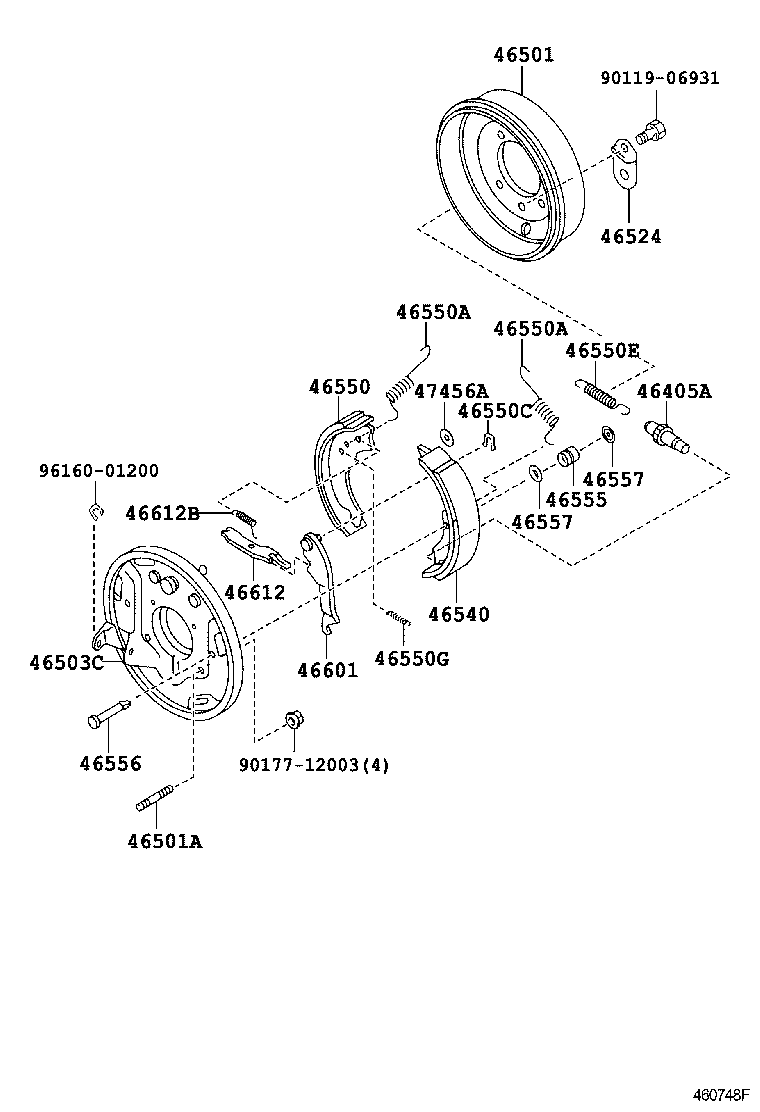

Figure 460571G 460571G 2003-10 → 2006-10 Figure 460571G 460571G 2006-10 → — Figure 461015D 461015D 2008-01 → — Figure 460579B 460579B 2003-10 → 2006-10 Figure 460579B 460579B 2008-01 → — Figure 460748F 460748F 2006-10 → —

Part groups

PNCDescription
33826T Bracket, Transmission Control Cable, NO.2
33826U Bracket, Transmission Control Cable, NO.3
33829H Clamp, Transmission Control Cable
46201B Spring, Tension
46210 Lever Assy, Parking Brake
46243 Cover, Parking Brake Lever
46405A Screw Set, Shoe Adjusting, RH
46420 Cable Assy, Parking Brake, NO.2
46430 Cable Assy, Parking Brake, NO.3
46453A Bracket, Cable Support, NO.3
46459 Guide, Cable
46501 Drum Sub-assy, Parking Brake
46501A Bolt, Serration(FOR PARKING BRAKE DRUM)
46503C Plate Sub-assy, Parking Brake
46524 Cover, Parking Brake Dust
46540 Shoe Assy, Parking Brake, RH OR Center NO.1
46550 Shoe Assy, Parking Brake, RH OR Center NO.2
46550A Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550C Washer, Type C(FOR PARKING BRAKE SHOE)
46550E Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
46550G Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN)
46555 Spring, Brake Shoe Hold Down
46556 Pin, Shoe Hold Down Spring
46557 Cup, Brake Shoe Hold Down
46601 Lever Sub-assy, Parking Brake Shoe
46612 Strut, Parking Brake Shoe Lever
46612B Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
47456A Plate, Shoe Guide(FOR PARKING BRAKE)
47459B Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE)
47491A Plug, Shoe Adjusting Hole(FOR PARKING BRAKE SHOE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
