Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

28 part groups · 3 illustrations

Illustrations

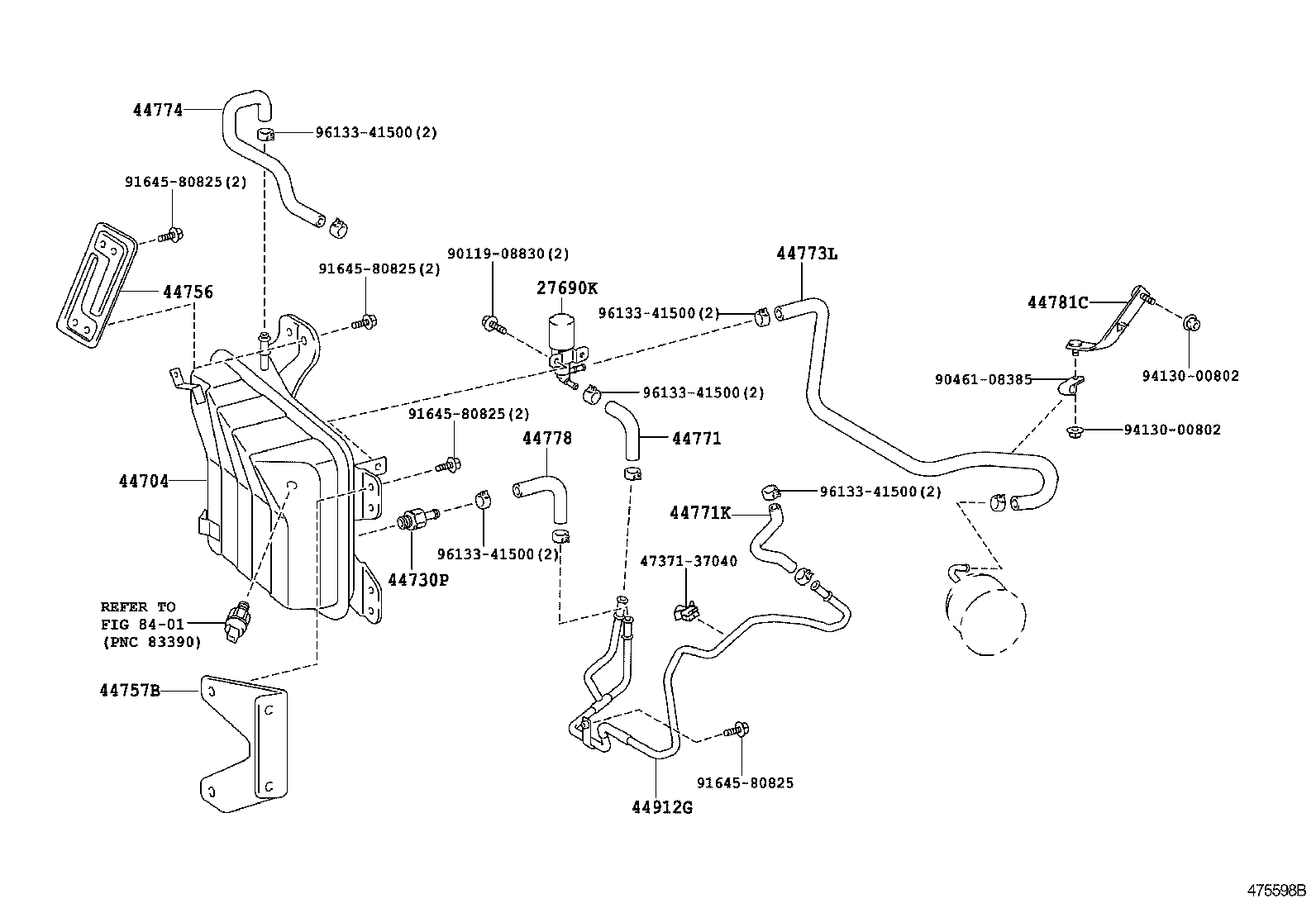

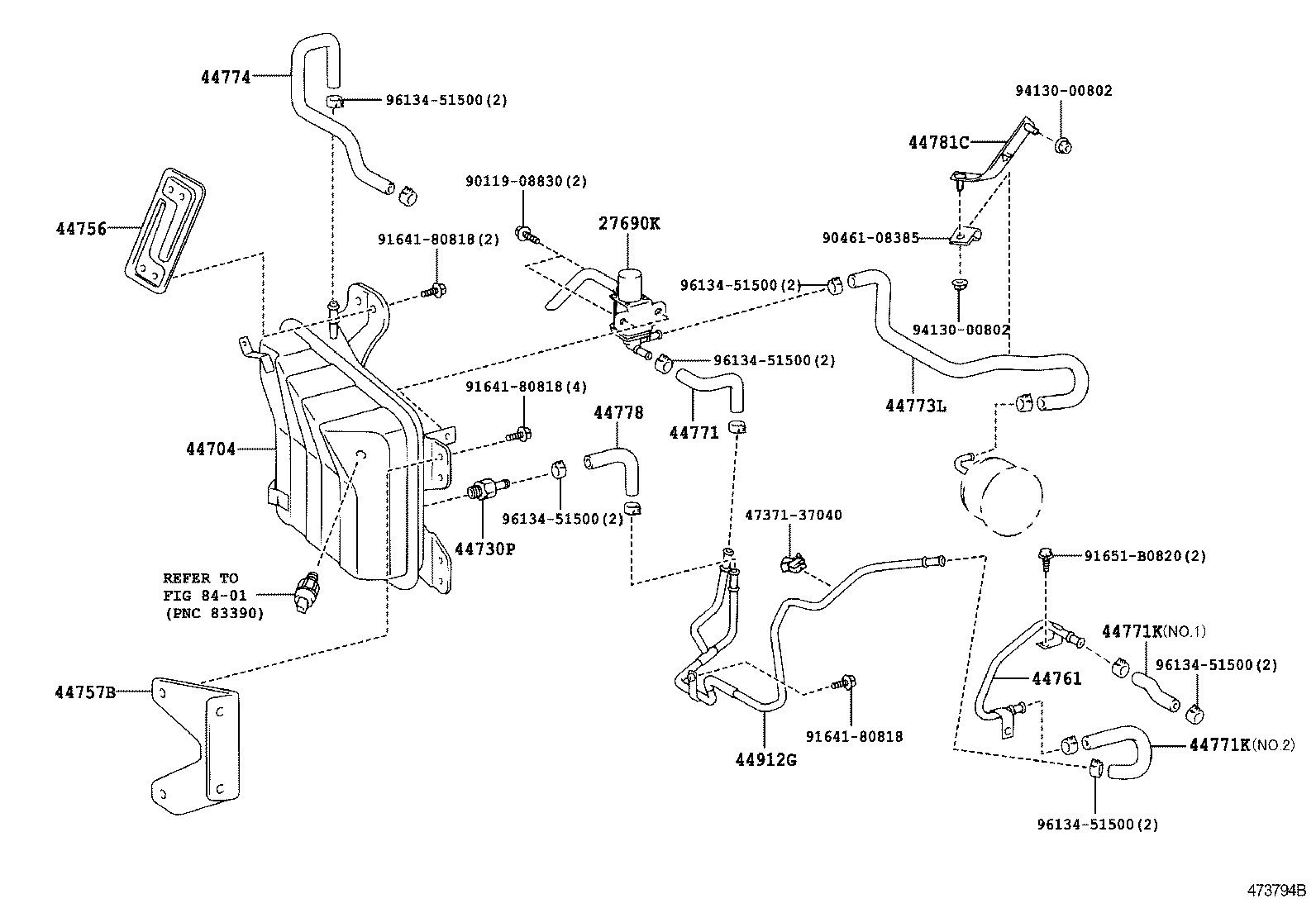

Figure 475597C 475597C 2003-10 → — Figure 473794B 473794B 2003-10 → 2006-10 Figure 475598B 475598B 2006-10 → —

Part groups

PNCDescription
27690K Solenoid Assy, W/Bracket(FOR EXHAUST BRAKE)
44610 Booster Assy, Brake
44621V Seal, Booster Body
44704 Reservoir Sub-assy, Vacuum
44730B Clamp, Vacuum Hose
44730J Way(FOR BOOSTER VACUUM)
44730P Valve Assy, Vacuum Check, NO.1
44734B Bracket, Booster Support
44756 Bracket, Vacuum Reservoir
44757B Bracket, Vacuum Tank Clamp, NO.2
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44763B Tube, Tube Connector TO Tube Connector
44764A Hose, Booster Vacuum
44768 Tube, Booster Vacuum
44771 Hose, Vacuum Tube Connector
44771K Hose, Vacuum Tube TO Vacuum Pump
44773L Hose, Solenoid TO Exhaust Retarder
44774 Hose, Union TO Connector Tube
44775C Hose, Connector TO Way
44775E Hose, Way TO Connector
44776 Hose, Brake Booster
44776A Hose, Vacuum Reservoir TO Brake Booster
44778 Hose, Connector TO Check Valve
44778D Hose, Vacuum Tube TO Connector Tube
44781C Bracket, Hose Clamp, NO.2
44799 Way, Brake Vacuum Hose
44912G Tube, 3 Way TO Magnetic Valve
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
