Toyota Dyna/Toyoace HV
2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan
Discontinued model
Data version 2012-01

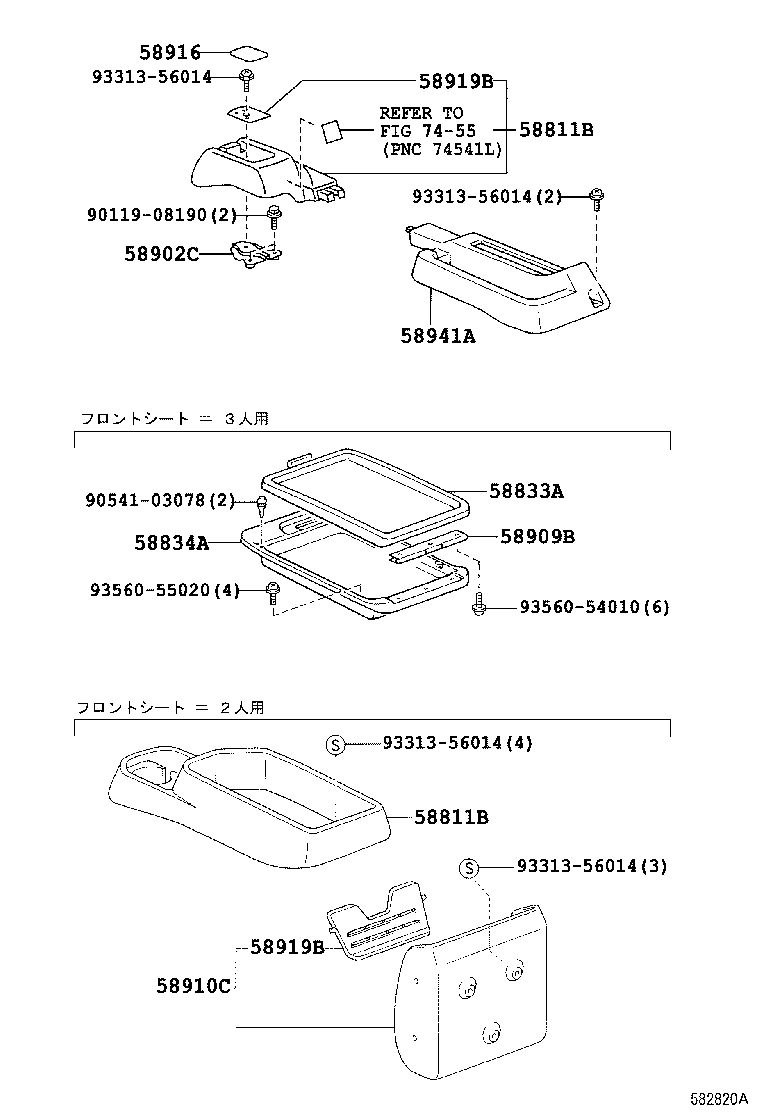

Console Box & Bracket
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58255H | Cover, Shift Lever Boot |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58811B | Box, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58833A | Cover, Console, Upper |
| 58834A | Cover, Console, Lower |
| 58902C | Bracket Sub-assy, Console Box Mounting |
| 58909B | Retainer Sub-assy, Console Compartment |
| 58910C | Box Assy, Console, Rear |
| 58916 | Mat, Box Bottom |
| 58919B | Plate, Console Box |
| 58941A | Cover, Parking Brake Hole |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
