Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

35 part groups · 3 illustrations

Illustrations

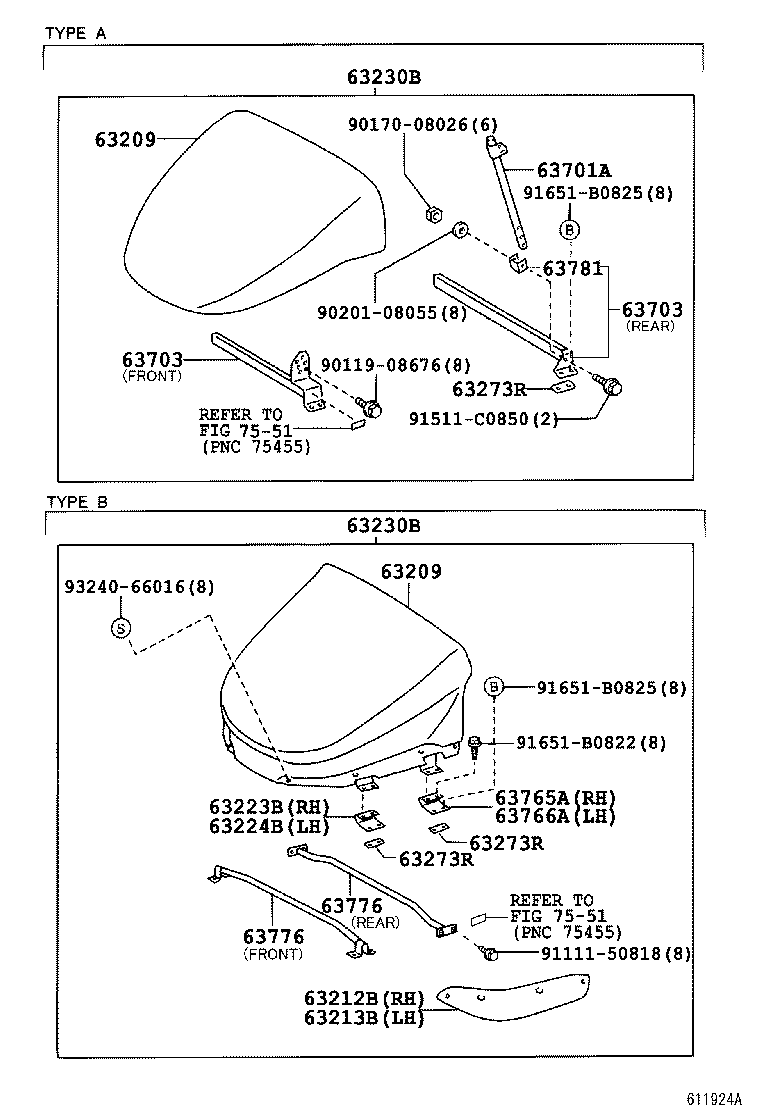

Figure 611923F 611923F 2003-10 → — Figure 611924A 611924A 2003-10 → — Figure 611925A 611925A 2003-10 → —

Part groups

PNCDescription
53709D Bracket Sub-assy, Air Cleaner Inlet Seal
53764A Bracket, Air Cleaner Inlet, NO.1
53765B Bracket, Air Cleaner Inlet, NO.2
53773B Bracket, Air Cleaner Inlet, NO.2
58993C Bracket, Console Box Mounting, Rear
63101 Panel Sub-assy, Roof
63141G Reinforcement, Roof Panel, NO.1
63151B Seal, Roof Panel Reinforcement
63185A Bracket, Roof Rack, Front RH
63186A Bracket, Roof Rack, Front LH
63209 Panel Sub-assy, Roof Wind Deflector
63212B Panel, Roof Wind Deflector
63213B Panel, Sliding Roof, Inner
63223B Bracket, Roof Wind Deflector, RH
63224B Bracket, Roof Wind Deflector, LH
63230B Panel Assy, Roof Wind Deflector
63273R Packing, Roof Window Defrector
63403 Deck Sub-assy, Roof Rack
63467 Bracket, Roof Rack, Rear RH
63468 Bracket, Roof Rack, Rear LH
63495A Cover, Roof Rack Leg, Center
63701A Bracket Sub-assy, Roof Air Deflector, Front
63703 Bar Sub-assy, Roof Air Deflector, NO.1
63765A Bracket, Roof Air Deflector, RH
63766A Bracket, Roof Air Deflector, LH
63776 Bar, Roof Air Deflector, NO.2
63781 Stay, Roof Air Deflector
64111A Panel, Back
64115B Reinforcement, Back Panel
64122A Baffle, Dust Rear Body
64125F Bracket, Upper Back Panel
64126A Bracket, Upper Back Panel, LH
64277E Bracket, Back Panel Trim, Lower
64811 Glass, Back Window
64831 Weatherstrip, Back Window Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
