Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

32 part groups · 3 illustrations

Illustrations

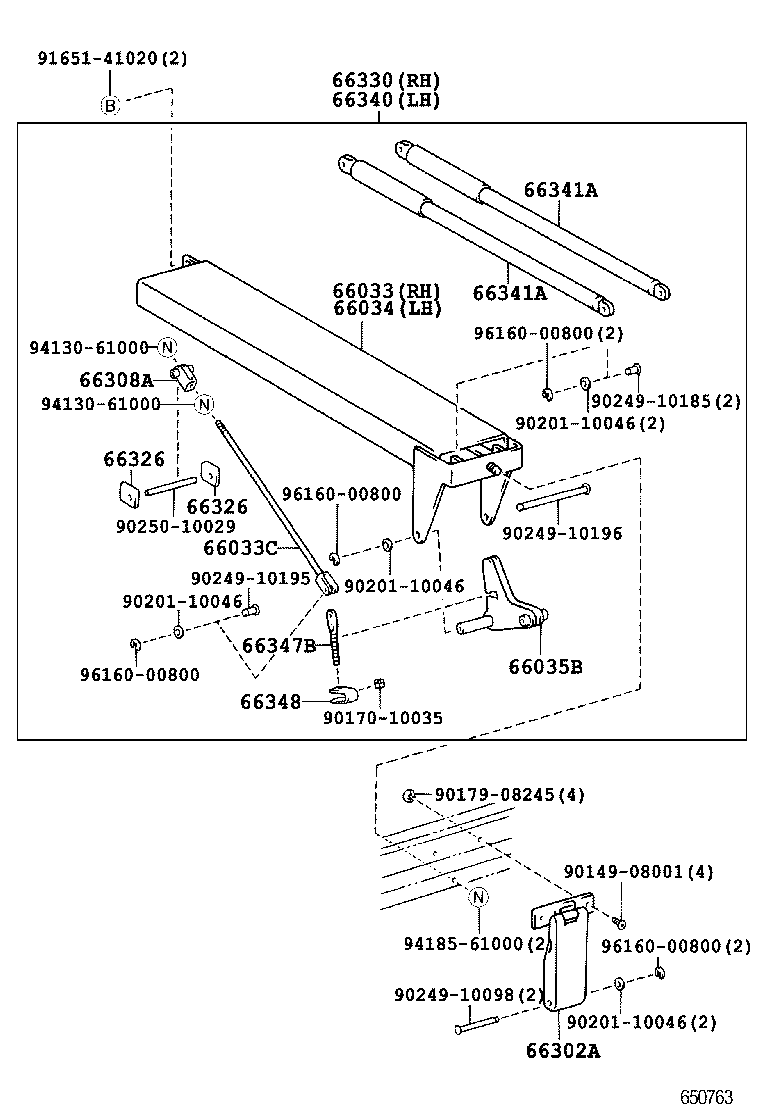

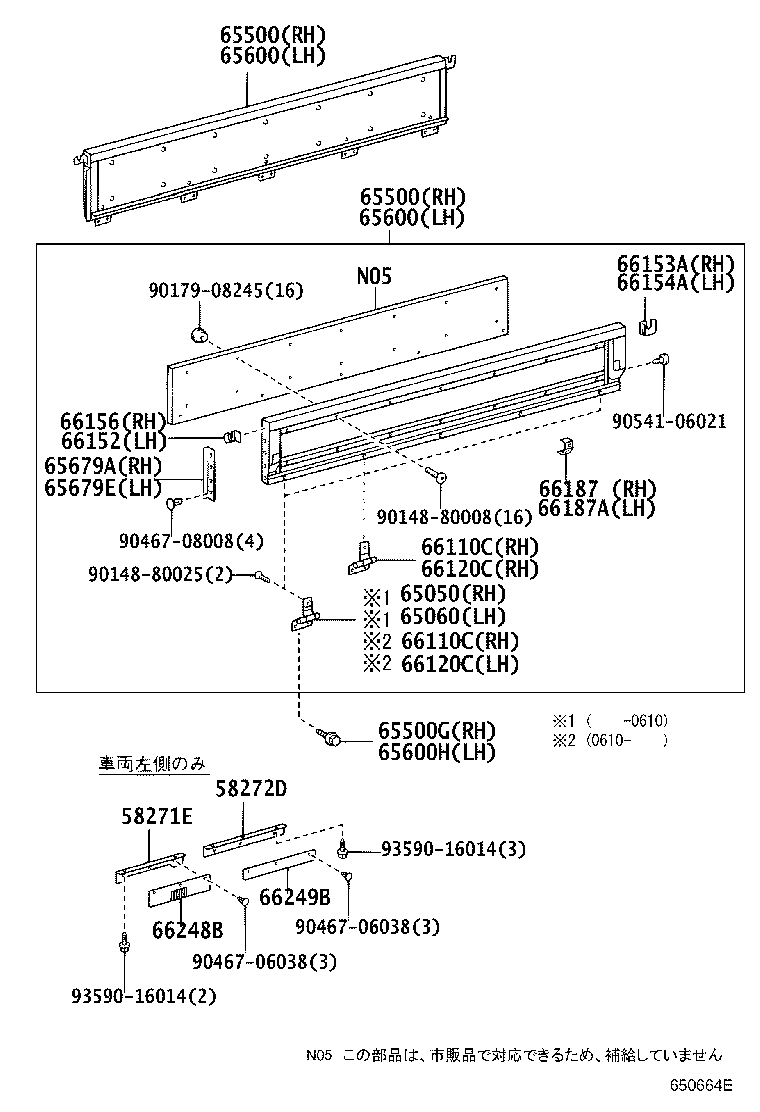

Figure 650666A 650666A 2004-06 → — Figure 650664E 650664E 2004-06 → — Figure 650763 650763 2004-06 → —

Part groups

PNCDescription
58271E Plate, Floor Side, NO.1
58272D Plate, Floor Side, NO.2
65050 Hinge Assy, Side Gate, N0.2 RH
65060 Hinge Assy, Side Gate, N0.2 LH
65500 Panel Assy, Rear Body Side, RH
65500G Bolt, W/Washer(FOR SIDE GATE, RH)
65600 Panel Assy, Rear Body Side, LH
65600H Bolt, W/Washer(FOR SIDE GATE, LH)
65679A Seal, Side Gate
65679E Seal, Side Gate
66033 Bracket Sub-assy, Gate Helper, NO.3
66033C Rod Sub-assy, Gate Helper Tension
66034 Bracket Sub-assy, Gate Helper, NO.3 LH
66035B Bellcrank Sub-assy, Gate Helper
66110C Hinge Assy, Side Gate, NO.1 RH
66120C Hinge Assy, Side Gate, NO.1 LH
66152 Latch, Side Gate Female, LH
66153A Latch, Tail Gate Female, RH
66154A Latch, Tail Gate Female, LH
66156 Latch, Semistake Female, RH
66187 Handle, Side Gate Latch, Center NO.2
66187A Latch, Side Gate Support
66248B Protector, Rear Body Side Panel, RH
66249B Protector, Rear Body Side Panel, LH
66302A Link Sub-assy, Gate Helper
66308A End Sub-assy, Gate Helper Rod, NO.2
66326 Slider, Rod Control
66330 Helper Assy, Gate, RH
66340 Helper Assy, Gate, LH
66341A Stay, Gate Helper
66347B Bolt, Gate Helper Bellcrank Adjust
66348 Retainer, Gate Helper Bellcrank Adjust Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
