Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

38 part groups · 7 illustrations

Illustrations

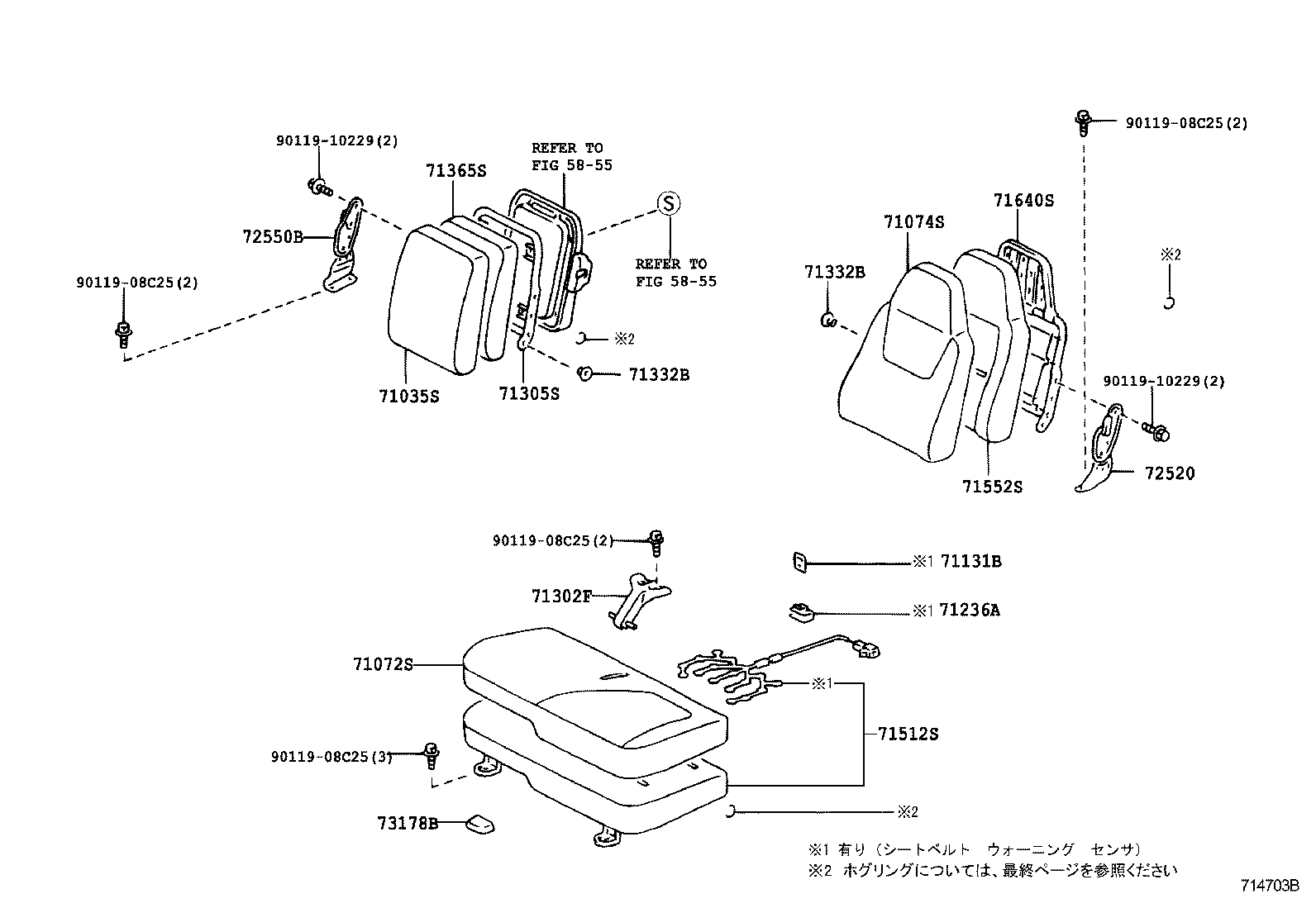

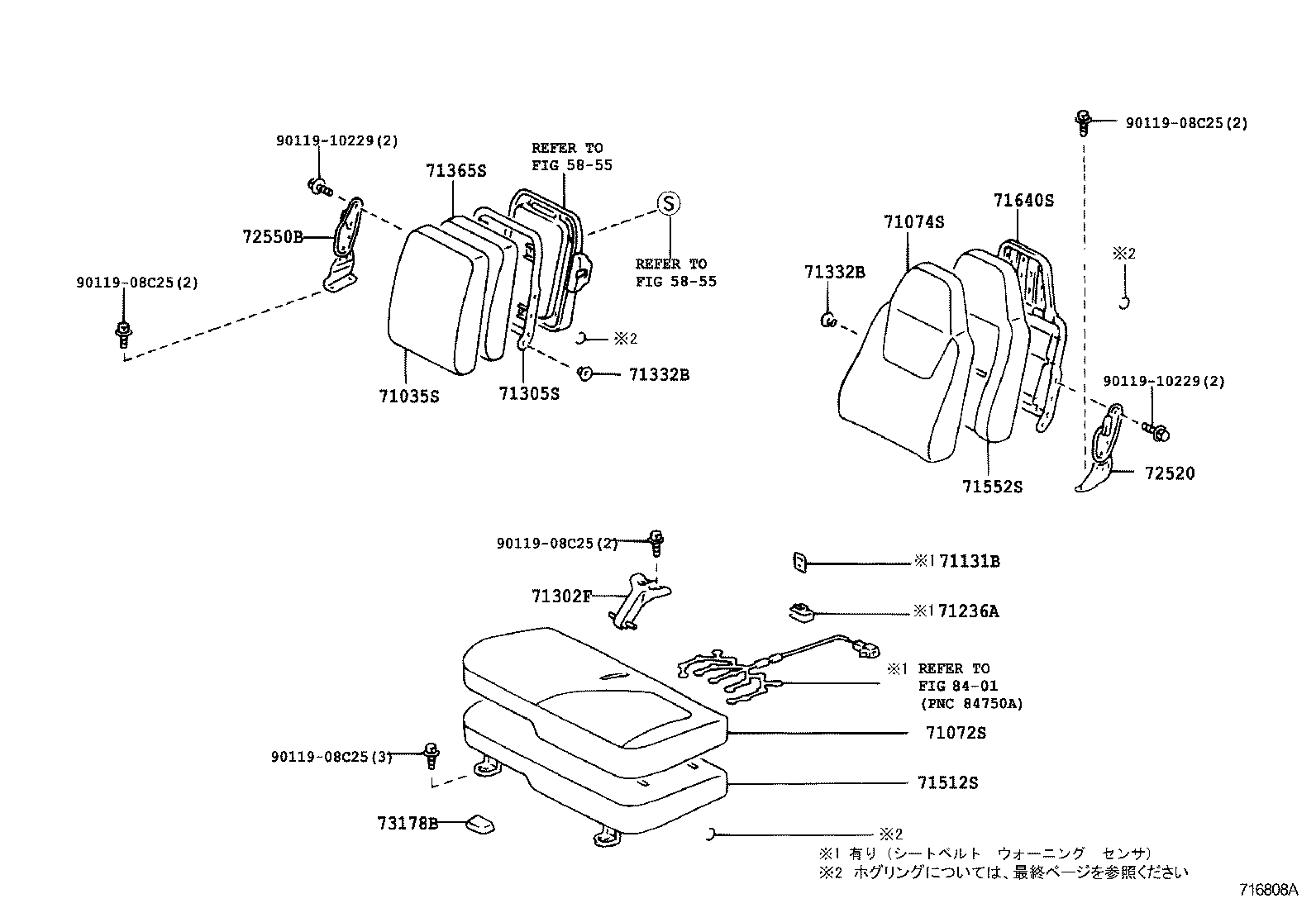

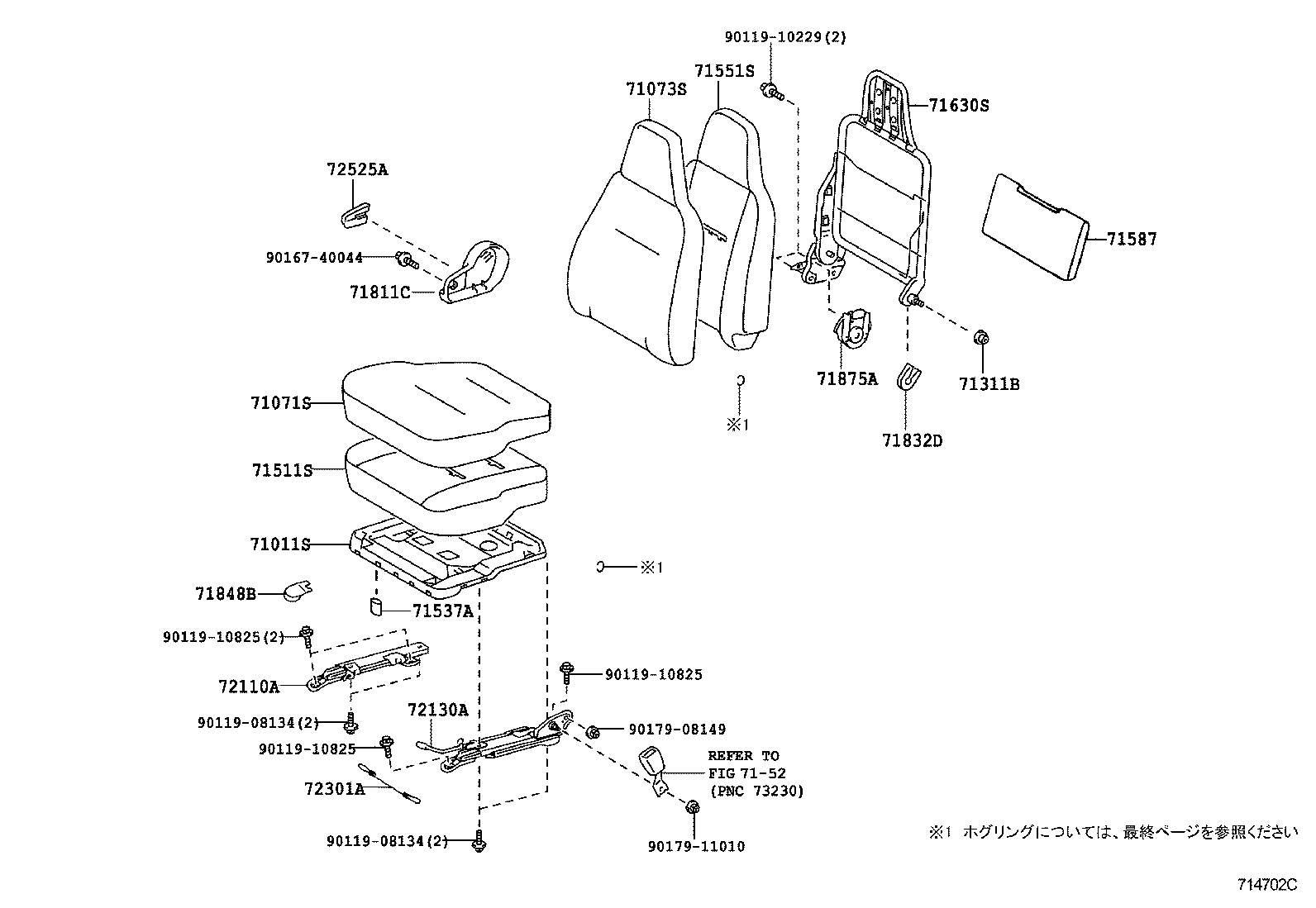

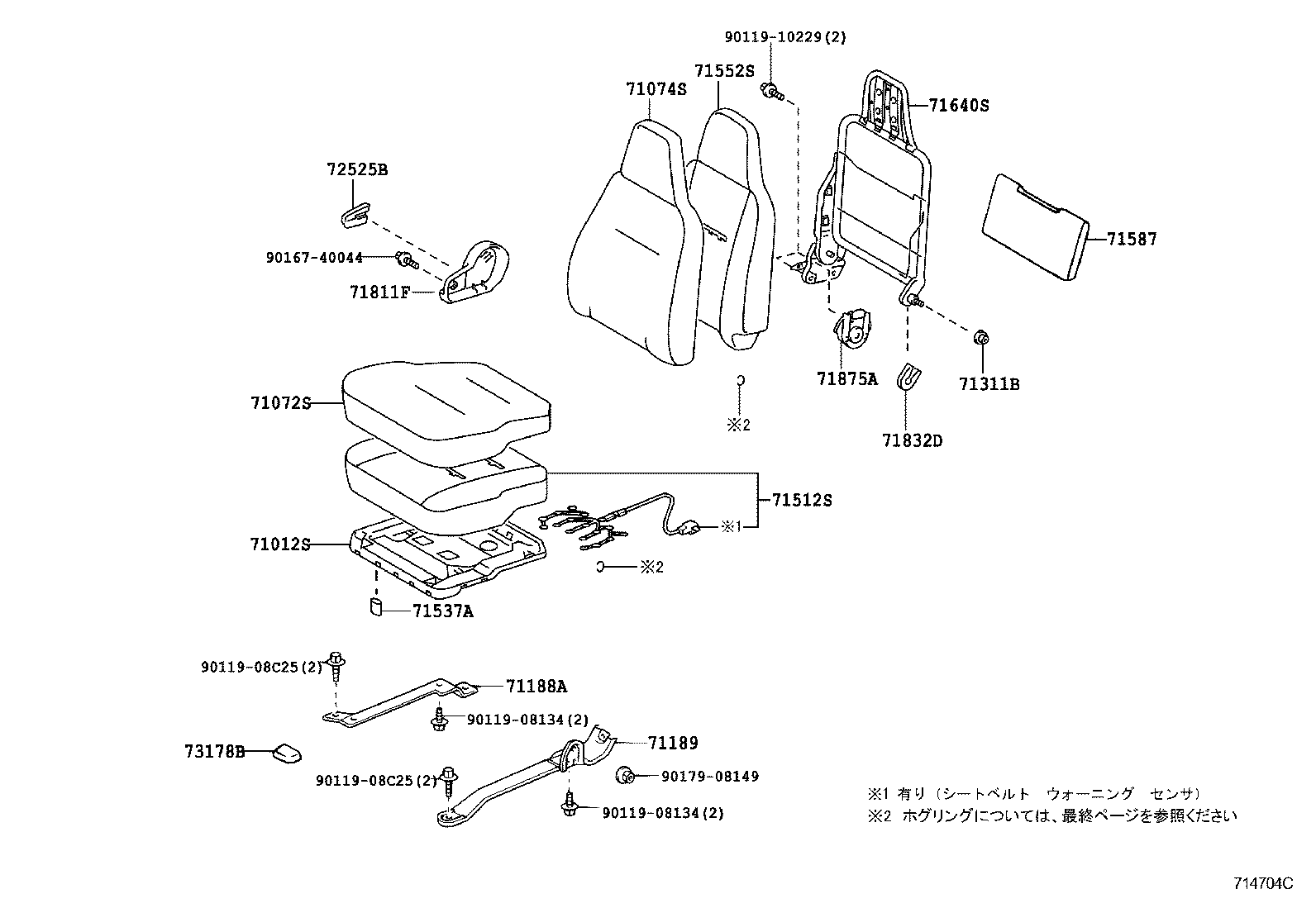

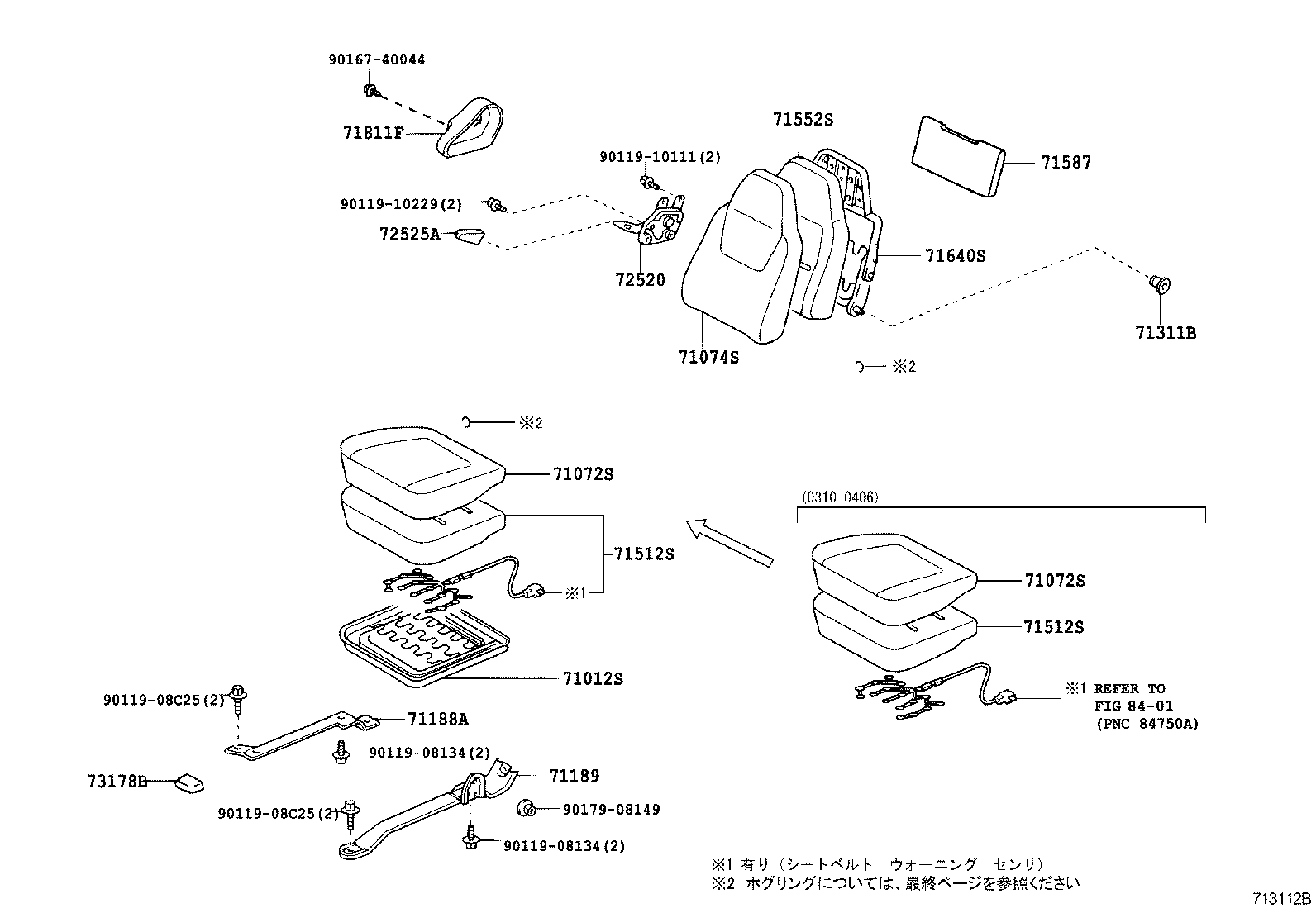

Figure 716809A 716809A 2003-10 → 2006-10 Figure 714702C 714702C 2006-10 → — Figure 713112B 713112B 2003-10 → 2006-10 Figure 714704C 714704C 2006-10 → — Figure 716808A 716808A 2003-10 → 2004-06 Figure 714703B 714703B 2004-06 → — Figure 718165A 718165A 2003-10 → —

Part groups

PNCDescription
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71035S Cover, Front Seatback, Center
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71131B Plate, Front Seat Cushion, NO.1
71188A Leg, Front Seat, RH
71189 Leg, Front Seat, LH
71236A Clamp, Rear Seat Cushion Spring
71302F Hinge Sub-assy, Front LH Seatback, LH
71305S Frame Sub-assy, Center Seatback
71311B Bush (FOR FRONT SEAT HINGE PIN)
71332B Spacer, Rear Seatback Hinge
71365S Pad, Center Seatback
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71811C Cover, Reclining Adjuster, RH
71811F Cover, Reclining Adjuster, RH
71832D Cover, Front Seat Hinge, LH
71848B Cap, Seat Adjuster Cover, RH
71875A Cover, Reclining Adjuster Inside, RH
72110A Track Assy, Front Seat, Outer RH
72130A Track Assy, Front Seat, Inner RH
72301A Wire Sub-assy, Seat Track Equalizing, RH
72510 Adjuster Assy, Reclining Seatback, RH
72520 Adjuster Assy, Reclining Seatback, LH
72525A Handle, Reclining Adjuster Release, RH
72525B Handle, Reclining Adjuster Release, RH
72550B Adjuster Assy, Reclining Seat, Center RH
73178B Cap, Seat Belt Anchor Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
