Toyota Dyna/Toyoace HV
2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan
Discontinued model
Data version 2012-01
Caution Plate

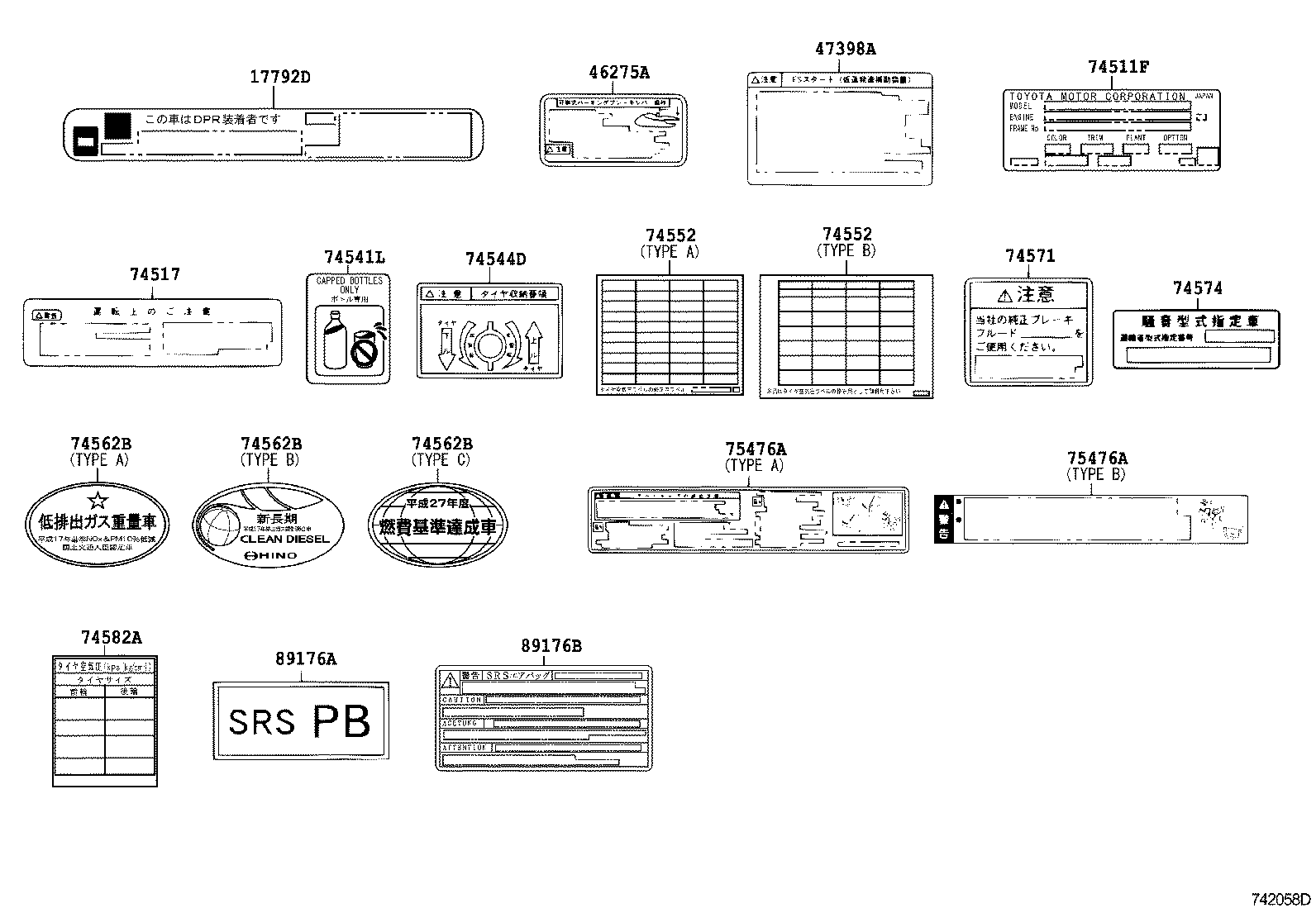

21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11296C | Label, Engine Service Information |
| 17792D | Label, Emission Control Device Information |
| 31192 | Label, Clutch Notice |
| 46275A | Label, Parking Brake Release Information, NO.1 |
| 47398A | Label, Hill Holder Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74517 | Plate, Exhaust Temperature Caution |
| 74541L | Label, Bottle Holder Information |
| 74544D | Plate, Tire Carrier Caution |
| 74552 | Plate, Safety Caution |
| 74559B | Label, Fuel Information |
| 74562B | Label, Emission Information |
| 74571 | Plate, Brake Fluid Caution |
| 74574 | Plate, Noise Identification |
| 74582A | Plate, Safety Caution |
| 75476A | Plate, Tilt Operational Caution |
| 82685 | Plate, Caution |
| 82685C | Plate, Caution |
| 86995B | Plate, Caution |
| 89176A | Label, Airbag Deployment Information |
| 89176B | Label, Airbag Sensor Cover Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
