Fuel Tank & Tube

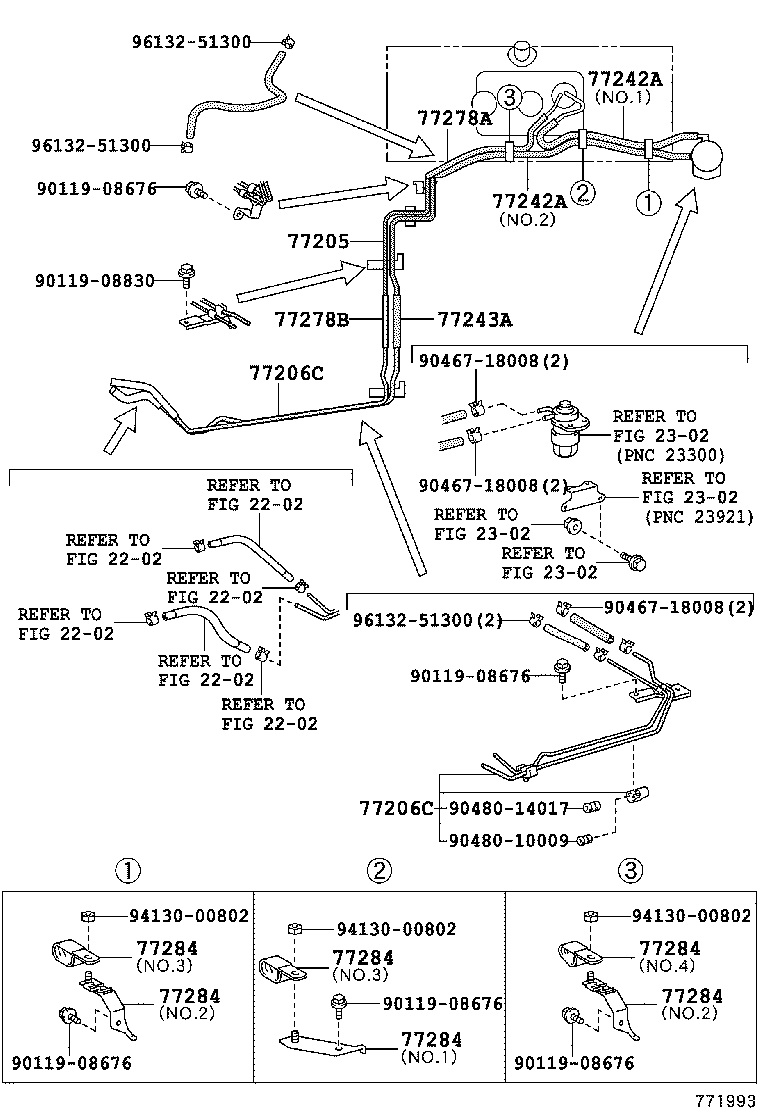

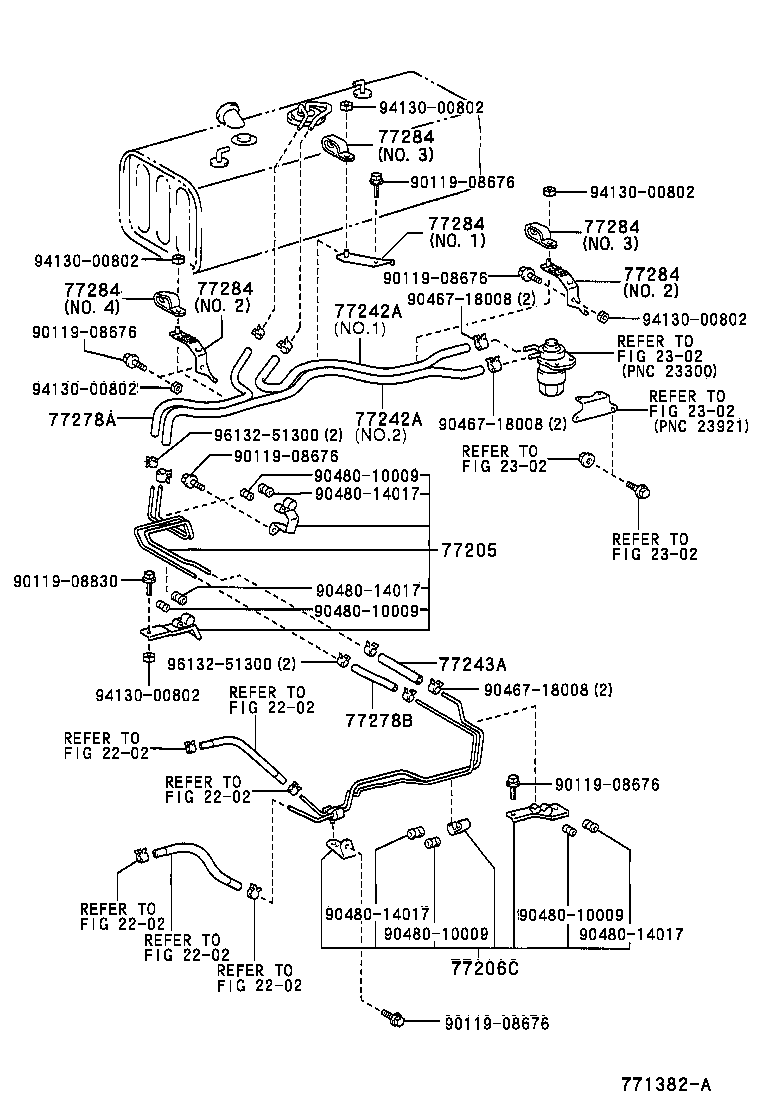

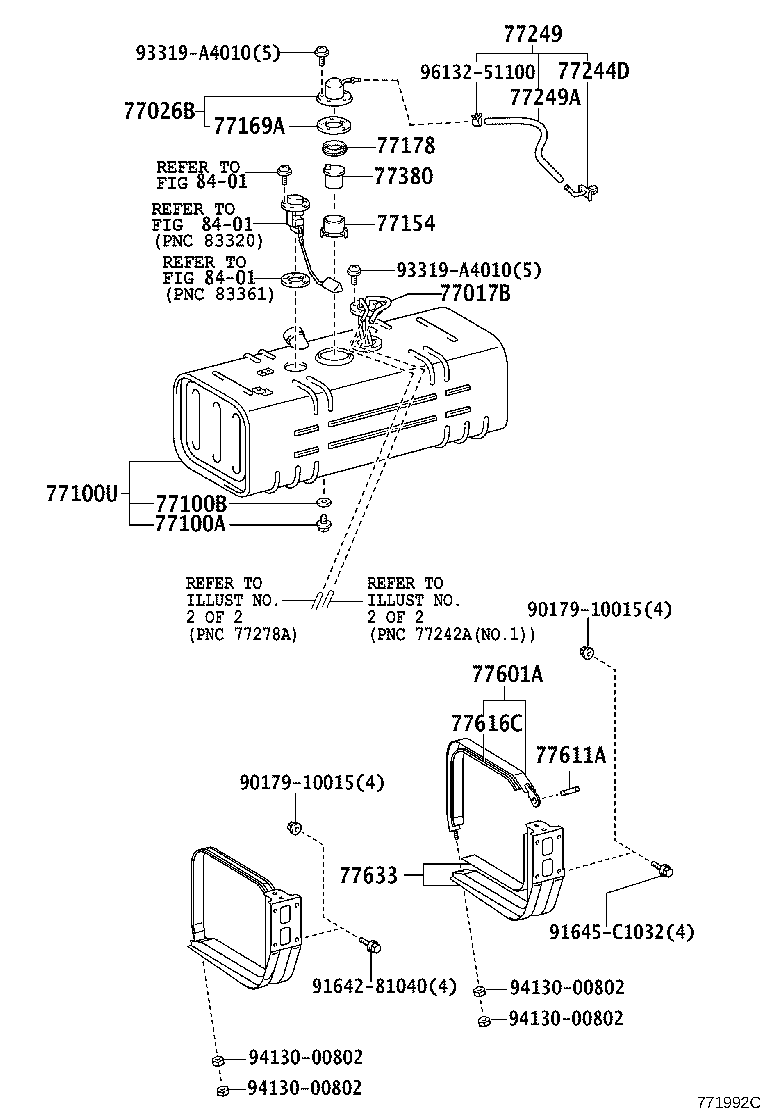

29 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77018 | Valve Sub-assy, Fuel Vapour Separate |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77026B | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100U | Tank Sub-assy, Fuel |
| 77135A | Protector, Fuel Tank Side |
| 77154 | Plate, Fuel Tank Evap/Vent Tube Support |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77197 | Orifice, Fuel Vapor |
| 77205 | Tube Sub-assy, Fuel Main |
| 77206C | Tube Sub-assy, Fuel Main, NO.2 |
| 77242A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2) |
| 77243A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3) |
| 77244C | Joint, Fuel Tube, NO.2 |
| 77244D | Tube, Fuel Evaporation Breather, NO.1 |
| 77249 | Hose, Fuel Emission |
| 77249A | Hose, Fuel Emission |
| 77278A | Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2) |
| 77278B | Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2) |
| 77284 | Clamp, Fuel Tube |
| 77380 | Valve Assy, Fuel Cut Off |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77616C | Seat, Fuel Tank Band |
| 77633 | Stay, Fuel Tank |
| 77701U | Hose, Fuel (FOR CHECK VALVE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
