Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

9 part groups · 3 illustrations

Illustrations

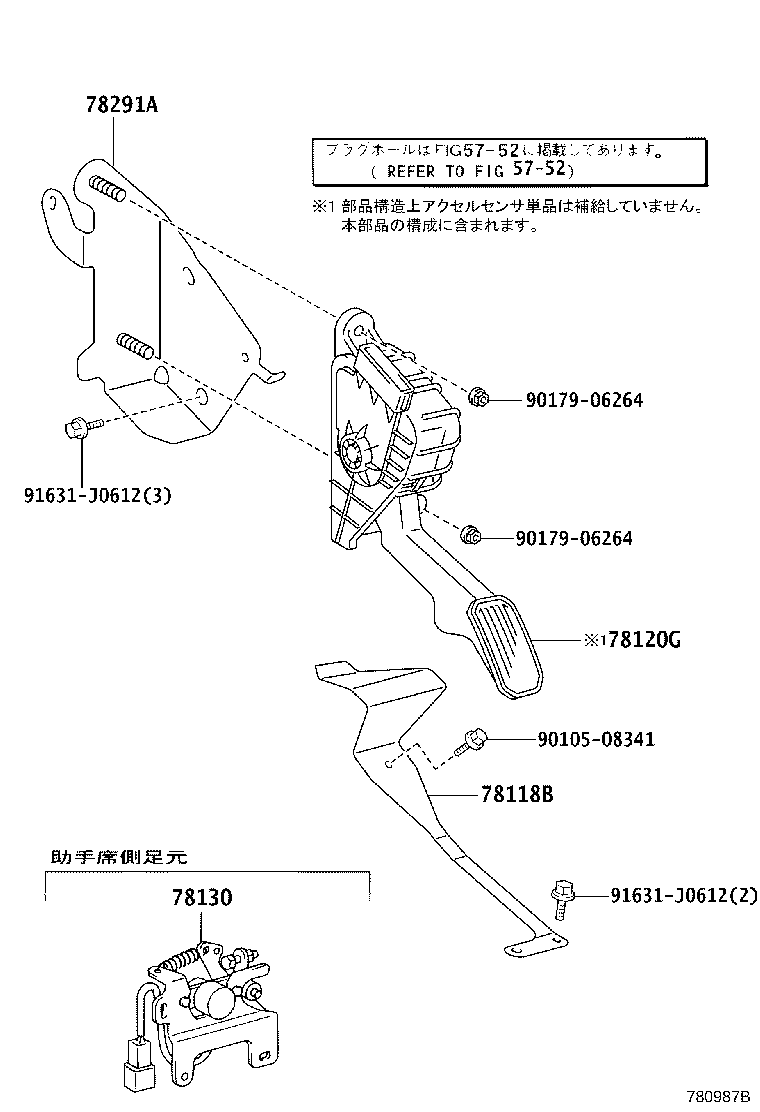

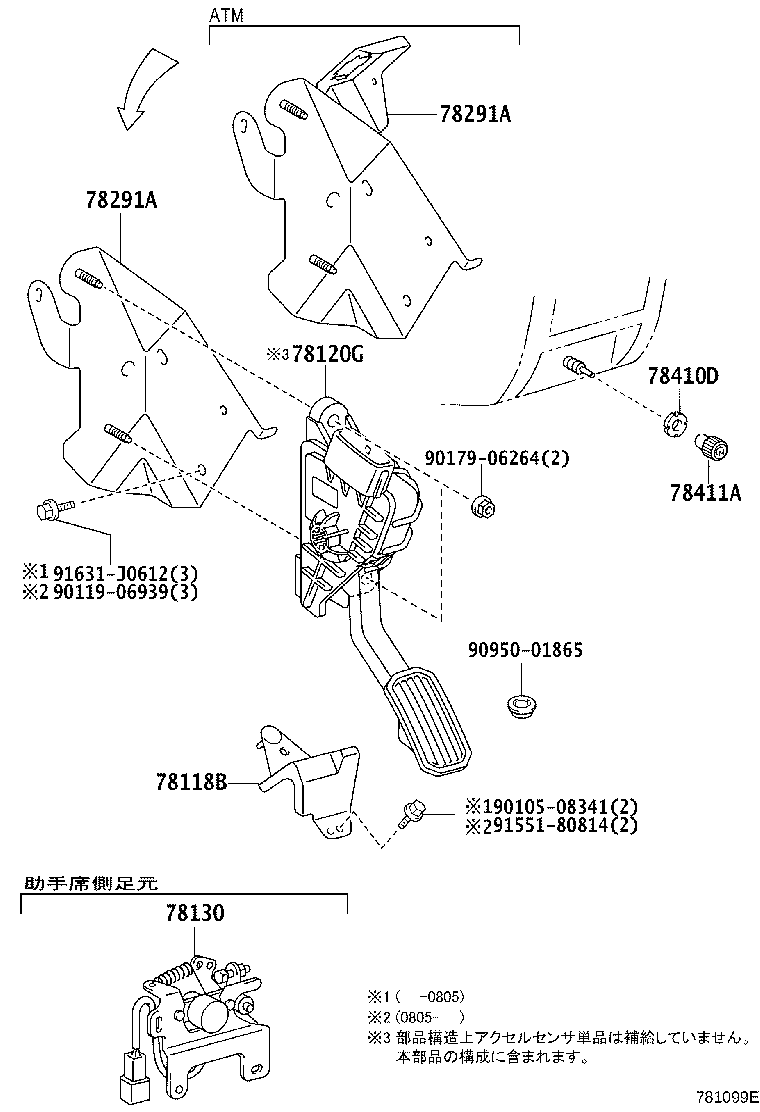

Figure 780812B 780812B 2003-10 → 2006-10 Figure 780987B 780987B 2005-05 → 2006-10 Figure 781099E 781099E 2006-10 → —

Part groups

PNCDescription
78100 Link Assy, Accelerator
78111 Pedal, Accelerator
78118B Stopper, Accelerator Pedal
78120G Rod Assy, Accelerator Pedal
78130 Bellcrank Assy, Accelerator
78189 Bolt, Accelerator Pedal Stopper
78291A Bracket, Accelerator Link
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
