Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

8 part groups · 2 illustrations

Illustrations

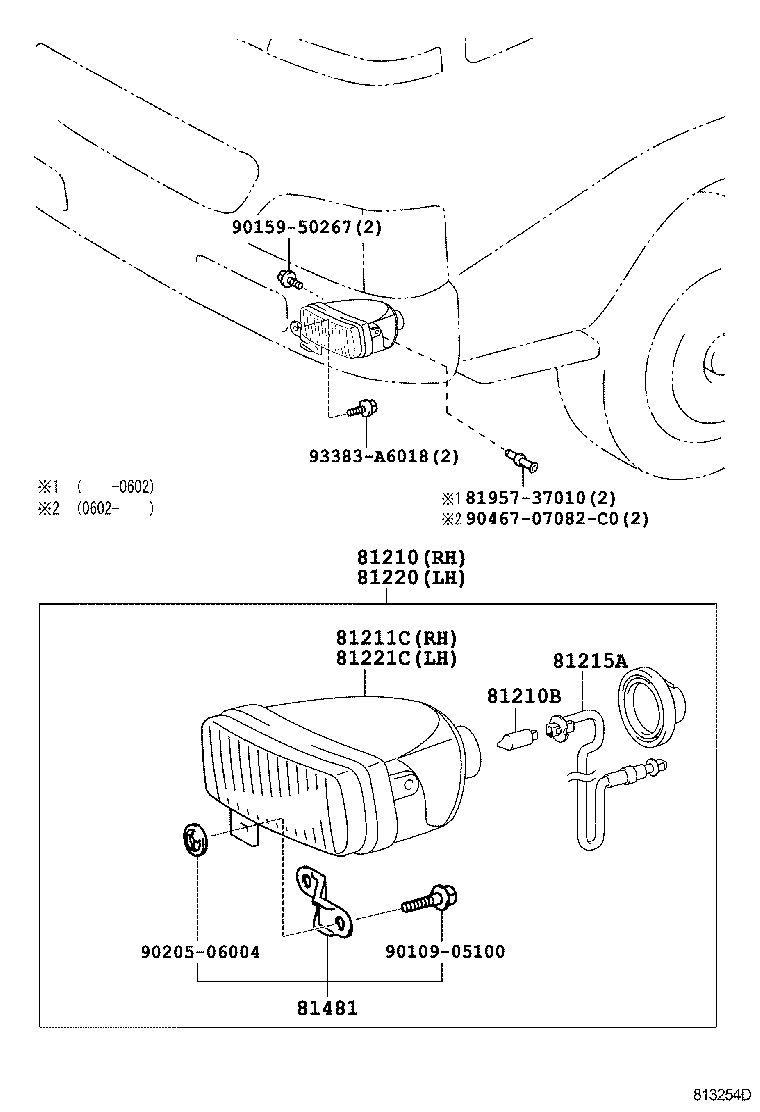

Figure 812715A 812715A 2003-10 → 2005-05 Figure 813254D 813254D 2005-05 → —

Part groups

PNCDescription
81210 Lamp Assy, Fog
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81215A Socket & Wire, Fog Lamp
81215D Fog Lamp Socket Plug Assy
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81481 Bracket, Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
