Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan

Discontinued model Data version 2012-01

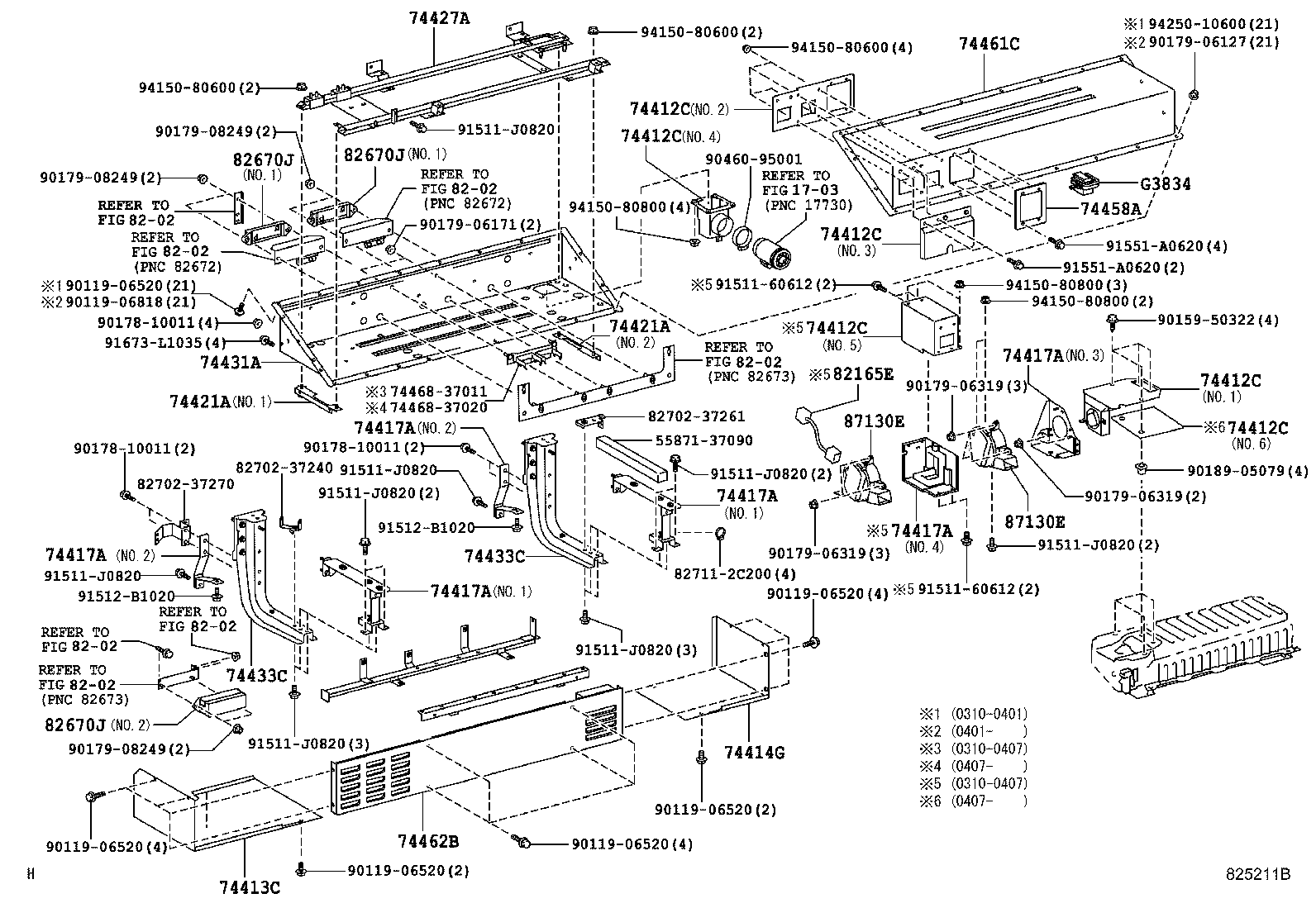

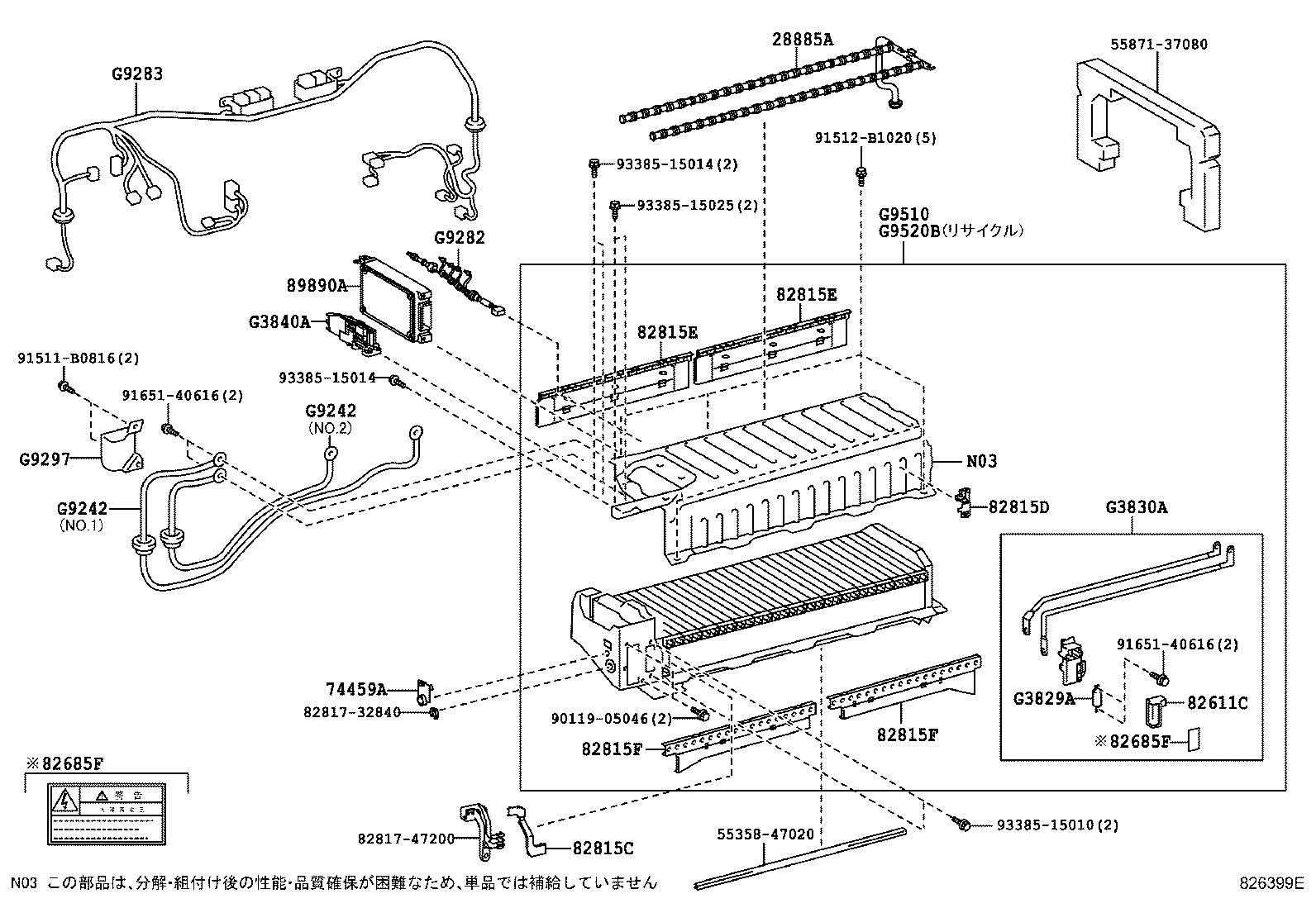

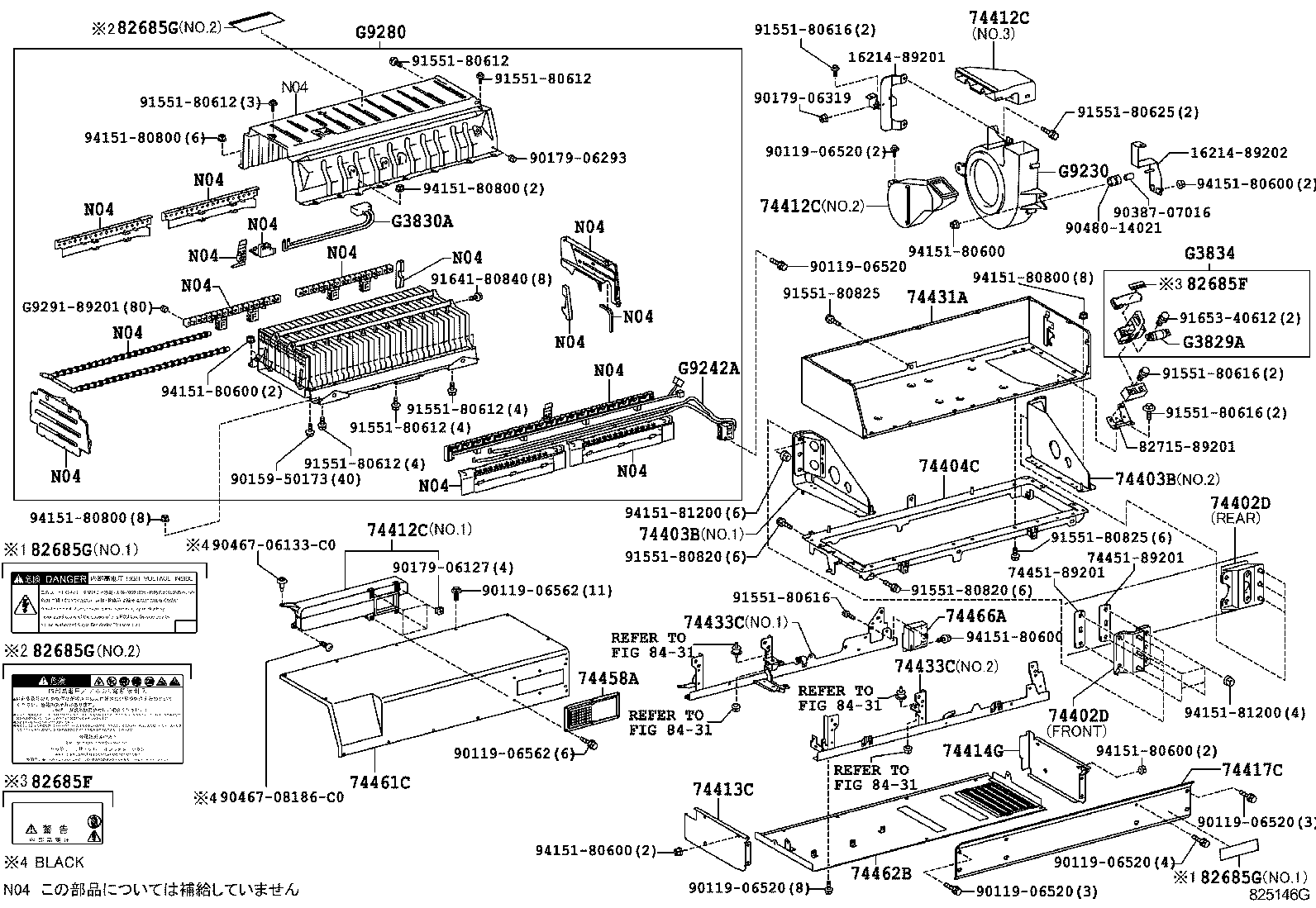

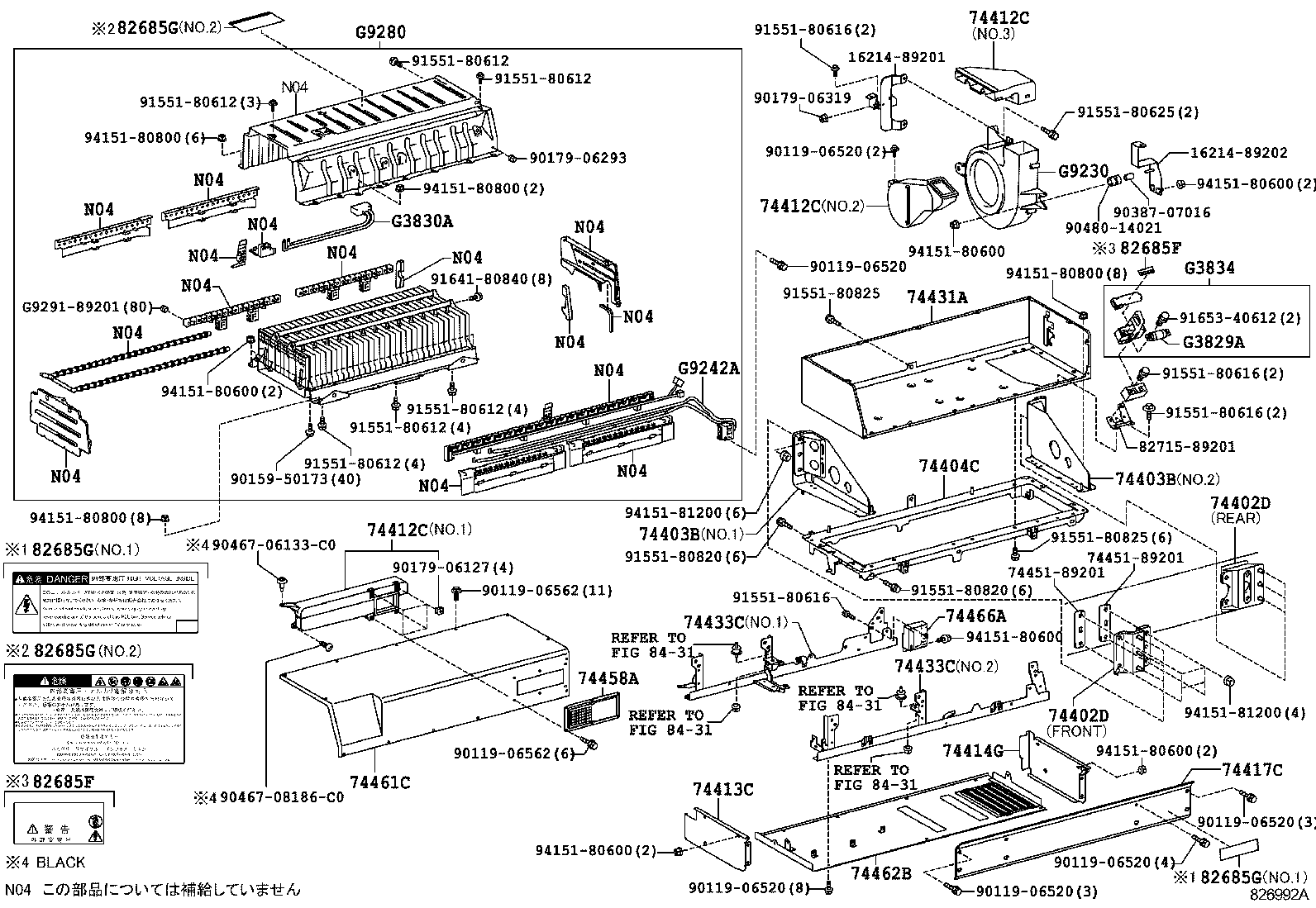

Battery & Battery Cable

46 part groups · 6 illustrations

PNC	Description
28800A	Terminal, Battery Positive
28800D	Cover, Connector(FOR BATTERY TERMINAL)
28800F	Cable, Battery TO Battery
28800J	Terminal, Battery Negative
28885A	Hose, Battery Room Ventilation
74402D	Bracket Sub-assy, Battery, LH
74403B	Carrier Sub-assy, Battery
74404C	Carrier Sub-assy, Battery, Upr
74412C	Duct, Battery Carrier
74413C	Panel, Battery Carrier, Front
74414G	Panel, Battery Carrier, RR
74417A	Bracket, Battery Carrier
74417C	Panel, Battery Carrier LH
74421A	Channel, Battery Carrier, NO.1 RH
74427A	Bracket, Battery Carrier Catch, NO.1
74431A	Tray, Battery
74433C	Support, Battery Tray
74458A	Lid, Battery Cover, NO.1
74459A	Lid, Battery Cover, NO.2
74461C	Cover, Battery
74462B	Panel, Battery Carrier, NO.2
74466A	Panel, Battery Carrier, NO.6
82165E	Wire, Battery Pack
82611C	Cover, Fuse Block
82670J	Block Assy, Junction
82685F	Main Battery Caution Plate, NO.1
82685G	Main Battery Caution Plate, NO.2
82815C	Cover, Wiring Harness Protector, NO.1
82815D	Cover, Wiring Harness Protector, NO.2
82815E	Cover, Wiring Harness Protector, NO.3
82815F	Cover, Wiring Harness Protector, NO.4
87130E	Blower Assy, Battery
89890A	Computer Assy, Battery
G3829A	Fuse, Electric Vehicle
G3830A	Plug Assy, Electric Vehicle Battery
G3834	Grip, Service Plug
G3840A	Relay Assy, Hybrid Vehicle
G9230	Blower Assy, Battery Cooling
G9242	Cable, Main Battery
G9242A	Cable, Main Battery, NO.2
G9280	Battery Assy, EV, NO.1
G9282	Thermistor, Hybrid Battery
G9283	Wire, Hybrid Battery
G9297	Insulator, Hybrid Battery
G9510	Battery Assy, HV Supply
G9520B	Battery Assy, HV Recycle

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
