Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

34 part groups · 12 illustrations

Illustrations

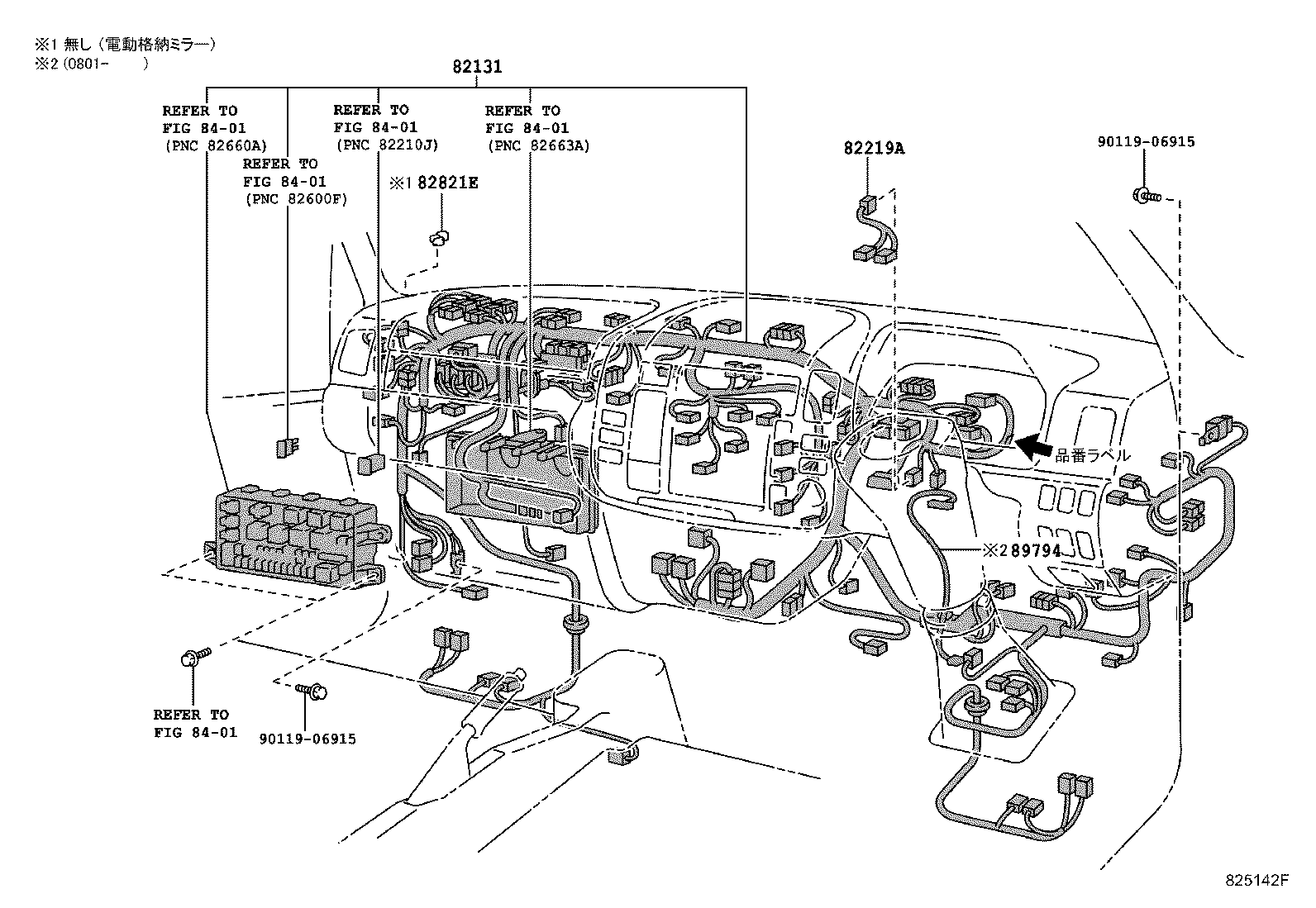

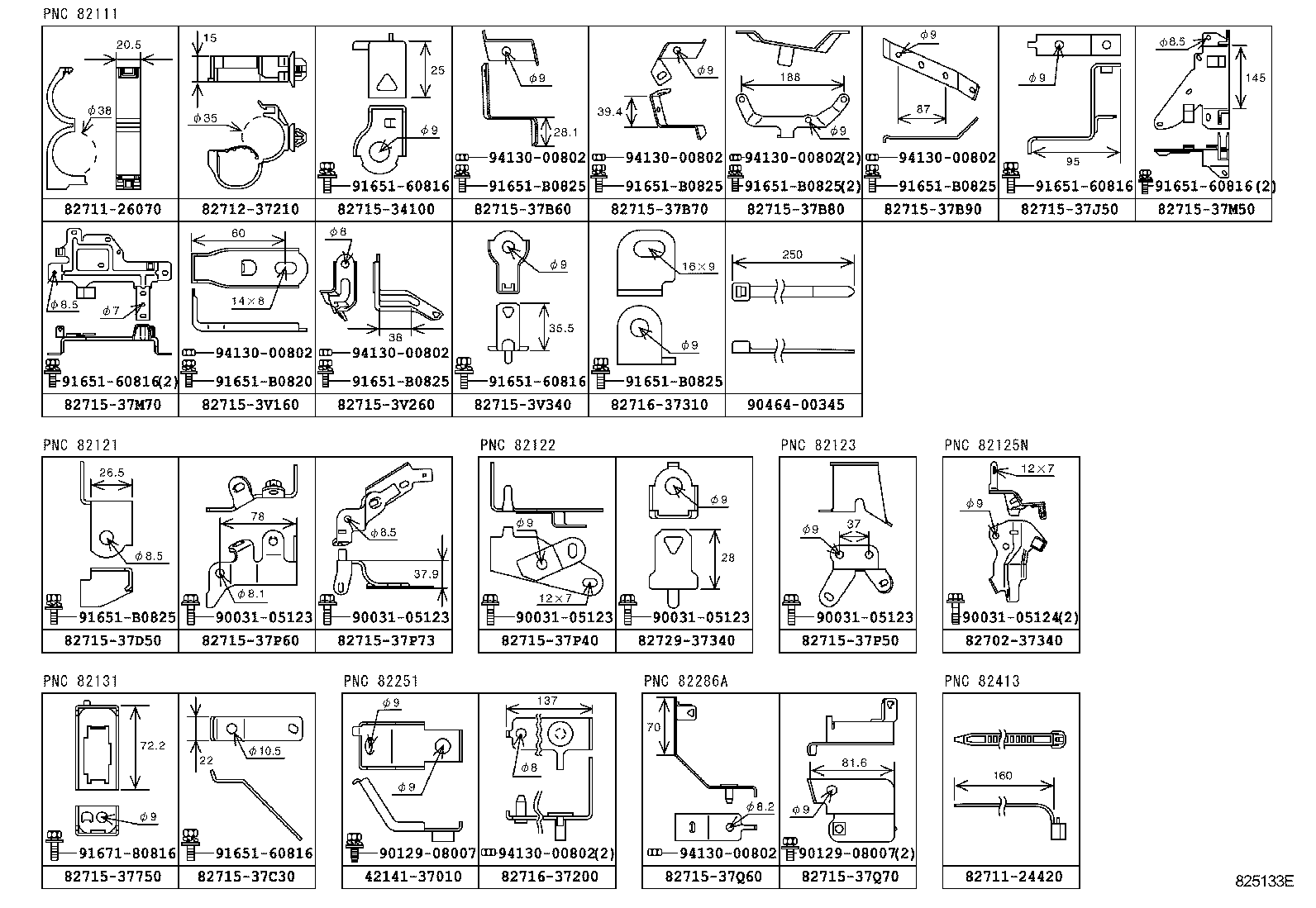

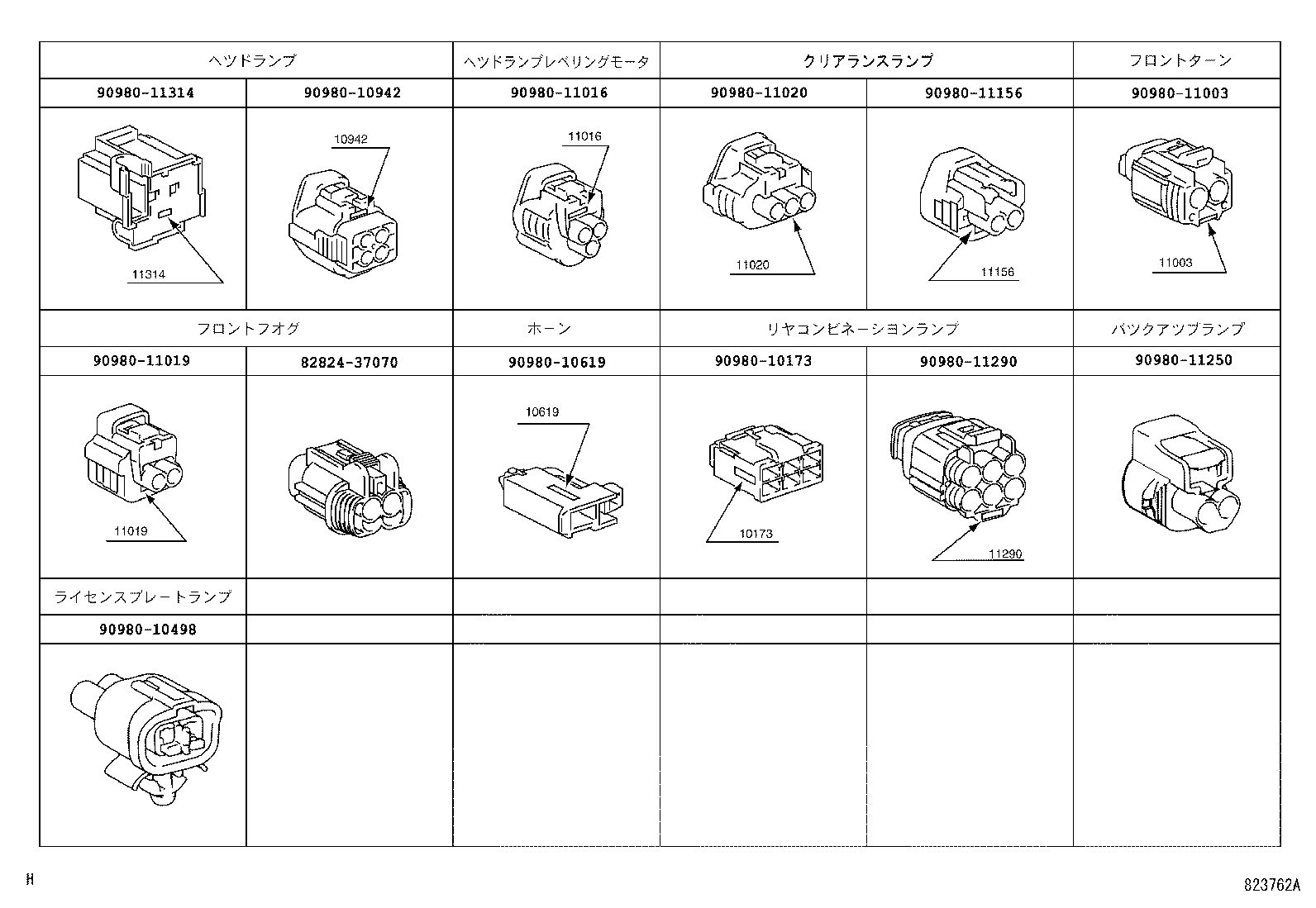

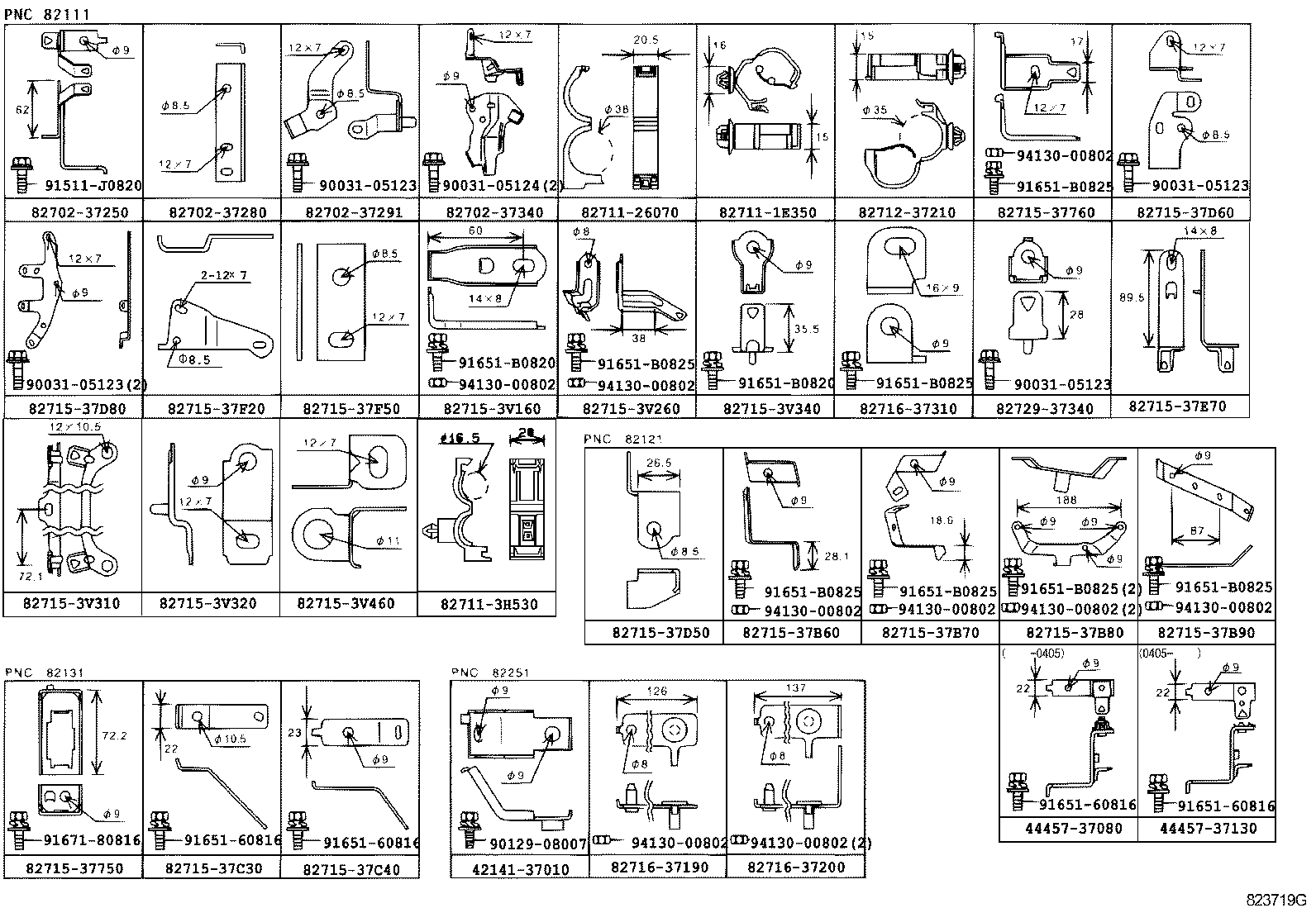

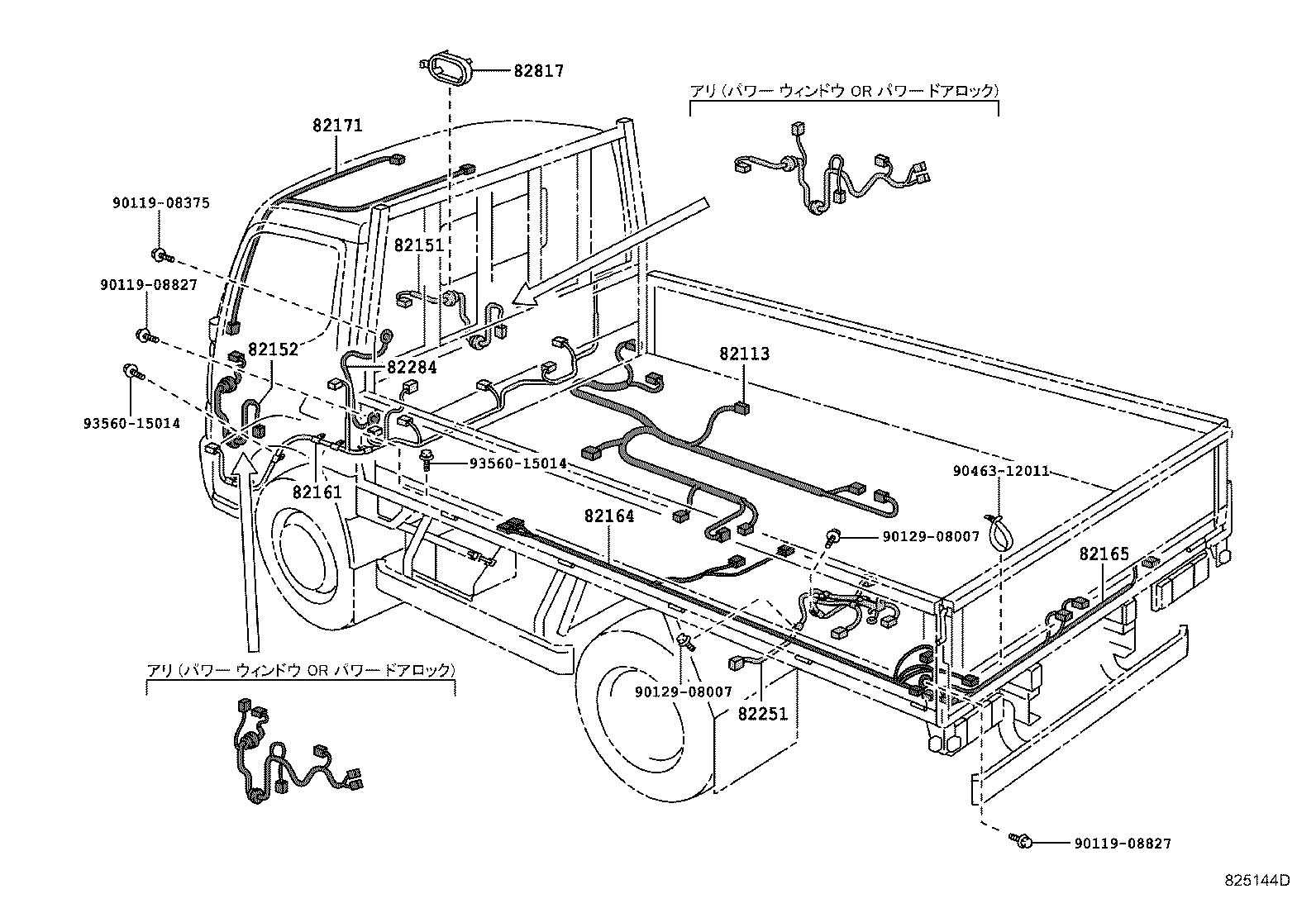

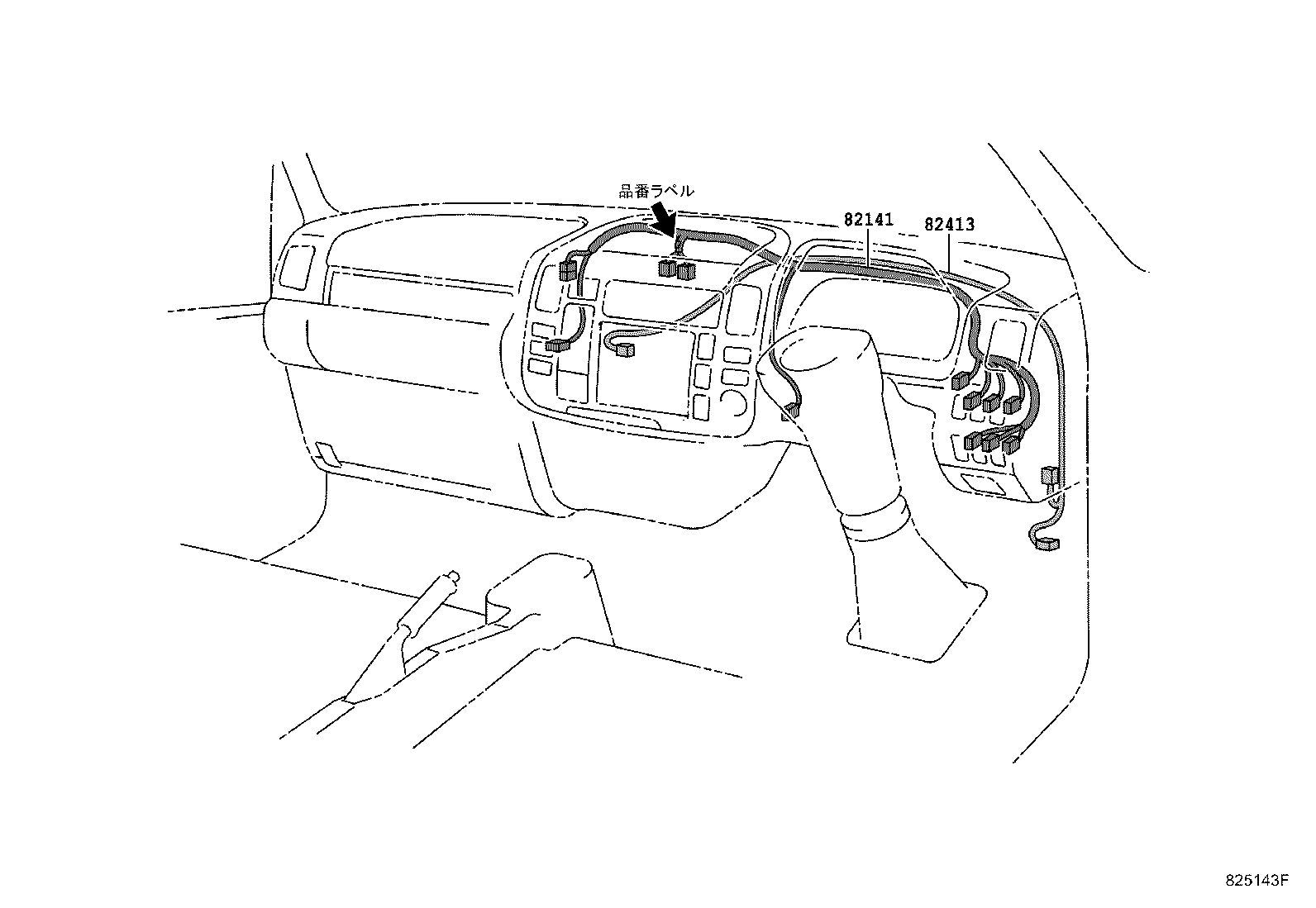

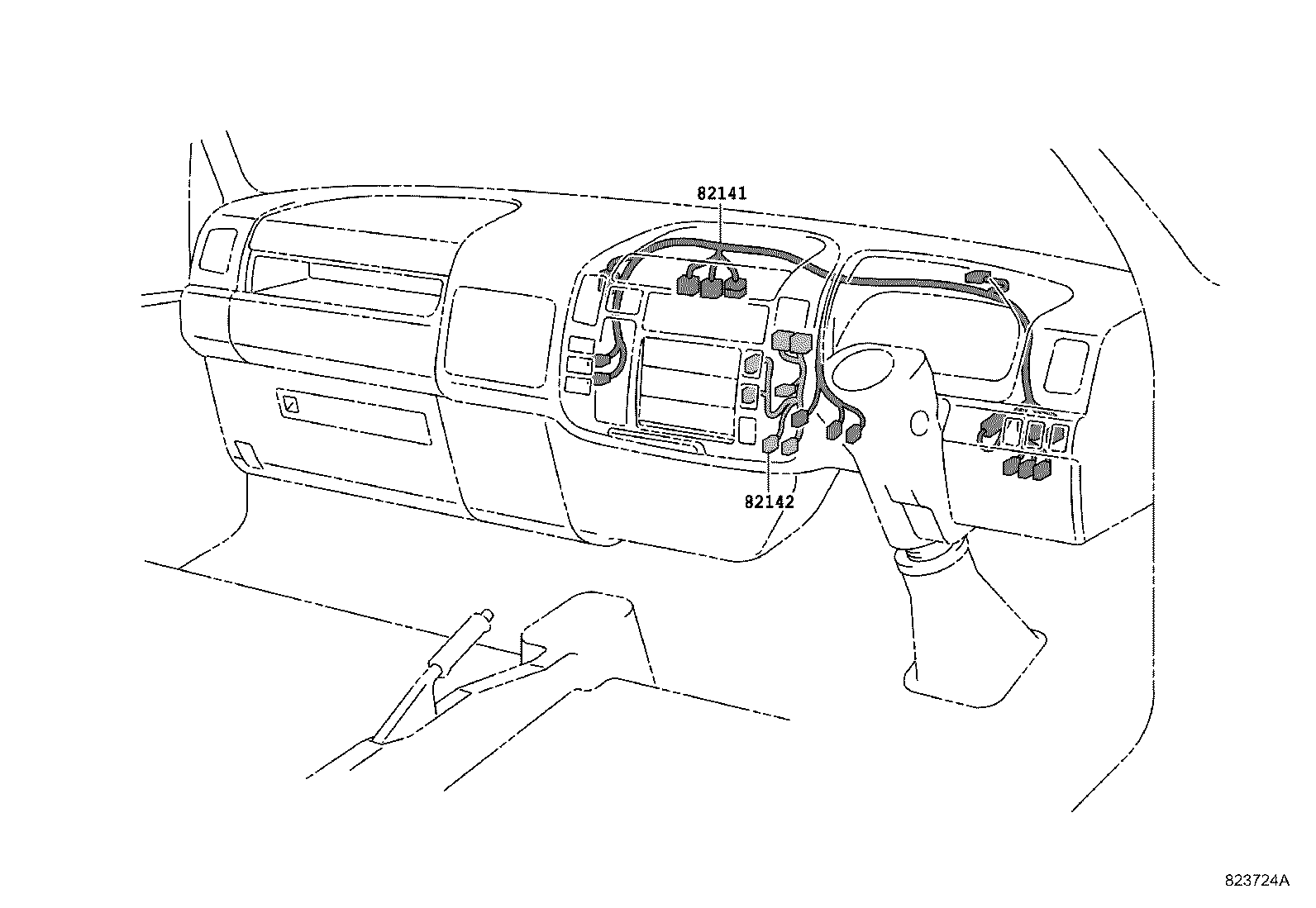

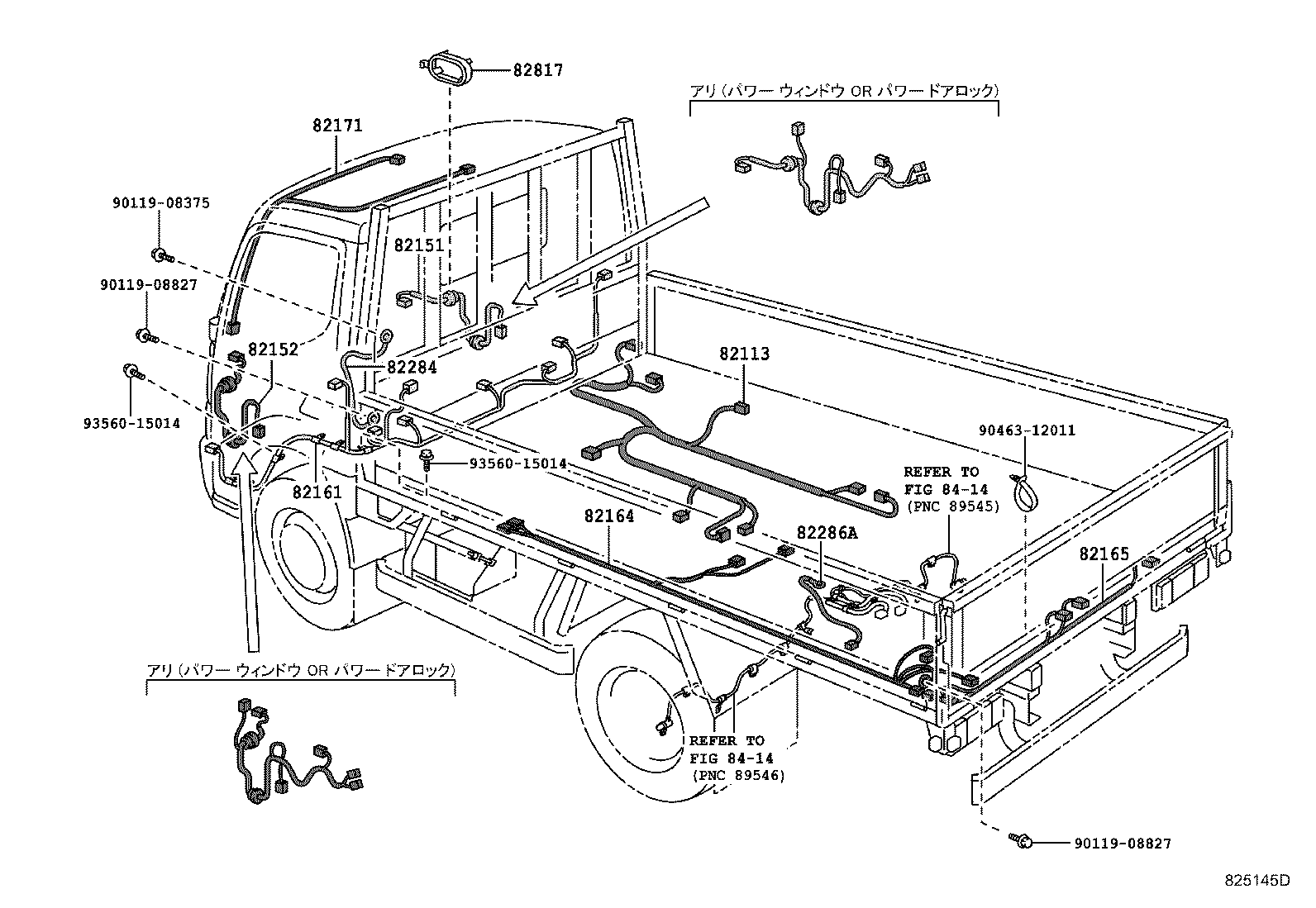

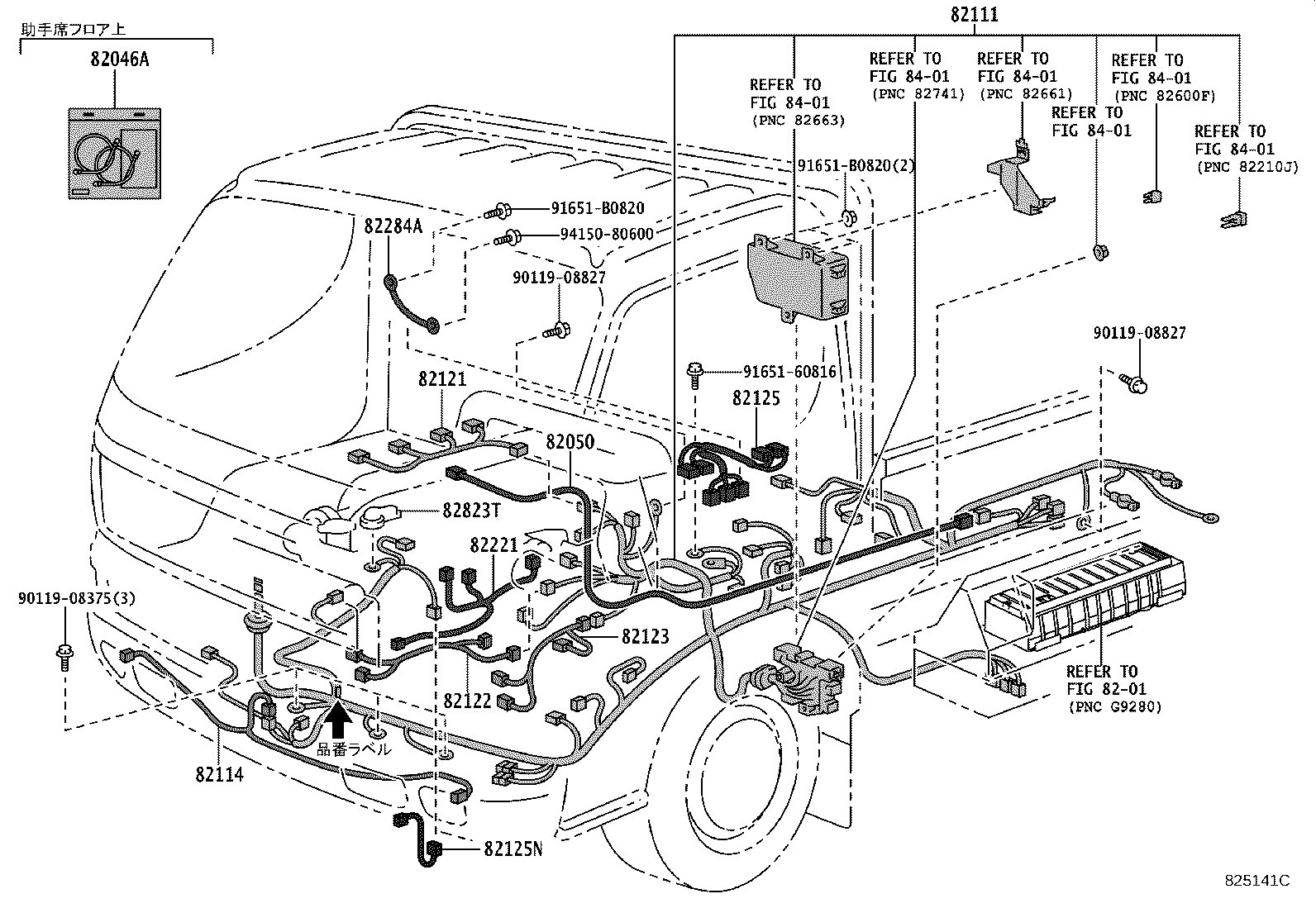

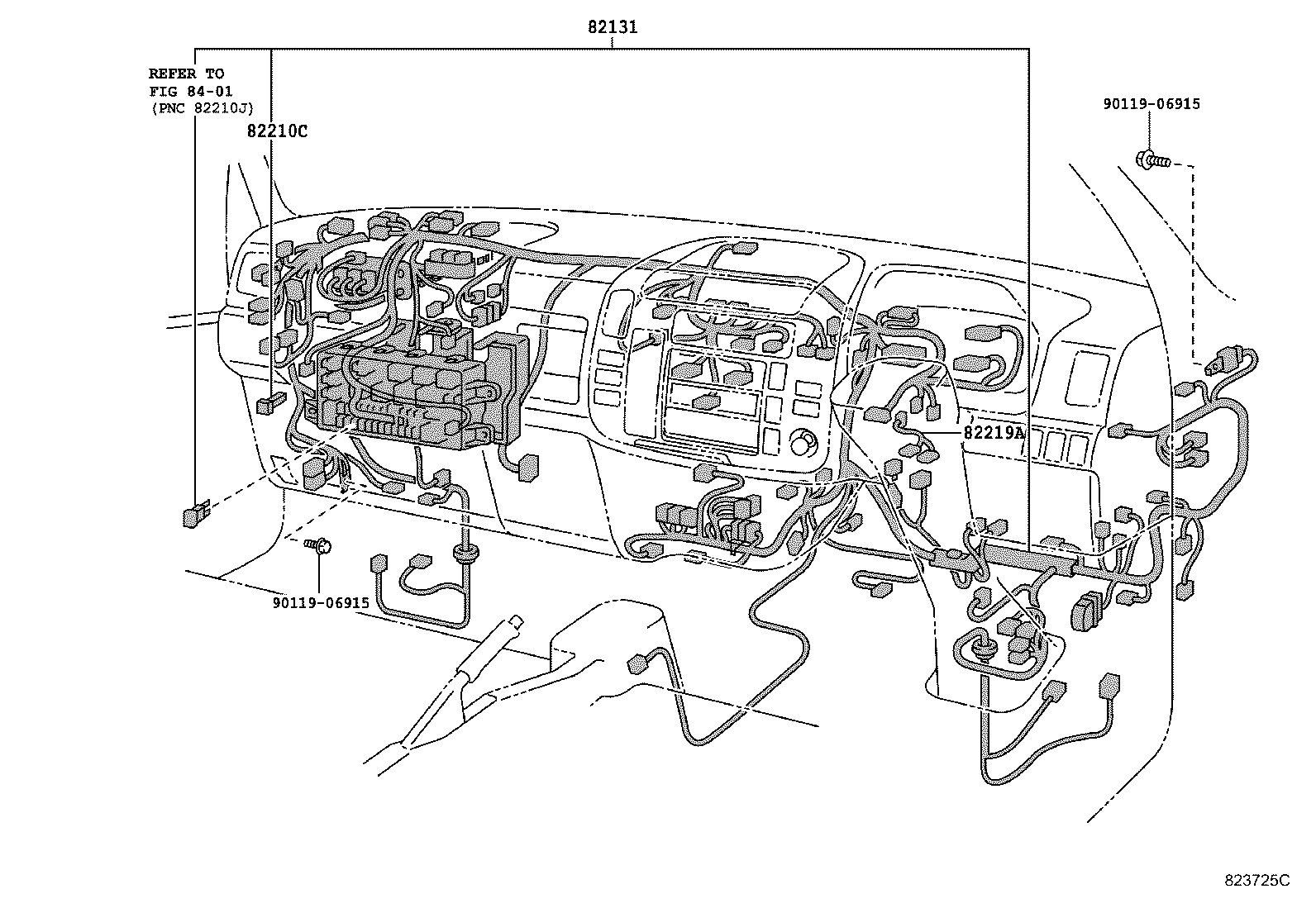

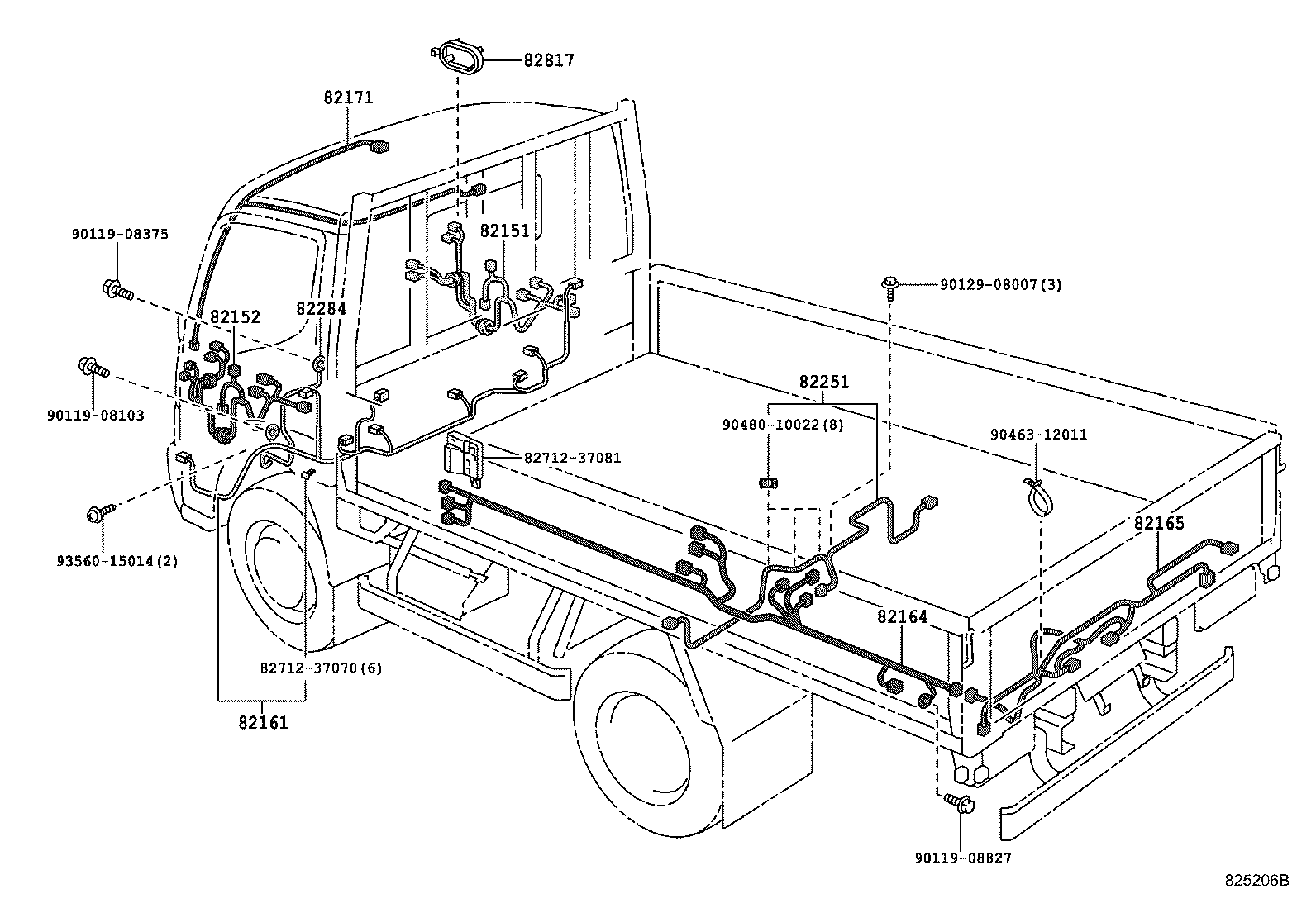

Figure 823718E 823718E 2003-10 → 2006-10 Figure 825141C 825141C 2006-10 → — Figure 823725C 823725C 2003-10 → 2006-10 Figure 825142F 825142F 2006-10 → — Figure 823724A 823724A 2003-10 → 2006-10 Figure 825143F 825143F 2006-10 → — Figure 825206B 825206B 2003-10 → 2006-10 Figure 825144D 825144D 2006-10 → — Figure 825145D 825145D 2006-10 → — Figure 823719G 823719G 2003-10 → 2006-10 Figure 825133E 825133E 2006-10 → — Figure 823762A 823762A 2003-10 → —

Part groups

PNCDescription
82046A Wire Sub-assy, Body Ground, NO.1
82050 Wire Assy, Engine
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82125N Wire, Engine, NO.5
82131 Wire, Cowl
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82210C Fusible Link
82219A Wire, Sensor
82221 Wire, Oil Pressure Switch
82251 Wire, Speed Sensor
82284 Wire, Earth
82284A Wire, Earth NO.2
82286A Wire, Earth, NO.2
82413 Wire, Buzzer
82672 Cover, Junktion Block
82673 Bracket, Junction Block
82817 Protector, Wiring Harness, NO.1
82821E Cover, Connector
82823T Cap, Alternator Terminal
89794 Wire, Transponder Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
