Toyota Dyna/Toyoace HV

2003-10 → 2011-06 · chassis XKU414,424 · catalogue 773110 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

12 part groups · 2 illustrations

Illustrations

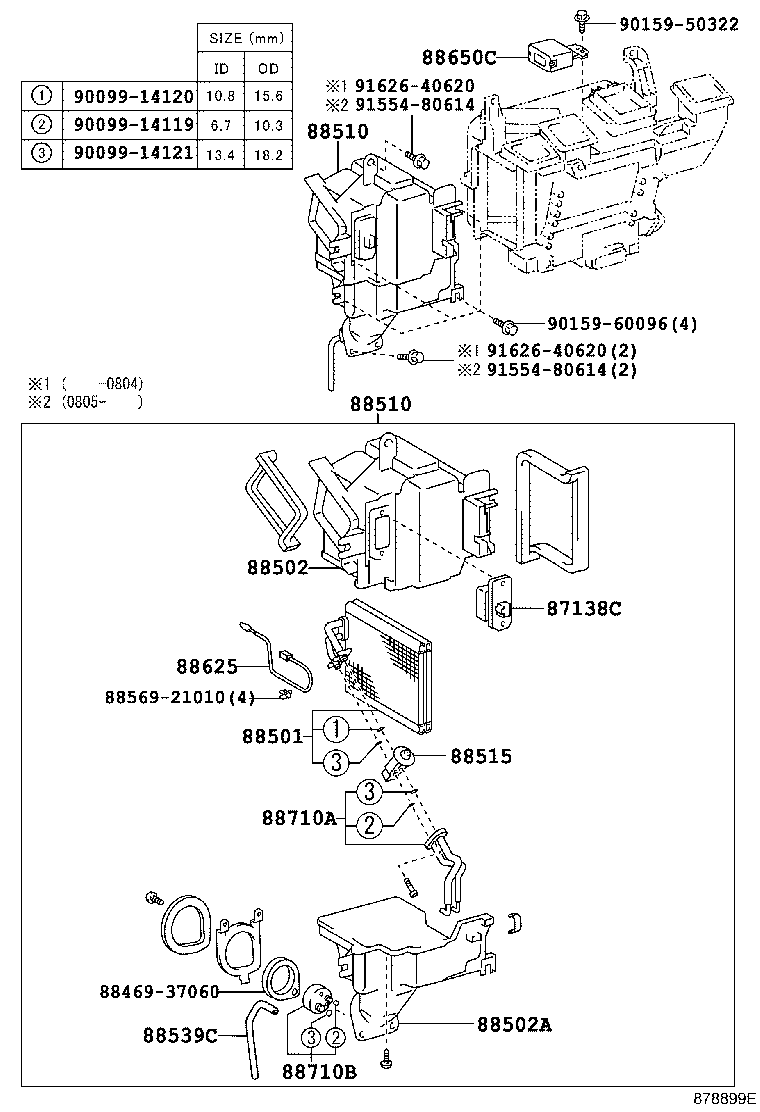

Figure 876594A 876594A 2003-10 → 2006-10 Figure 878899E 878899E 2006-10 → —

Part groups

PNCDescription
87138C Resistor, Blower
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88502A Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88510F Holder, Fuse
88515 Valve, Cooler Expansion
88539C Hose, Cooler Unit Drain, NO.2
88625 Thermistor, Cooler, NO.1
88650C Amplifier Sub-assy, Airconditioner
88710A Tube Assy, Air Conditioner
88710B Tube Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
