Toyota Dyna/Toyoace HV
2011-07 → present · chassis XKU7## · catalogue 773120 · Japan
Supported model
Data version 2021-03

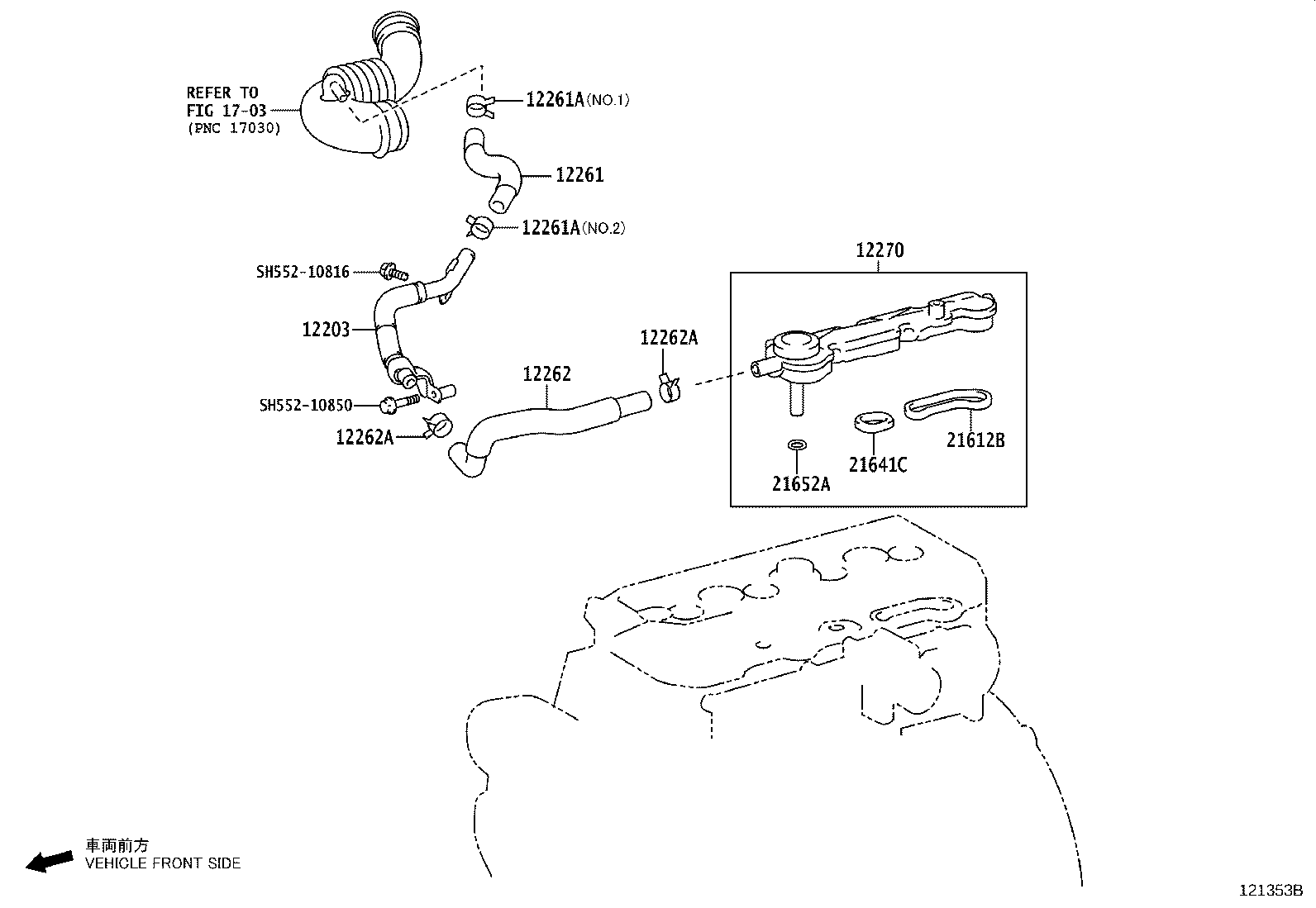

Ventilation Hose
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12203 | Pipe Sub-assy, Ventilation |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12270 | Separator Assy, Oil |
| 12270G | Cover |
| 17061C | Diaphragm Sub-assy |
| 17061D | Spring L |
| 21612B | Gasket |
| 21641C | Gasket |
| 21652A | Ring, O |
| 82702C | Bracket Sub-assy, Wiring Harness |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
