Toyota Dyna/Toyoace HV
2011-07 → present · chassis XKU7## · catalogue 773120 · Japan
Supported model
Data version 2021-03

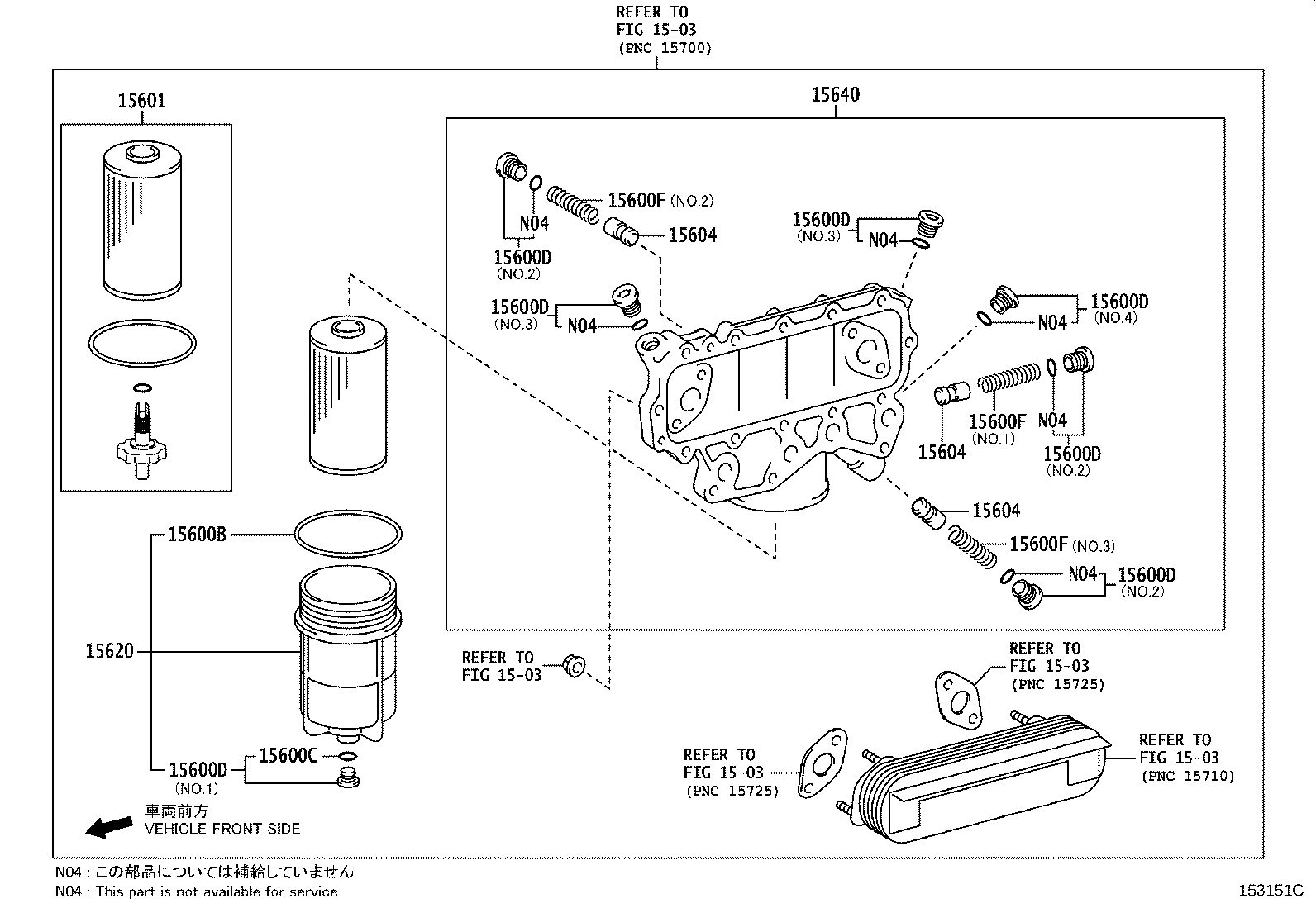

Oil Filter
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15600B | Ring, O, NO.1(FOR OIL FILTER) |
| 15600C | Ring, O, NO.2(FOR OIL FILTER) |
| 15600D | Plug(FOR OIL FILTER) |
| 15600E | Washer(FOR OIL FILTER) |
| 15600F | Spring, Compression(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15604 | Valve Sub-assy, Oil Safety |
| 15609D | Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) |
| 15609E | Gasket, W/Head Straight Screw Plug |
| 15620 | Cap Assy, Oil Filter |
| 15640 | Case Assy, Oil Filter |
| 15701C | Cover Sub-assy, Oil Cooler |
| 15721 | Cover, Oil Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
