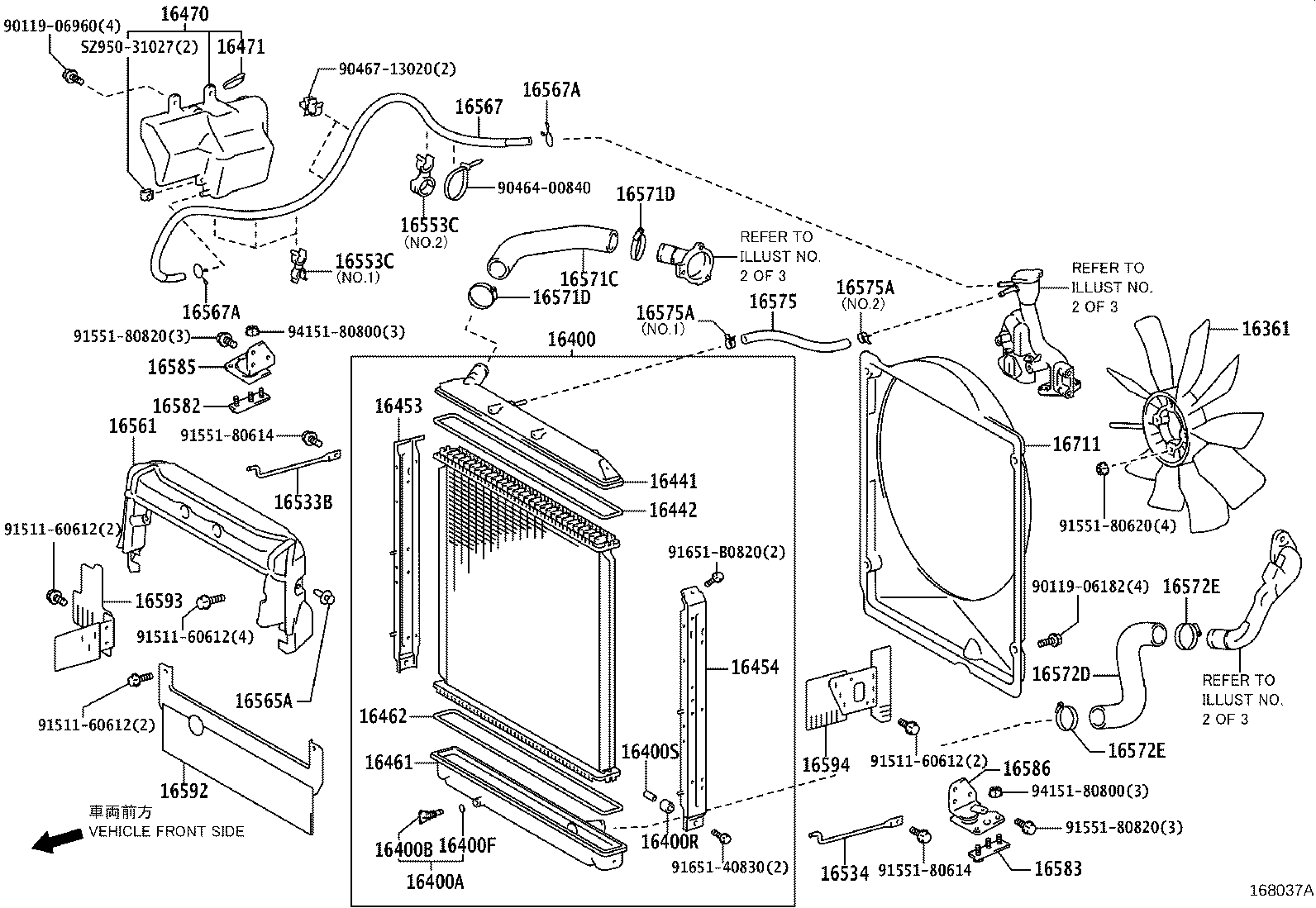

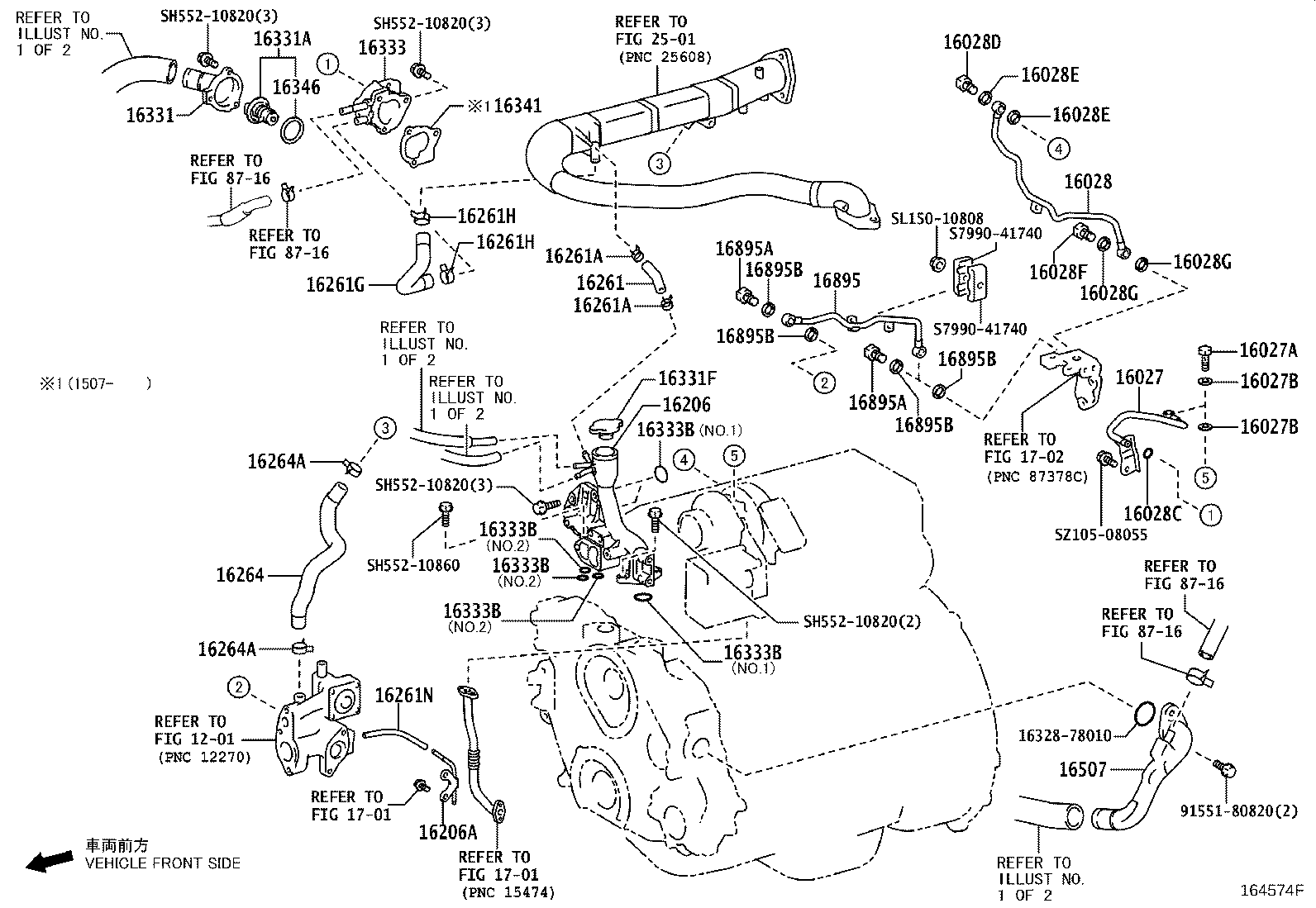

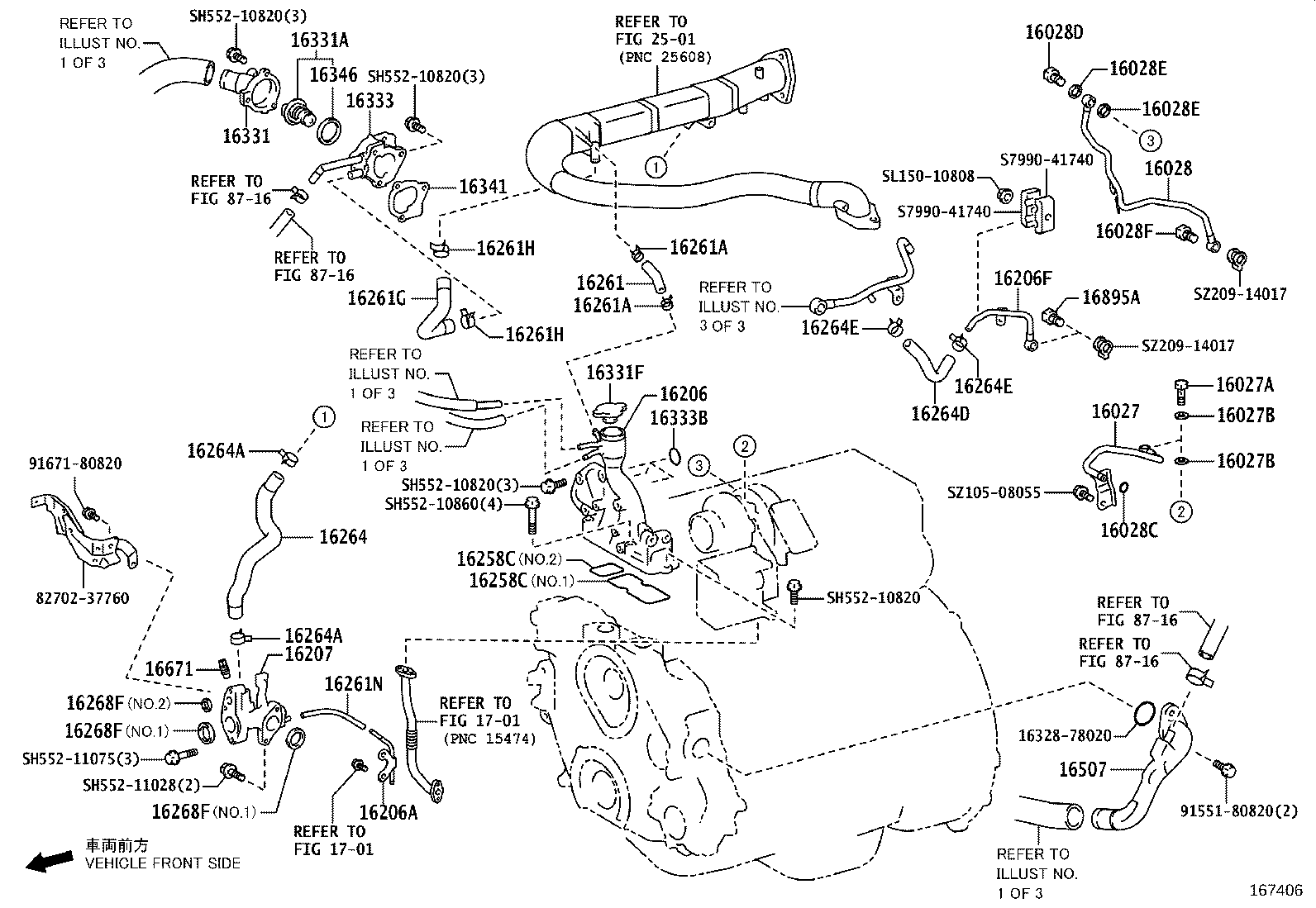

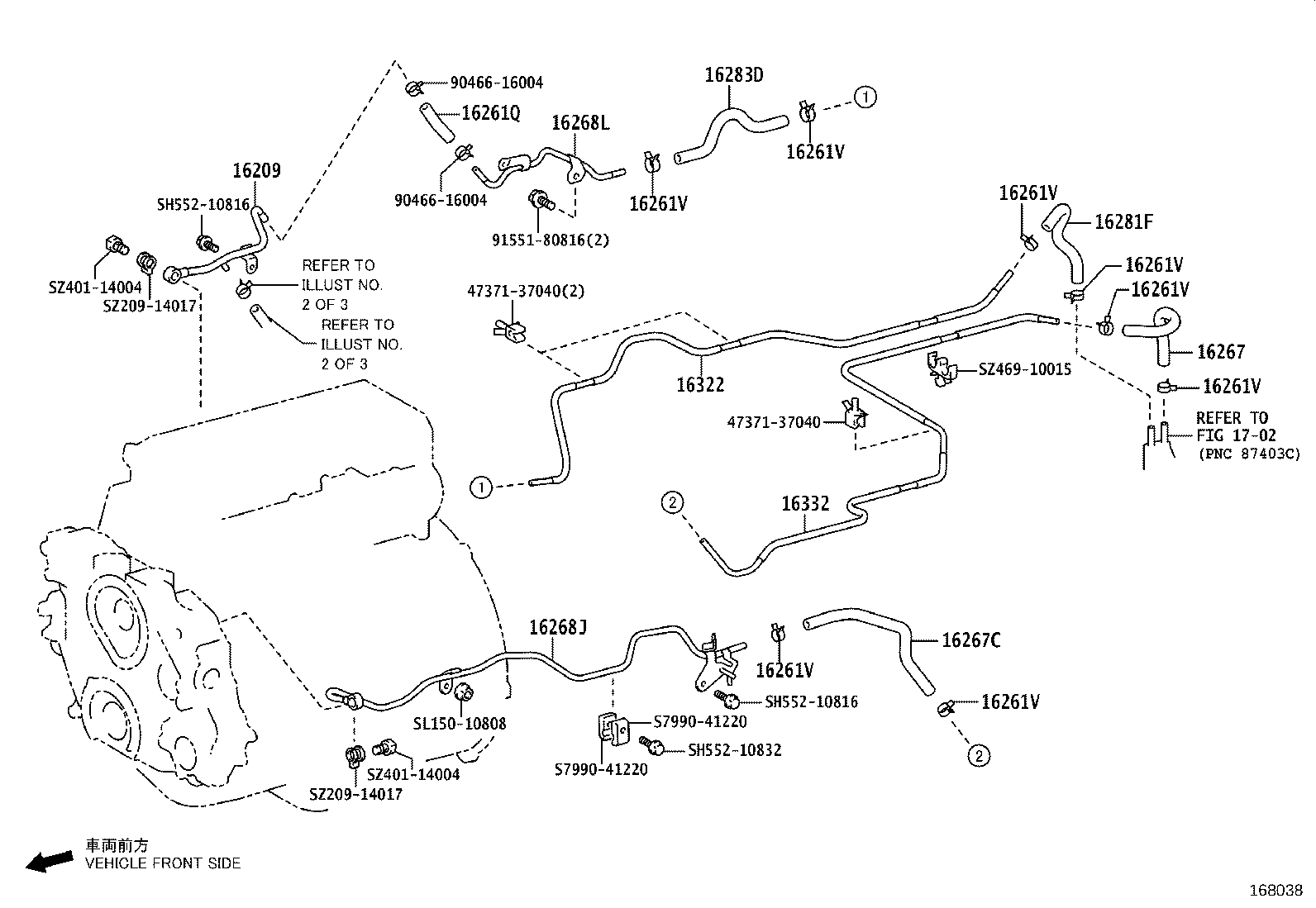

Radiator & Water Outlet
84 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 16027A | Bolt, Union(FOR TURBO WATER PIPE) |
| 16027B | Gasket(FOR TURBO WATER PIPE) |
| 16028 | Pipe Sub-assy, Turbo Water, NO.2 |
| 16028C | Ring, O(FOR TURBO WATER PIPE) |
| 16028D | Bolt, Union, NO.1(FOR TURBO WATER PIPE) |
| 16028E | Gasket, NO.1(FOR TURBO WATER PIPE) |
| 16028F | Bolt, Union, NO.2(FOR TURBO WATER PIPE) |
| 16028G | Gasket, NO.2(FOR TURBO WATER PIPE) |
| 16206 | Pipe Sub-assy, Water By-pass |
| 16206A | Pipe Sub-assy, Water By-pass, NO.2 |
| 16206F | Pipe Sub-assy, Water By-pass, NO.4 |
| 16207 | Pipe Sub-assy, Water By-pass, NO.2 |
| 16209 | Pipe Sub-assy, Water By-pass, NO.4 |
| 16258C | Gasket(FOR WATER BY-PASS PIPE) |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261N | Hose, Water By-pass, NO.2 |
| 16261Q | Hose, Water By-pass |
| 16261V | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267C | Hose, Water By-pass, NO.4 |
| 16268F | Ring, O(FOR WATER BY-PASS PIPE) |
| 16268J | Pipe, Water By-pass, NO.5 |
| 16268L | Pipe, Water By-pass |
| 16281F | Hose, Water By-pass, NO.5 |
| 16283D | Hose, Water By-pass, NO.6 |
| 16322 | Pipe, Water Inlet |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16331F | Cap Sub-assy(FOR WATER OUTLET) |
| 16332 | Pipe, Water Outlet, NO.1 |
| 16333 | Housing, Water Outlet |
| 16333B | Ring, O(FOR WATER OUTLET HOUSING) |
| 16341 | Gasket, Water Outlet |
| 16346 | Gasket, Thermostat |
| 16361 | Fan |
| 16400 | Radiator Assy |
| 16400A | Cock Sub-assy, Radiator Drain |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16400R | Bushing(FOR RADIATOR) |
| 16400S | Collar(FOR RADIATOR) |
| 16403F | Core Sub-assy, Radiator |
| 16441 | Tank, Radiator, Upper |
| 16442 | Ring, O(FOR RADIATOR UPPER TANK) |
| 16453 | Plate, Radiator Side |
| 16454 | Plate, Radiator Side |
| 16461 | Tank, Radiator, Lower |
| 16462 | Ring, O(FOR RADIATOR LOWER TANK) |
| 16470 | Tank Assy, Radiator Reserve |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16507 | Pipe Sub-assy, Radiator |
| 16533B | Support, Radiator, NO.1 |
| 16534 | Support, Radiator, NO.2 |
| 16553C | Clamp, Hose |
| 16561 | Seal, Radiator TO Support, NO.1 |
| 16565A | Clip |
| 16567 | Hose(FOR RADIATOR RESERVE TANK) |
| 16567A | Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16575 | Hose, Radiator, NO.5 |
| 16575A | Clip, Radiator Hose, NO.5 |
| 16582 | Bracket, Radiator, NO.1 |
| 16583 | Bracket, Radiator, NO.2 |
| 16585 | Bracket, Radiator, NO.3 |
| 16586 | Bracket, Radiator, NO.4 |
| 16592 | Guide, Radiator Air, NO.3 |
| 16593 | Guide, Radiator Air, NO.1 |
| 16594 | Guide, Radiator Air, NO.2 |
| 16671 | Valve, Water |
| 16711 | Shroud, Fan |
| 16895 | Pipe, Turbo Water, NO.1 |
| 16895A | Bolt, Union(FOR TURBO WATER PIPE NO.1) |
| 16895B | Gasket(FOR TURBO WATER PIPE NO.1) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
