Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKU7## · catalogue 773120 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

28 part groups · 2 illustrations

Illustrations

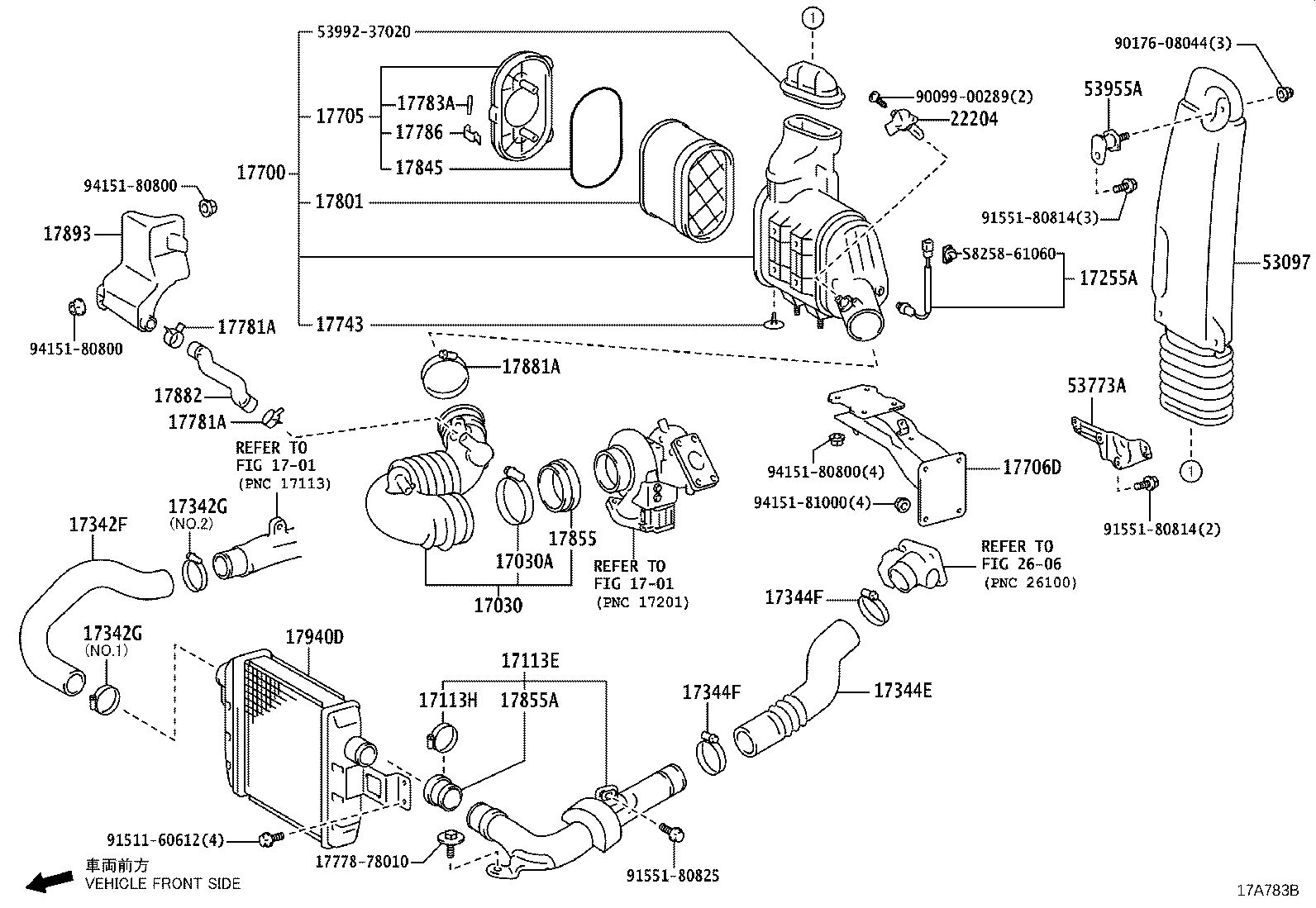

Figure 177208J 177208J 2011-07 → — Figure 17A783B 17A783B 2019-05 → —

Part groups

PNCDescription
17030 Hose Assy, Air
17030A Clamp, Hose
17113E Pipe, Intake, NO.1
17113H Clamp, Intake Pipe
17255A Valve, Intake Relief
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17342G Clamp, Hose, NO.2(FOR INTERCOOLER)
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17706D Stay Sub-assy, Air Cleaner
17743 Valve, Dust Relief
17781A Clamp, Hose
17783A Retainer, Air Cleaner Inlet
17786 Clamp, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17845 Gasket, Air Cleaner Cap
17855 Gasket, Air Inlet Duct, NO.1
17855A Gasket, Air Inlet Duct, NO.2
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17893 Resonator, Intake Air
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
53097 Inlet Sub-assy
53773A Bracket, Air Cleaner Mounting
53955A Cushion, Air Cleaner Inlet NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
