Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKU7## · catalogue 773120 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

14 part groups · 6 illustrations

Illustrations

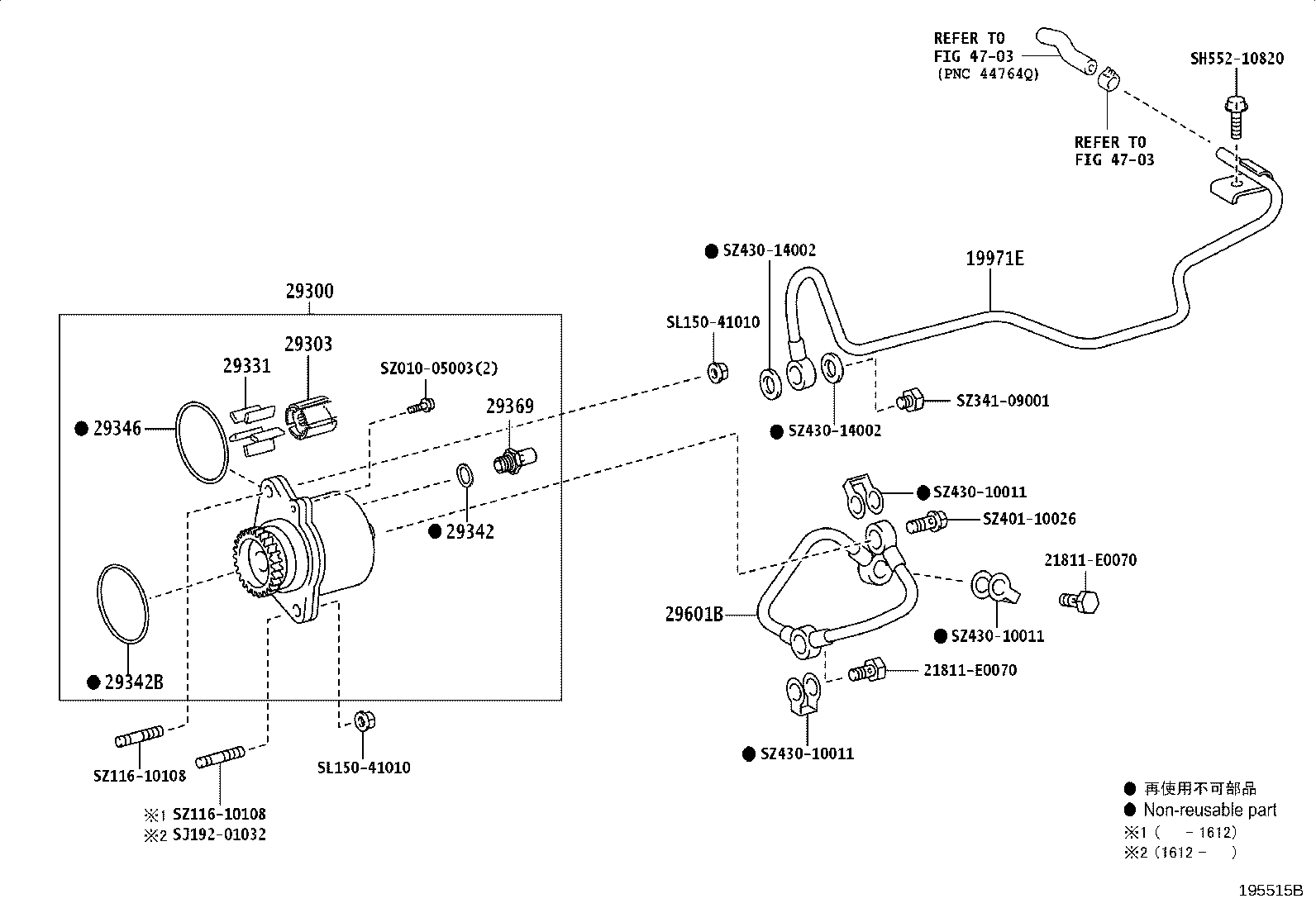

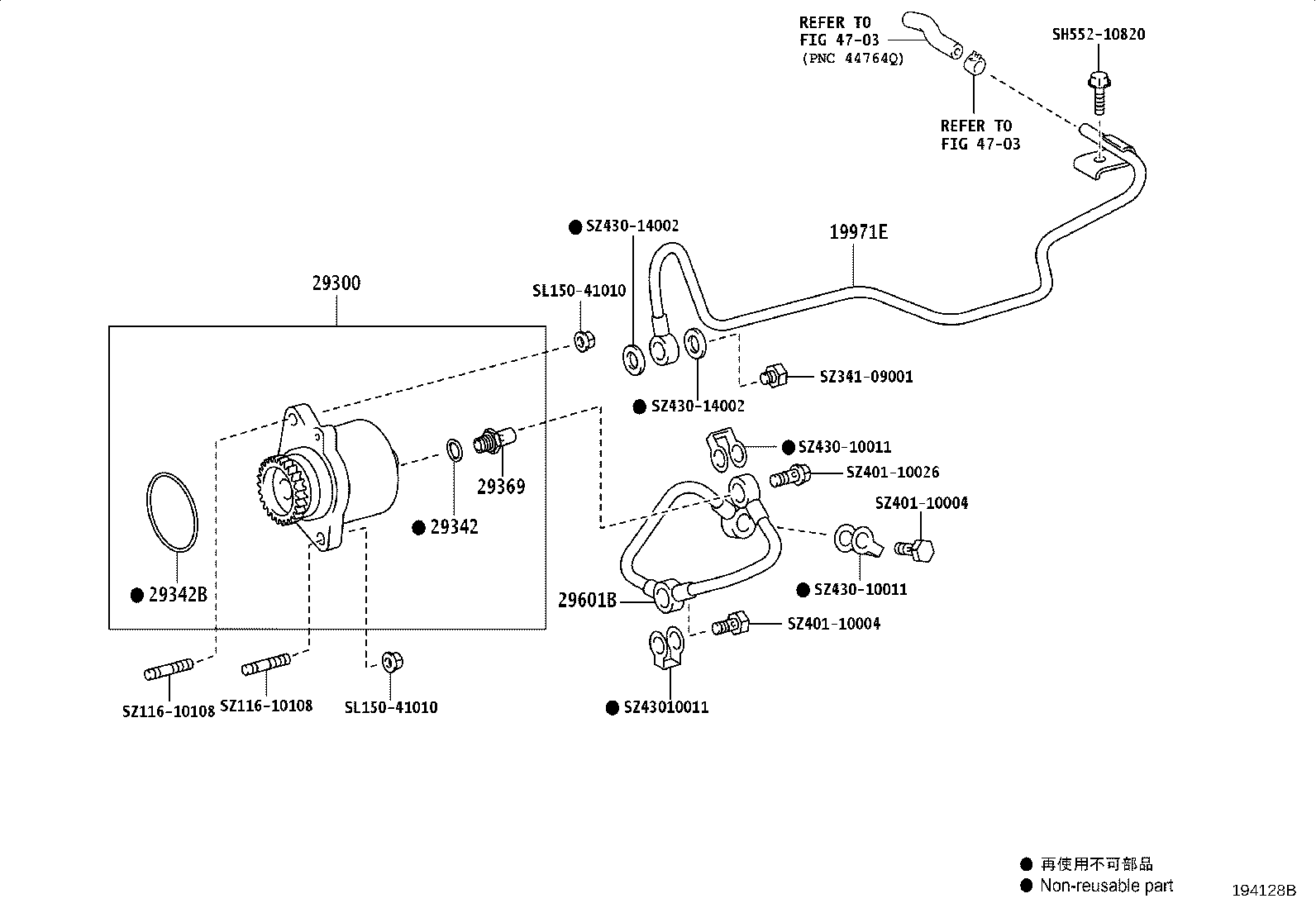

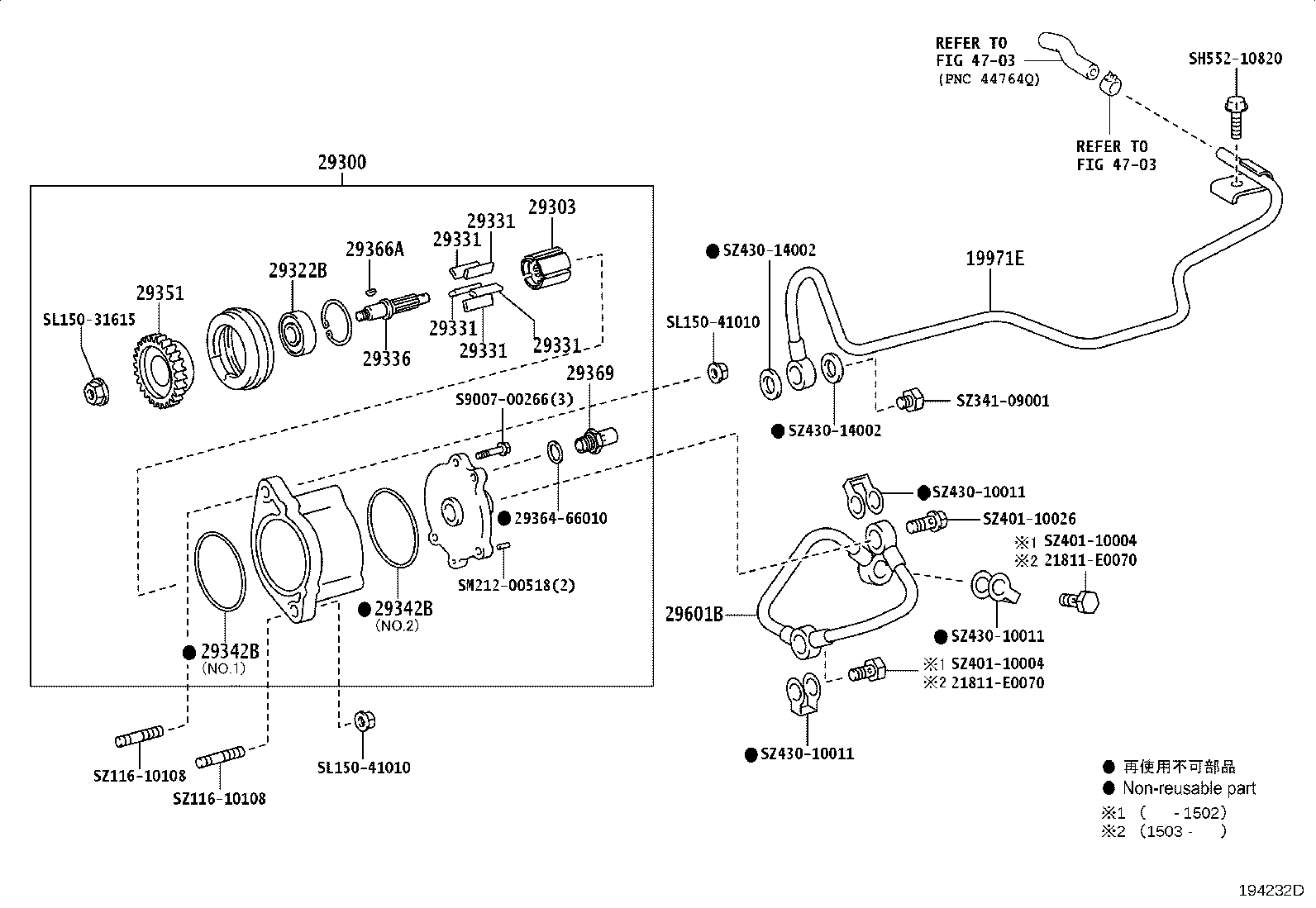

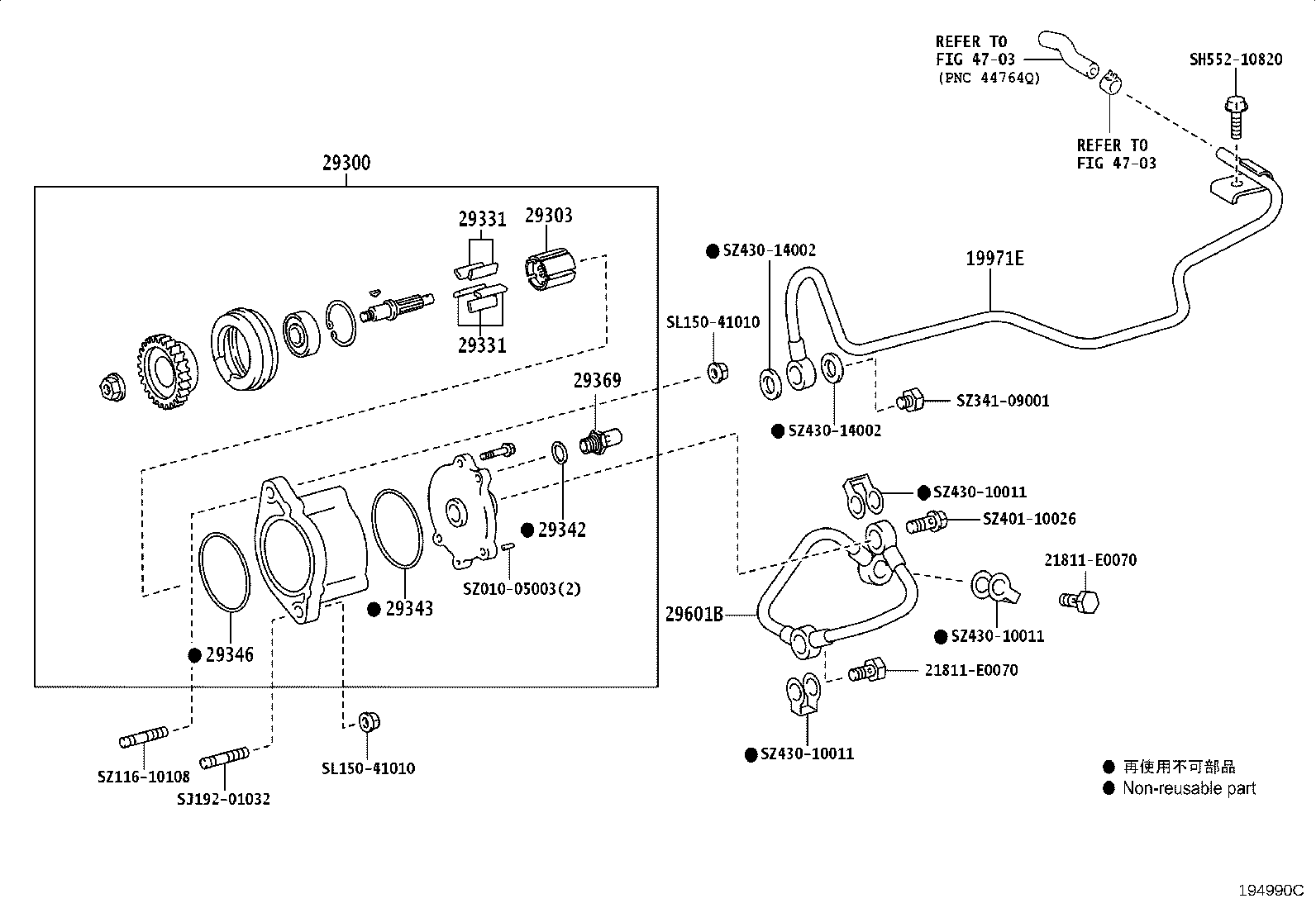

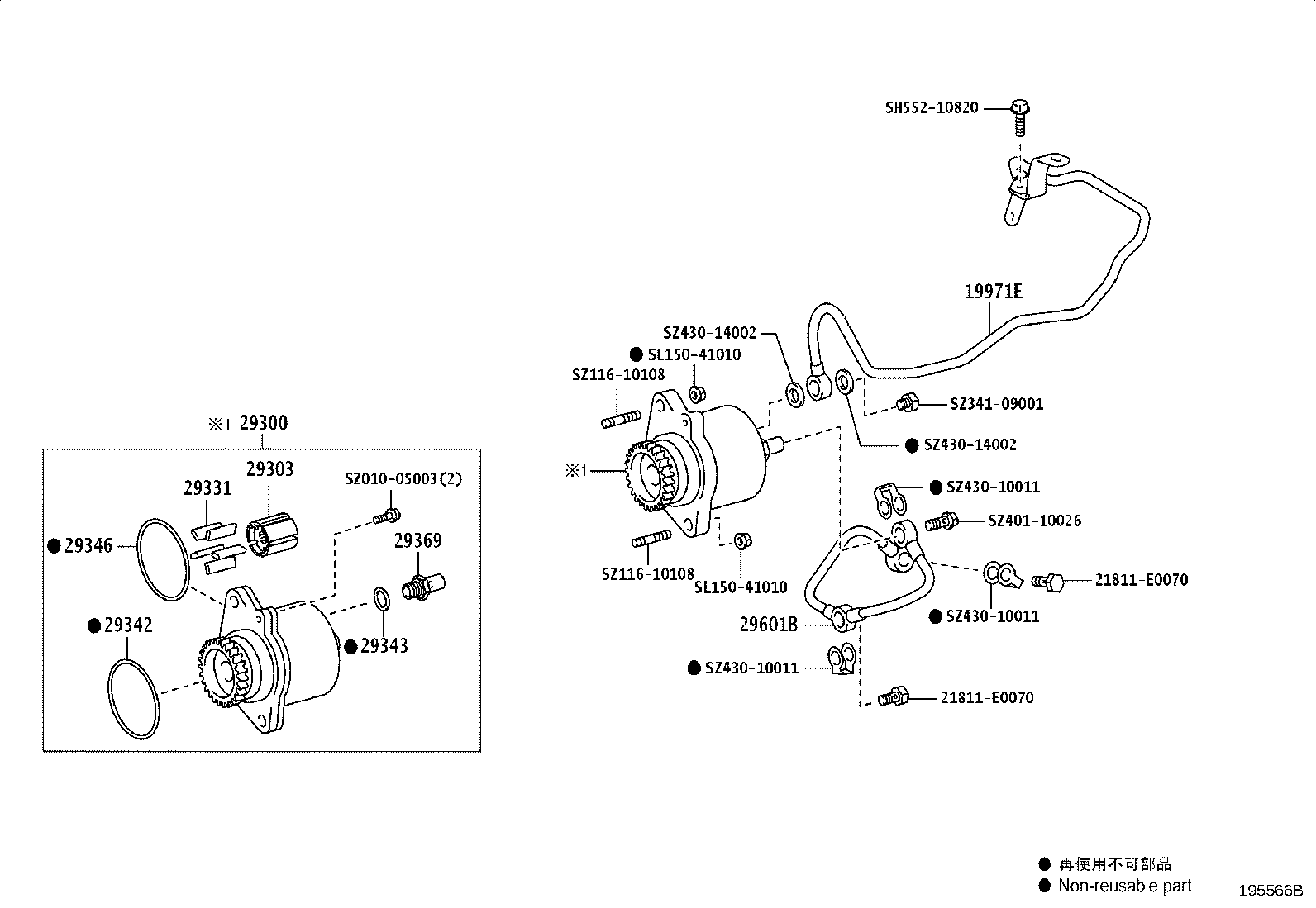

Figure 193704B 193704B 2011-07 → 2012-02 Figure 194128B 194128B 2012-02 → 2013-09 Figure 194232D 194232D 2013-09 → 2015-06 Figure 195515B 195515B 2015-06 → 2017-05 Figure 194990C 194990C 2017-05 → 2019-05 Figure 195566B 195566B 2019-05 → —

Part groups

PNCDescription
19971E Pipe, Vacuum
29300 Pump Assy, Vacuum
29303 Rotor Sub-assy, Vacuum Pump
29322B Bearing, Vacuum Pump
29331 Blade, Vacuum Pump, A
29336 Shaft, Vacuum Pump
29342 Packing, Vacuum Pump
29342B Ring, O
29343 Ring, O Vacuum Pump, NO.1
29346 Ring, O Vacuum Pump Cover
29351 Gear, Vacuum Pump
29366A Key, Vacuum Pump
29369 Valve Sub-assy, Check
29601B Pipe Sub-assy, Oil(FOR VACUUM PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
