Toyota Dyna/Toyoace HV
2011-07 → present · chassis XKU7## · catalogue 773120 · Japan
Supported model
Data version 2021-03

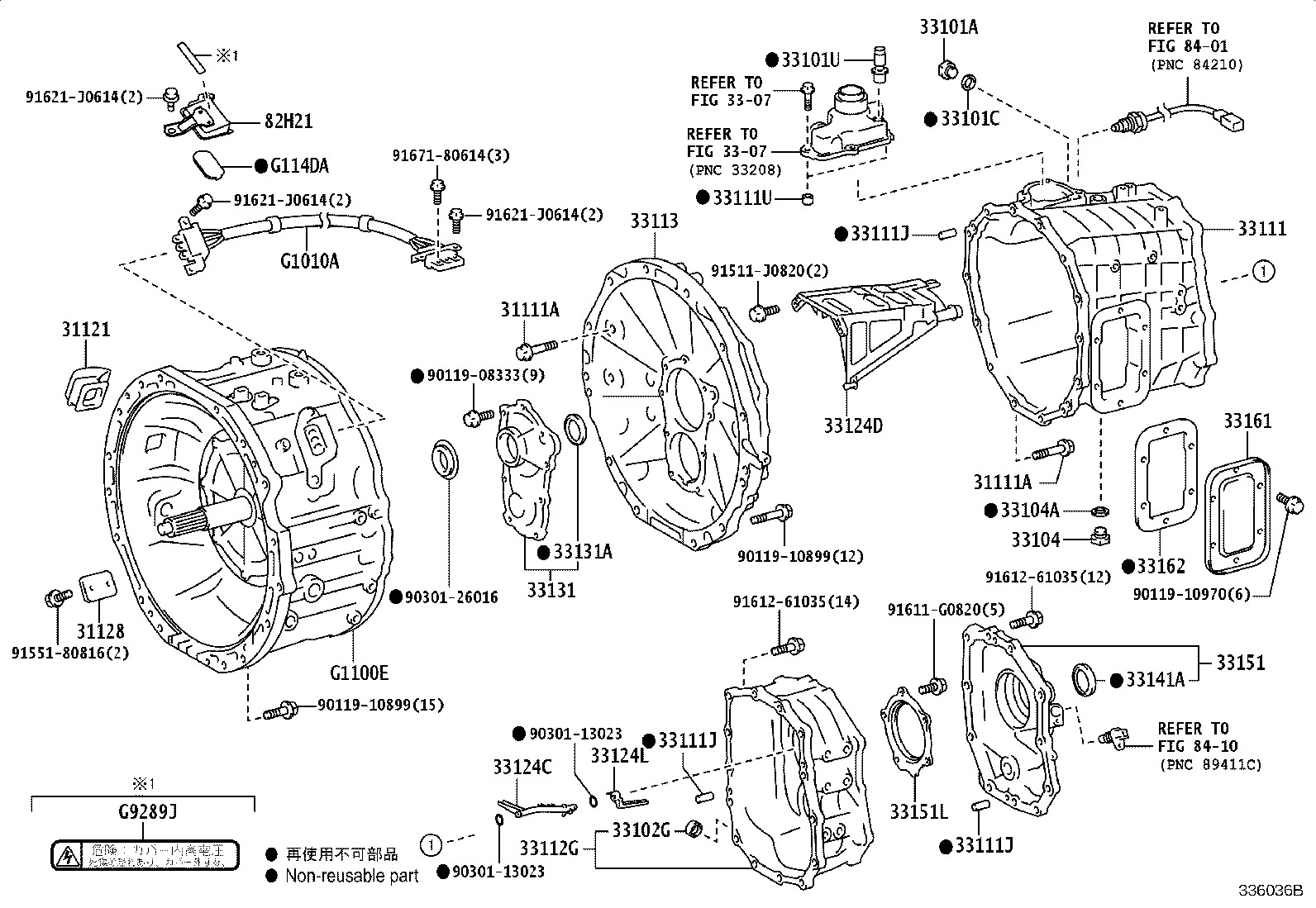

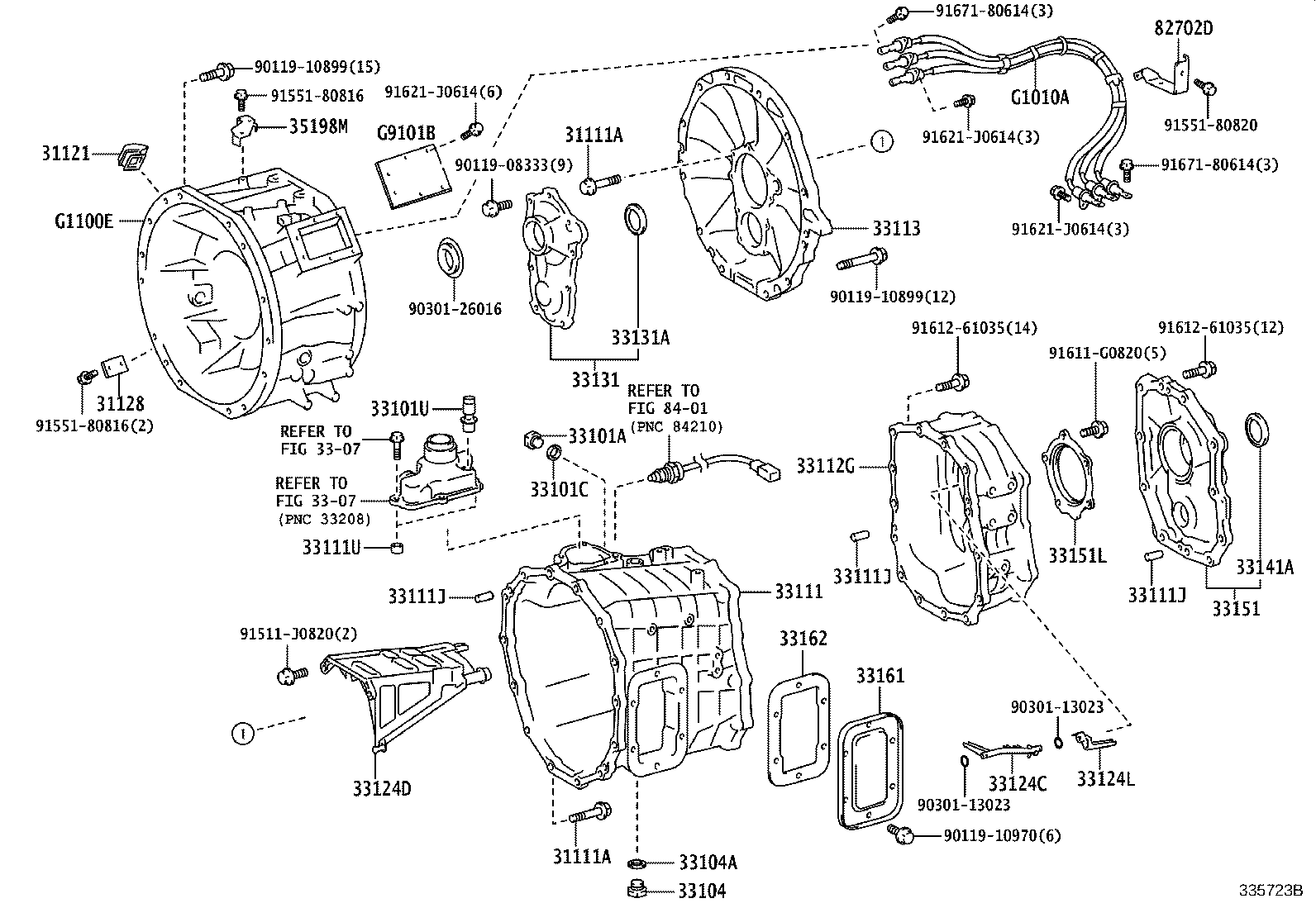

Clutch Housing & Transmission Case (MTM)
41 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 31111A | Bolt(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING) |
| 31121 | Cover, Clutch Housing, NO.1 |
| 31128 | Cover, Clutch Housing Under |
| 33101 | Case Sub-assy, Manual Transmission |
| 33101A | Plug(FOR MANUAL TRANSMISSION FILLER) |
| 33101C | Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) |
| 33101Q | Plug, NO.1(FOR TRANSMISSION CASE) |
| 33101R | Plug, NO.2(FOR TRANSMISSION CASE) |
| 33101U | Plug, Breather(FOR MANUAL TRANSMISSION) |
| 33102G | Seal, Type T Oil(FOR MANUAL TRANSMISSION CASE) |
| 33104 | Plug Sub-assy, Drain(MTM) |
| 33104A | Gasket, Drain Plug(MTM) |
| 33111 | Case, Manual Transmission |
| 33111A | Plug, Manual Transmission Case |
| 33111J | Pin, Straight(FOR MANUAL TRANSMISSION CASE) |
| 33111Q | Seal, Oil(FOR TRANSMISSION CASE) |
| 33111U | Pin, Ring(FOR MANUAL TRANSMISSION CASE) |
| 33112G | Case, Transmission, Rear |
| 33113 | Adapter, Transmission Case, Front |
| 33124C | Pipe, Oil Receiver, NO.1(MTM) |
| 33124D | Pipe, Oil Receiver, NO.2(MTM) |
| 33124L | Pipe, Oil Receiver, N0.3(MTM) |
| 33124M | Pipe, Oil Receiver, N0.4(MTM) |
| 33126 | Seal, Oil Receiver |
| 33131 | Retainer, Bearing, Front(MTM) |
| 33131A | Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) |
| 33141A | Seal, Oil(FOR TRANSMISSION REAR BEARING RETAINER) |
| 33151 | Retainer, Output Shaft Rear Bearing(MTM) |
| 33151L | Retainer, Bearing, Rear |
| 33161 | Cover, Manual Transmission Power Take-off |
| 33162 | Gasket, Manual Transmission Power Take-off Cover |
| 33176B | Separator, Transmission Oil(MTM) |
| 35198M | Bracket, Wire Harness Clamp |
| 35469P | Spacer (FOR TRANSMISSION REAR RETAINER) |
| 82702D | Bracket Sub-assy, Wiring Harness |
| 82H21 | Cover, Connector |
| G1010A | Wire Assy, Motor Stator |
| G1100E | Motor Assy, Hybrid Vehicle |
| G114DA | Cap, Motor Cable Terminal |
| G9101B | Cover Sub-assy, EV Unit Controller |
| G9289J | Label, Battery Caution, NO.7 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
