Toyota Dyna/Toyoace HV
2011-07 → present · chassis XKU7## · catalogue 773120 · Japan
Supported model
Data version 2021-03

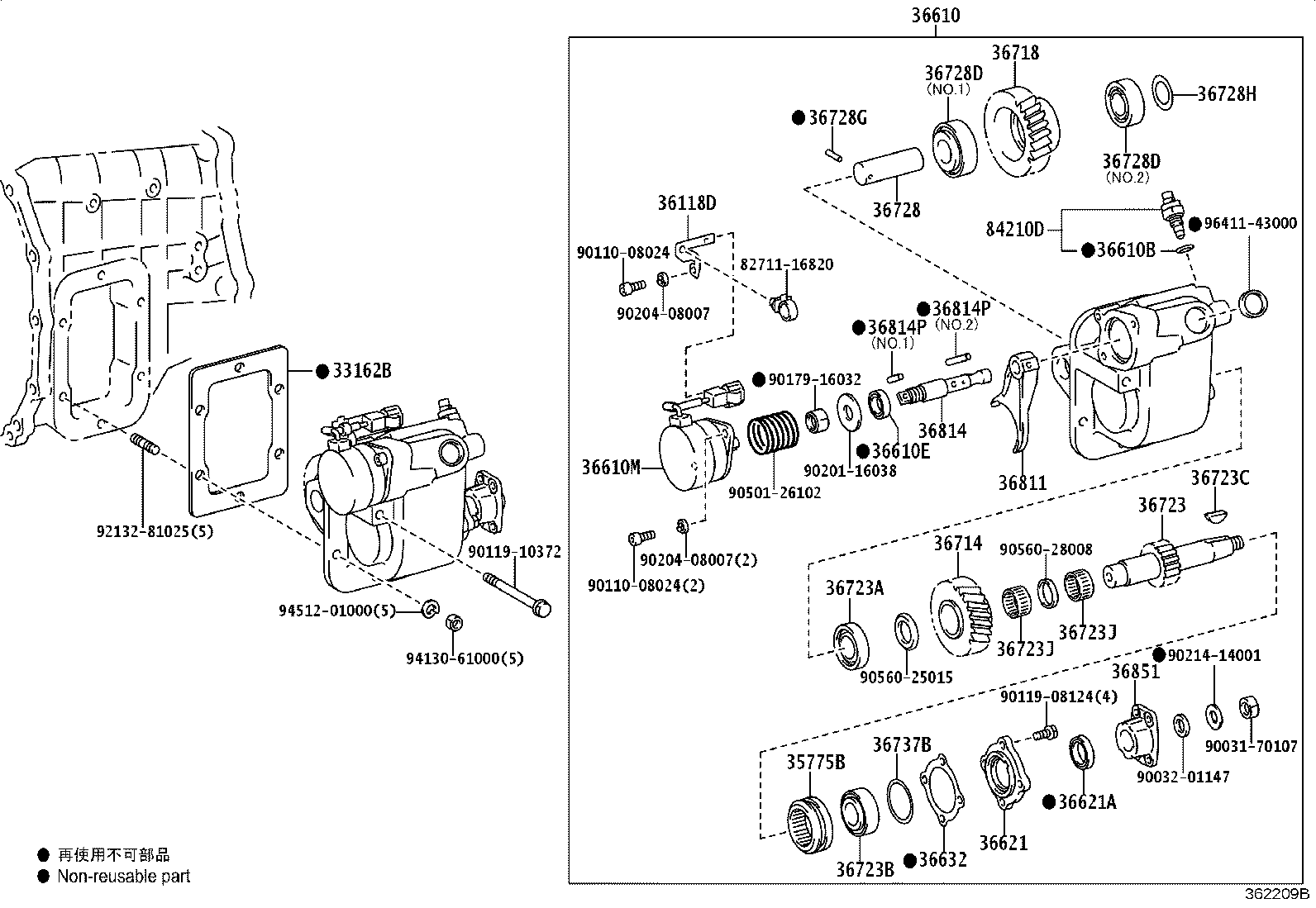

Power Take-off Case & Gear
31 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33162B | Gasket, Power Take-off Cover |
| 35775B | Sleeve, Output Shaft |
| 36118D | Bracket, Power Take-off |
| 36605C | Power Take-off Set |
| 36610 | Power Take-off Assy |
| 36610B | Gasket, Seat (FOR POWER TAKE-OFF) |
| 36610E | Seal, Oil (FOR POWER TAKE-OFF) |
| 36610M | Solenoid Assy, Power Take-off |
| 36621 | Retainer, Power Take-off Bearing |
| 36621A | Seal, Oil (FOR POWER TAKE-OFF BEARING RETAINER) |
| 36622A | Cover, Power Take-off |
| 36632 | Gasket, Power Take-off Joint Retainer |
| 36714 | Gear, Power Take-off Output |
| 36718 | Gear, Power Take-off Idler |
| 36723 | Shaft, Power Take-off Output, NO.1 |
| 36723A | Bearing (FOR OUTPUT SHAFT FRONT) |
| 36723B | Bearing (FOR OUTPUT SHAFT REAR) |
| 36723C | Key, Woodruff (FOR POWER TAKE-OFF OUTPUT SHAFT) |
| 36723J | Bearing (FOR POWER TAKE-OFF OUTPUT SHAFT) |
| 36723K | Collar (FOR POWER TAKE-OFF OUTPUT SHAFT) |
| 36728 | Shaft, Power Take-off Idler |
| 36728D | Bearing (FOR POWER TAKE-OFF IDLER SHAFT) |
| 36728F | Ring, Shaft Snap (FOR POWER TAKE-OFF IDLER SHAFT) |
| 36728G | Pin (FOR POWER TAKE-OFF IDLER SHAFT) |
| 36728H | Shim (FOR POWER TAKE-OFF IDLER SHAFT) |
| 36737B | Shim (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) |
| 36811 | Fork, Powr Take-off Shift, NO.1 |
| 36814 | Shaft, Powr Take-off Fork, NO.1 |
| 36814P | Pin (FOR POWER TAKE-OFF SHIFT SHAFT) |
| 36851 | Retainer, Power Take-off Joint |
| 84210D | Switch Assy, Back-up Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
