Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKU7## · catalogue 773120 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

14 part groups · 2 illustrations

Illustrations

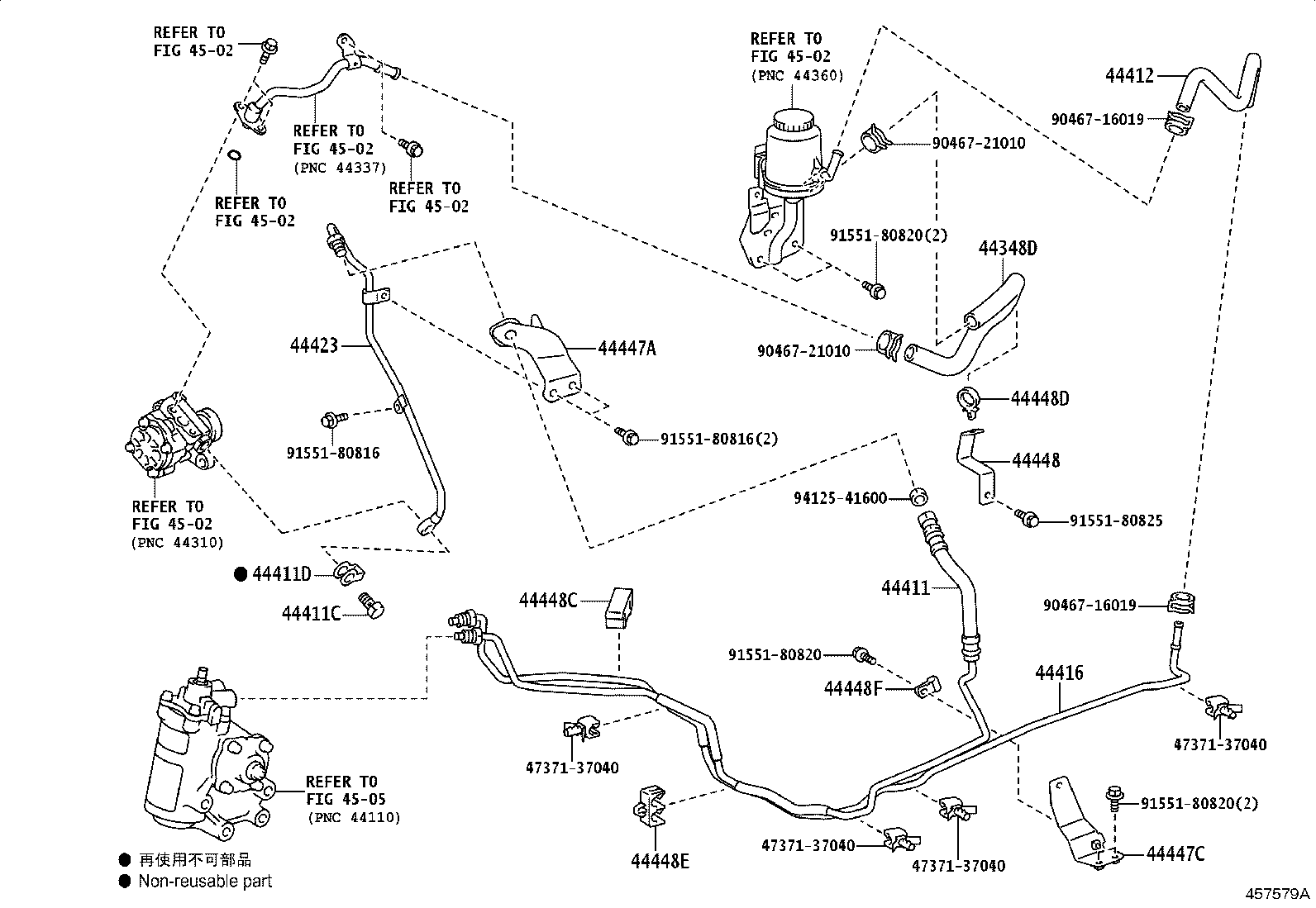

Figure 455850D 455850D 2011-07 → — Figure 457579A 457579A 2019-05 → —

Part groups

PNCDescription
44348D Hose, Oil Reservoir TO Pump, NO.2
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44423 Tube, Oil Pump TO Gear Box
44447A Bracket, Hose Support, NO.1
44447C Bracket, Hose Support NO.2
44448 Bracket, Pressure Feed Hose Support, NO.1
44448C Clamp, Pressure Feed, NO.2
44448D Clamp, Pressure Feed, NO.1
44448E Clamp, Pressure Feed, NO.3
44448F Clamp, Pressure Feed, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
