Toyota Dyna/Toyoace HV
2011-07 → present · chassis XKU7## · catalogue 773120 · Japan
Supported model
Data version 2021-03

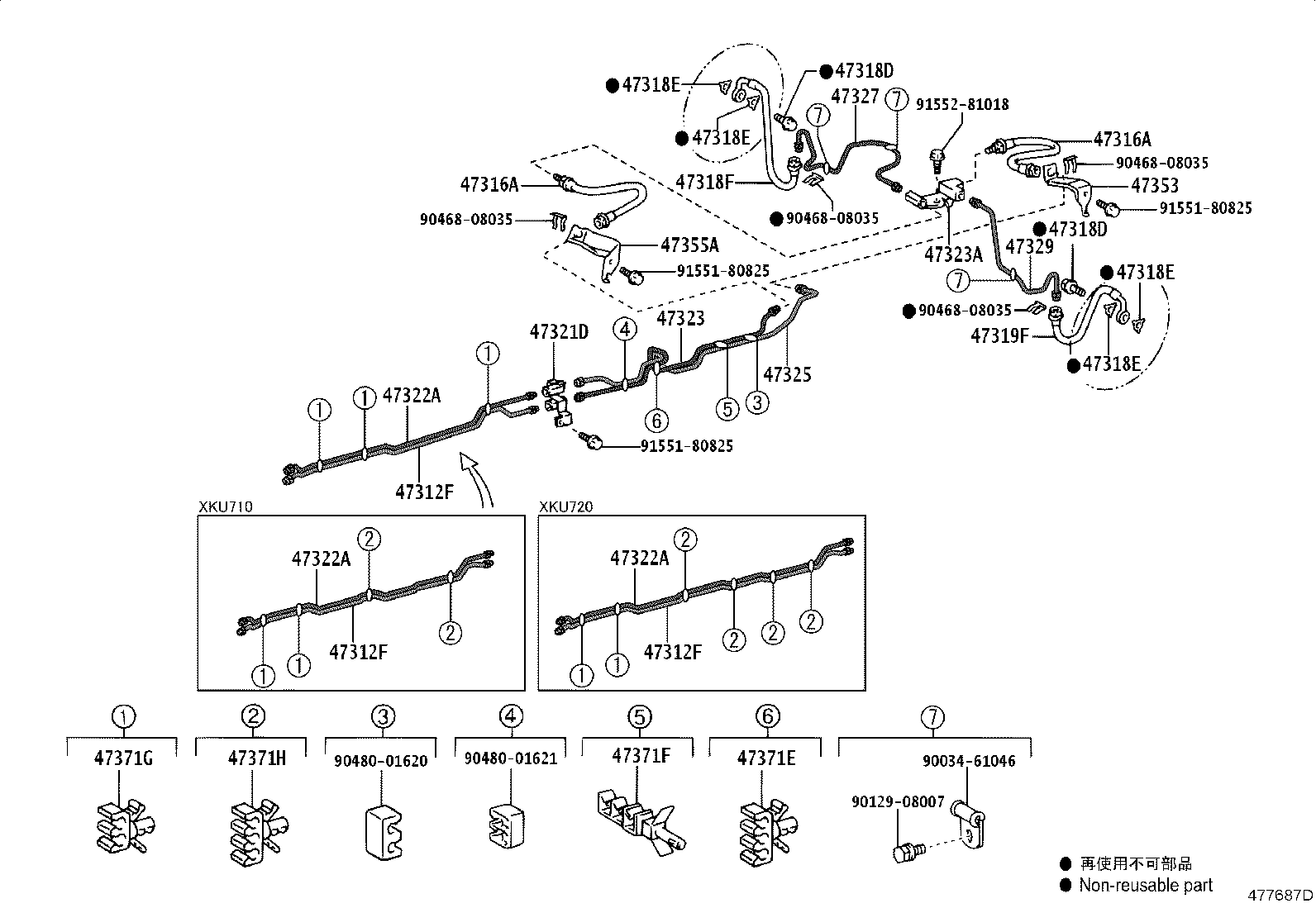

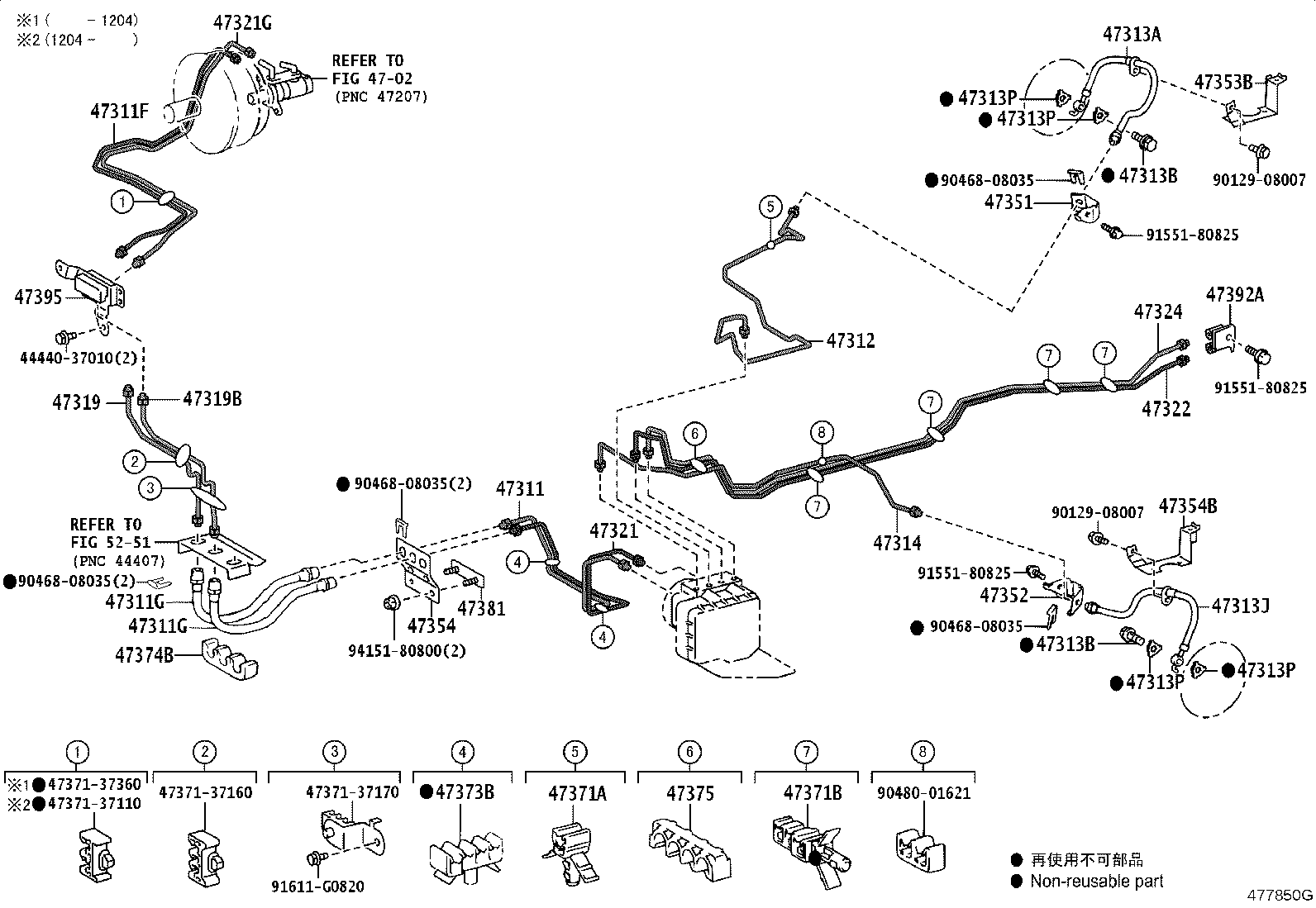

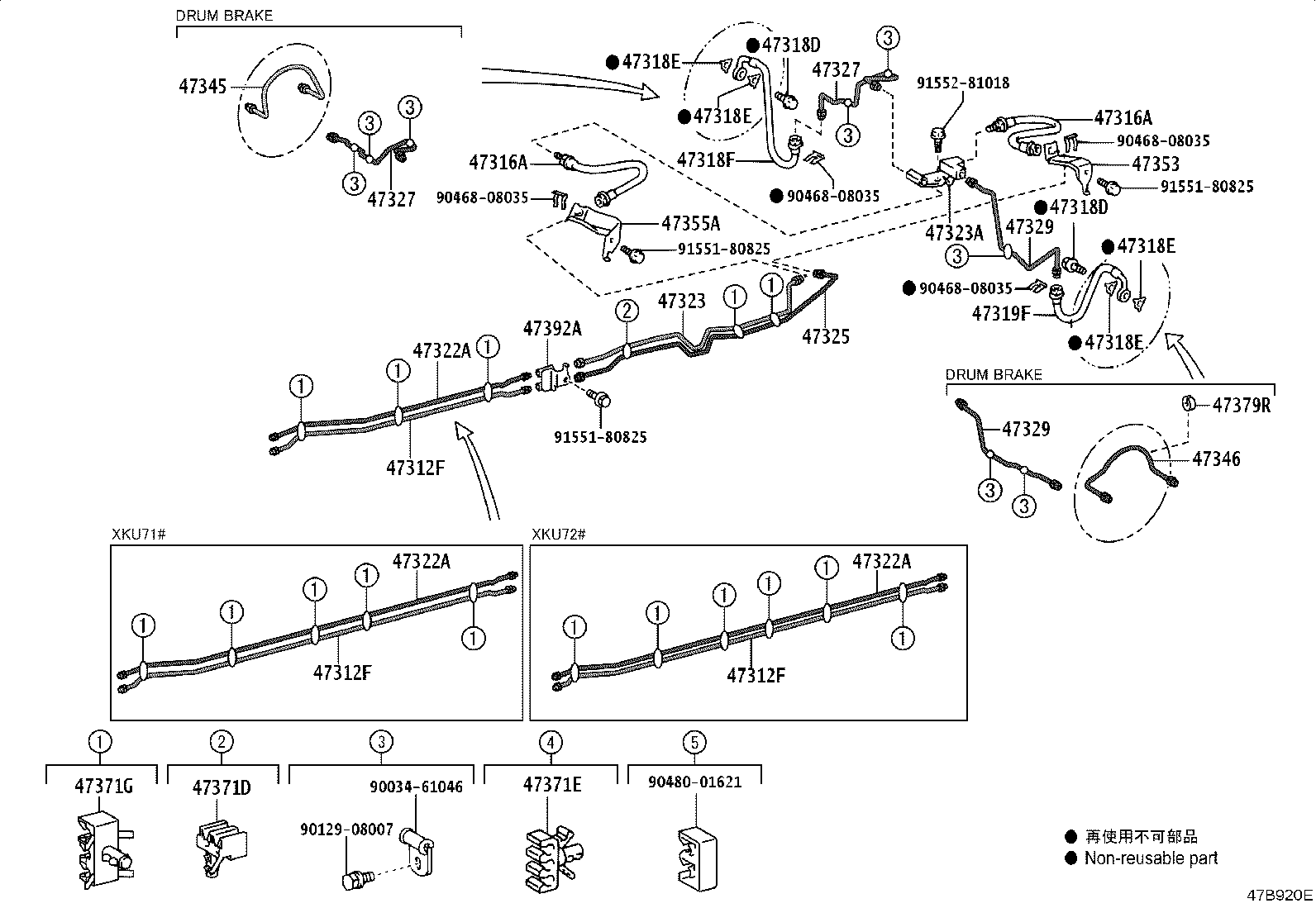

Brake Tube & Clamp
54 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 44510 | Actuator Assy, Brake |
| 44547B | Cushion, Brake Actuator Bracket |
| 44590 | Bracket Assy, Brake Actuator |
| 47311 | Tube, Front Brake, NO.1 |
| 47311F | Tube, Front Brake, Frame NO.1 |
| 47311G | Hose, Flexible(FOR BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47312F | Tube, Front Brake, Frame, NO.2 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313J | Hose, Flexible, NO.2(FOR FRONT) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47316A | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47318D | Bolt, Union(FOR REAR FLEXIBLE HOSE) |
| 47318E | Gasket(FOR REAR FLEXIBLE HOSE) |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319 | Tube, Front Brake, NO.9 |
| 47319B | Tube, Front Brake, NO.11 |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47321D | Way, NO.1(FOR REAR BRAKE TUBE) |
| 47321G | Tube, Rear Brake, Frame NO.1 |
| 47322 | Tube, Rear Brake, NO.2 |
| 47322A | Tube, Rear Brake, Frame NO.2 |
| 47323 | Tube, Rear Brake, NO.3 |
| 47323A | Way, NO.3(FOR REAR BRAKE TUBE) |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47327 | Tube, Rear Brake, NO.7 |
| 47329 | Tube, Rear Brake, NO.9 |
| 47345 | Tube, Wheel Cylinder, Rear RH |
| 47346 | Tube, Wheel Cylinder, Rear LH |
| 47351 | Bracket, Flexible Hose(FOR FRONT RH) |
| 47352 | Bracket, Flexible Hose(FOR FRONT LH) |
| 47353 | Bracket, Flexible Hose(FOR REAR) |
| 47353B | Bracket, Flexible Hose, NO.3 |
| 47354 | Bracket, Front Flexible Hose |
| 47354B | Bracket, Flexible Hose, NO.4 |
| 47355A | Bracket, Flexible Hose, NO.5 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47371B | Clamp, Brake Tube, NO.6 |
| 47371D | Clamp, Brake Tube, NO.8 |
| 47371E | Clamp, Brake Tube, NO.9 |
| 47371F | Clamp, Brake Tube, NO.10 |
| 47371G | Clamp, Brake Tube, NO.11 |
| 47371H | Clamp, Brake Tube, NO.12 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47375 | Clamp, Brake Tube, NO.5 |
| 47379R | Damper, Tube(FOR REAR) |
| 47381 | Bracket, Brake Tube Clamp NO.1 |
| 47392A | Way, Brake Tube, NO.2 |
| 47395 | Way, Brake Tube, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
