Toyota Dyna/Toyoace HV
2011-07 → present · chassis XKU7## · catalogue 773120 · Japan
Supported model
Data version 2021-03

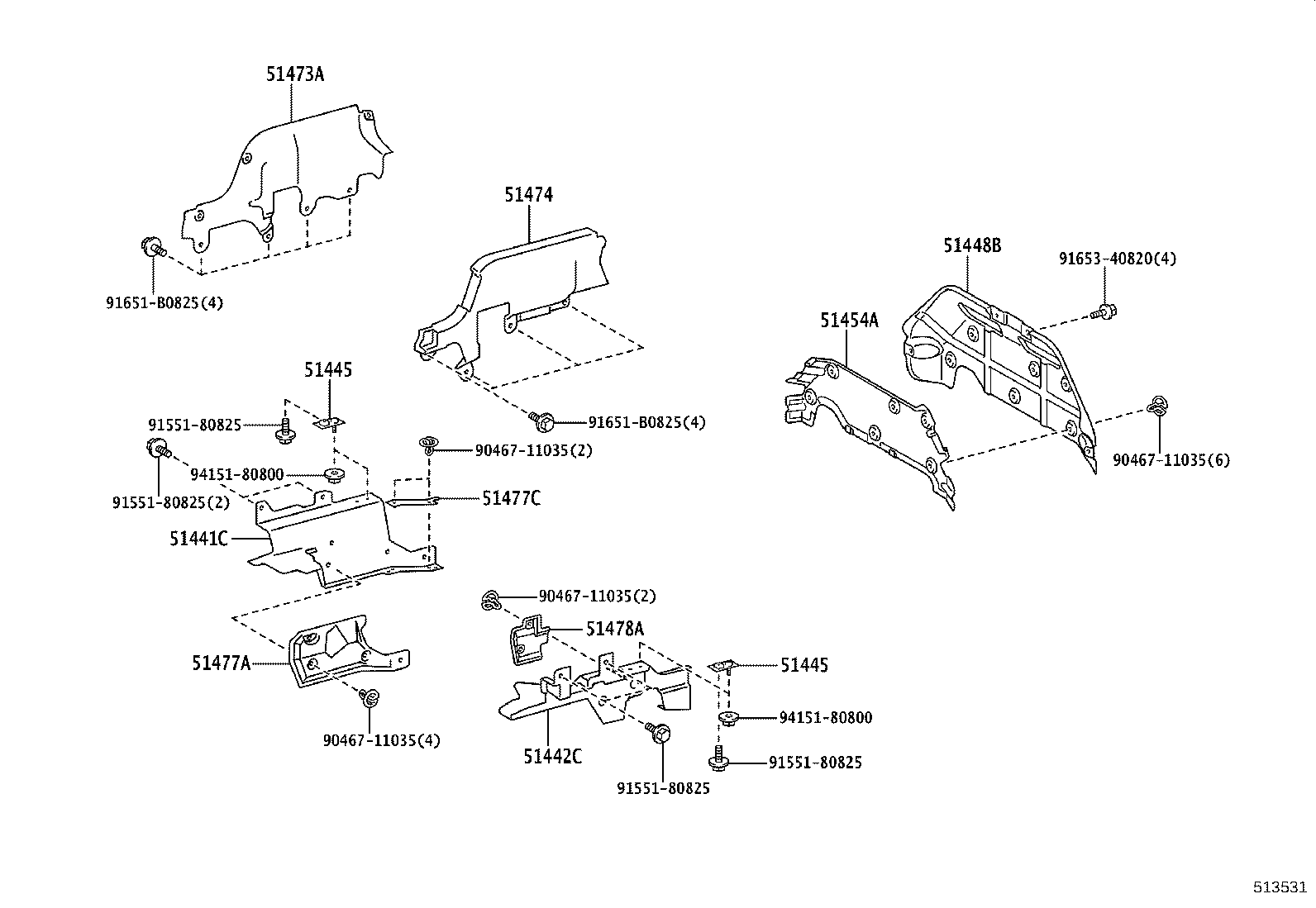

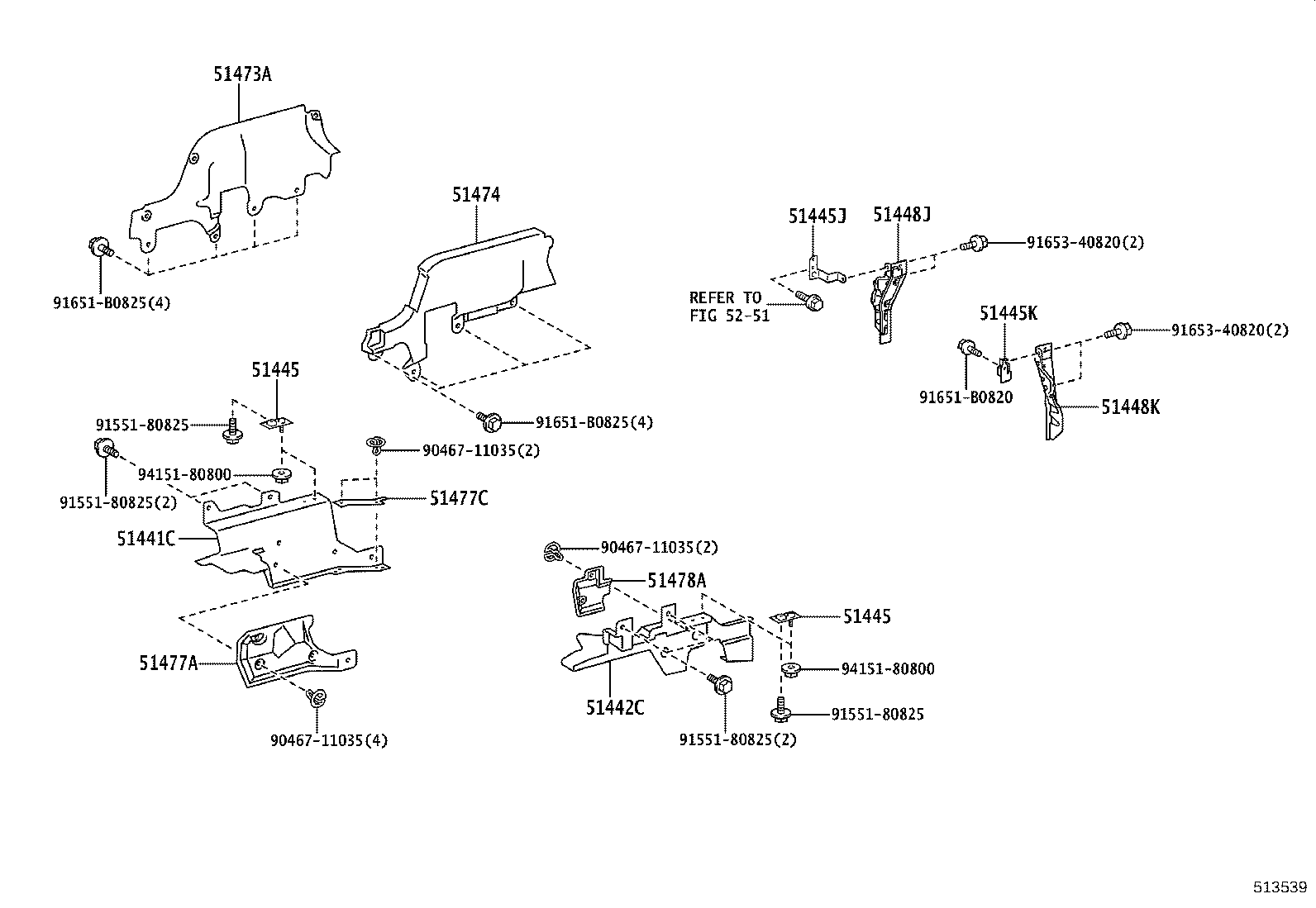

Suspension Crossmember & Under Cover
14 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 51441C | Cover, Engine Under, RH |
| 51442C | Cover, Engine Under, LH |
| 51445 | Bracket, Engine Under Cover |
| 51445J | Bracket, Engine Rear Cover, RH |
| 51445K | Bracket, Engine Rear Cover, LH |
| 51448B | Shutter, Engine Rear Side |
| 51448J | Shutter, Engine Rear Side, RH |
| 51448K | Shutter, Engine Rear Side, LH |
| 51454A | Silencer, Engine Rear Cover |
| 51473A | Cover Sub-assy, Engine Side, RH |
| 51474 | Cover Sub-assy, Engine Side, LH |
| 51477A | Silencer, Engine Under Cover, RH |
| 51477C | Silencer, Engine Under Cover, Lower RH |
| 51478A | Silencer, Engine Under Cover, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
