Toyota Dyna/Toyoace HV
2011-07 → present · chassis XKU7## · catalogue 773120 · Japan
Supported model
Data version 2021-03

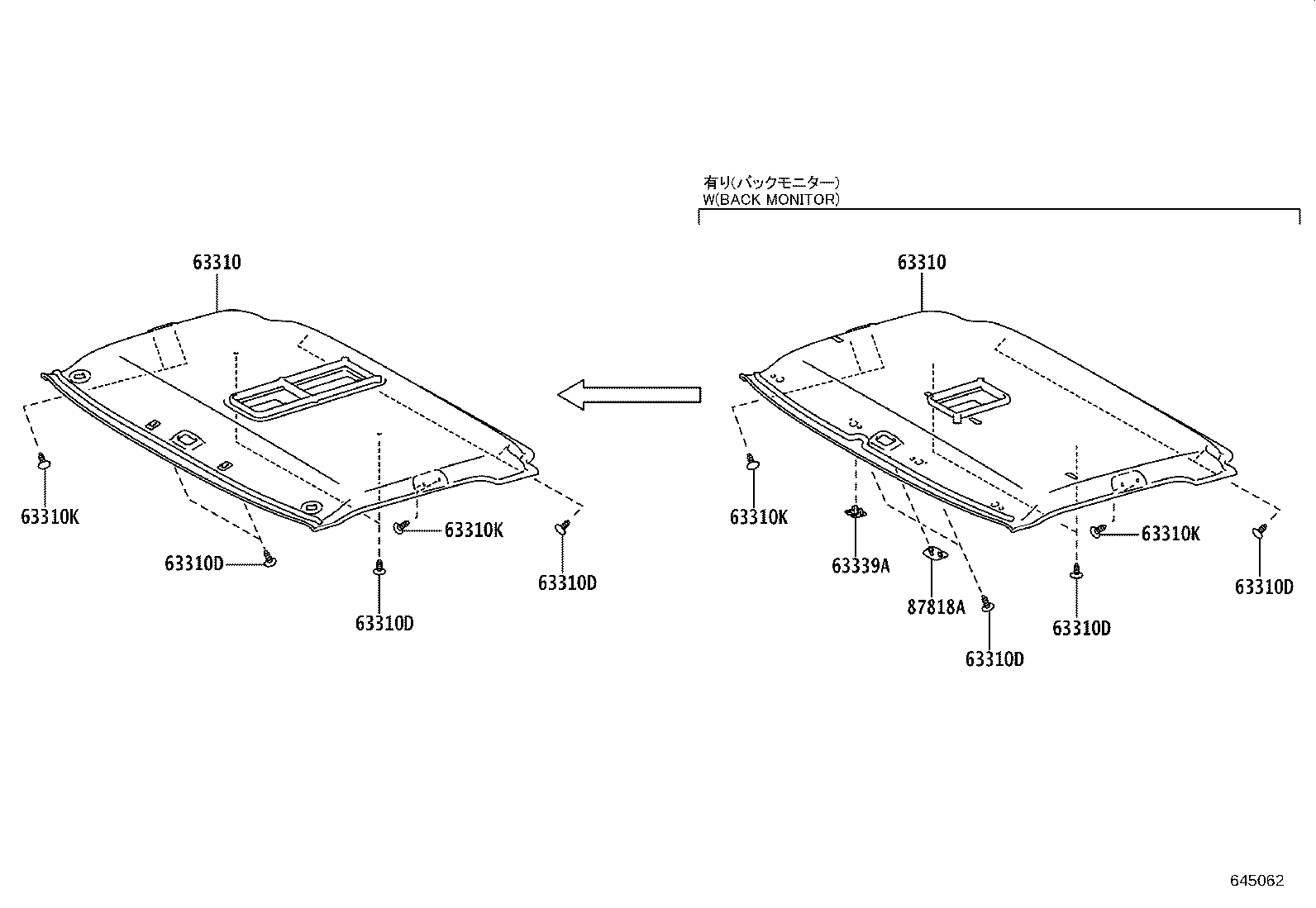

Roof Headlining & Silencer Pad
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63183C | Bracket, Roof Console, Front |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310K | Clip |
| 63339A | Cover, Roof Headlining Service Hole |
| 63651C | Box, Roof Console |
| 74351C | Cover, Roof Console, NO.1 |
| 74352C | Cover, Roof Console, NO.2 |
| 87818A | Cover, Inner Rear View Mirror Hole |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
