Rear Body Side Panel

29 part groups · 3 illustrations

Illustrations

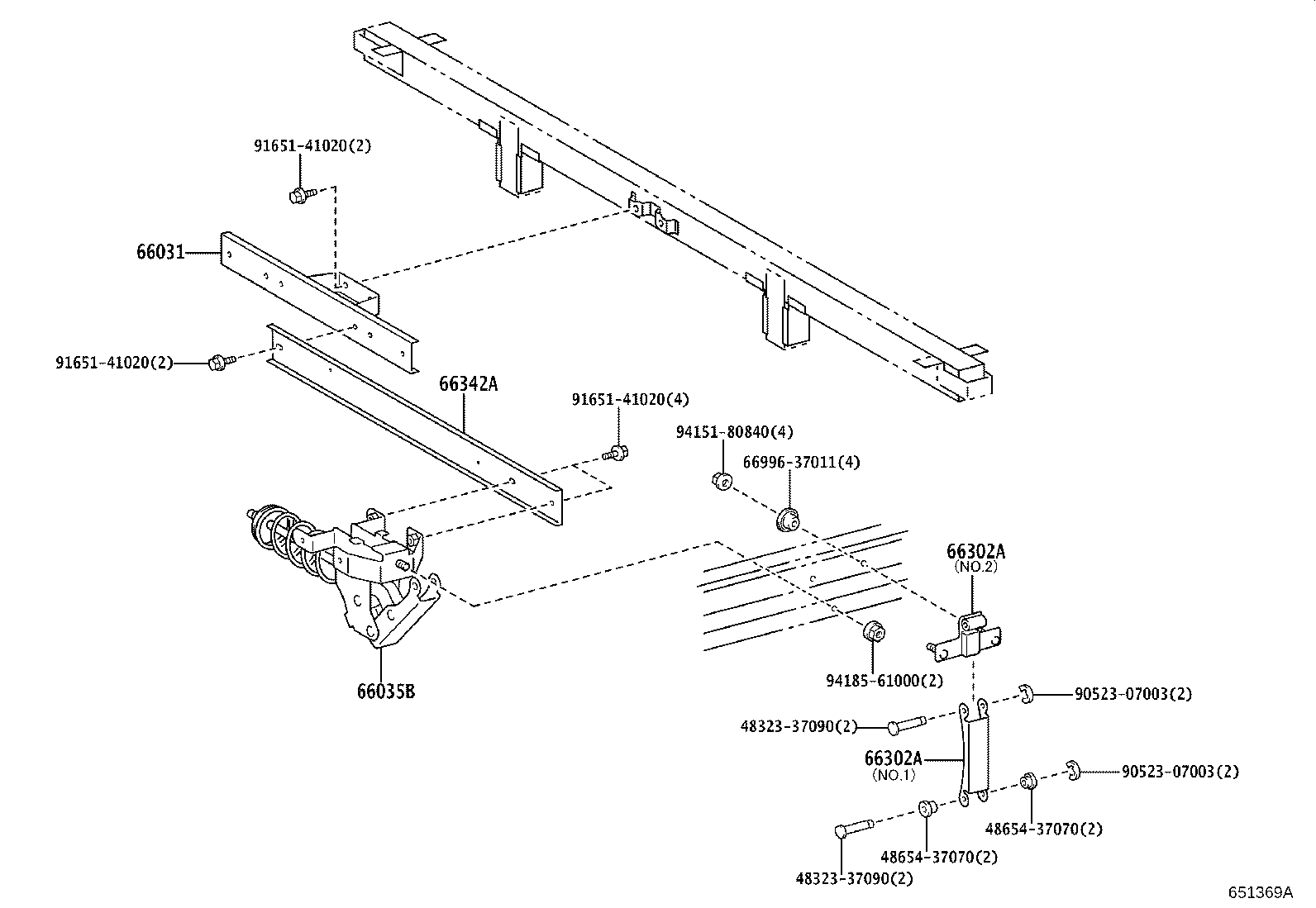

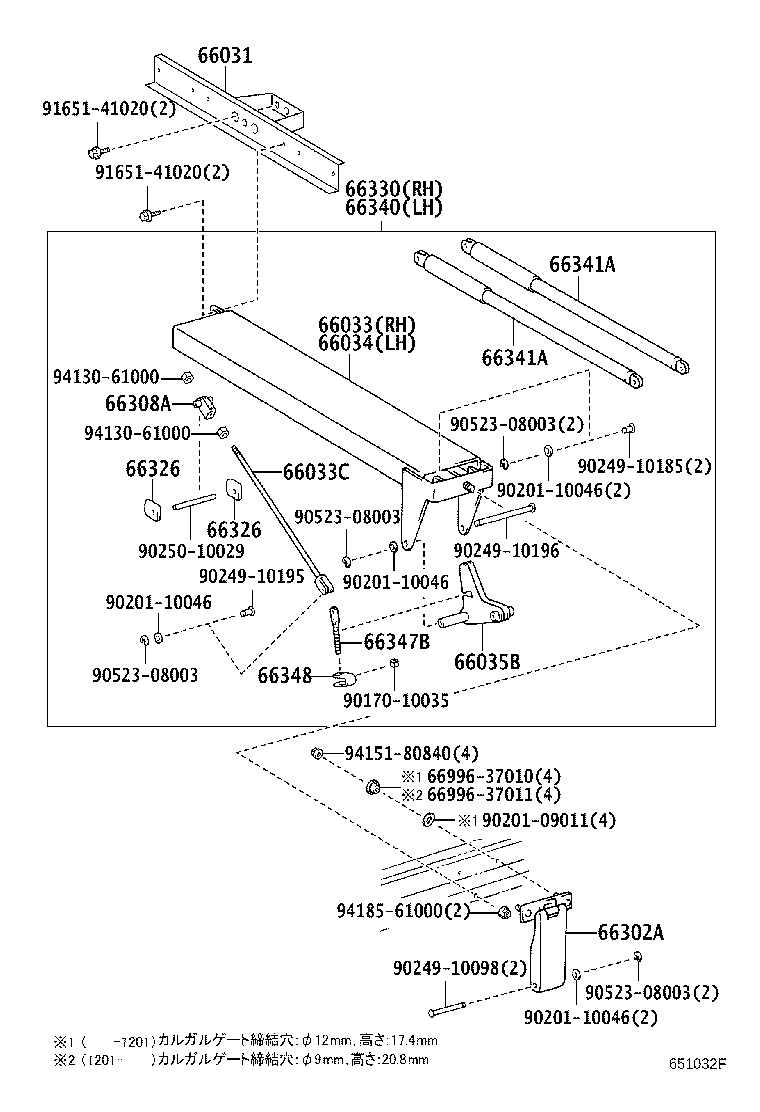

Figure 651104E 651104E 2011-07 → — Figure 651032F 651032F 2011-07 → — Figure 651369A 651369A 2019-05 → —

Part groups

PNCDescription
65500 Panel Assy, Rear Body Side, RH
65500G Bolt, W/Washer(FOR SIDE GATE, RH)
65600 Panel Assy, Rear Body Side, LH
65600H Bolt, W/Washer(FOR SIDE GATE, LH)
65679G Seal, Side Gate
65679H Seal, Side Gate
66031 Bracket Sub-assy, Gate Helper, NO.1
66033 Bracket Sub-assy, Gate Helper, NO.3
66033C Rod Sub-assy, Gate Helper Tension
66034 Bracket Sub-assy, Gate Helper, NO.3 LH
66035B Bellcrank Sub-assy, Gate Helper
66110C Hinge Assy, Side Gate, NO.1 RH
66120C Hinge Assy, Side Gate, NO.1 LH
66151B Latch, Side Gate, Front RH
66152A Latch, Side Gate, Front LH
66153D Latch, Side Gate, Rear RH
66154D Latch, Side Gate, Rear LH
66187A Latch, Side Gate Support
66243B Protector, Rear Body, NO.1
66243H Protector, Rear Body, NO.1
66302A Link Sub-assy, Gate Helper
66308A End Sub-assy, Gate Helper Rod, NO.2
66326 Slider, Rod Control
66330 Helper Assy, Gate, RH
66340 Helper Assy, Gate, LH
66341A Stay, Gate Helper
66342A Spacer, Gate Helper
66347B Bolt, Gate Helper Bellcrank Adjust
66348 Retainer, Gate Helper Bellcrank Adjust Bolt
