Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKU7## · catalogue 773120 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

16 part groups · 7 illustrations

Illustrations

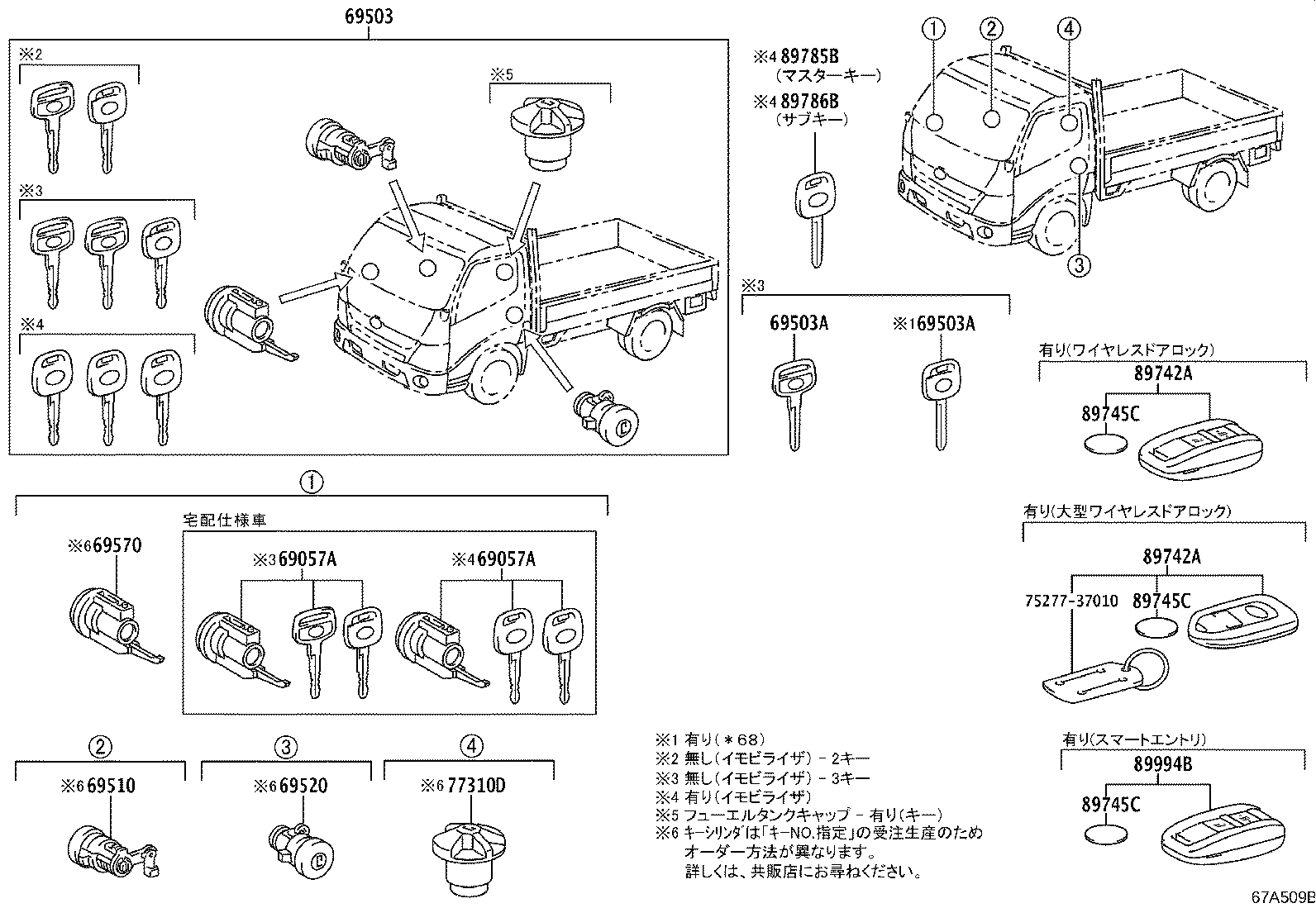

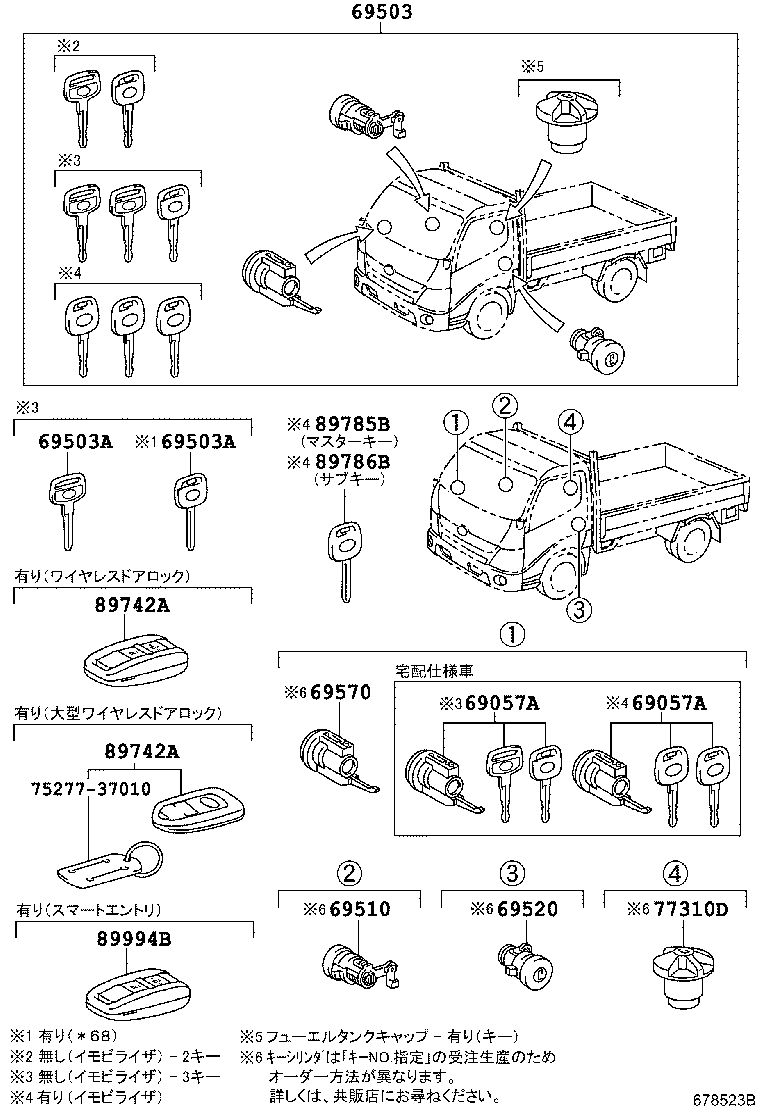

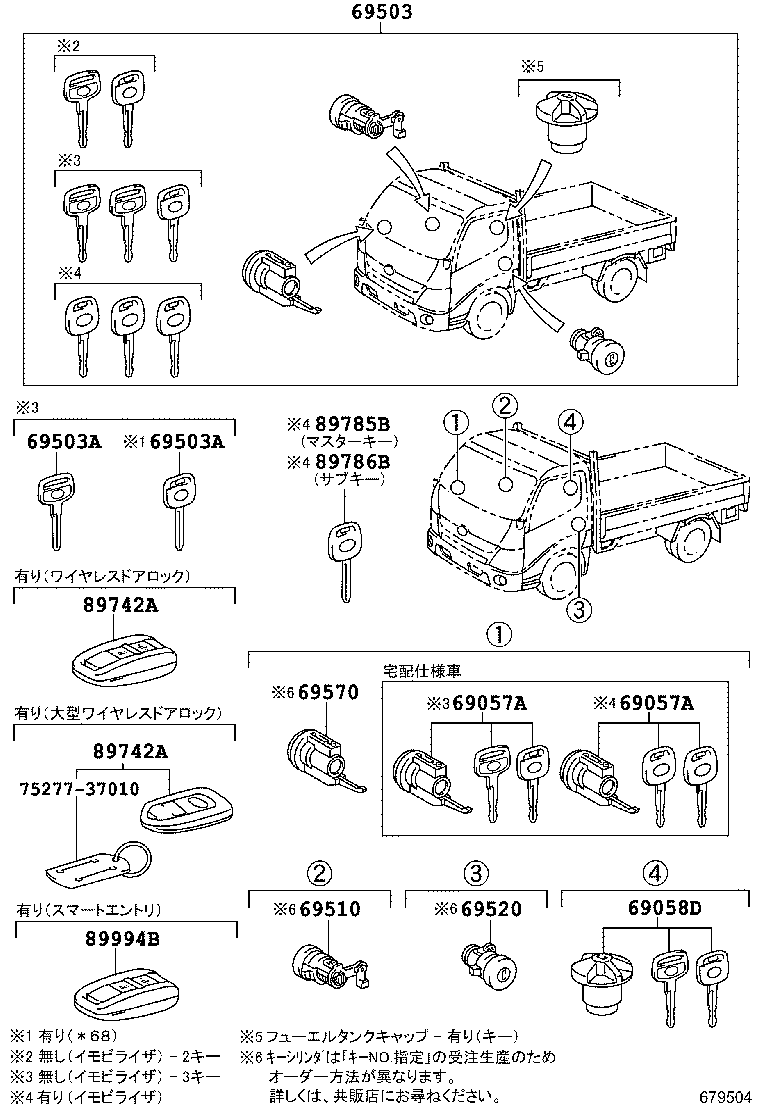

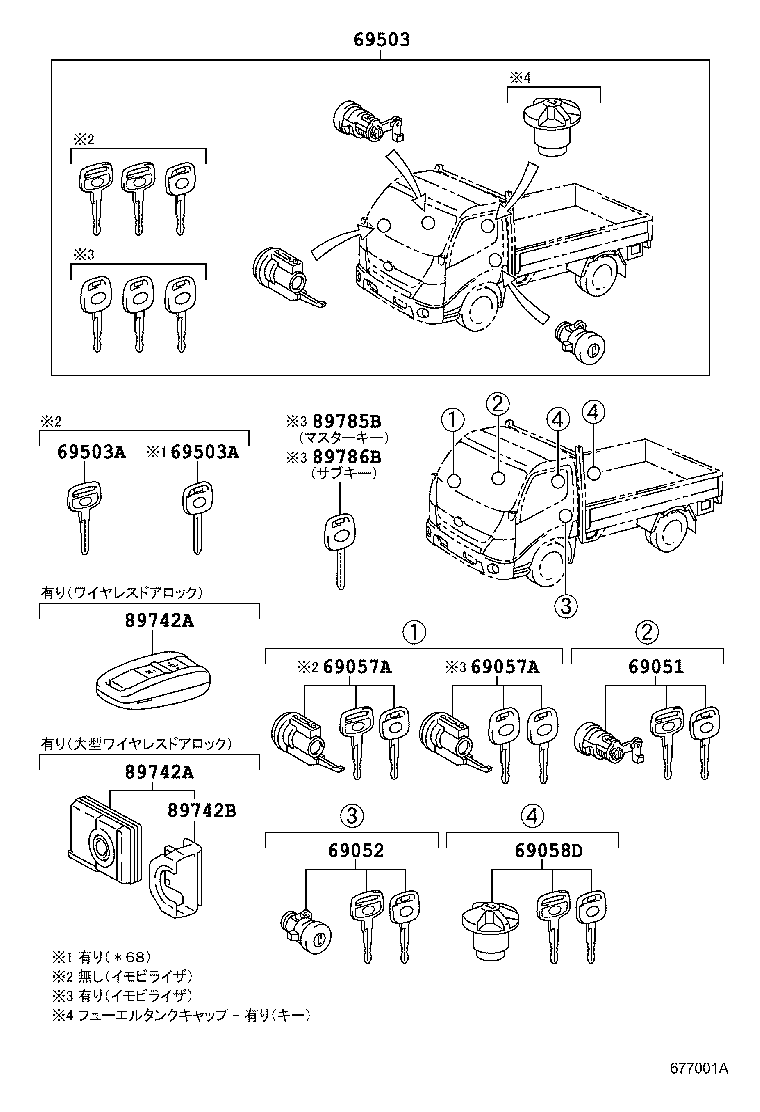

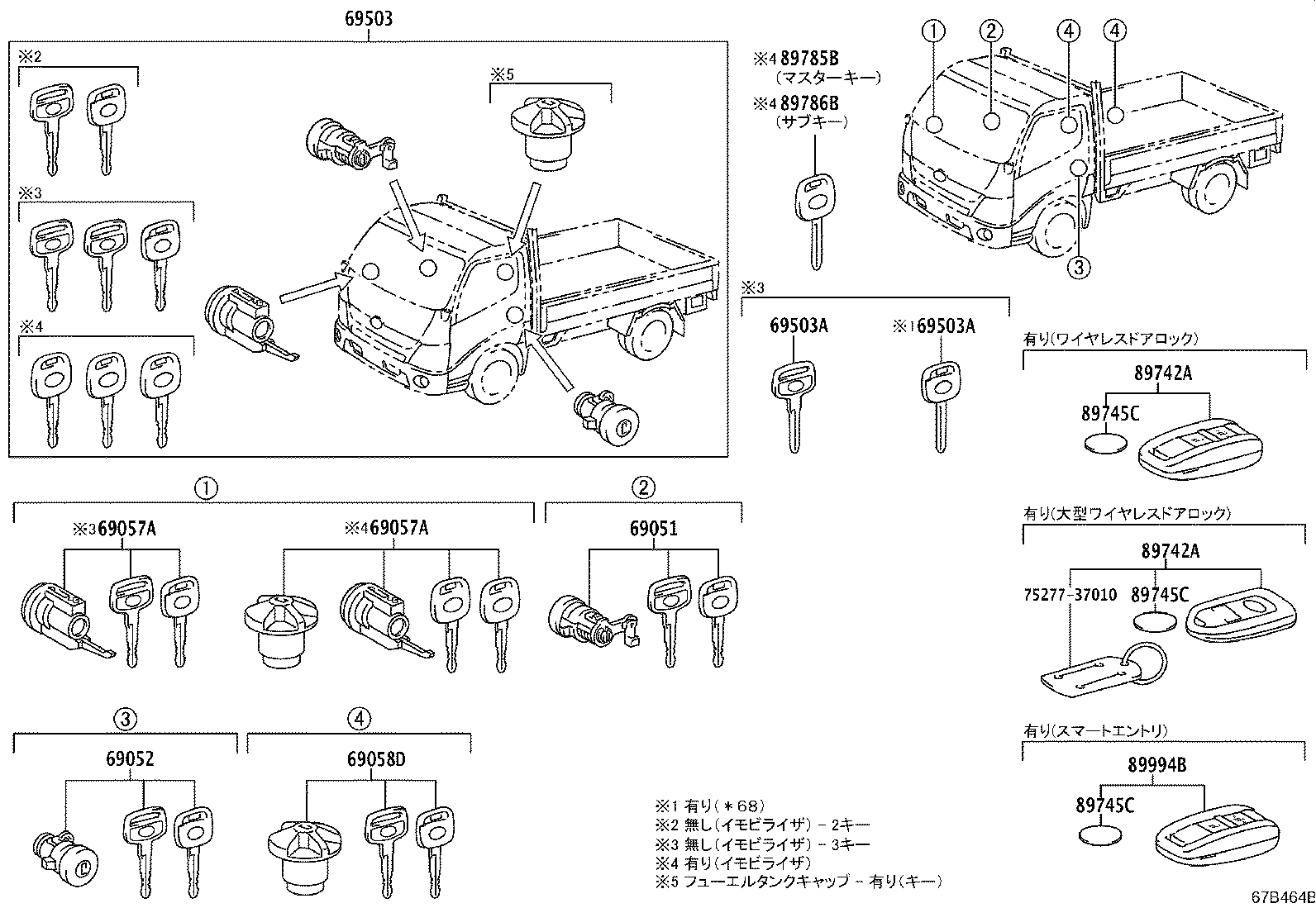

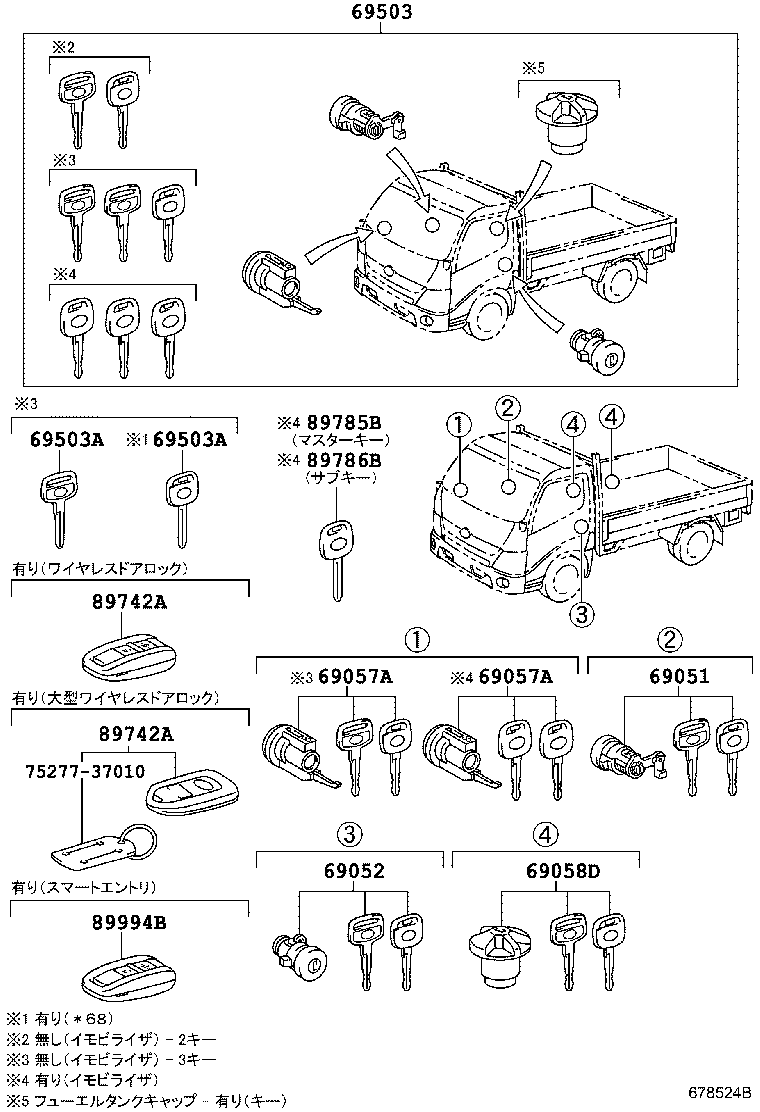

Figure 677000B 677000B 2011-07 → 2015-05 Figure 677001A 677001A 2011-07 → 2015-05 Figure 678523B 678523B 2015-05 → 2017-05 Figure 679504 679504 2017-05 → 2019-05 Figure 678524B 678524B 2015-05 → 2019-05 Figure 67A509B 67A509B 2019-05 → — Figure 67B464B 67B464B 2019-05 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69057A Cylinder & Key Set, Ignition Switch Lock
69058D Cylinder & Key Set, Fuel Tank Filler
69503 Cylinder Set, Lock
69503A Key, Blank
69510 Cylinder Assy, Front Door Lock, RH
69520 Cylinder Assy, Front Door Lock, LH
69570 Cylinder Assy, Ignition Switch Lock
77310D Cap Assy, Fuel Tank
89742A Transmitter, Door Control
89742B Bracket, Door Control Transmitter
89745C Battery, Transmitter
89785B Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
89994B Transmitter, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
