Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKU7## · catalogue 773120 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

22 part groups · 2 illustrations

Illustrations

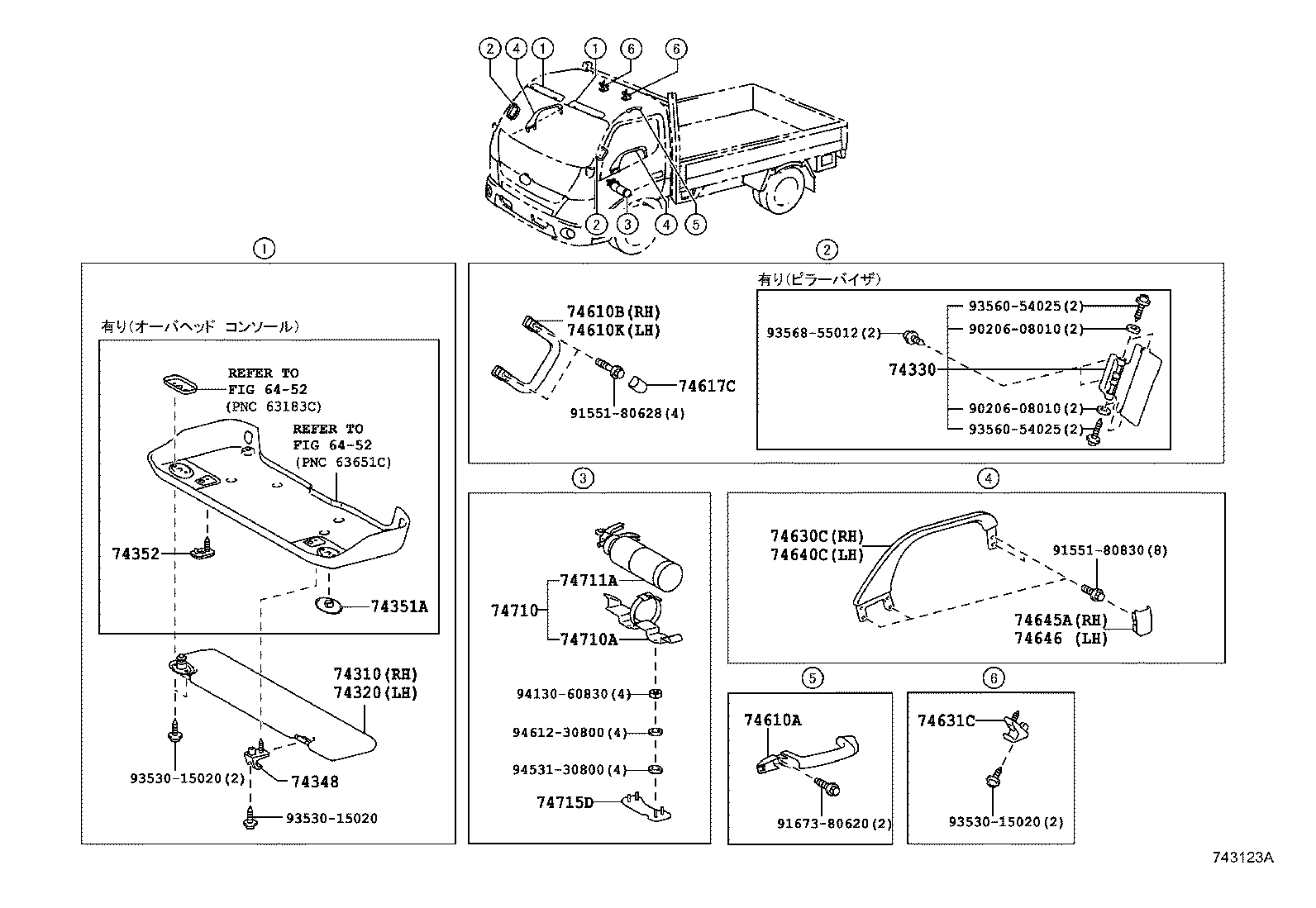

Figure 743121 743121 2011-07 → — Figure 743123A 743123A 2011-07 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74257 Spring, Armrest, NO.1
74310 Visor Assy, RH
74320 Visor Assy, LH
74330 Visor Assy, Front Pillar
74348 Holder, Visor
74351A Cover, Visor, NO.1
74352 Cover, Visor, NO.2
74610A Grip Sub-assy, Assist
74610B Grip Assy, Assist, NO.2 RH
74610K Grip Assy, Assist, NO.2 LH
74617C Plug, Assist Grip
74630C Grip Assy, Door Assist, RH
74631C Hook, Coat
74640C Grip Assy, Door Assist, LH
74645A Cover, Door Assist Grip, RH
74646 Cover, Door Assist Grip, LH
74710 Extinguisher Assy
74710A Bracket, Extinguisher
74711A Extinguisher
74715D Retainer, Extinguisher, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
