Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKU7## · catalogue 773120 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

10 part groups · 5 illustrations

Illustrations

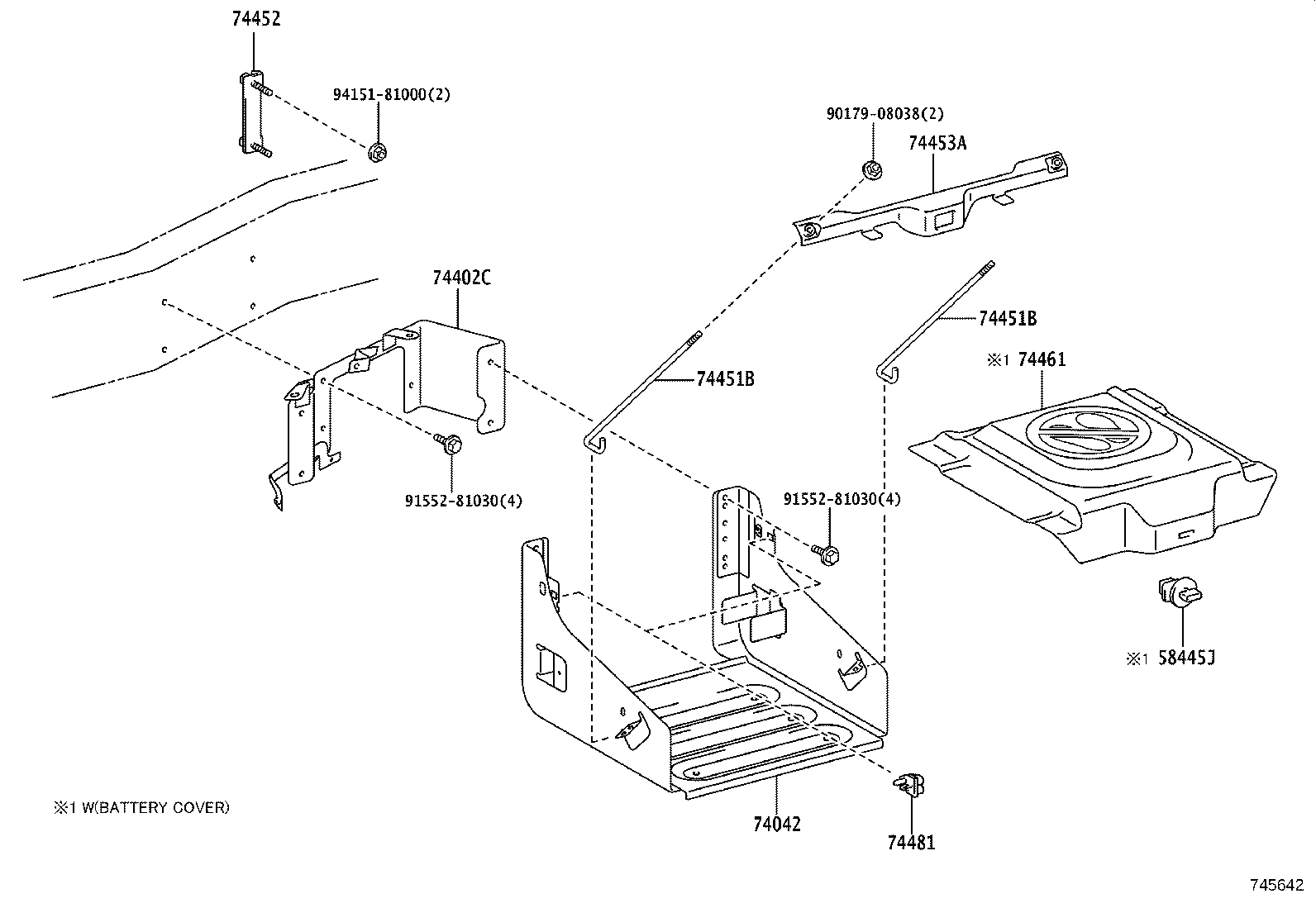

Figure 743171 743171 2011-07 → — Figure 743172 743172 2011-07 → — Figure 743172 743172 2019-05 → — Figure 743172 743172 2021-03 → — Figure 745642 745642 2021-03 → —

Part groups

PNCDescription
58445J Lock, Battery Service Hole Cover
74042 Bracket Sub-assy, Battery
74402C Bracket Sub-assy, Battery Carrier, Rear
74414A Bracket, Battery, NO.1
74451B Bolt, Battery Clamp
74452 Plate, Battery Set
74453A Bar, Battery Set Plate
74461 Cover, Battery
74474 Pad, Battery
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
