Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKU7## · catalogue 773120 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

10 part groups · 8 illustrations

Illustrations

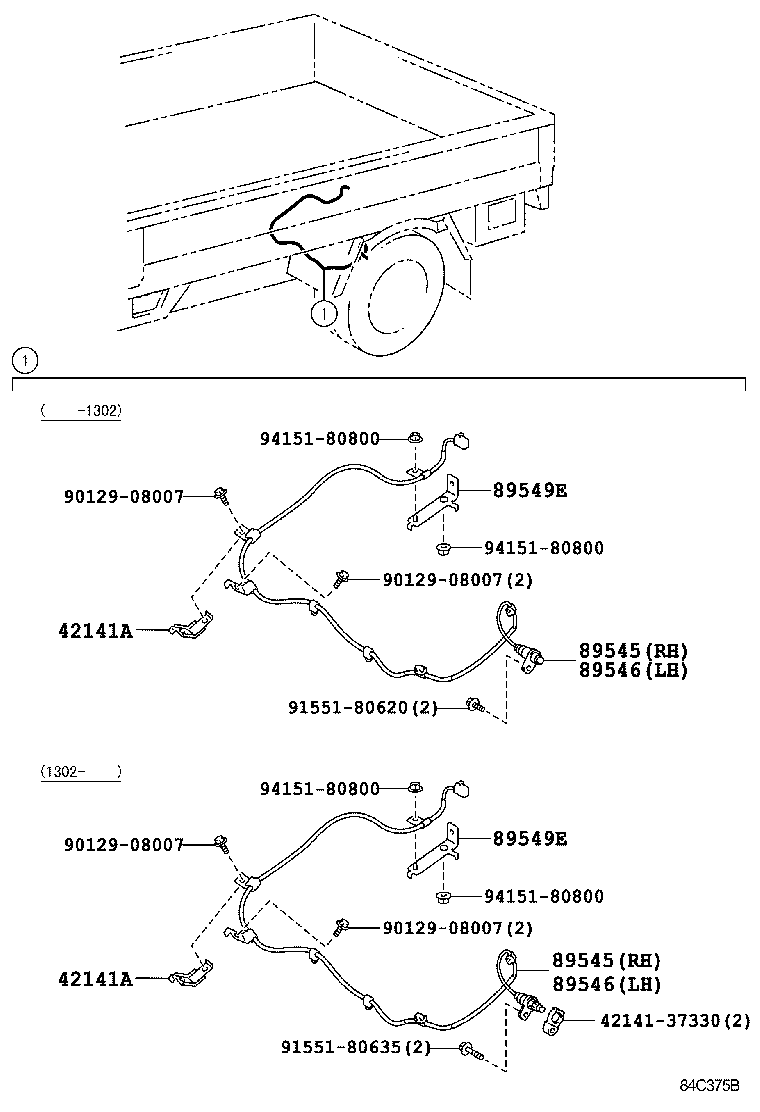

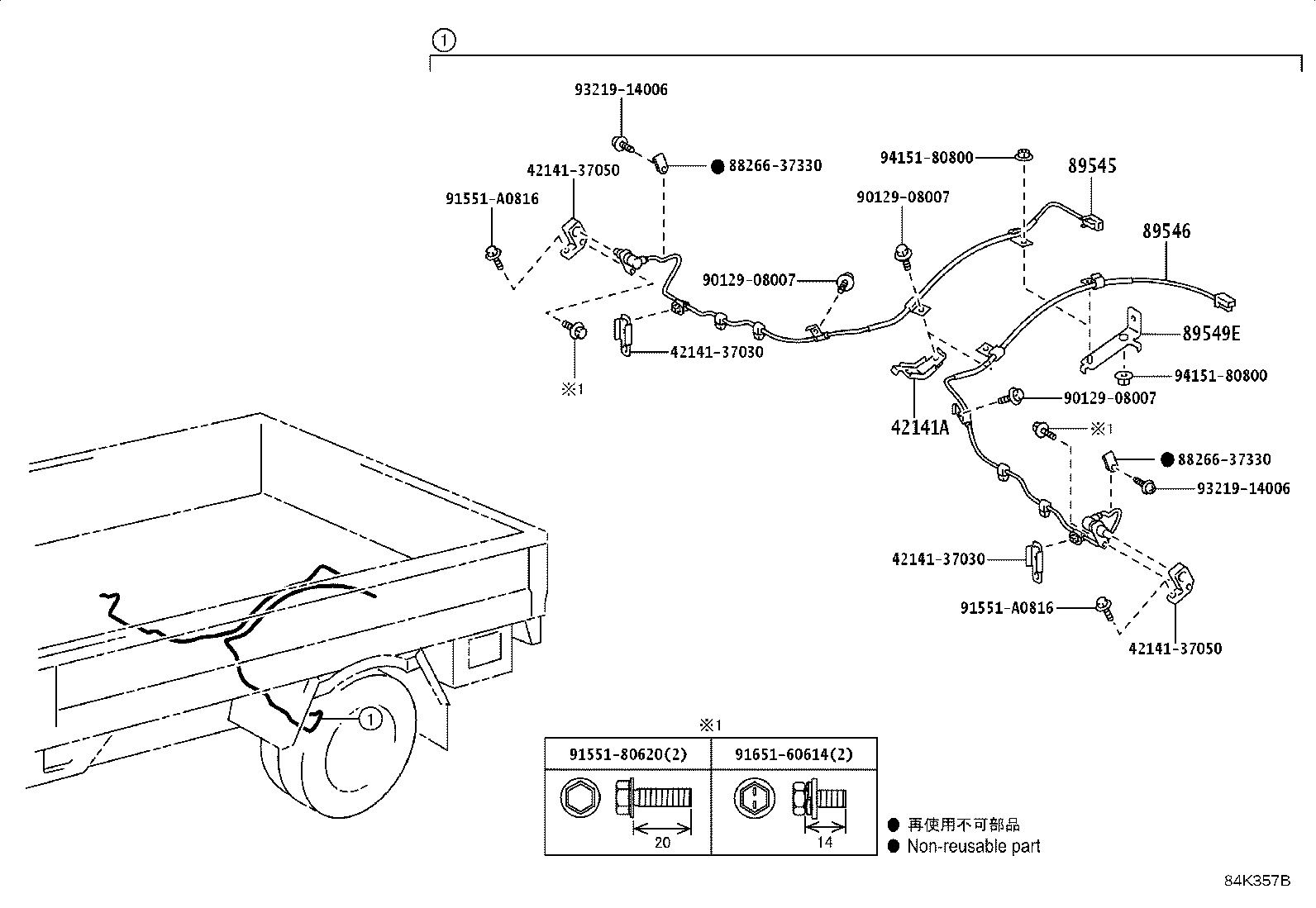

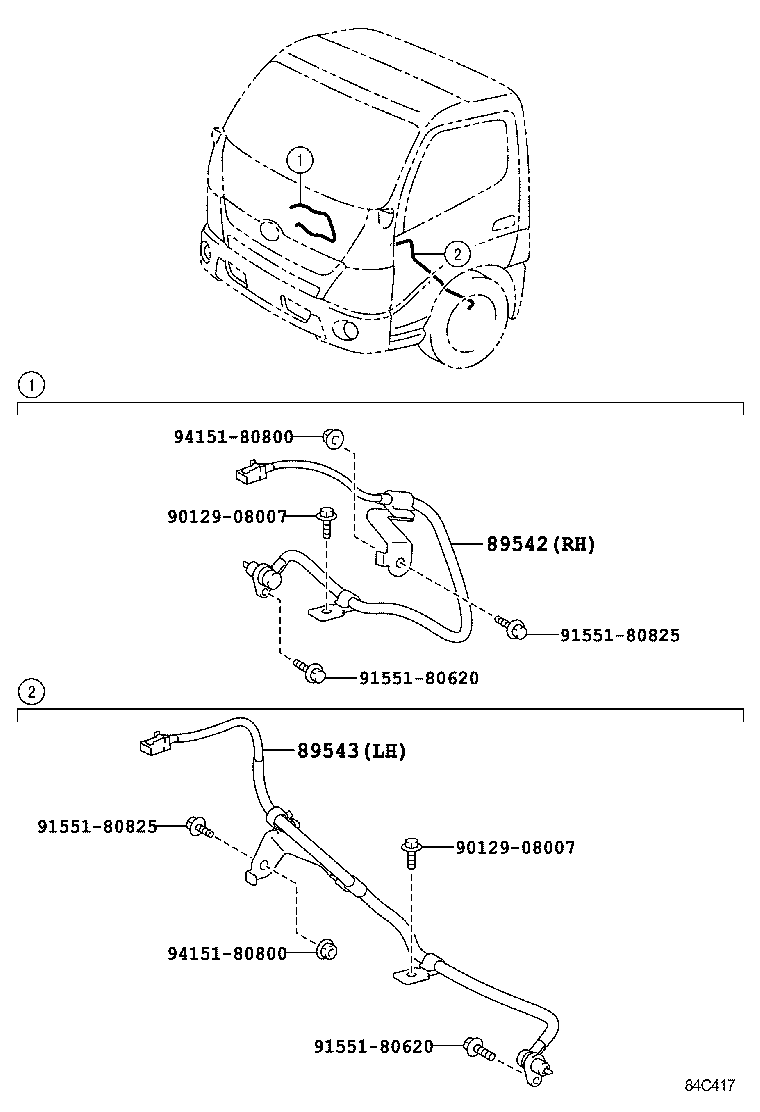

Figure 84C347C 84C347C 2011-07 → — Figure 84C417 84C417 2011-07 → — Figure 84C418 84C418 2011-07 → — Figure 84C375B 84C375B 2011-07 → — Figure 84C415B 84C415B 2011-07 → — Figure 84C415B 84C415B 2021-03 → — Figure 84C416D 84C416D 2011-07 → — Figure 84K357B 84K357B 2019-05 → —

Part groups

PNCDescription
42141A Attachment, Skid Control Wire, NO.1
89183A Sensor, Yawrate
89421F Sensor, Vacuum (FOR SKID CONTROL)
89437F Cover, Sensor
89441A Sensor, Deceleration
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89549E Bracket, Speed Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
