Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKU7## · catalogue 773120 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

7 part groups · 4 illustrations

Illustrations

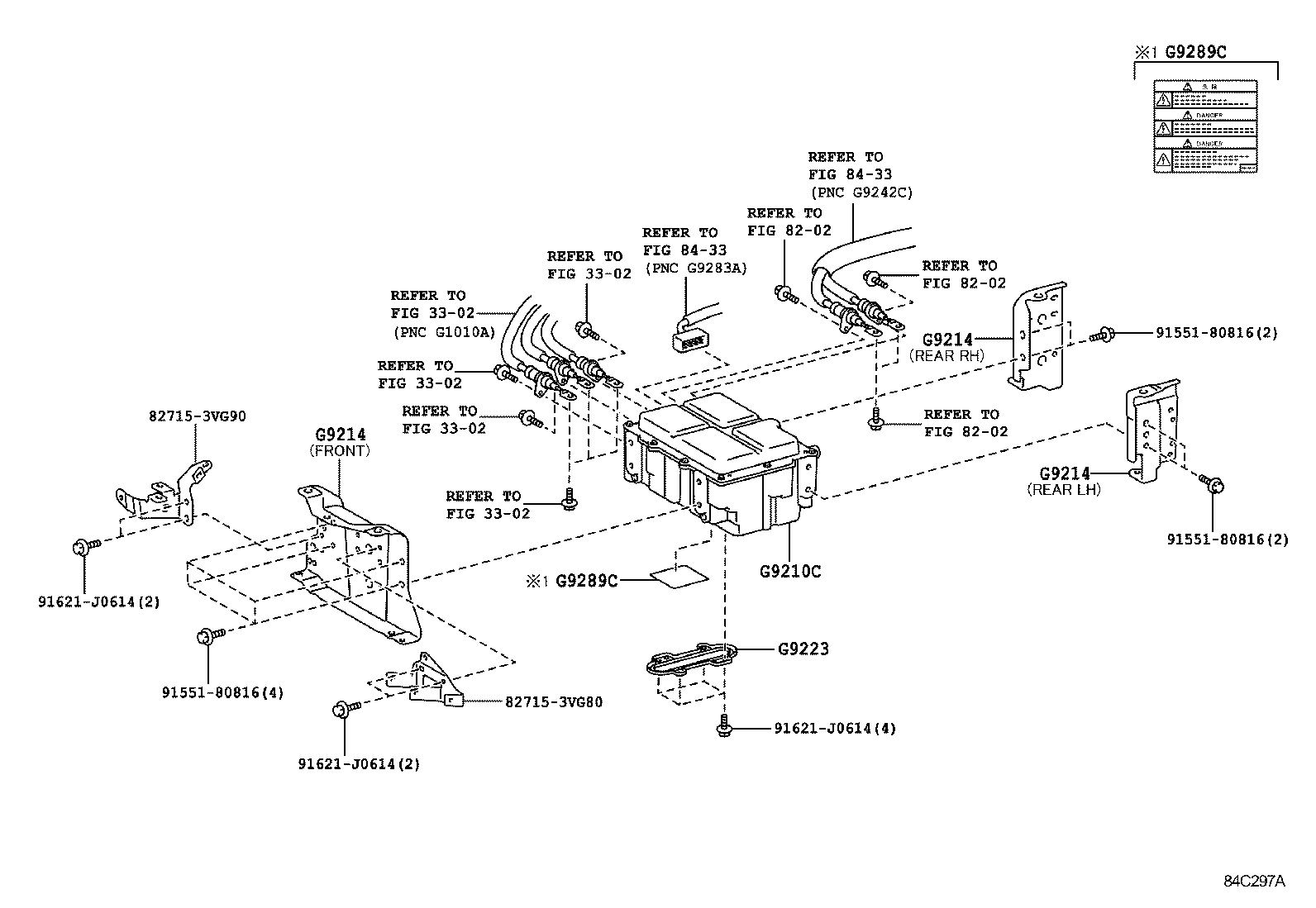

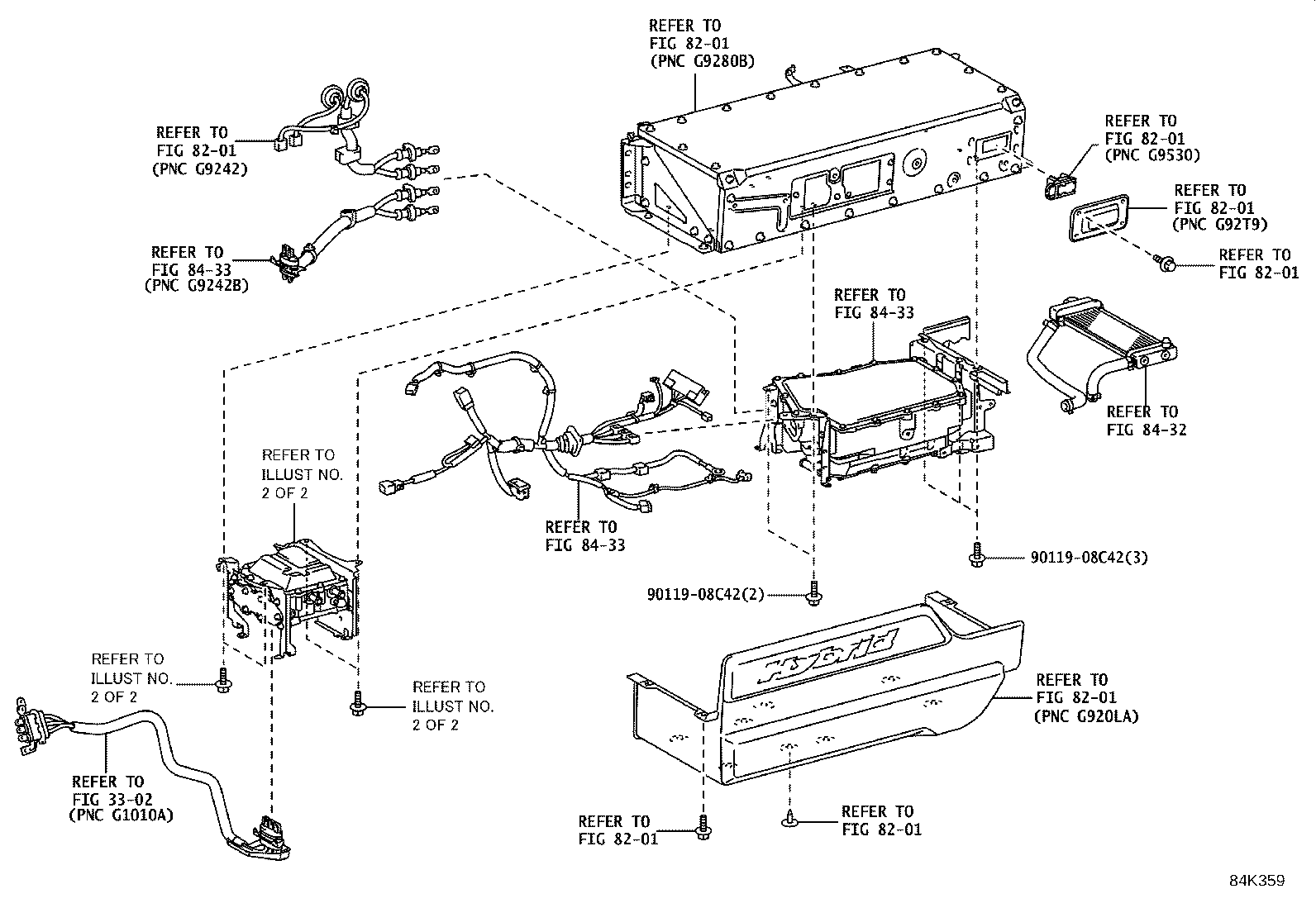

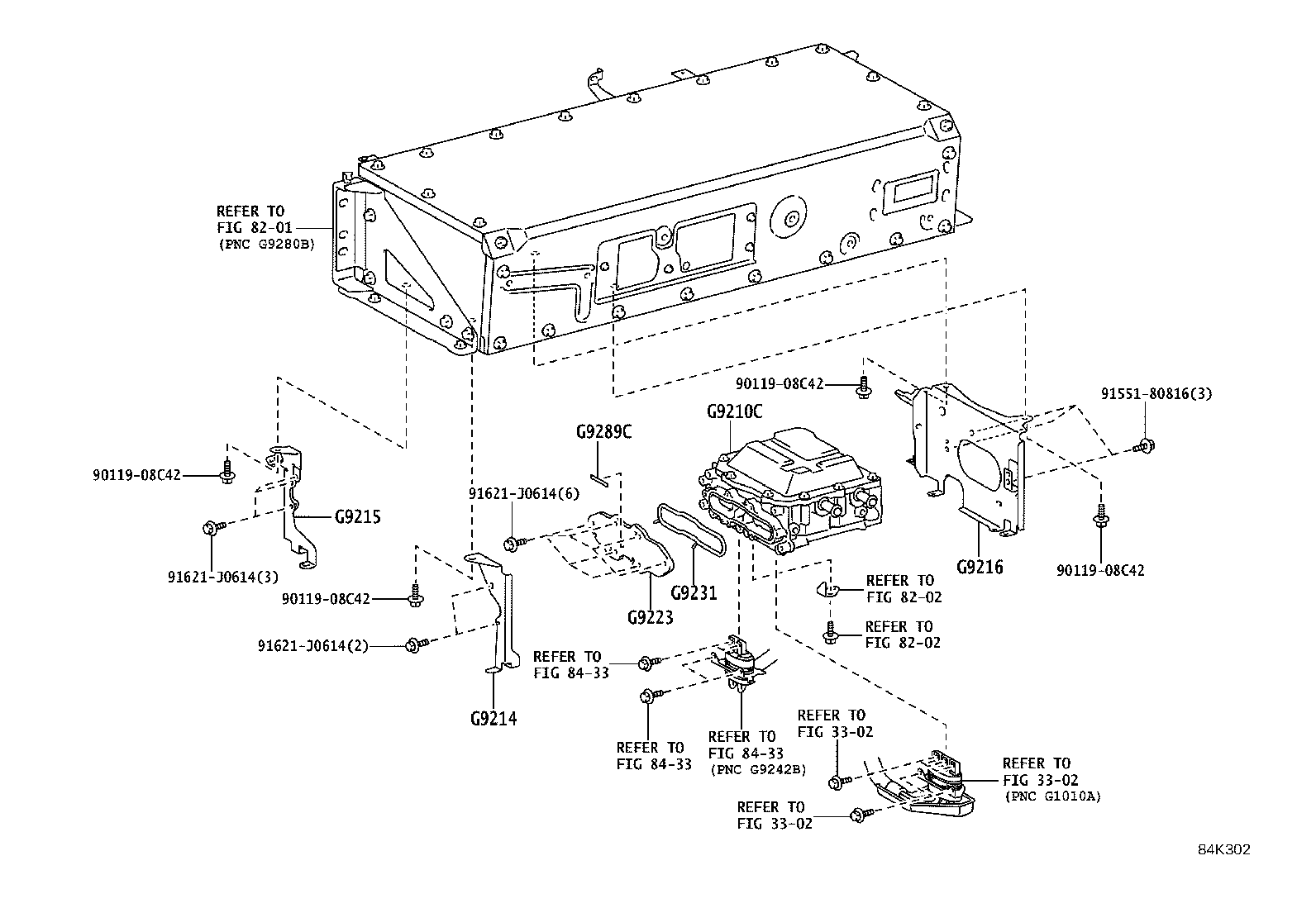

Figure 84C424 84C424 2011-06 → 2019-05 Figure 84K359 84K359 2019-05 → — Figure 84C297A 84C297A 2011-06 → 2019-05 Figure 84K302 84K302 2019-05 → —

Part groups

PNCDescription
G9210C Inverter Assy, Motor & Generator Control
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G9216 Bracket, Inverter, NO.3
G9223 Cover, Inverter Terminal
G9231 Gasket, Inverter Cover
G9289C Label, Battery Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
