Toyota Dyna/Toyoace HV

2011-07 → present · chassis XKU7## · catalogue 773120 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inverter Cooling

13 part groups · 3 illustrations

Illustrations

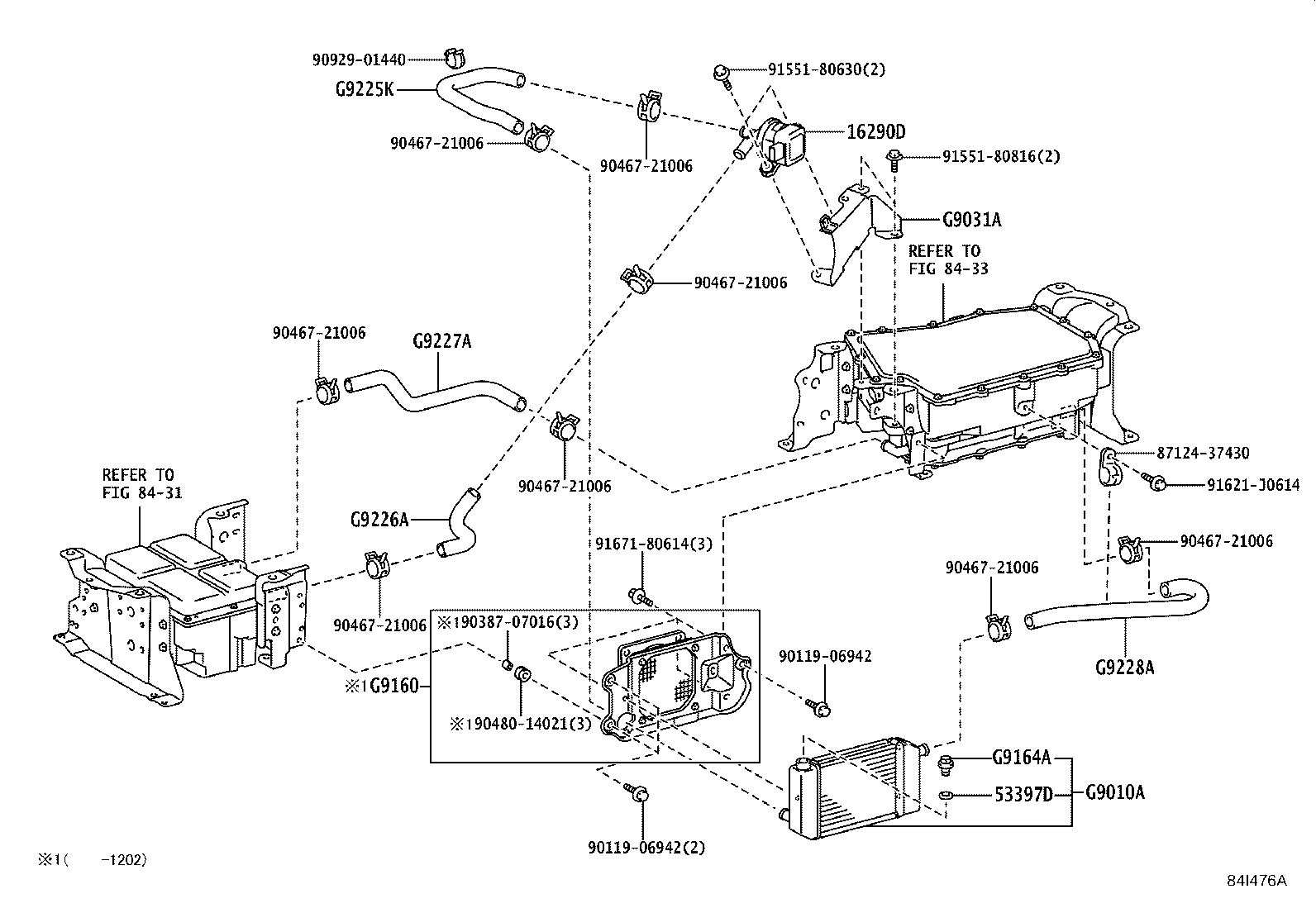

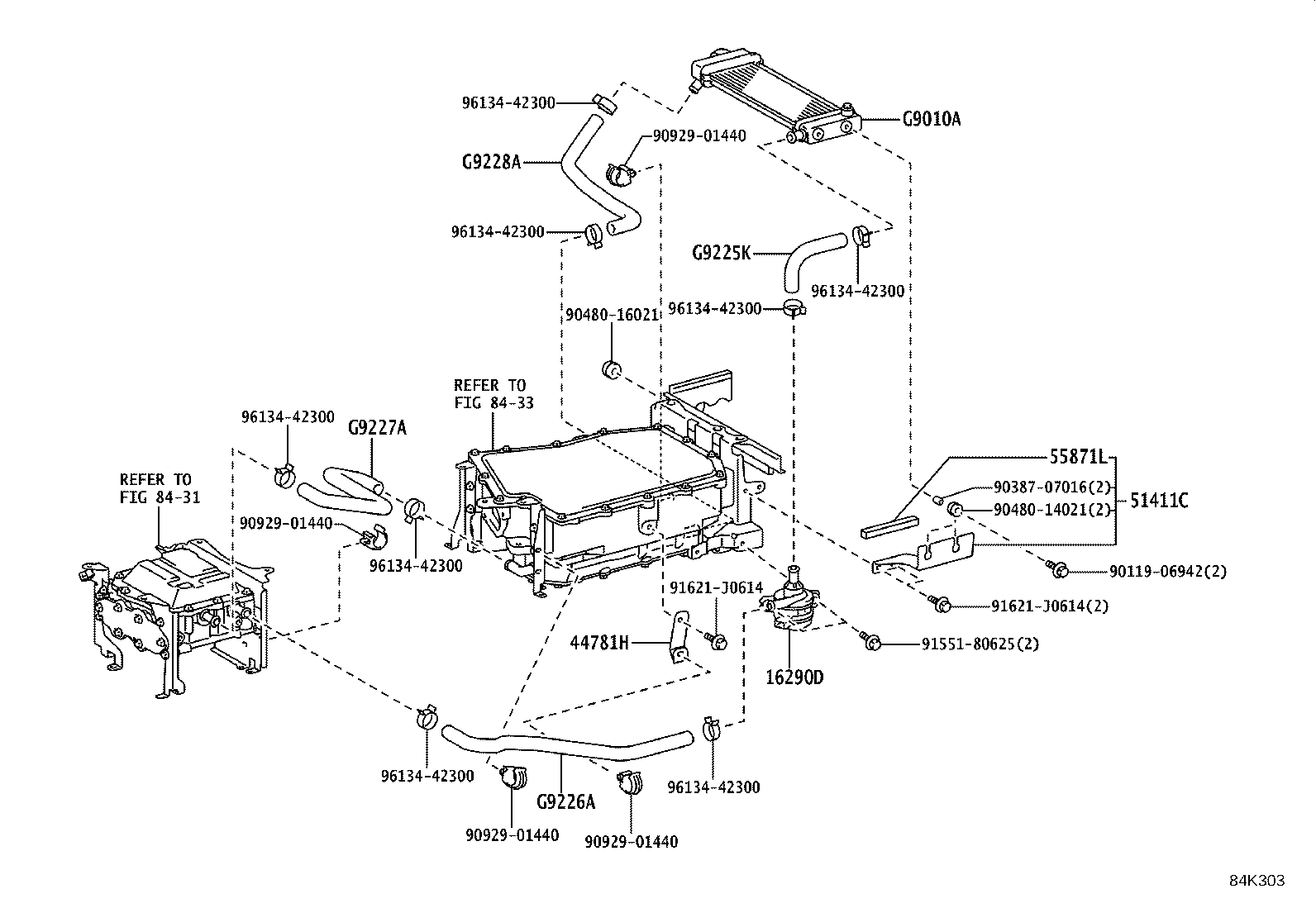

Figure 84C425A 84C425A 2011-06 → — Figure 84I476A 84I476A 2017-05 → 2019-05 Figure 84K303 84K303 2019-05 → —

Part groups

PNCDescription
16290D Pump Assy, Water W/Motor
44781H Bracket, Hose Clamp
51411C Bracket, Radiator Support
53397D Seal, Radiator, Upper
55871L Seal, Air Duct
G9010A Radiator Assy
G9031A Bracket Sub-assy, HV Water Pump
G9160 Fan Assy, Inverter Cooling W/Motor & Bracket
G9164A Cap, Inverter Radiator
G9225K Hose, Inverter Cooling, NO.1
G9226A Hose, Inverter Cooling, NO.2
G9227A Hose, Inverter Cooling, NO.3
G9228A Hose, Inverter Cooling, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
