Toyota Dyna/Toyoace HV
2011-07 → present · chassis XKU7## · catalogue 773120 · Japan
Supported model
Data version 2021-03
Hev Control Computer

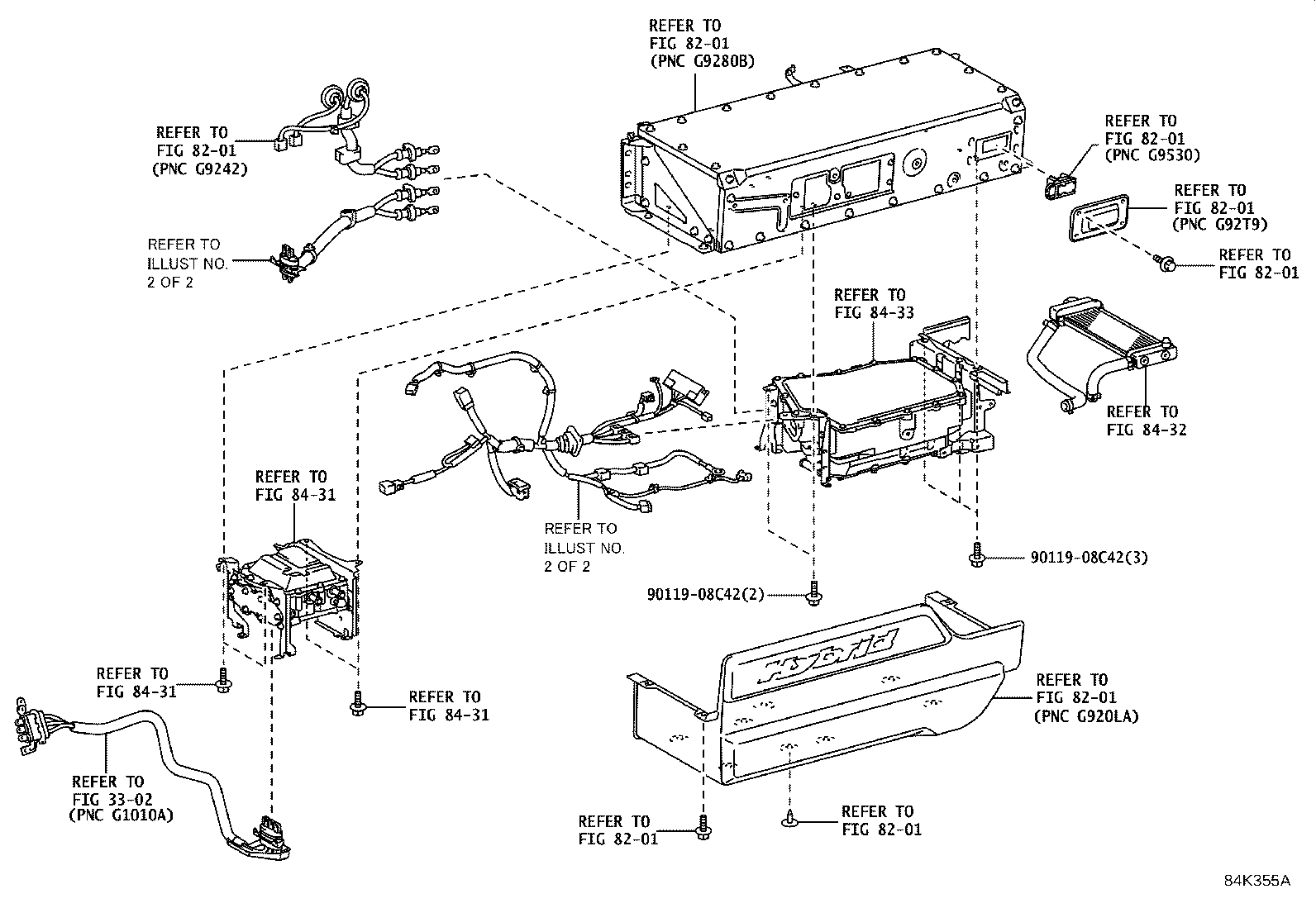

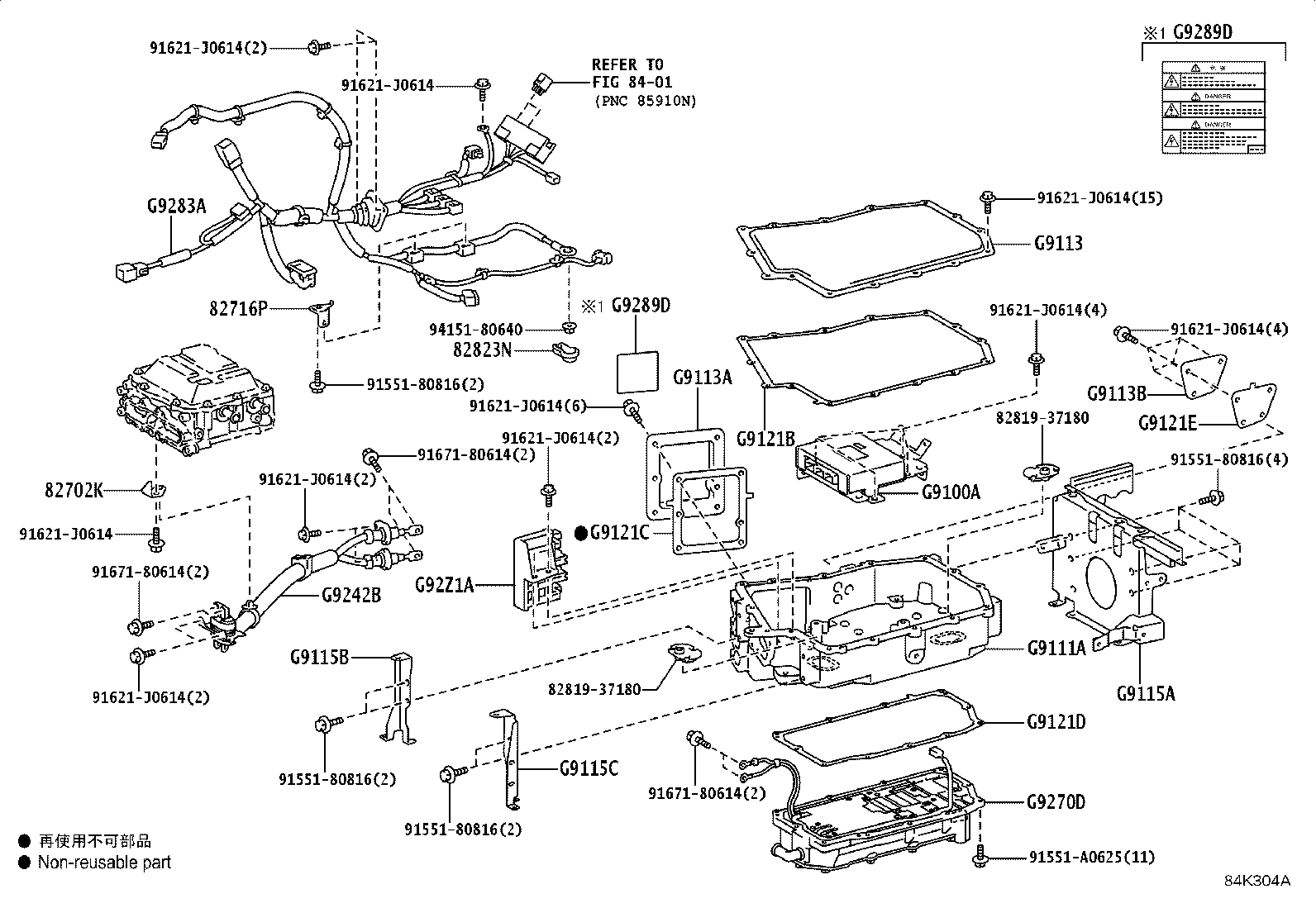

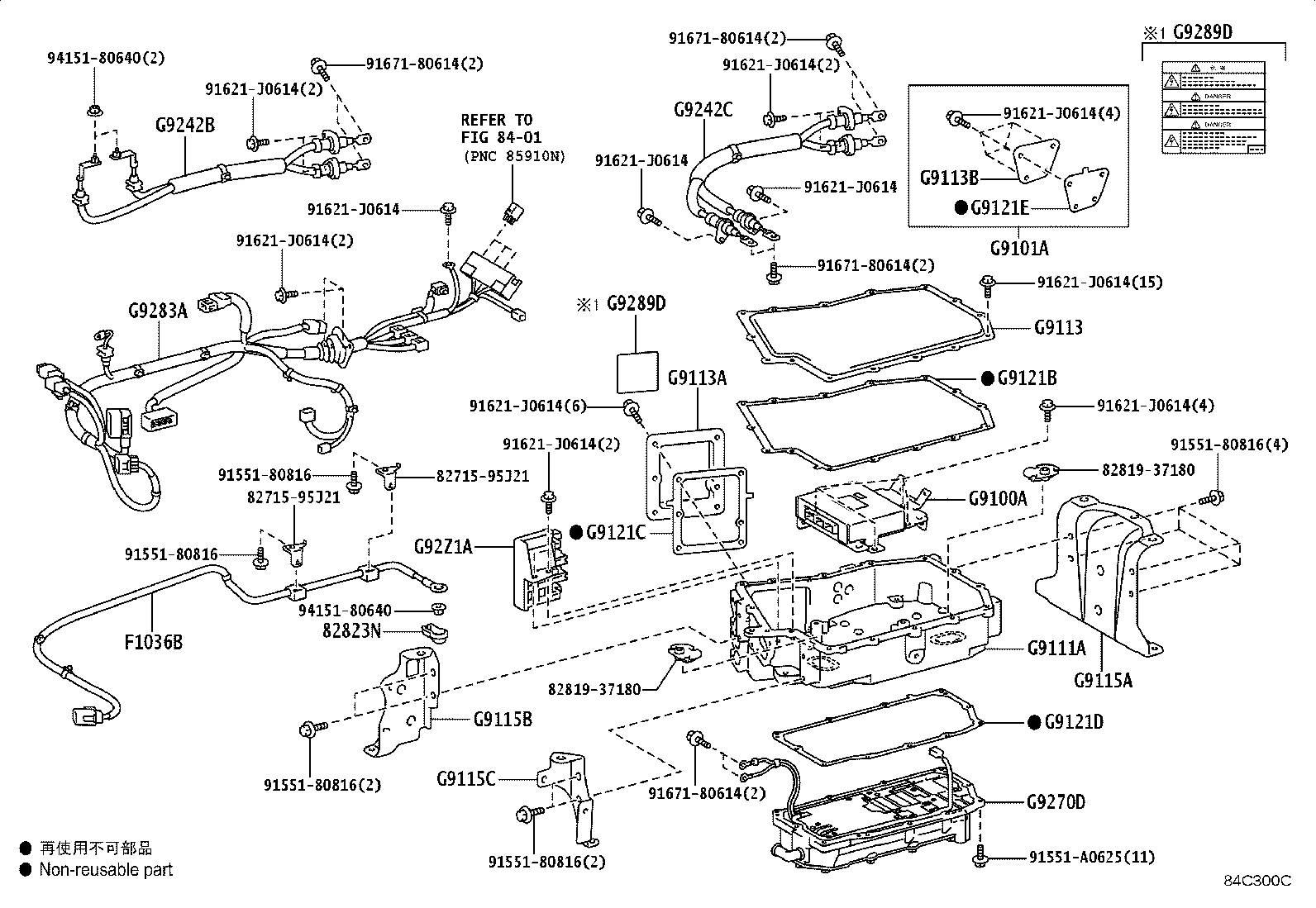

23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 82702K | Bracket Sub-assy, Wiring Harness |
| 82716P | Bracket, Wiring Harness Clamp |
| 82823N | Cap, Terminal |
| F1036B | Wire Sub-assy, Converter, NO.1 |
| G9100A | Controller Assy, EV Unit |
| G9101A | Cover Sub-assy, EV Unit Controller |
| G9111A | Case, EV Unit Controller |
| G9113 | Cover, Electric Vehicle Unit Controller, Upper |
| G9113A | Cover, Electric Vehicle Unit Controller, Upper, NO.2 |
| G9113B | Cover, Electric Vehicle Unit Controller, Upper, NO.3 |
| G9115A | Bracket, Electric Vehicle Unit Controller |
| G9115B | Bracket, Electric Vehicle Unit Controller, NO.2 |
| G9115C | Bracket, Electric Vehicle Unit Controller, NO.3 |
| G9121B | Gasket, Electric Vehicle Unit Controller Cover |
| G9121C | Gasket, Electric Vehicle Unit Controller Cover, NO.2 |
| G9121D | Gasket, Electric Vehicle Unit Controller Cover, NO.3 |
| G9121E | Gasket, Electric Vehicle Unit Controller Cover, NO.4 |
| G9242B | Cable, Main Battery |
| G9242C | Cable, Main Battery, NO.2 |
| G9270D | Converter Assy, EV |
| G9283A | Wire, Hybrid Battery |
| G9289D | Label, Battery Caution |
| G92Z1A | Block, HV Battery Junction |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
