Heating & Air Conditioning - Cooler Piping

21 part groups · 3 illustrations

Illustrations

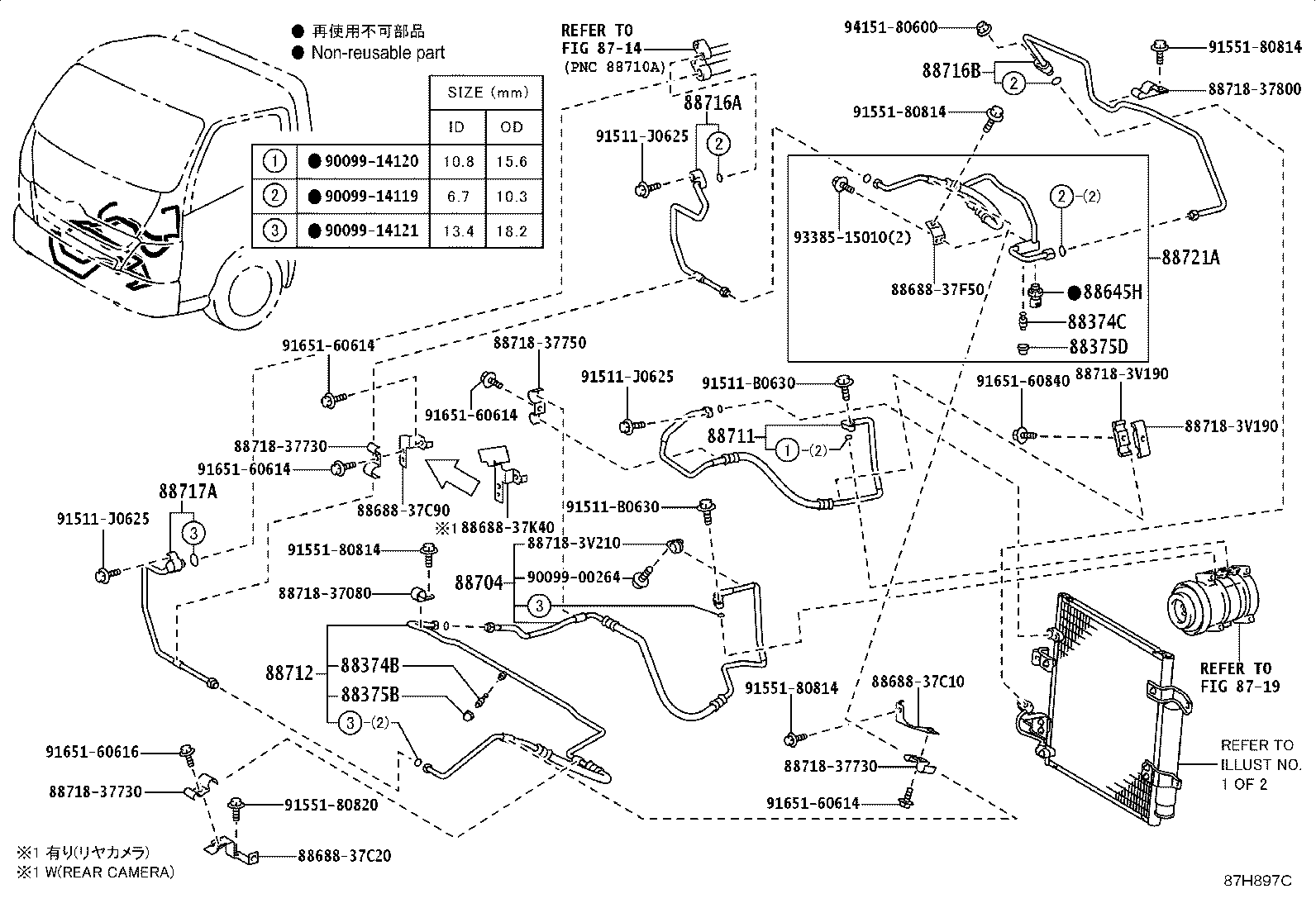

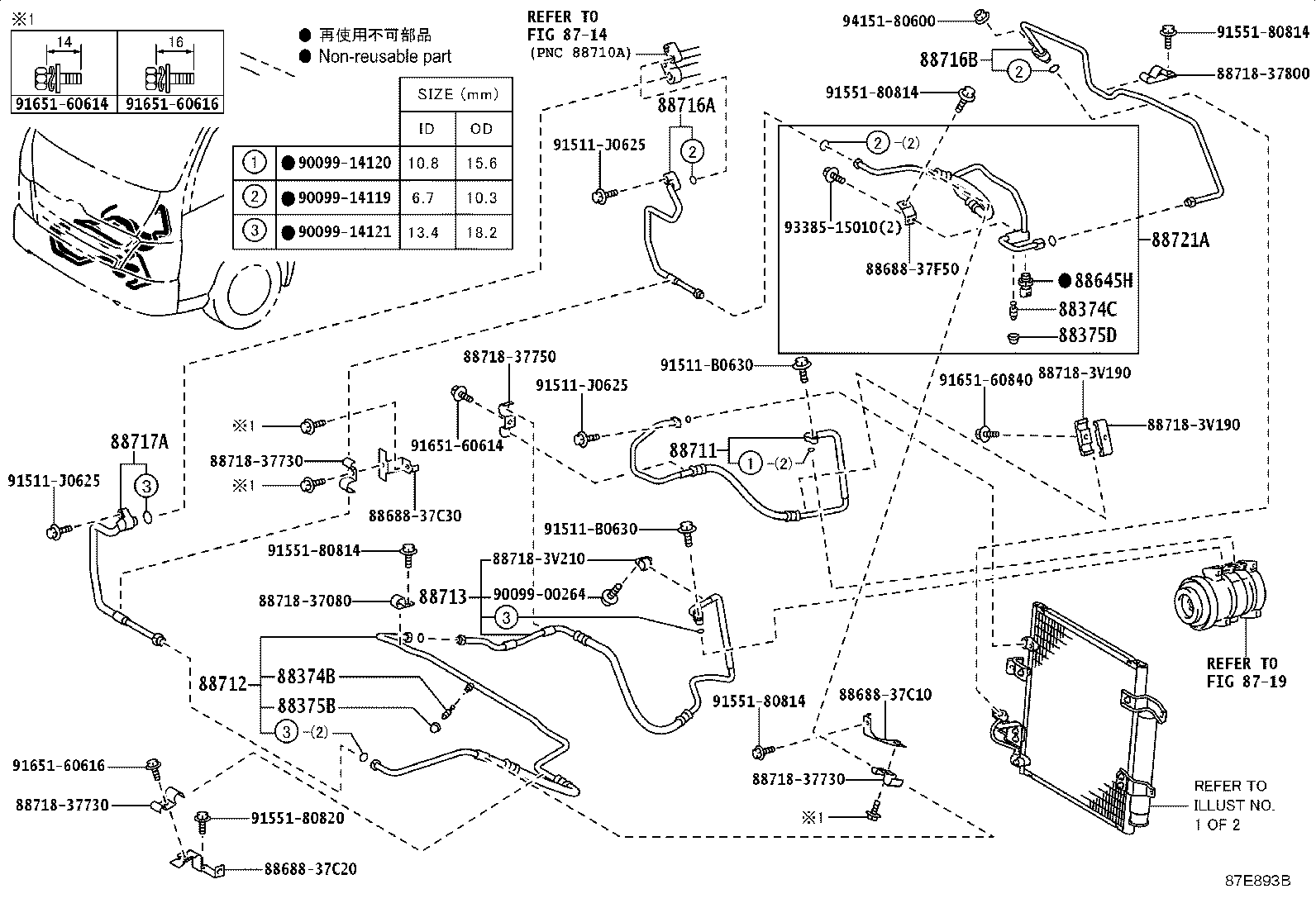

Figure 87C303B 87C303B 2011-07 → — Figure 87E893B 87E893B 2011-07 → — Figure 87H897C 87H897C 2019-05 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88461A Core, Cooler Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88463C Bracket, Cooler Condenser, NO.4
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88704 Hose Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88713 Hose, Cooler Refrigerant Suction, NO.2
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717A Pipe, Cooler Refrigerant Suction, A
88721A Hose, Liquid, A
88733 Label, Cooler Service Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
