Toyota Land Cruiser S/T,H/T

1980-08 → 1984-10 · chassis BJ4# · catalogue 781110 · Japan

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

20 part groups · 2 illustrations

Illustrations

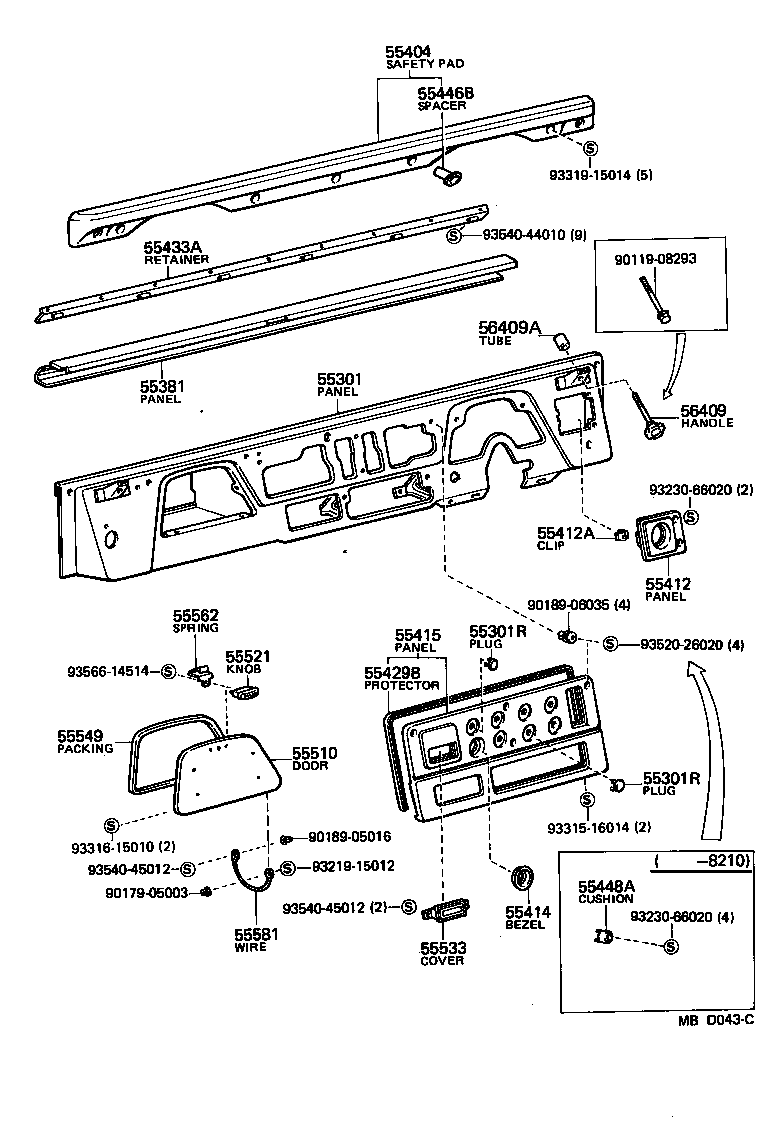

Figure MBB523B MBB523B 1980-08 → 1981-10 Figure MBD043C MBD043C 1981-10 → —

Part groups

PNCDescription
55301 Panel Sub-assy, Instrument
55301R Plug, Hole(FOR INSTRUMENT PANEL)
55381 Panel, Instrument Impact
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55412 Panel, Instrument Cluster Finish, End
55412A Clip, Panel, Instrument Cluster Finish, End
55414 Bezel, Cigar Lighter Hole
55415 Panel, Instrument Cluster Finish, Center
55429B Protector, Instrument Cluster Finish Panel
55433A Retainer, Safety Pad Set Plate
55446B Spacer, Instrument Panel Safety Pad, Set
55448A Cushion, Instrument Panel Finish, NO.1
55510 Door Assy, Glove Compartment
55521 Knob, Glove Compartment Door
55533 Cover, Auto Clock Hole
55549 Packing, Glove Compartment Door
55562 Spring, Glove Compartment Door Stop
55581 Wire, Glove Compartment Door Open
56409 Handle Sub-assy, Windshield Catch
56409A Tube, Windshield Catch Handle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
