Toyota Land Cruiser S/T,H/T
1980-08 → 1984-10 · chassis BJ4# · catalogue 781110 · Japan
Discontinued model
Data version 1985-04

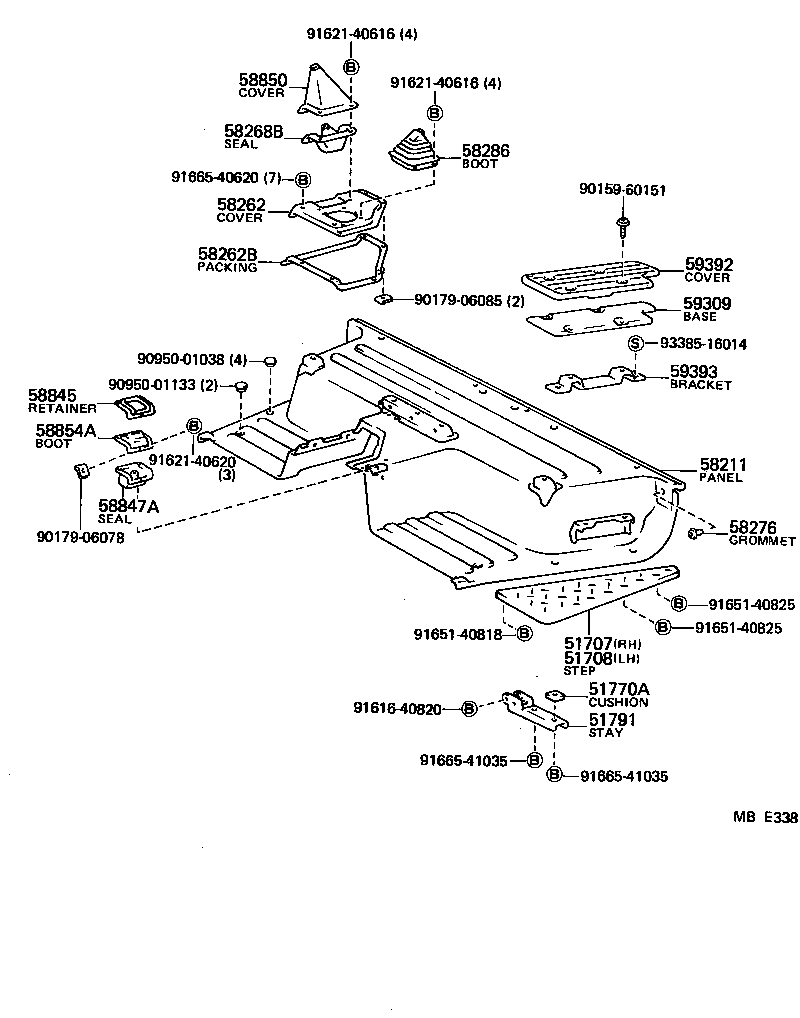

Front Floor Panel & Front Floor Member
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51707 | Step Sub-assy, RH |
| 51708 | Step Sub-assy, LH |
| 51770A | Cushion(FOR STEP) |
| 51791 | Stay, Step |
| 58211 | Panel, Front Floor |
| 58262 | Cover, Transmission |
| 58262B | Packing, Transmission Cover |
| 58268B | Seal, Transfer Lever Boot |
| 58276 | Grommet, Safety Band Anchorage Nut |
| 58280 | Dust Proof Assy, Transfer Control Lever |
| 58283 | Cover, Front Drive Dust |
| 58286 | Boot, Shift & Select Lever, NO.1 |
| 58287 | Retainer, Shift Lever Boot |
| 58845 | Retainer, Winch Lever Boot |
| 58847A | Seal, Winch Lever |
| 58850 | Cover Assy, Transfer Lever Hole |
| 58854A | Boot, Winch Lever |
| 59309 | Base Sub-assy, Floor Step |
| 59392 | Cover, Floor Step |
| 59393 | Bracket, Floor Step Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
