Toyota Land Cruiser S/T,H/T

1984-11 → 1990-01 · chassis LJ71,BJ7# · catalogue 781120 · Japan

Discontinued model Data version 1990-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

5 part groups · 3 illustrations

Illustrations

151414 1984-11 → 1988-08

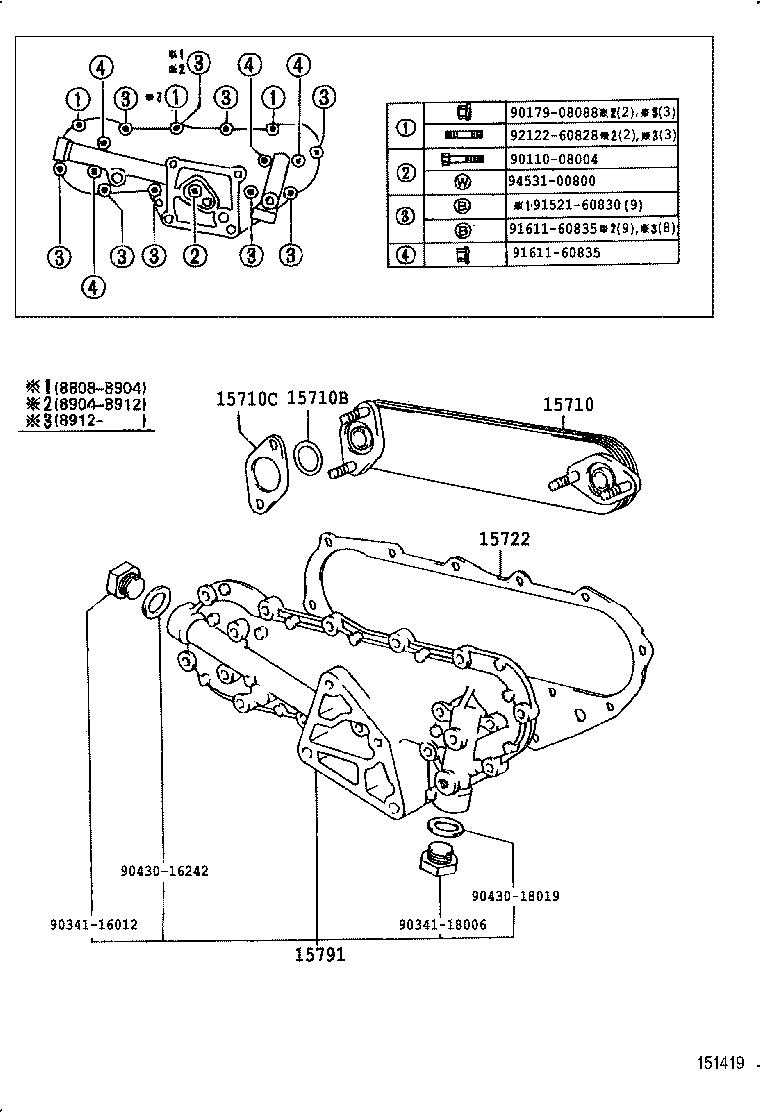

151419 1988-08 → —

Figure MA3073D

MA3073D 1985-10 → —

Part groups

PNC	Description
15710	Cooler Assy, Oil
15710B	Ring, O(FOR OIL COOLER)
15710C	Gasket(FOR OIL COOLER)
15722	Gasket, Oil Cooler
15791	Case, Oil Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
